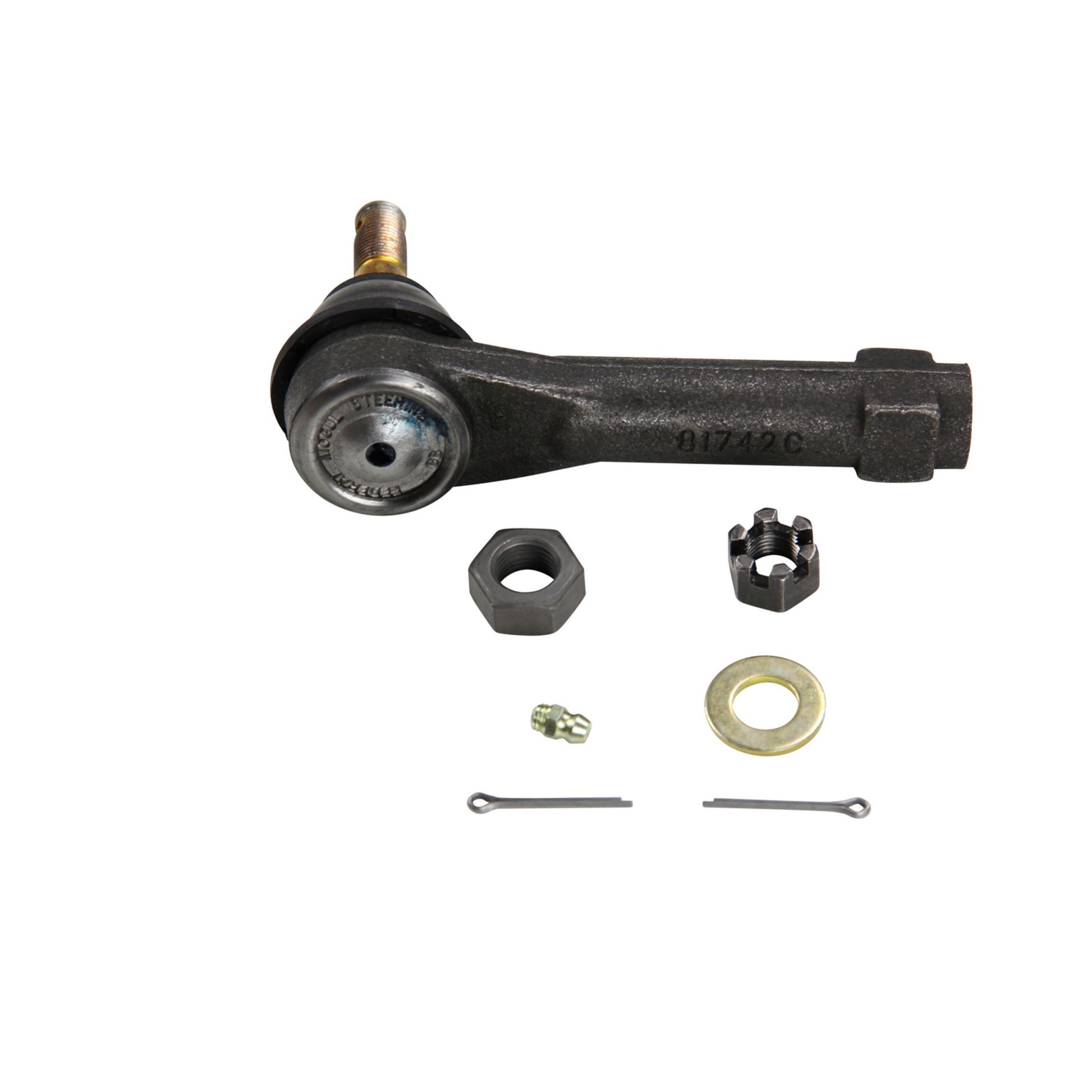

Moog Tie Rod End, Greasable, Outer, Chevy, Pontiac, Oldsmobile

SKU: 3RAU1 | MPN:  ES3453
In stock
Sale price$49.14 USD

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                                     Yes

Stud Center to End (in)                                  4.9

Rod Thread                                                   M14 x 1.50

Configuration                                                Straight

Rod Type                                                      Female

Stud Diameter Dimension(top in)                   0.483

Stud Diameter Dimension(bottom in)             0.630

Stud Thread                                                M12 x1.25

Rack End Thread                                         M12 x1.25

Specification Image Reference                  OUTERTIEROD.tif

Dust Boot Included                                       Yes

End 1 Thread Diameter (MM)                       14.000

End  1 Thread Pitch (MM)                             1.500

End 1 Thread Direction                                   R

End 2 Thread Diameter (MM)                        12

End 2 Threads Pitch (MM)                            1.25



Vehicle Fitments:

Year Make Model Submodel
2008 Chevrolet Impala 50th Anniversary Edition
2004 - 2005 Chevrolet Impala Base
2004 - 2013 Chevrolet Impala LS, Police
2006 - 2013 Chevrolet Impala LTZ, LT
2004 - 2009 Chevrolet Impala SS
2014 - 2016 Chevrolet Impala Limited LT, LS, LTZ, Police
2005 - 2007 Chevrolet Monte Carlo LT
2006 Chevrolet Monte Carlo LTZ
2004 - 2007 Chevrolet Monte Carlo SS, LS
1997 - 2004 Chevrolet Venture Base
1997 - 2005 Chevrolet Venture LS
2000 - 2005 Chevrolet Venture LT, Plus
2000 - 2003 Chevrolet Venture Value, Warner Bros.
1997 Oldsmobile Silhouette Base
1997 - 2004 Oldsmobile Silhouette GLS, GL
1998 - 1999 Oldsmobile Silhouette GS
1998 - 2004 Oldsmobile Silhouette Premiere
1997 - 2003 Pontiac Grand Prix SE, GT, GTP
1999 - 2005 Pontiac Montana Base
2005 Pontiac Montana SV6
1997 - 1999 Pontiac Trans Sport Base
1998 Pontiac Trans Sport Montana
