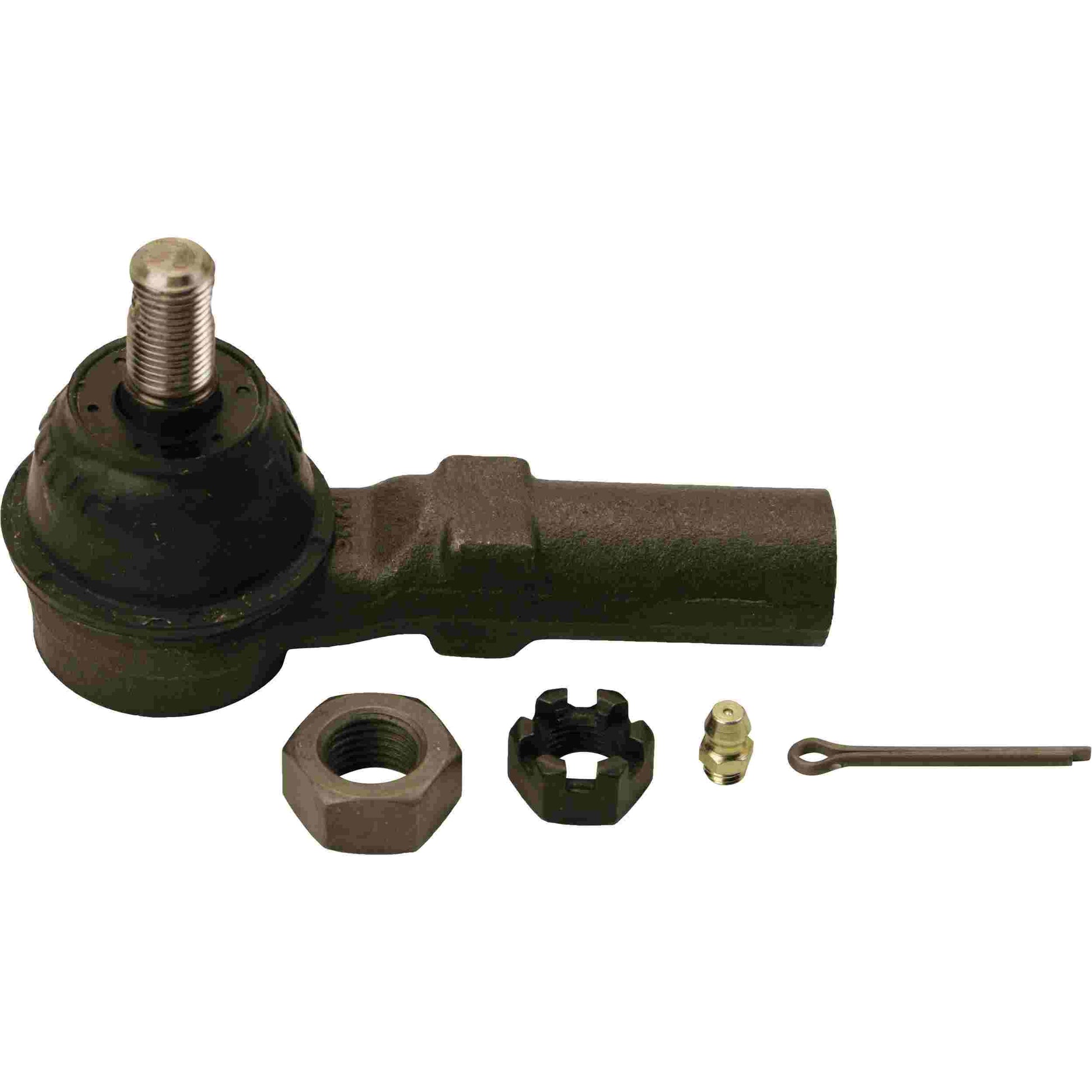

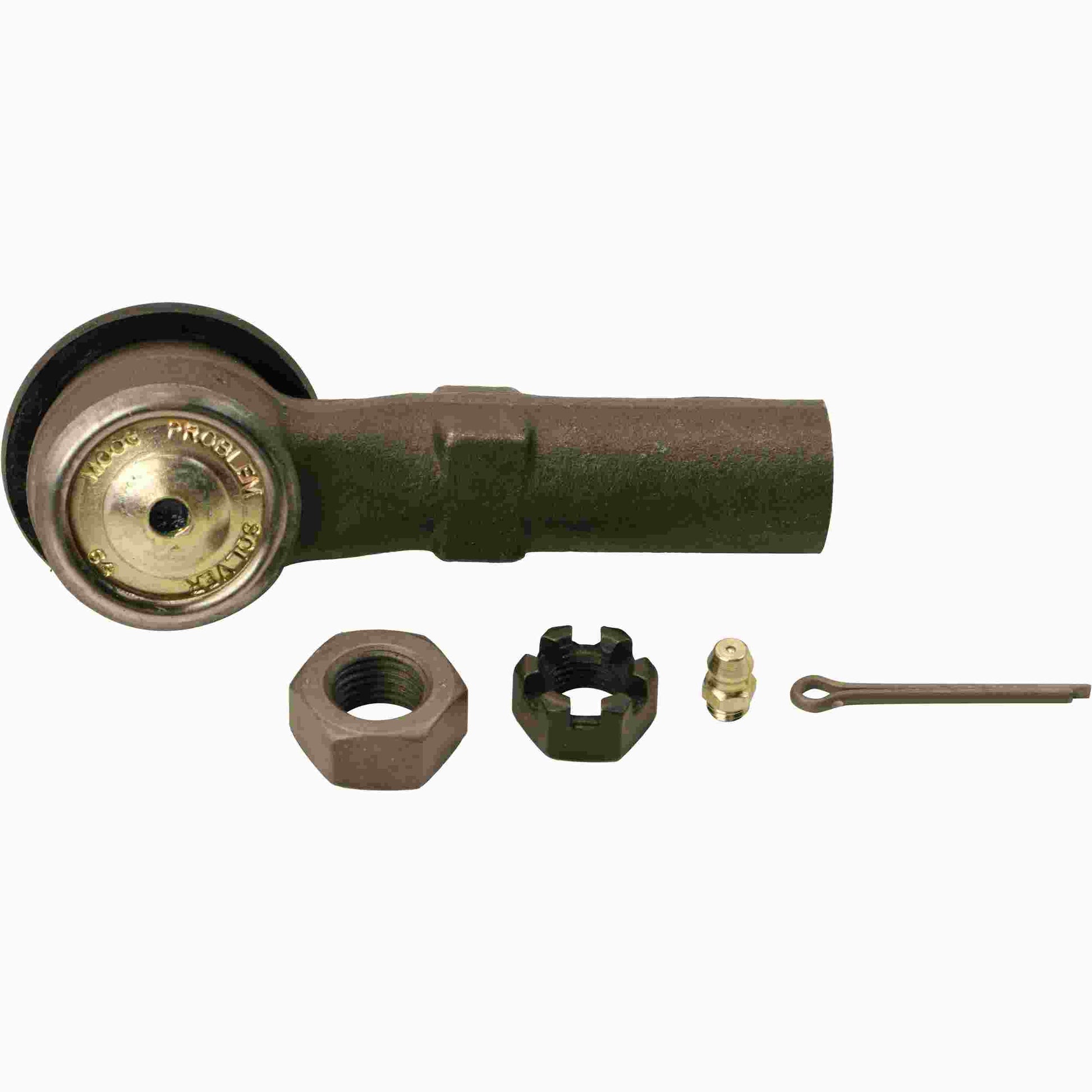

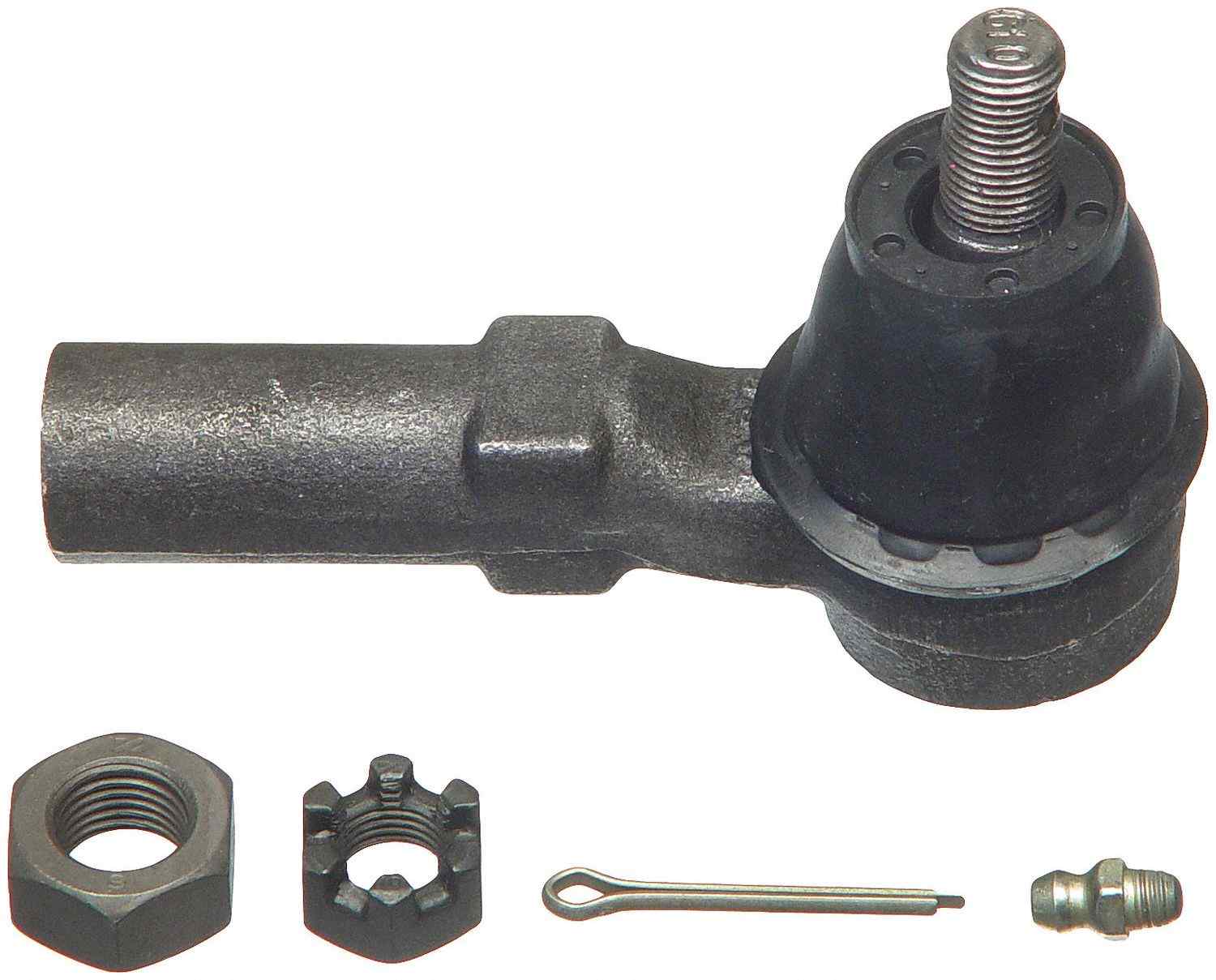

Moog Tie Rod End, Outer, Infiniti, for Nissan

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                                      Yes

Stud Center to End (in)                                  3,700

Rod Thread                                                   M14x1.50

Configuration                                                Straight

Rod Type                                                      Female

Stud Diameter Dimension(top in)                    0.511

Stud Diameter Dimension(bottom in)              0.610

Stud Thread                                                  M12x1.25

Rack End Thread                                            M12x1.25

Specification Image Reference                  OUTERTIEROD.tif

Dust Boot Included                                          Yes

End 1 Thread Diameter (MM)                          14.000

End 1 Thread Pitch (MM)                                1.500

End 1 Thread Direction                                      R

End 2 Thread Diameter (MM)                          12.0

End 2 Thread Pitch (MM)                                 1.25

End 2 Direction                                                R

Vehicle Fitments:
