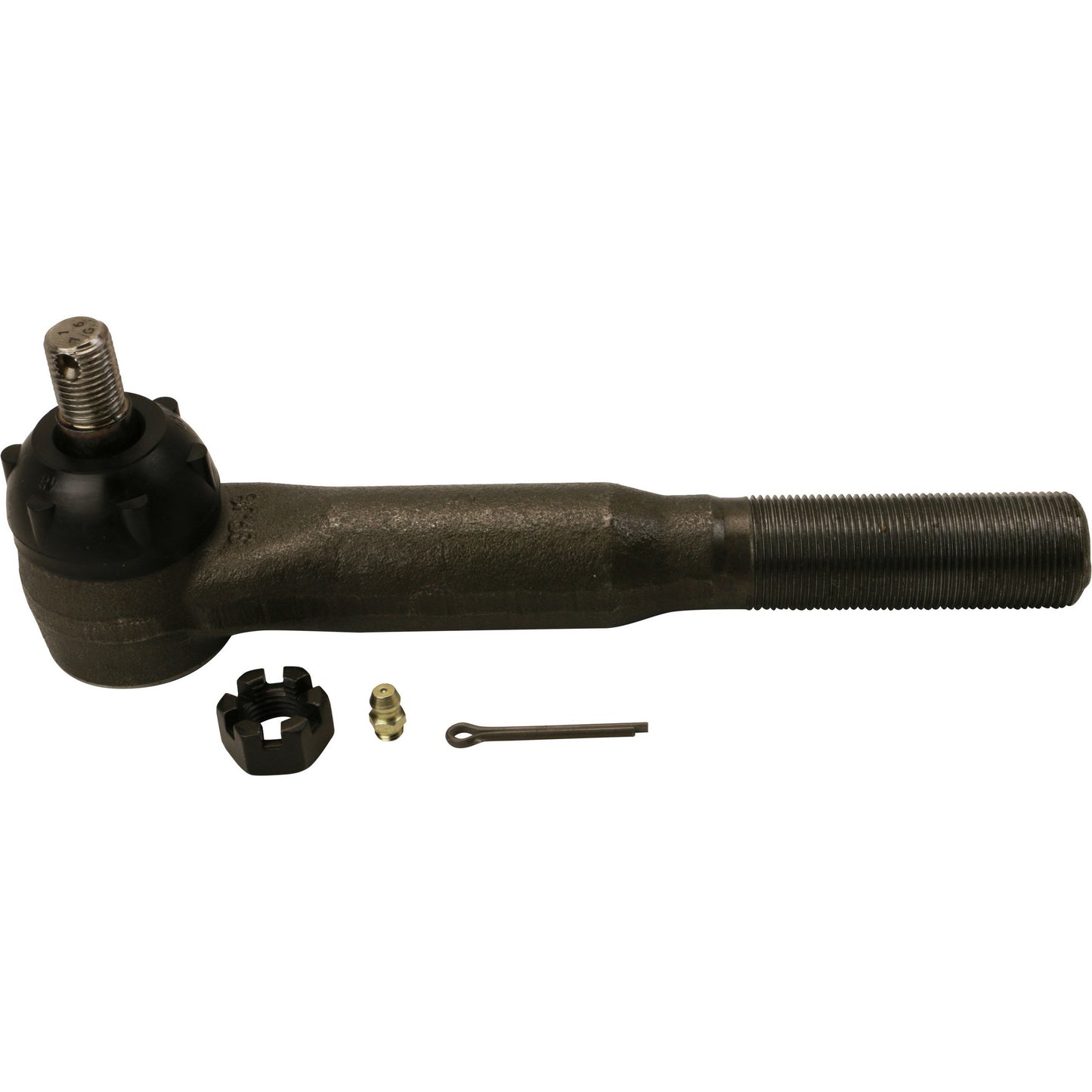

Moog Tie Rod End, Greasable, Left, Ford, SUV, Pickup, 4WD

Loose or worn chassis parts can lead to premature tire wear
Exclusive cover plate protects against contaminants leaking into the bearing surface
Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Stud Center to End (in) 8.000
Rod Thread 1-16R
Rod Type Male
Stud Diameter Dimension (top in) 0.612
Stud Diameter Dimension (bottom in) 0.703
Stud Thread 9/16"-18
Specification Image Refrence OuterTieRod.tif
End 1 Thread Diameter (IN) 1.000
End 1 Direction Clockwise
End 1 Threads Per inch 16
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2003 - 2005 | Ford | Excursion | Eddie Bauer |
2004 - 2005 | Ford | Excursion | XLS |
2000 - 2005 | Ford | Excursion | XLT, Limited |
2004 | Ford | F-250 Super Duty | King Ranch, Harley-Davidson Edition |
1999 - 2004 | Ford | F-250 Super Duty | Lariat, XL, XLT |
2004 | Ford | F-350 Super Duty | Harley-Davidson Edition |
2003 - 2004 | Ford | F-350 Super Duty | King Ranch |
1999 - 2004 | Ford | F-350 Super Duty | Lariat, XL, XLT |
1999 - 2002 | Ford | F-450 Super Duty | XL, XLT, Lariat |
1999 - 2002 | Ford | F-550 Super Duty | XLT, Lariat, XL |
