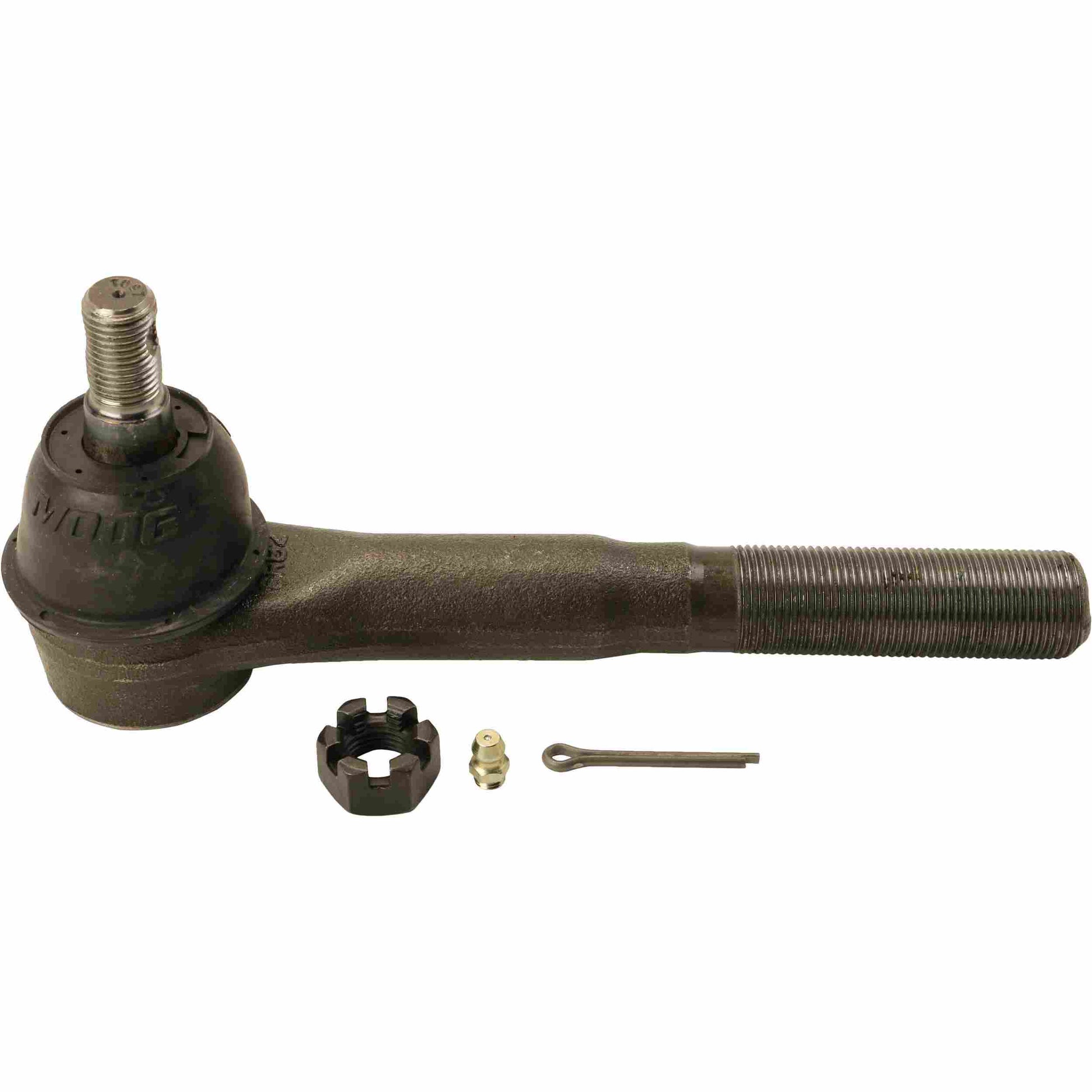

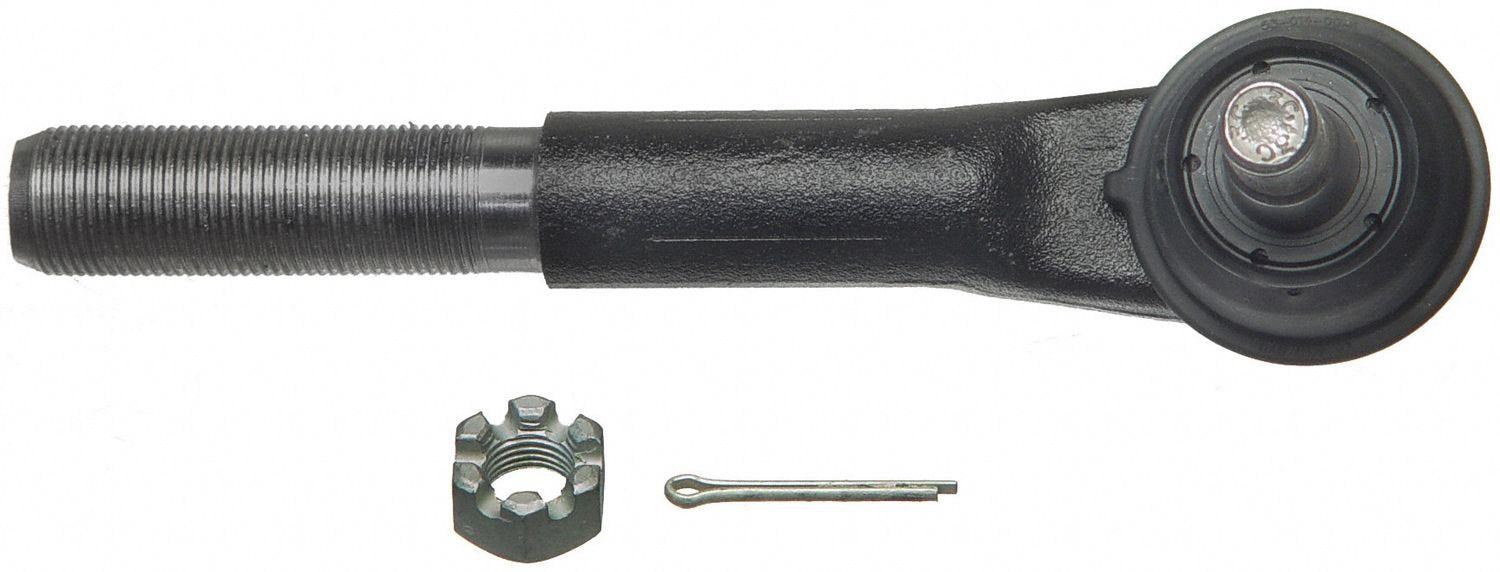

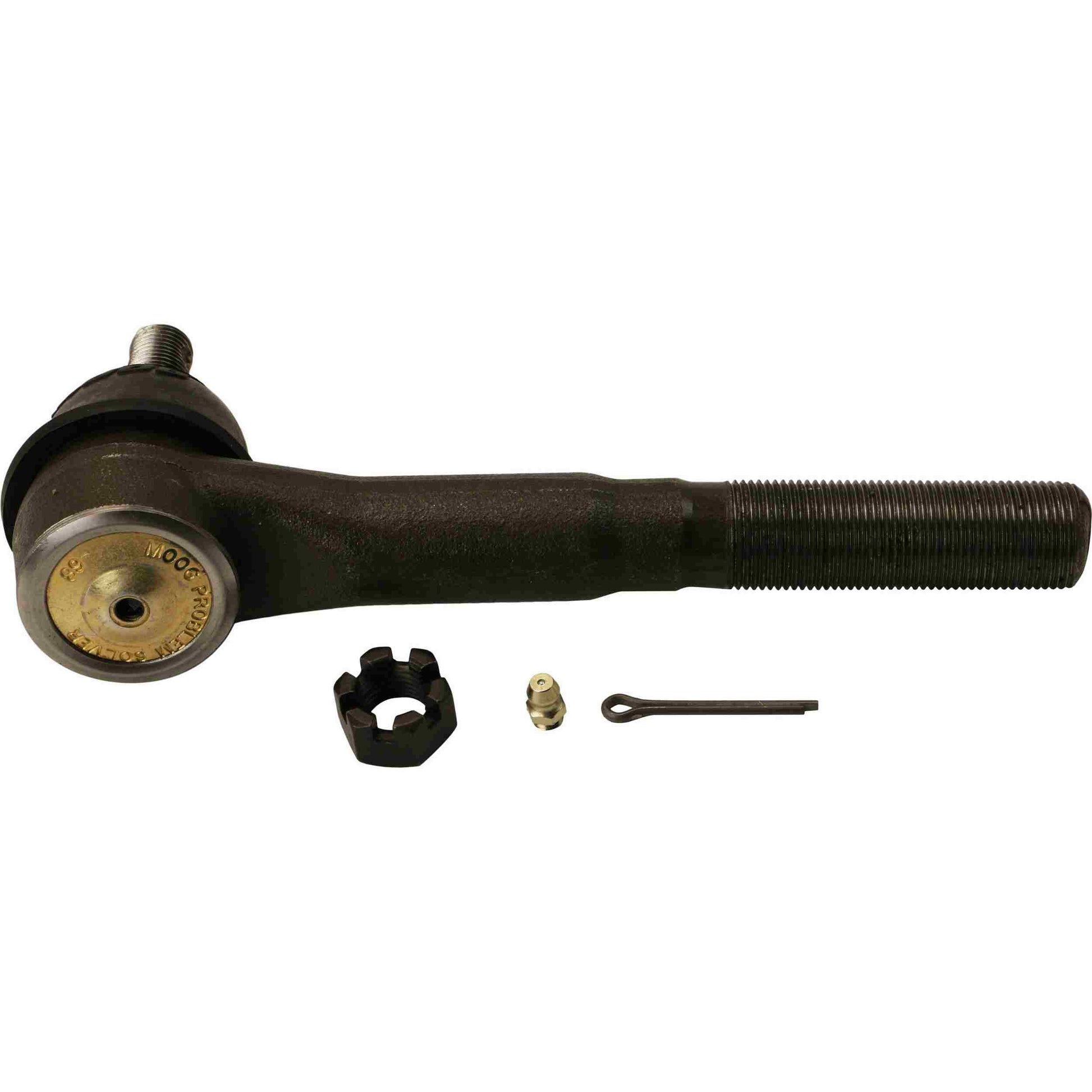

Moog Tie Rod End, Greasable, Outer, Ford

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Stud Center to End (in)                                  7.240

Rod Type                                                      Male

Stud Diameter Dimension(top in)                   0.624

Stud Thread                                                M14x1.5-6 RH

Specification Image Reference                     OUTERTIEROD.tif

Vehicle Fitments:
