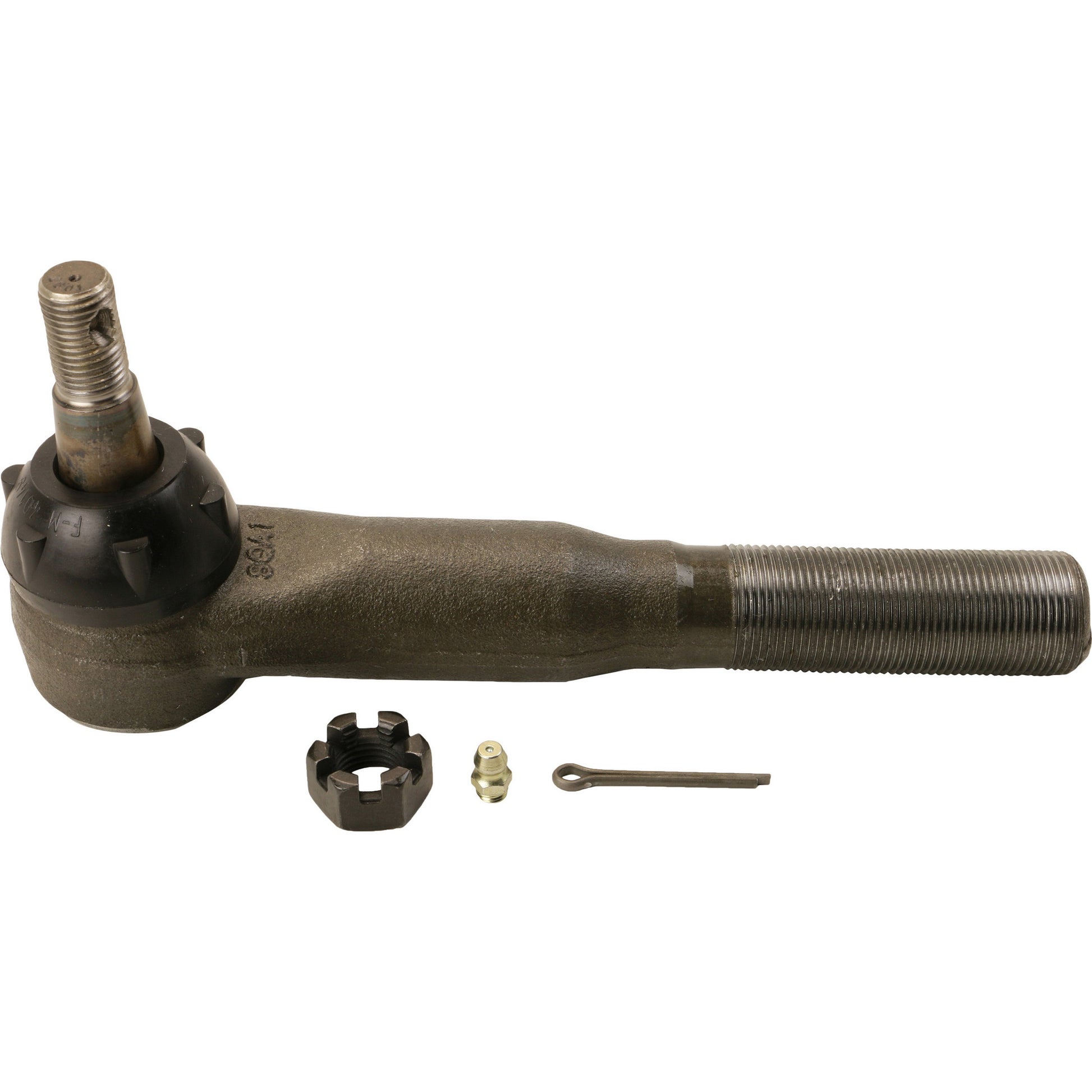

Moog Tie Rod End, Greasable, Outer, Ford

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Stud Center to End (in)                        7.240

Rod Thread                                         1-16R

Rod Type                                             Male

Stud Diameter Dimension(top in)          0.625

Stud Diameter Dimension(bottom in)    0.768

Stud Thread                                        M14-1.5-6G RH

Specification Image Reference              OUTERTIEROD.tif

End 1 Thread Diameter (IN)                 1.000

End 1 Thread Direction                        Clockwise

End 1 Threads Per Inch                       16

Vehicle Fitments:
