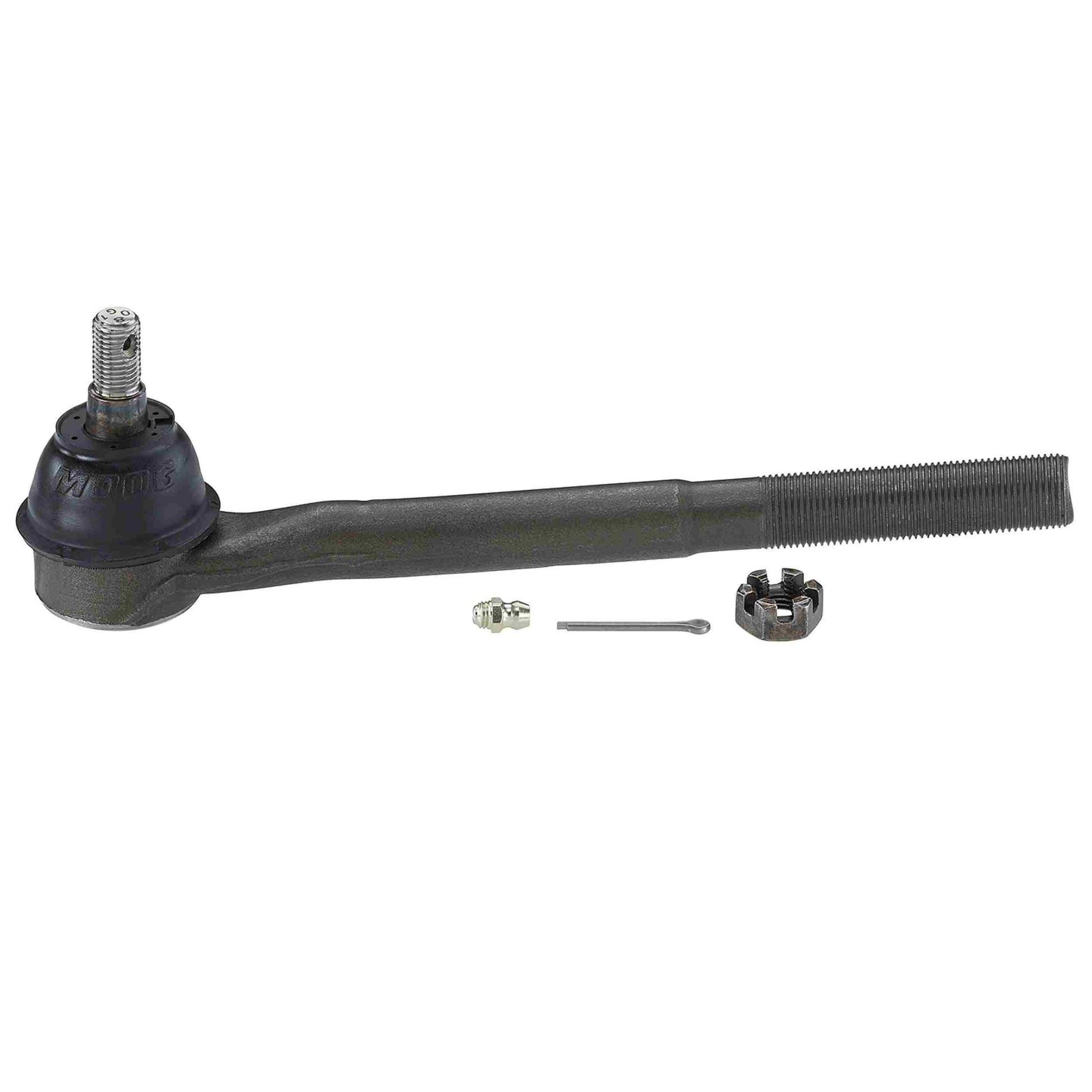

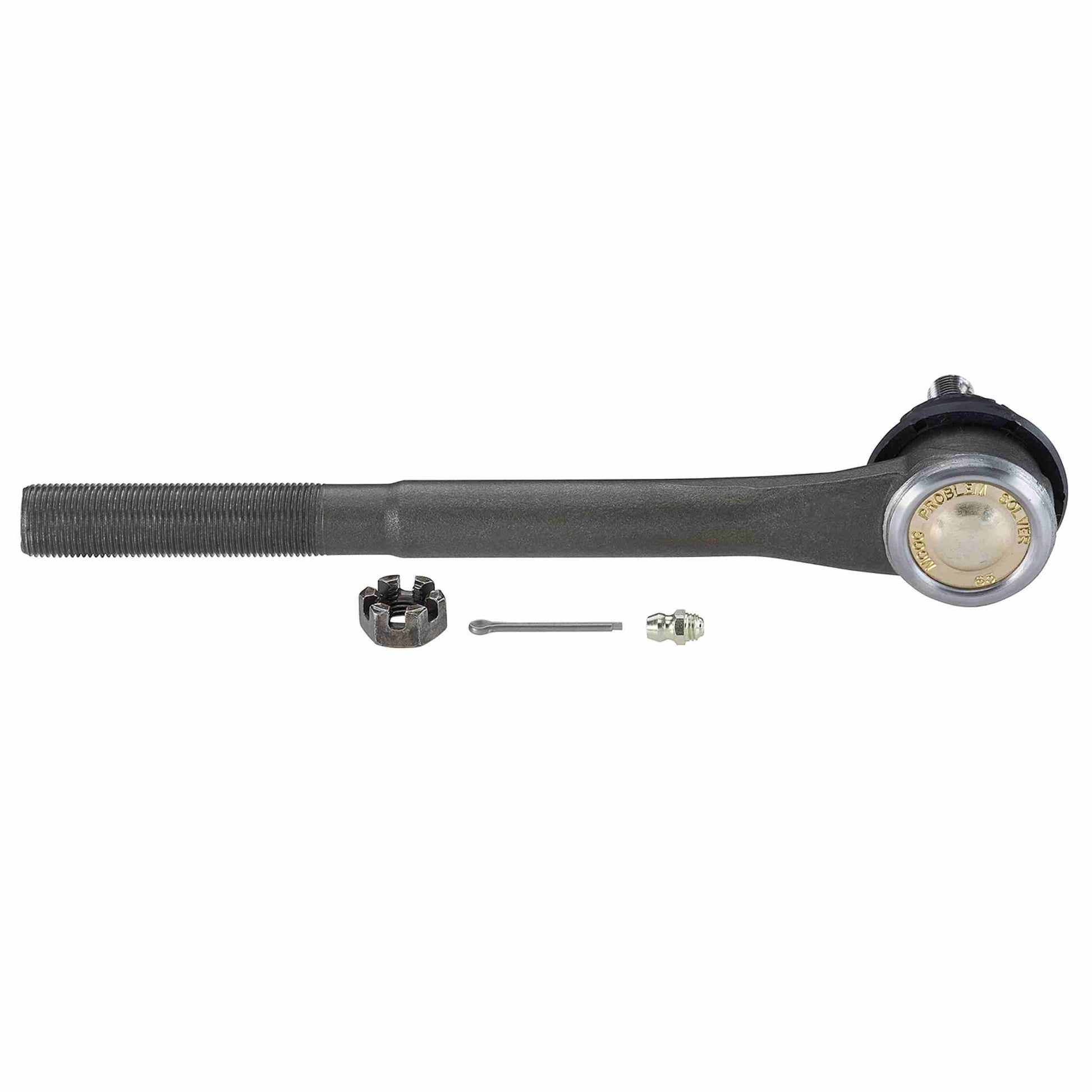

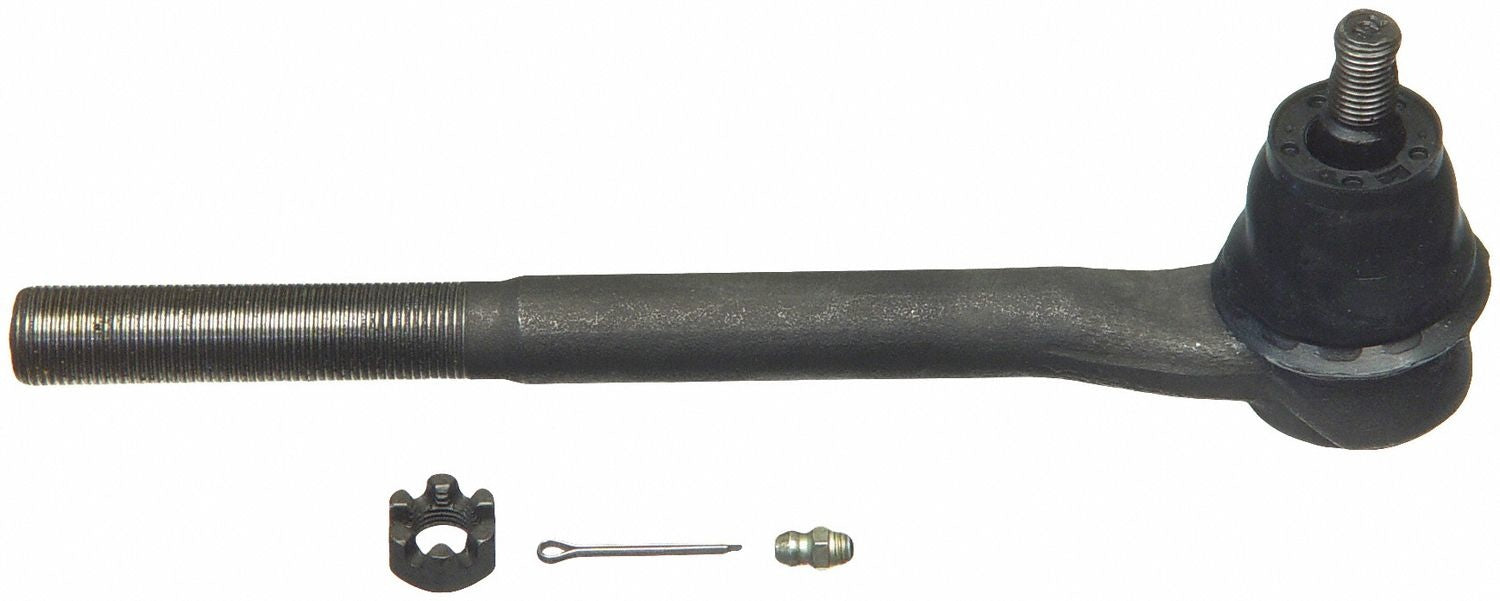

Moog Tie Rod End:Greasable,Inner,Chevy,GMC,Isuzu,RWD
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Stud Center to End (in): 8.320
Rod Thread: 11/16-18L
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.516
Stud Diameter Dimension (bottom in.): 0.592
Stud Thread: 7/16"-20
End 1 Thread Diameter (IN): 0.688
End 1 Thread Direction: Counterclockwise
End 1 Threads Per Inch: 18
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 2005 | Chevrolet | Blazer | Base |
| 1996 - 1997 | Chevrolet | Blazer | Deluxe |
| 1996 - 2004 | Chevrolet | Blazer | LS |
| 1996 - 2002 | Chevrolet | Blazer | LT |
| 2002 | Chevrolet | Blazer | LTZ |
| 1999 - 2001 | Chevrolet | Blazer | Trailblazer |
| 2001 - 2005 | Chevrolet | Blazer | Xtreme |
| 2003 - 2005 | Chevrolet | Blazer | ZR2 |
| 1996 - 2003 | Chevrolet | S10 | Base, LS, ZR2 |
| 1996 - 1998 | Chevrolet | S10 | SS |
| 1999 - 2003 | Chevrolet | S10 | Xtreme |
| 2002 - 2003 | Chevrolet | S10 | ZR5 |
| 1996 | GMC | Jimmy | Base |
| 2000 - 2001 | GMC | Jimmy | Diamond Edition |
| 1998 - 2000 | GMC | Jimmy | Envoy |
| 1996 - 2001 | GMC | Jimmy | SLE, SL, SLT |
| 1996 - 2002 | GMC | Jimmy | SLS |
| 1996 - 2003 | GMC | Sonoma | SL, SLS |
| 1996 - 2001 | GMC | Sonoma | SLE |
| 1996 - 2000 | Isuzu | Hombre | S, XS |
Moog Tie Rod End:Greasable,Inner,Chevy,GMC,Isuzu,RWD
Sale price$49.64 USD
