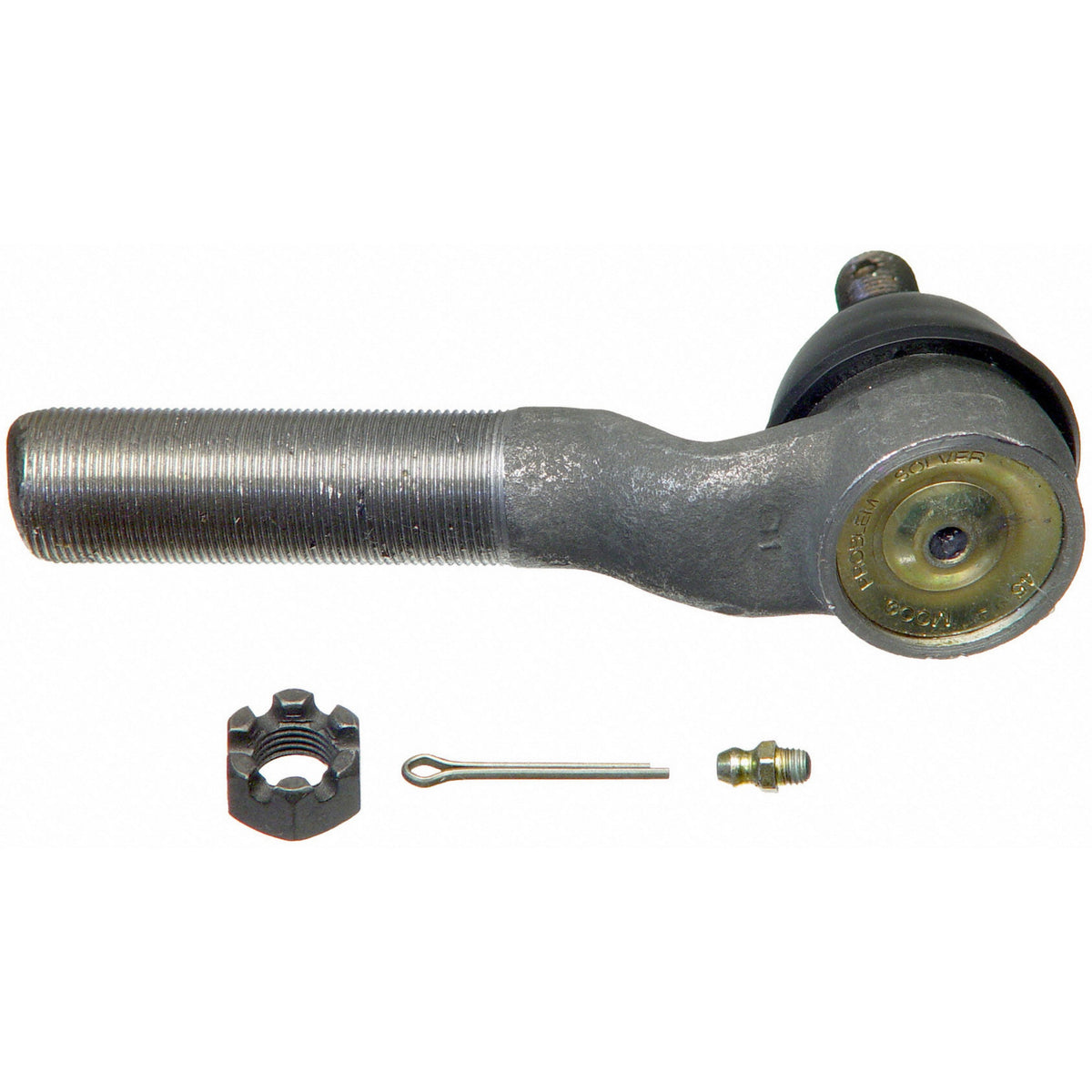

Moog Tie Rod End:Greasable,Outer,Ford,4WD,Each
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Stud Center to End (in): 5.790
Rod Thread: 1.0-18R
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.594
Stud Diameter Dimension (bottom in.): 0.703
Stud Thread: M14-1.5-6G RH
End 1 Thread Diameter (IN): 1.000
End 1 Thread Direction: Clockwise
End 1 Threads Per Inch: 18
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1995 | Ford | F-250 | Base |
| 1996 | Ford | F-250 | XLT VIP |
| 1995 - 1996 | Ford | F-250 | XLT, Eddie Bauer, Special, XL |
| 1997 | Ford | F-250 HD | XLT, XL |
Moog Tie Rod End:Greasable,Outer,Ford,4WD,Each
Sale price$47.76 USD
