MOOG Chassis Products

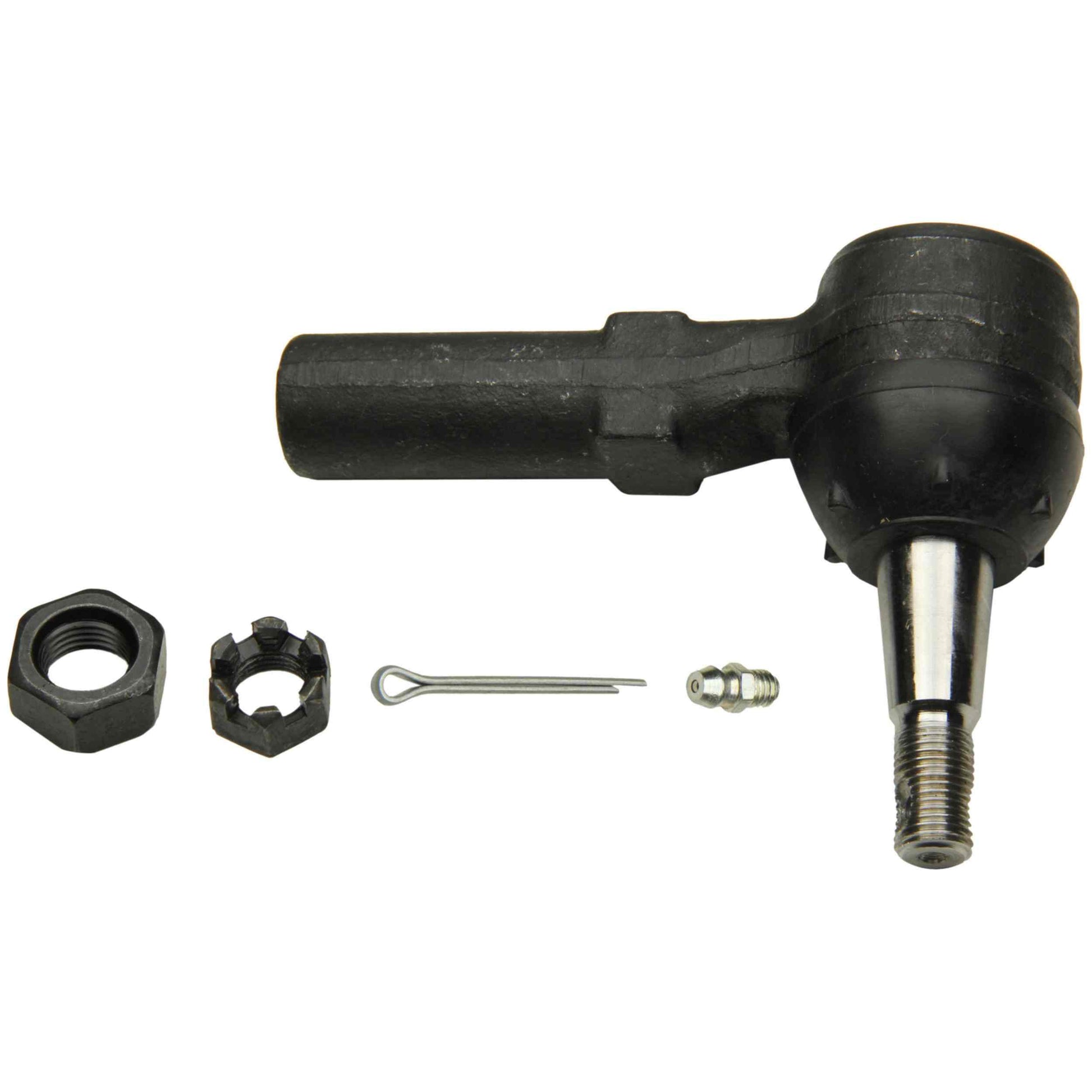

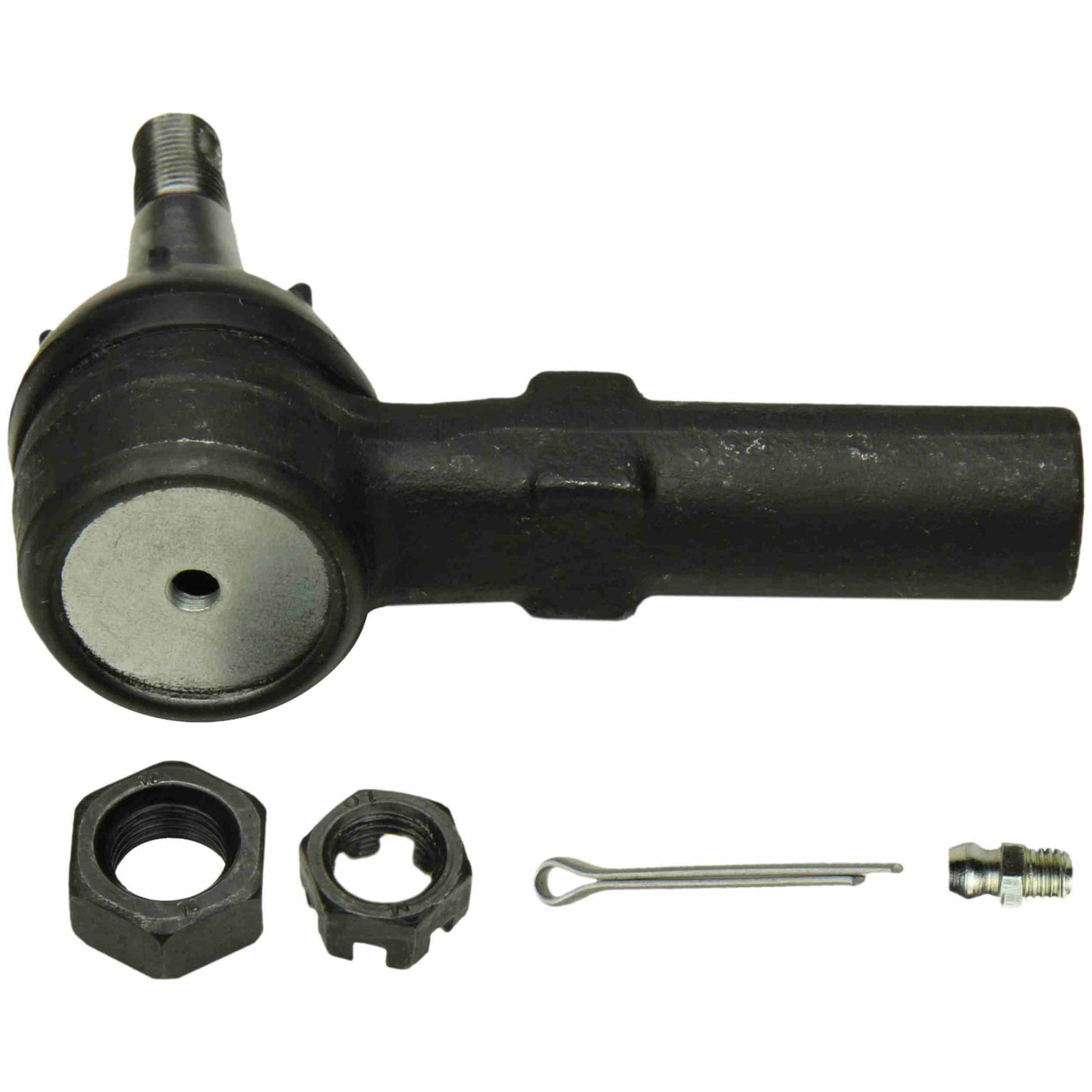

Moog Tie Rod End

Moog Tie Rod End

sku: 3S1UT | mpn: ES3349RL
$49.06
$49.06 $49.06
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Tie Rods

Greaseable Yes
Stud Center to End (in) 4.020
Rod Thread M14 X 1.50
Configuration STRAIGHT
Rod Type (Male / Female) FEMALE
Stud Diameter Dimension (top in.) 0.534
Stud Diameter Dimension (bottom in.) 0.690
Stud Thread M12 X 1.25
Rack End Thread M12 X 1.25
Specification Image Reference OUTERTIEROD.tif
Dust Boot Included Yes
End 1 Thread Diameter (MM) 14.000
End 1 Thread Pitch (MM) 1.500
End 1 Thread Direction R
End 2 Thread Diameter (MM) 12.0
End 2 Thread Pitch (MM) 1.25


Vehicle Fitments:

Year Make Model Submodel
1996 - 1997 Ford Taurus GL, G
1996 - 2004 Ford Taurus LX
1998 - 2007 Ford Taurus SE
1998 - 2003 Ford Taurus SE Comfort
2000 - 2007 Ford Taurus SEL
2000 - 2004 Ford Taurus SES
1996 - 1999 Ford Taurus SHO
2000 Ford Taurus SVG
1996 Mercury Sable G
1998 - 2004 Mercury Sable LS Premium
1996 - 2005 Mercury Sable LS, GS
2005 Mercury Sable Platinum Edition
