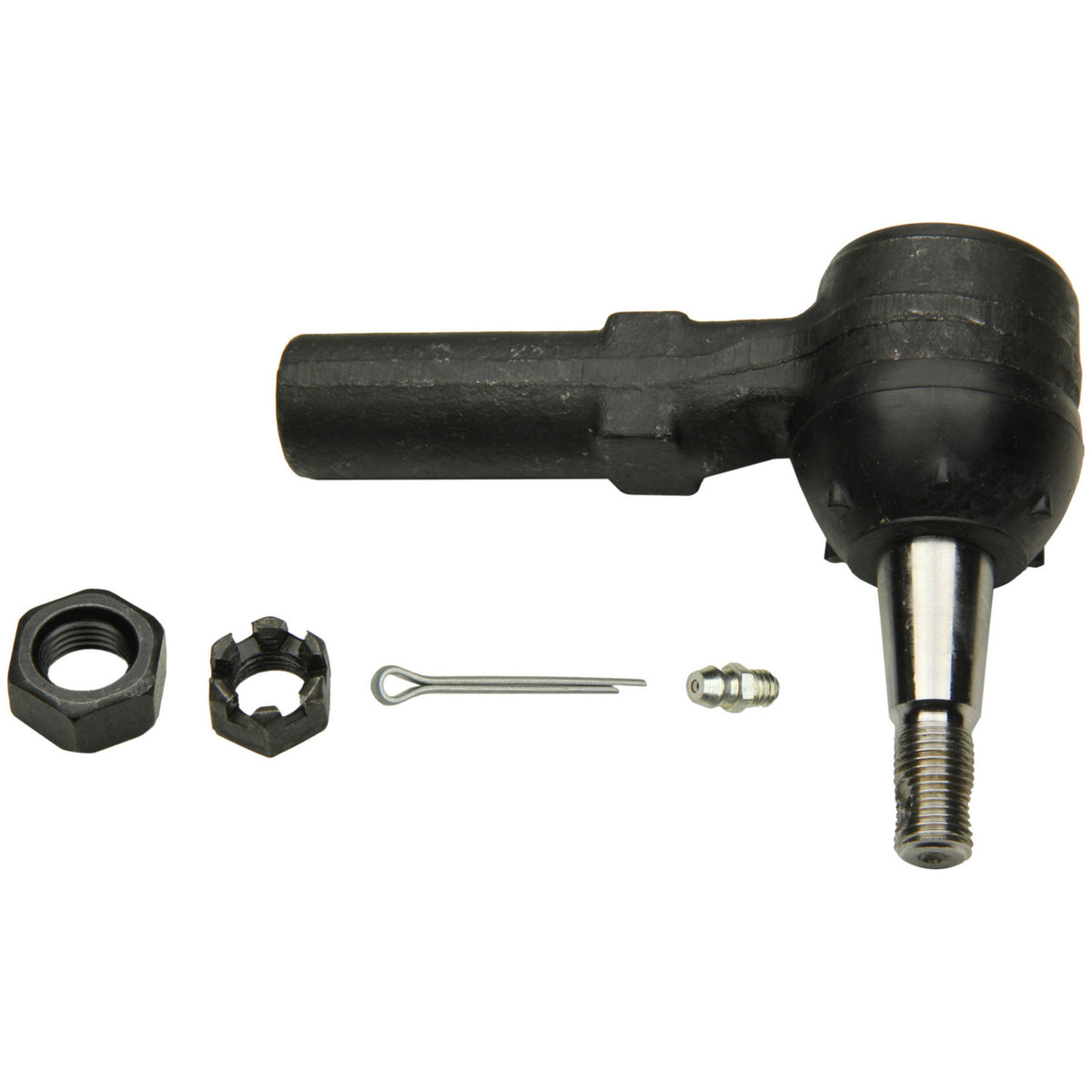

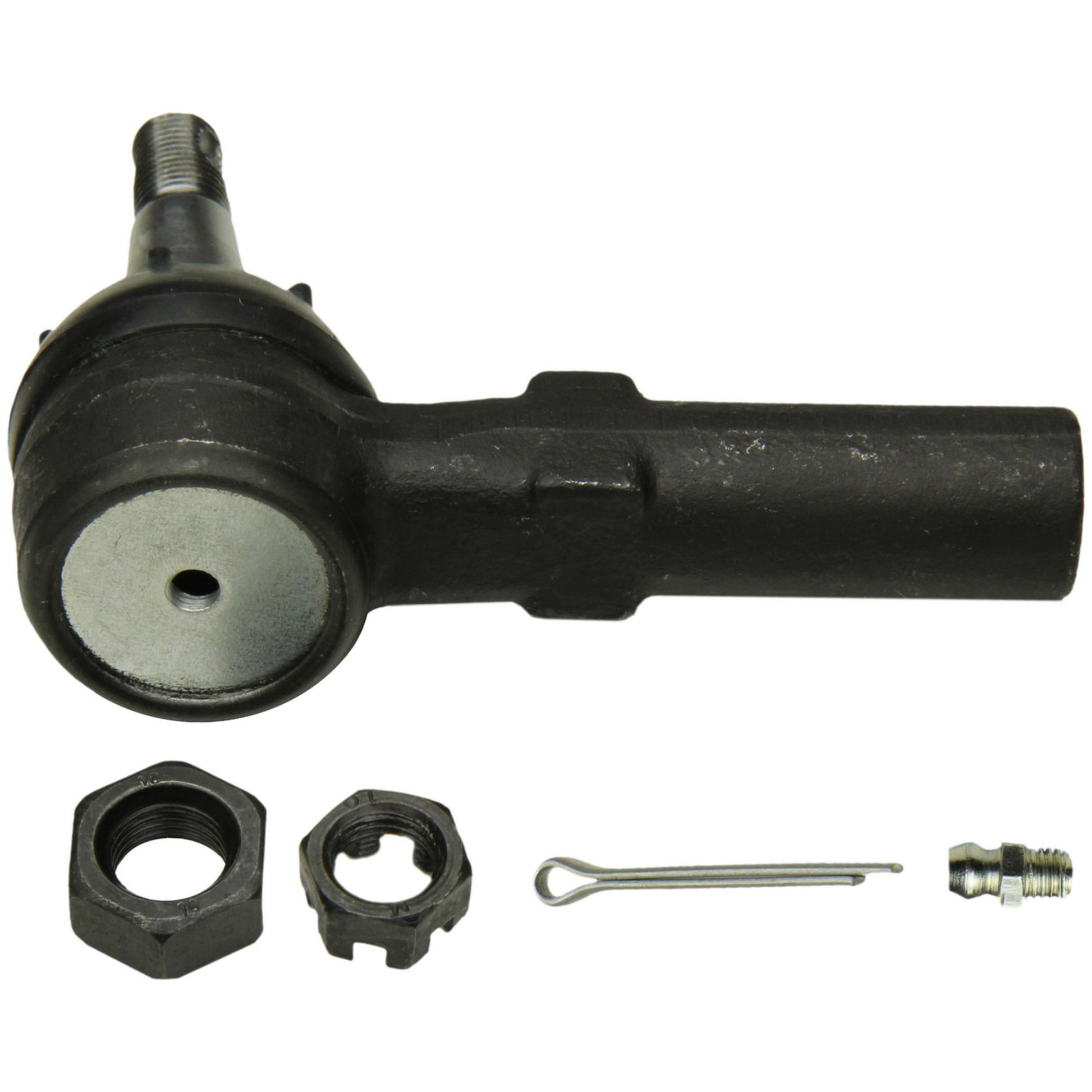

Moog Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications
Tie Rods
| Greaseable | Yes |
| Stud Center to End (in) | 4.020 |
| Rod Thread | M14 X 1.50 |
| Configuration | STRAIGHT |
| Rod Type (Male / Female) | FEMALE |
| Stud Diameter Dimension (top in.) | 0.534 |
| Stud Diameter Dimension (bottom in.) | 0.690 |
| Stud Thread | M12 X 1.25 |
| Rack End Thread | M12 X 1.25 |
| Specification Image Reference | OUTERTIEROD.tif |
| Dust Boot Included | Yes |
| End 1 Thread Diameter (MM) | 14.000 |
| End 1 Thread Pitch (MM) | 1.500 |
| End 1 Thread Direction | R |
| End 2 Thread Diameter (MM) | 12.0 |
| End 2 Thread Pitch (MM) | 1.25 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 1997 | Ford | Taurus | GL, G |
| 1996 - 2004 | Ford | Taurus | LX |
| 1998 - 2007 | Ford | Taurus | SE |
| 1998 - 2003 | Ford | Taurus | SE Comfort |
| 2000 - 2007 | Ford | Taurus | SEL |
| 2000 - 2004 | Ford | Taurus | SES |
| 1996 - 1999 | Ford | Taurus | SHO |
| 2000 | Ford | Taurus | SVG |
| 1996 | Mercury | Sable | G |
| 1998 - 2004 | Mercury | Sable | LS Premium |
| 1996 - 2005 | Mercury | Sable | LS, GS |
| 2005 | Mercury | Sable | Platinum Edition |
Moog Tie Rod End
Sale price$49.06 USD
