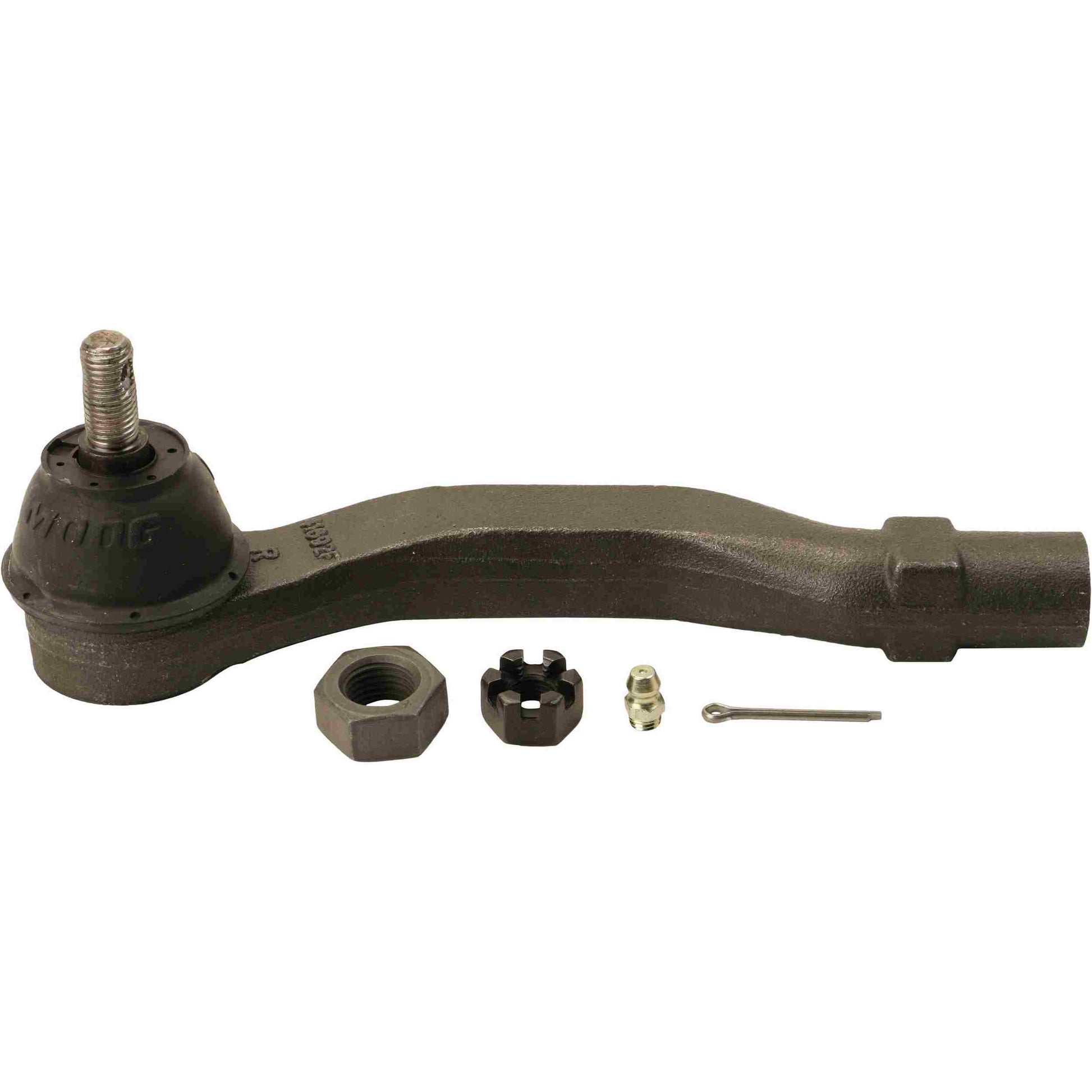

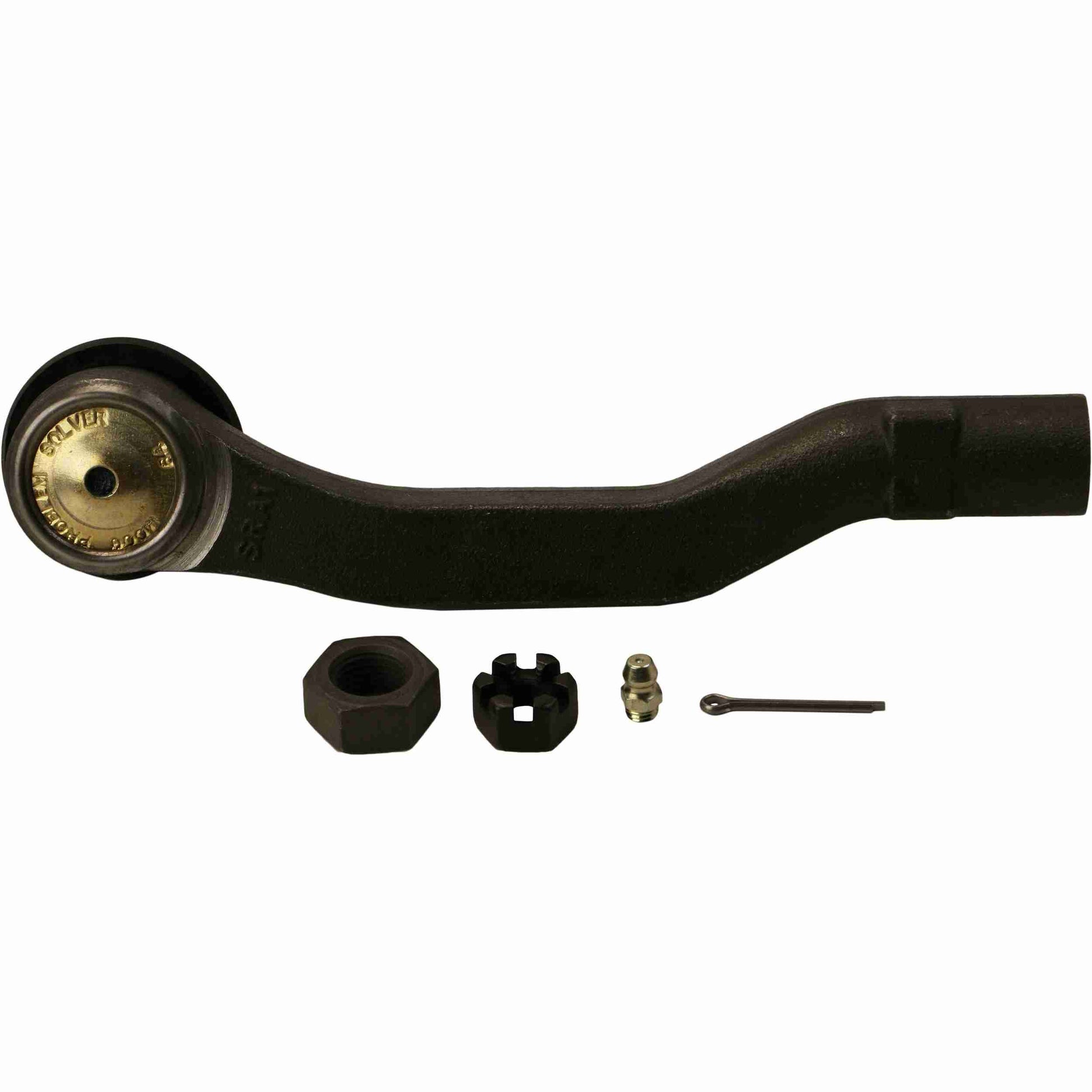

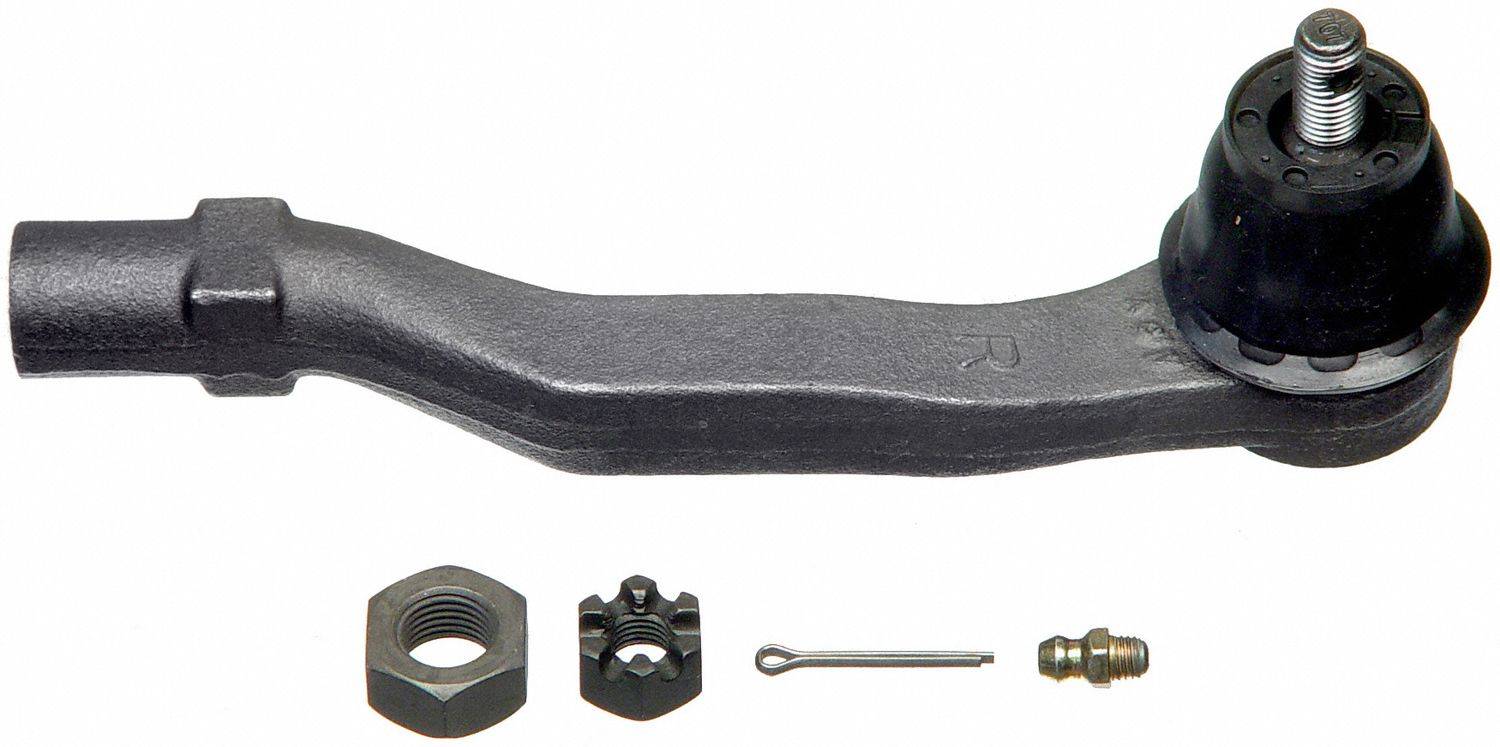

Moog Tie Rod End:Greasable,Outer, for use on Acura /Honda
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 7.15
Rod Thread: M14 X 1.50
Configuration: BENT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.498
Stud Diameter Dimension (bottom in.): 0.555
Stud Thread: M10 X 1.25
Rack End Thread: M10 X 1.25
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 14.000
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 10
End 2 Thread Pitch (MM): 1.25
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 2000 | Acura | EL | Base |
| 1997 - 2001 | Acura | Integra | GS, Type R |
| 1994 - 2001 | Acura | Integra | GS-R, LS |
| 1994 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1992 - 2000 | Honda | Civic | LX, CX, DX, EX, Si |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1993 - 1997 | Honda | Civic del Sol | Si, S |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 1998 - 2001 | Honda | CR-V | EX |
| 1997 - 2001 | Honda | CR-V | LX |
| 2000 - 2001 | Honda | CR-V | SE |
| 2009 - 2013 | Honda | Fit | Base |
| 2012 | Honda | Fit | DX-A |
| 2013 - 2014 | Honda | Fit | EV |
| 2009 - 2014 | Honda | Fit | LX, EX, DX, Sport |
| 2011 - 2014 | Honda | Insight | Base |
| 2010 - 2014 | Honda | Insight | EX, LX |
Moog Tie Rod End:Greasable,Outer, for use on Acura /Honda
Sale price$35.20 USD
