MOOG Chassis Products

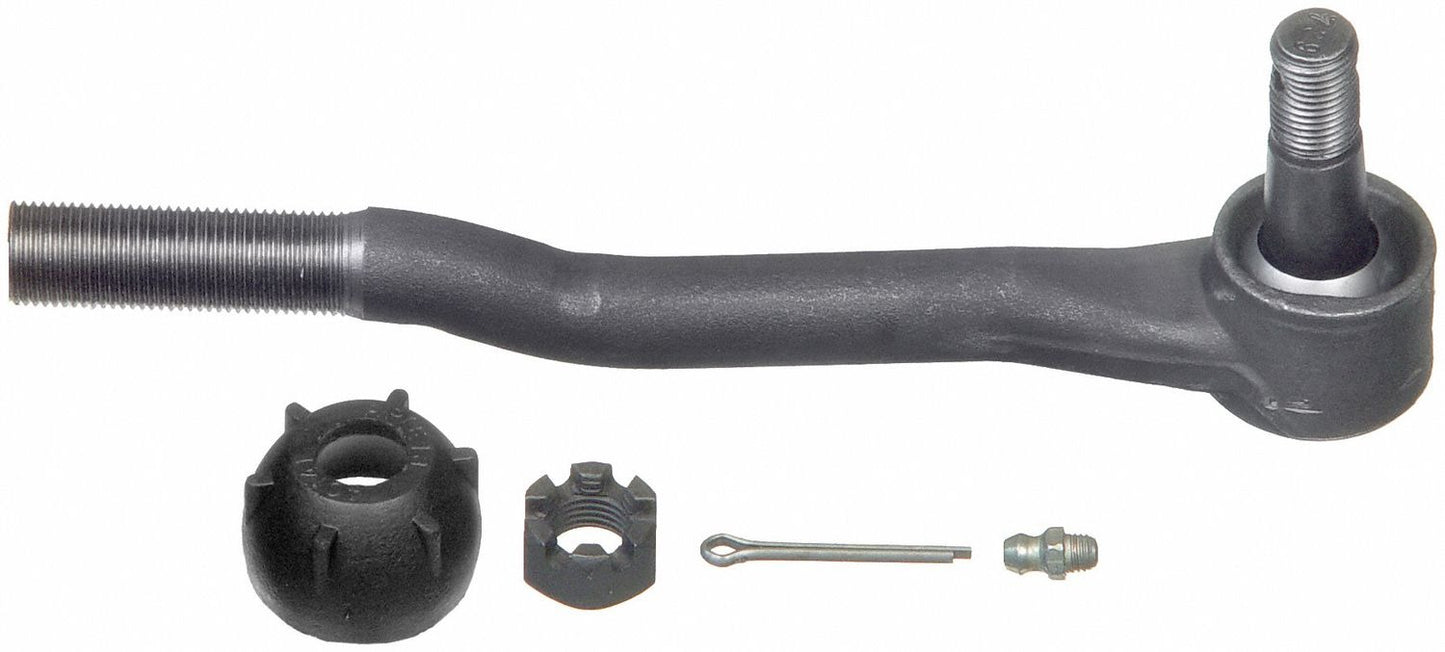

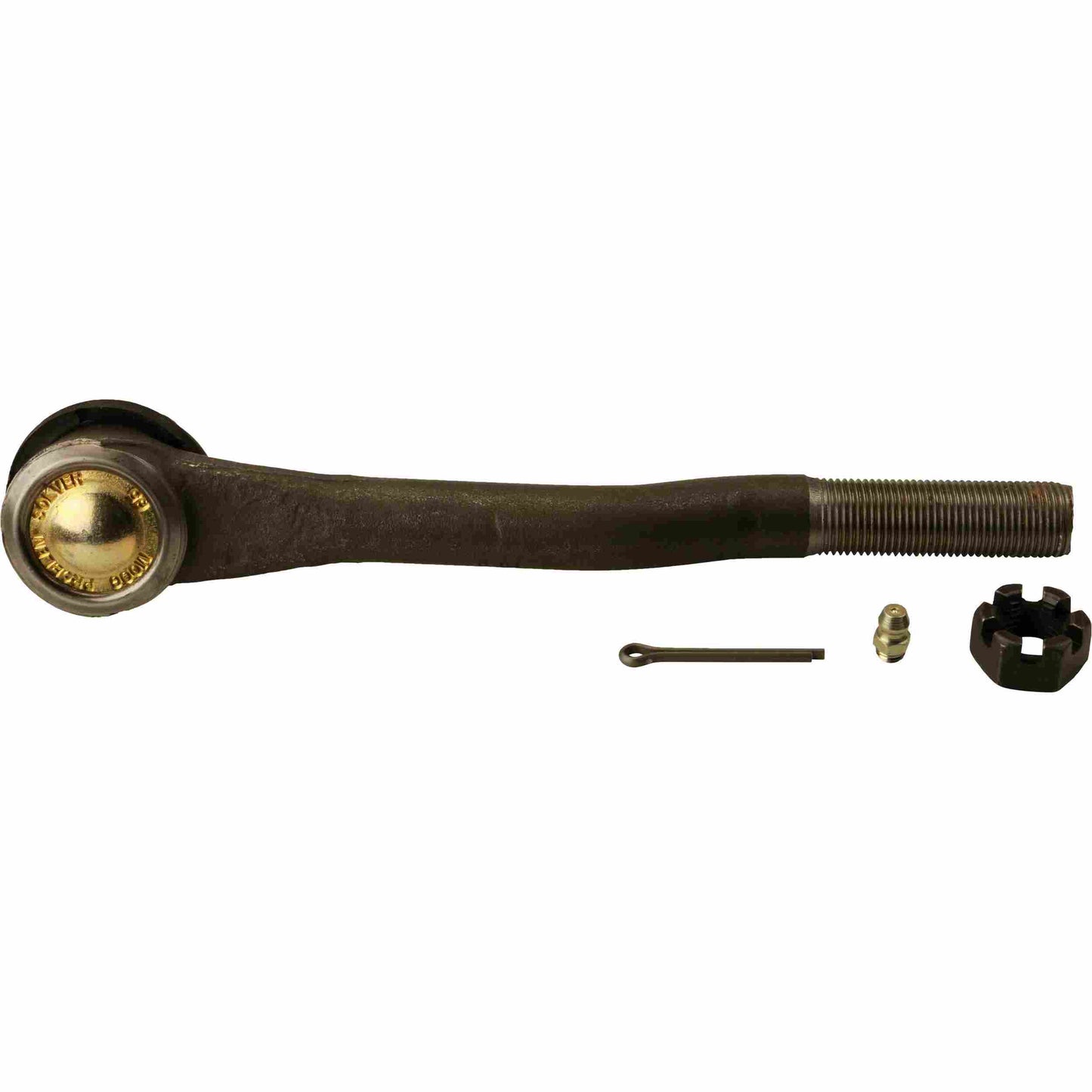

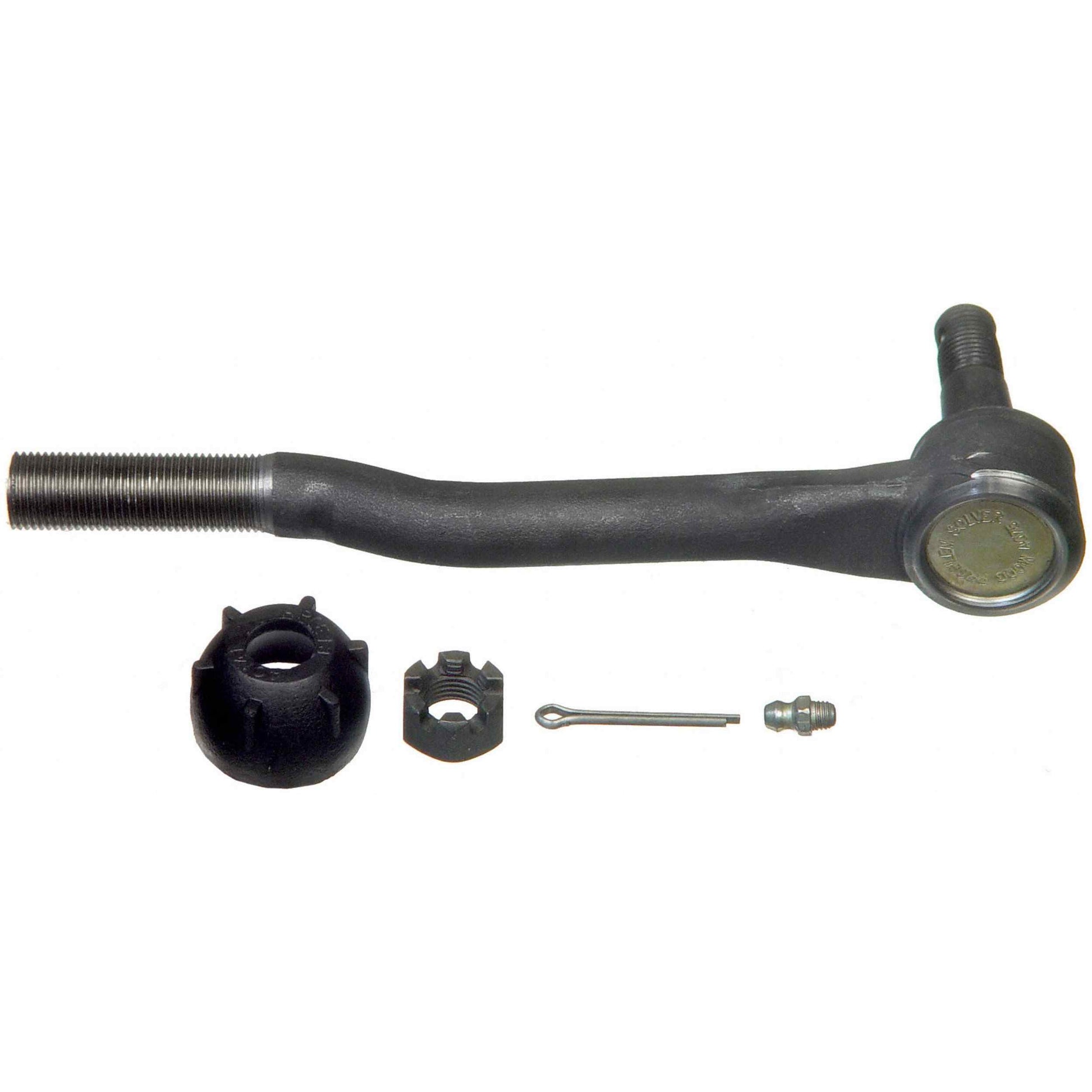

Moog Tie Rod End:Inner,Toyota,4WD,Each

Moog Tie Rod End:Inner,Toyota,4WD,Each

sku: 14NDX | mpn: ES3192
$54.14
$54.14 $54.14
Sale Sold out
Shipping calculated at checkout.

40 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 8.100
Rod Thread: M17X1.5
Rod Type (Male / Female): MALE
Configuration: BENT
Stud Diameter Dimension (top in.): 0.577
Stud Diameter Dimension (bottom in.): 0.641
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 17.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5


Vehicle Fitments:

Year Make Model Submodel
1992 - 1995 Toyota 4Runner SR5
1993 Toyota Pickup RN02
1992 - 1995 Toyota Pickup SR5, DLX, Base
1996 - 1997 Toyota T100 DLX
1994 - 1995 Toyota T100 DX
1993 Toyota T100 One-Ton
1995 Toyota T100 One-Ton DLX
1993 - 1998 Toyota T100 SR5, Base
View full details
