Moog Tie Rod End:Inner,Toyota,4WD,Each

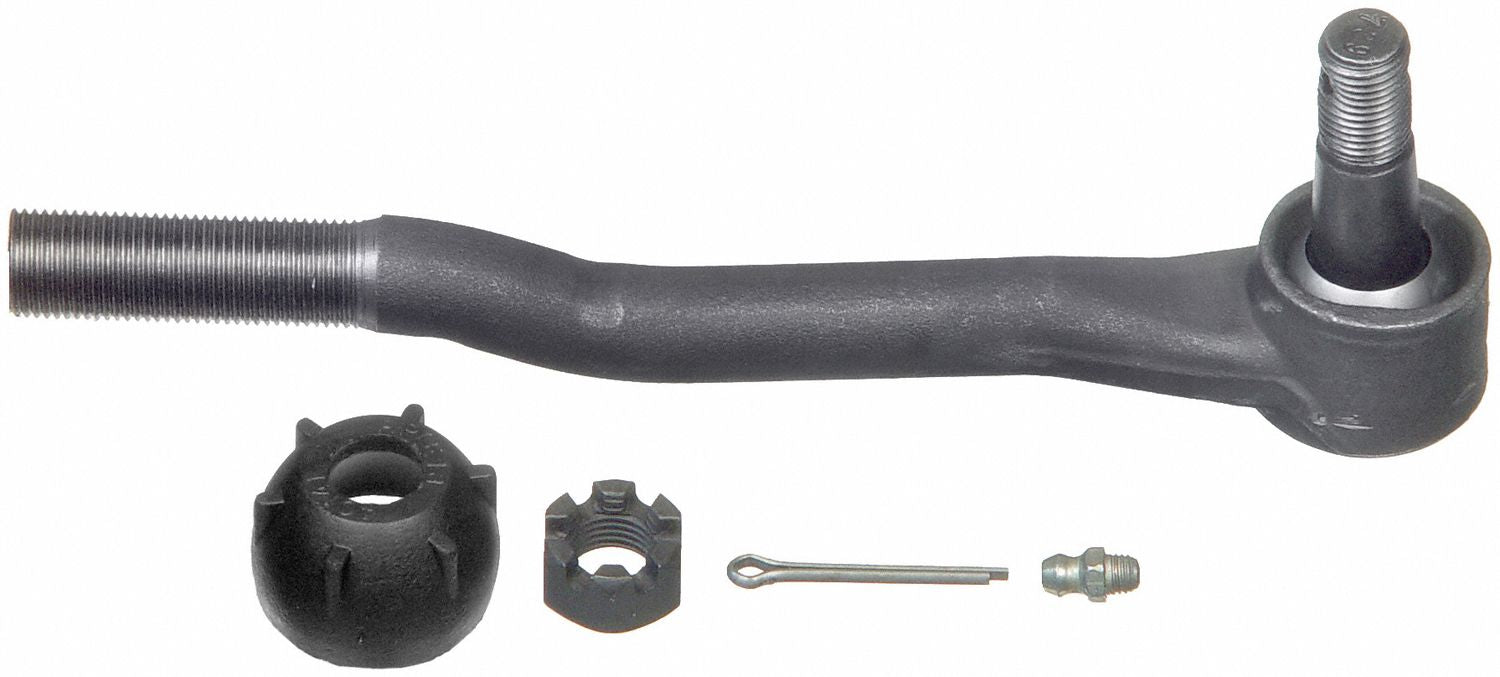

Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 8.100
Rod Thread: M17X1.5
Rod Type (Male / Female): MALE
Configuration: BENT
Stud Diameter Dimension (top in.): 0.577
Stud Diameter Dimension (bottom in.): 0.641
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 17.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 1995 | Toyota | 4Runner | SR5 |
| 1993 | Toyota | Pickup | RN02 |
| 1992 - 1995 | Toyota | Pickup | SR5, DLX, Base |
| 1996 - 1997 | Toyota | T100 | DLX |
| 1994 - 1995 | Toyota | T100 | DX |
| 1993 | Toyota | T100 | One-Ton |
| 1995 | Toyota | T100 | One-Ton DLX |
| 1993 - 1998 | Toyota | T100 | SR5, Base |
