MOOG Chassis Products

Moog Tie Rod End

Moog Tie Rod End

sku: 14N3R | mpn: ES3191
$71.18
$76.69 $71.18
Sale Sold out
Shipping calculated at checkout.

25 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

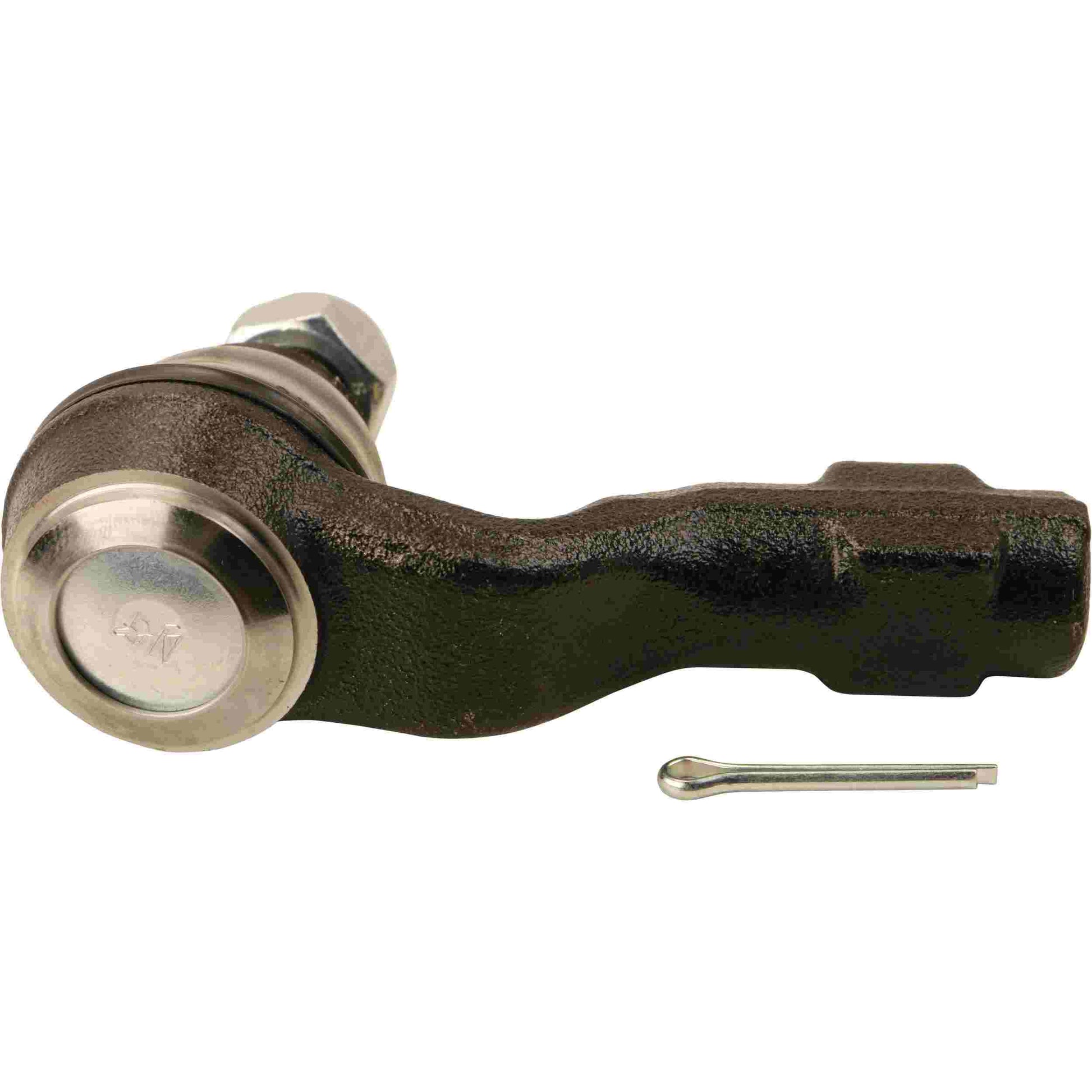

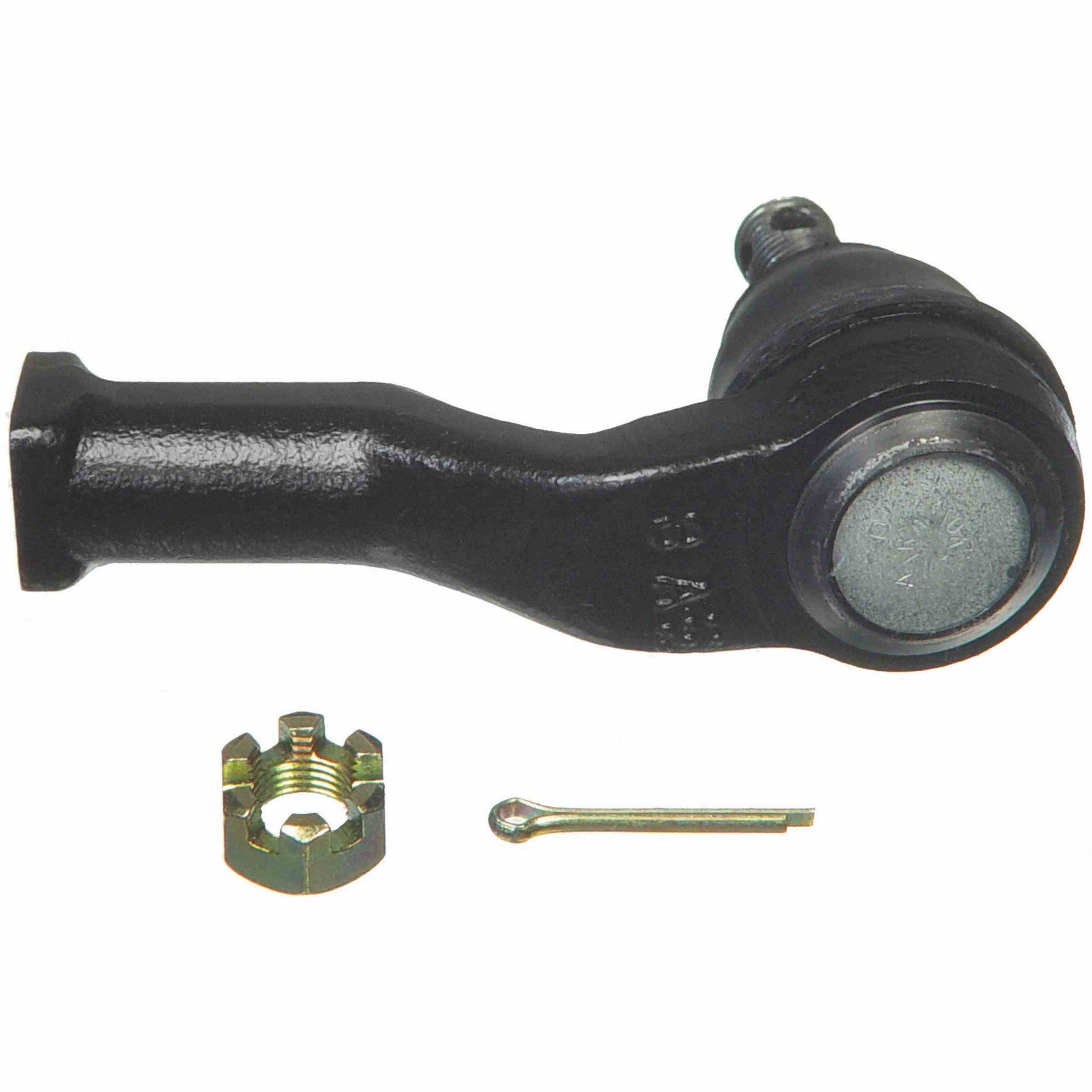

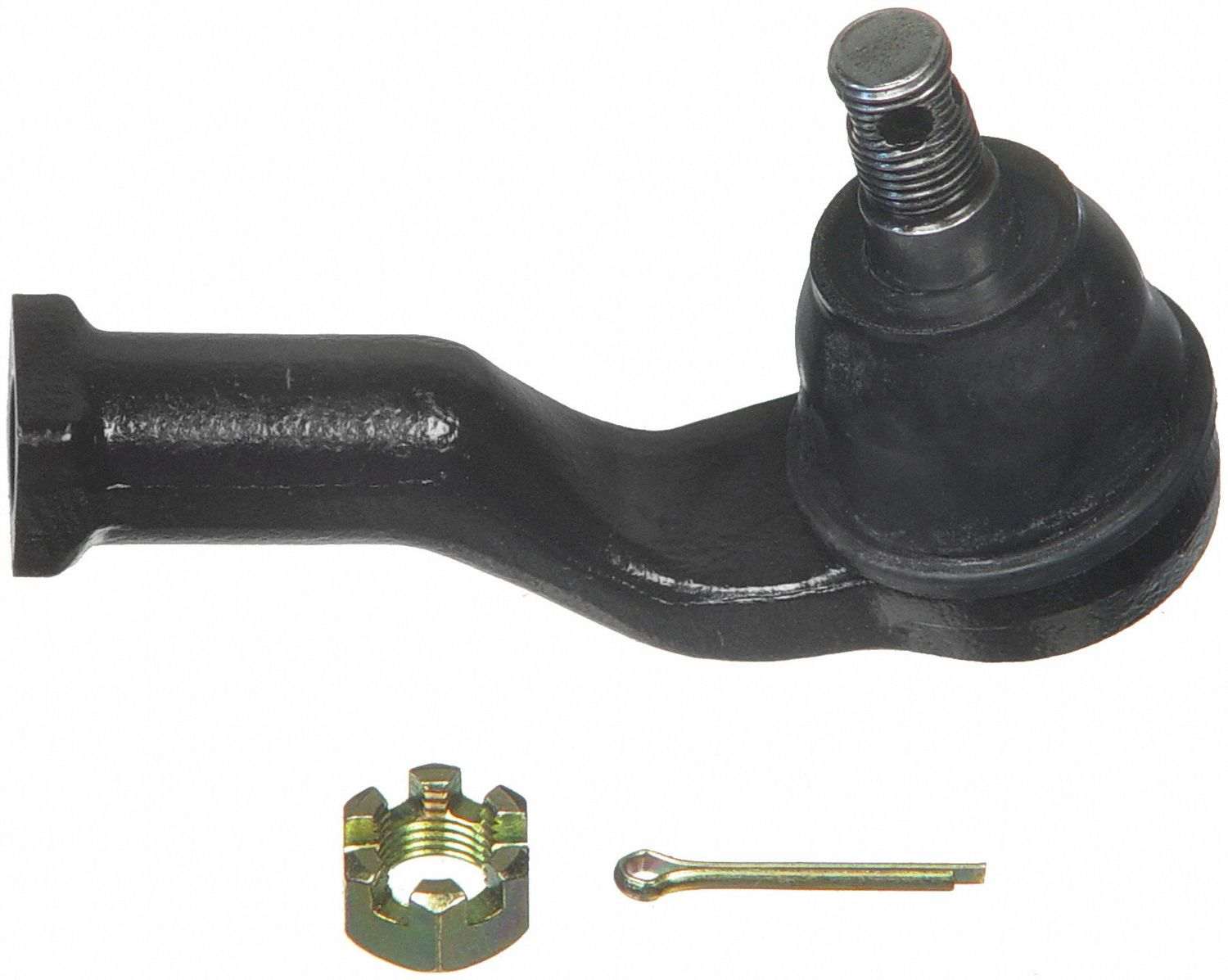

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Stud Center to End (in): 3.700
Rod Thread: M12-1.25R
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.519
Stud Diameter Dimension (bottom in.): 0.592
Stud Thread: M12-1.25
End 1 Thread Diameter (MM): 12.0
End 1 Thread Pitch (MM): 1.25
End 1 Thread Direction: Clockwise


Vehicle Fitments:

Year Make Model Submodel
1999 Mazda Miata 10th Anniversary
1990 - 2005 Mazda Miata Base
1993 Mazda Miata LE
2000 - 2005 Mazda Miata LS
1994 - 1997 Mazda Miata M Edition
2004 - 2005 Mazda Miata Mazdaspeed
1991 - 2003 Mazda Miata SE
2003 Mazda Miata Shinsen
1997 Mazda Miata STO
View full details
