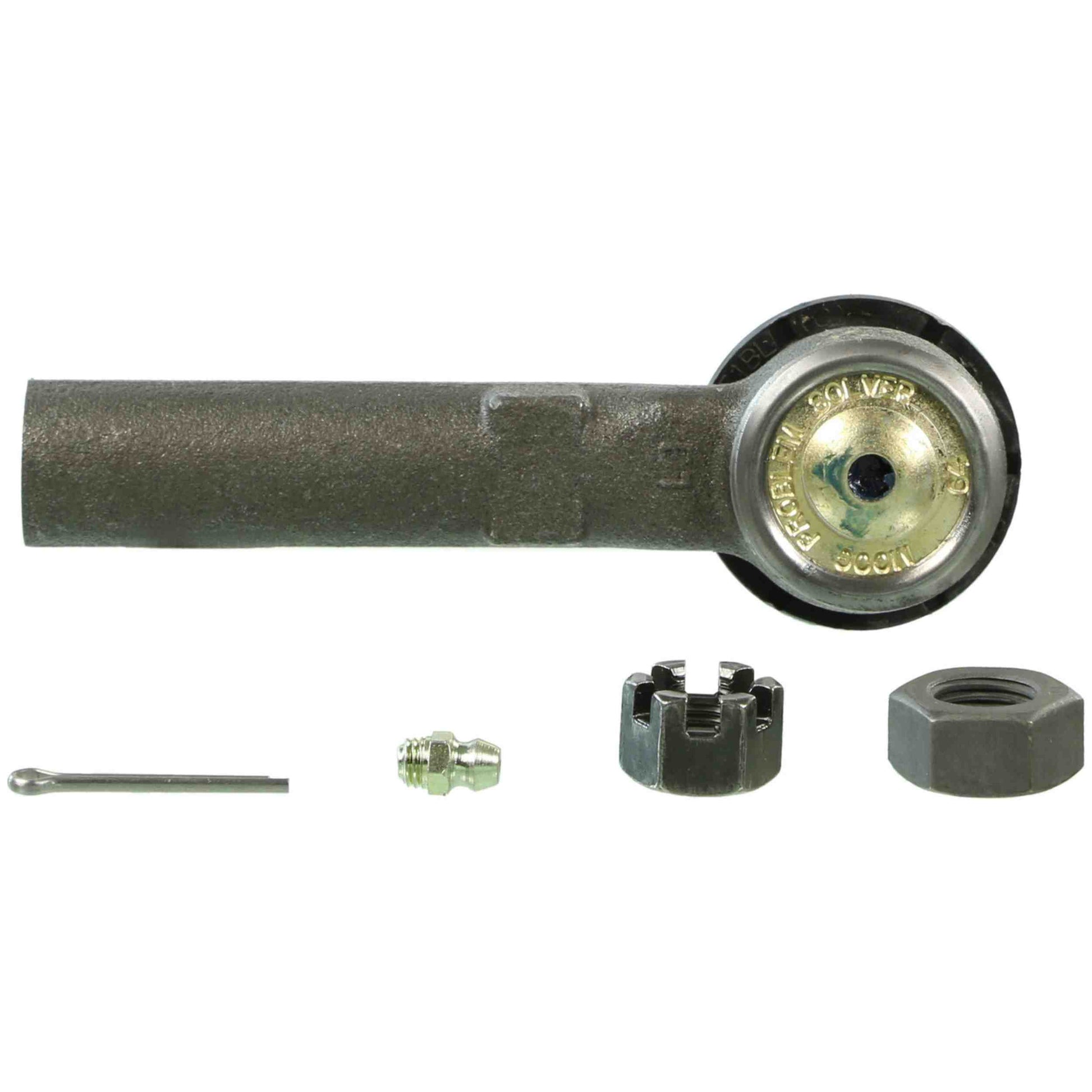

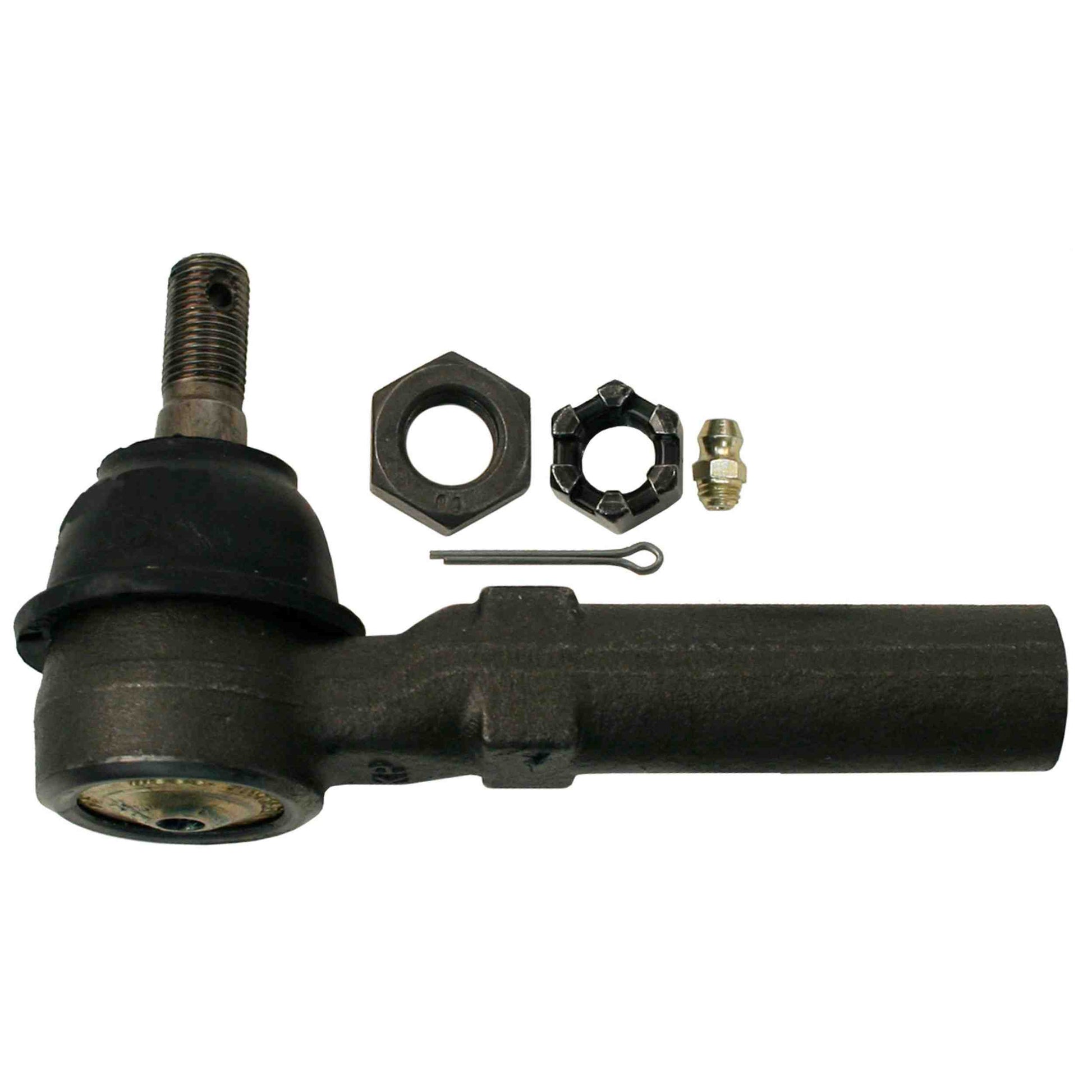

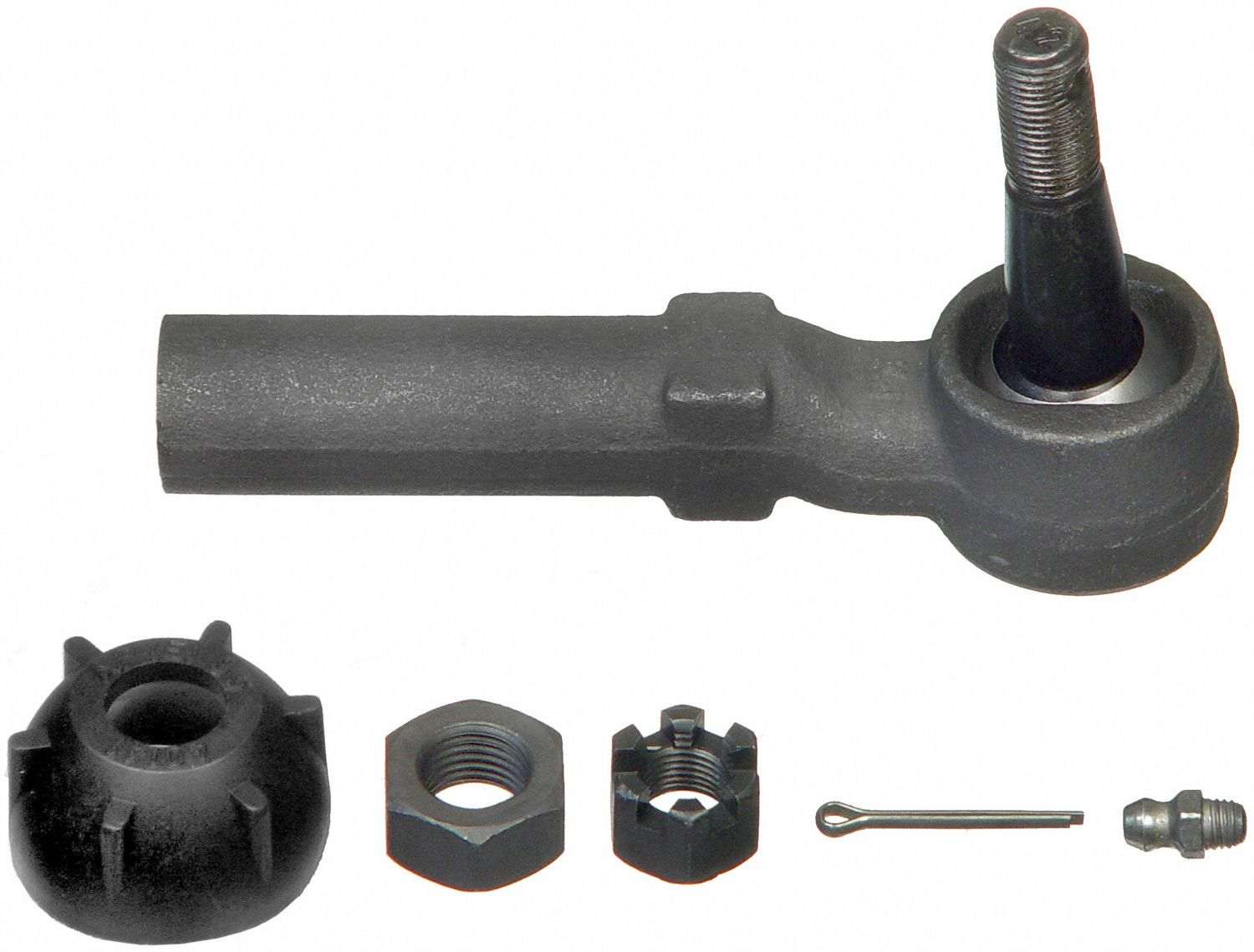

Moog Tie Rod End, Outer, Chrysler, Dodge, Plymouth

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                                           Yes

Stud Center to End (in)                                       4.500

Rod Thread                                                   M14 x 1.50

Configuration                                                   Straight

Rod Type                                                         Female

Stud Diameter Dimension(top in)                        0.486

Stud Diameter Dimension(bottom in)                  0.593

Stud Thread                                                    M12 x1.25

Rack End Thread                                             M12 x1.25

Specification Image Reference                   OUTERTIEROD.tif

Dust Boot Included                                          Yes

End 1 Thread Diameter (MM)                          14.000

End  1 Thread Pitch (MM)                                1.500

End 1 Thread Direction                                      R

End 2 Thread Diameter (MM)                           12.0

End 2 Threads Pitch (MM)                                1.25

Vehicle Fitments:
