MOOG Chassis Products

Moog Tie Rod End

Moog Tie Rod End

sku: 14P87 | mpn: ES3169RL
$42.01
$42.01 $42.01
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

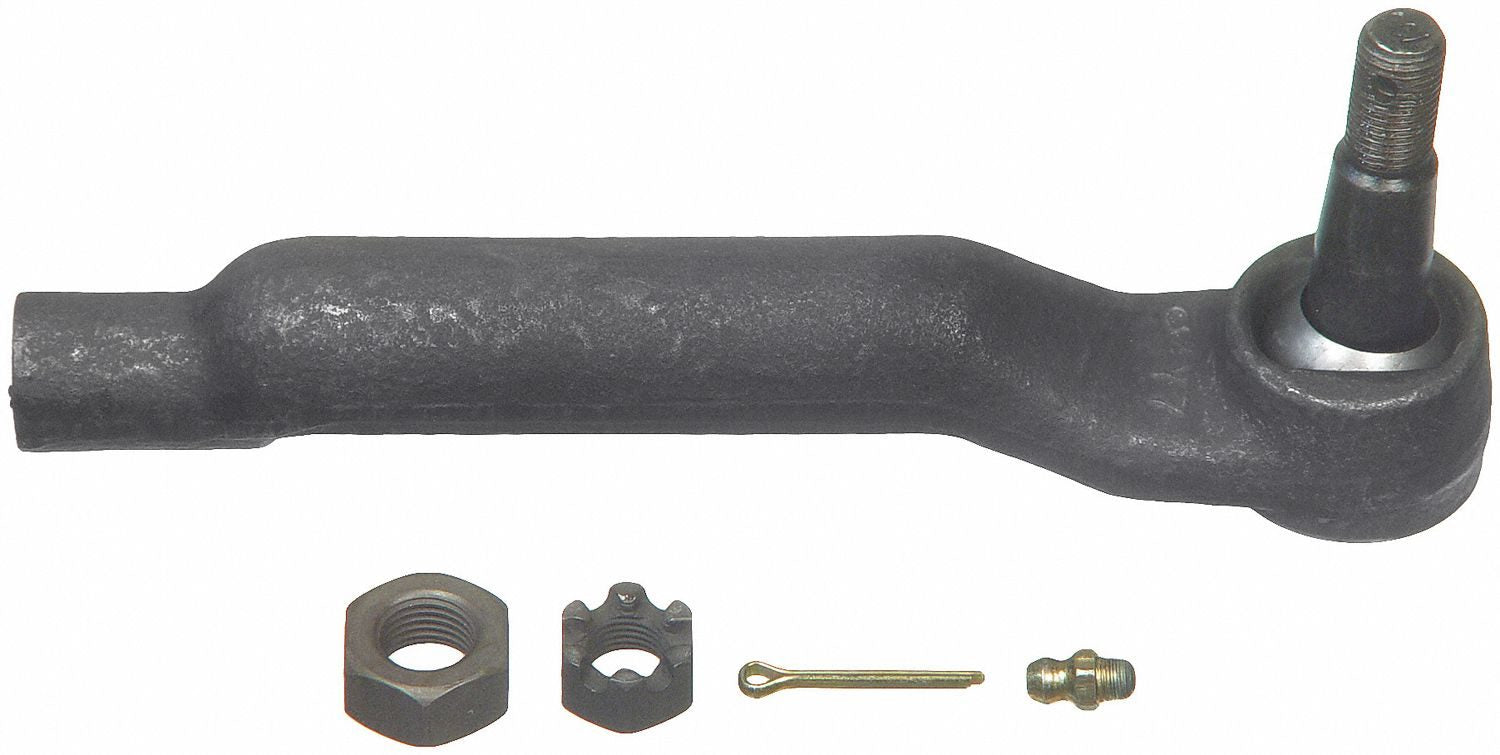

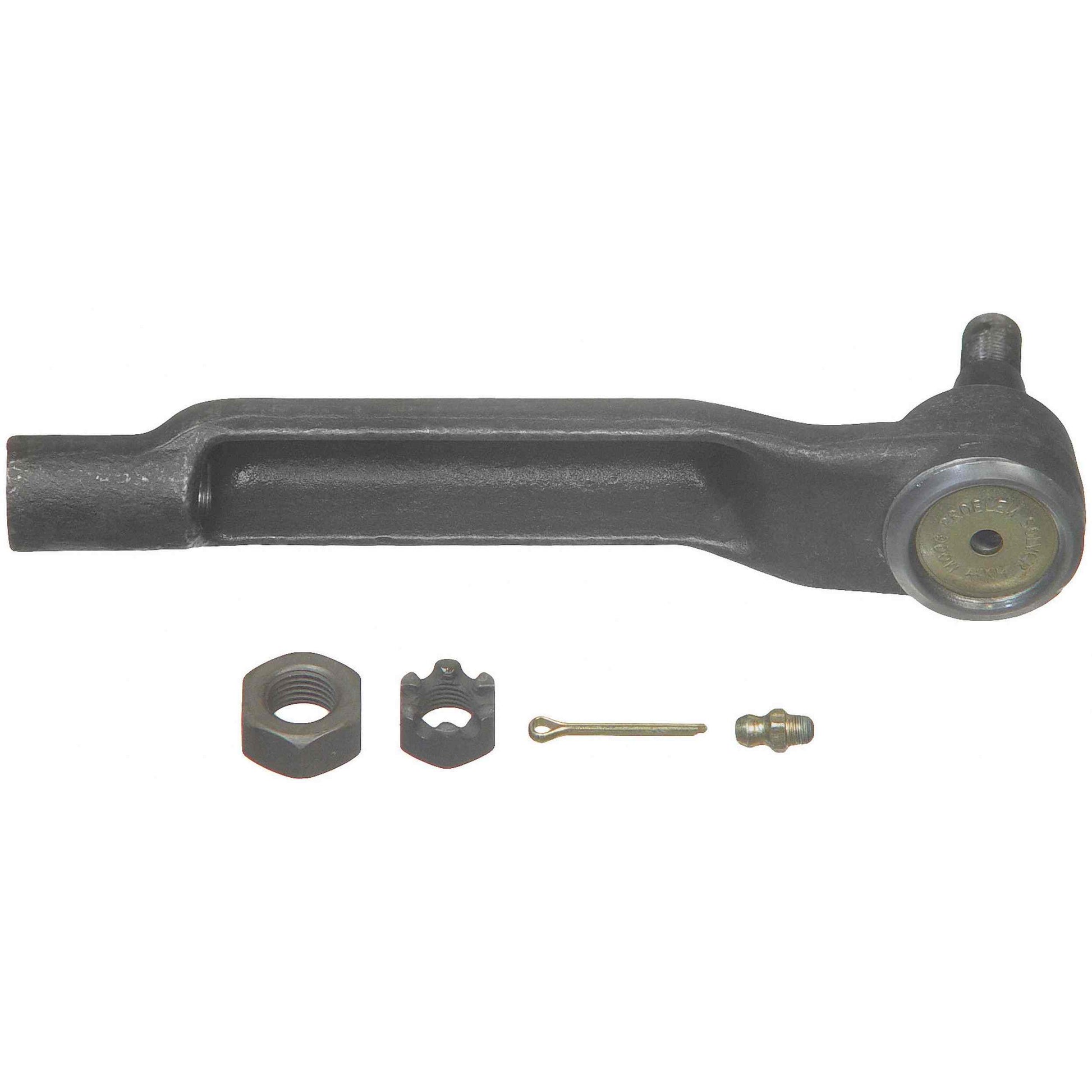

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Stud Center to End (in): 7.180
Rod Thread: M14-1.5R
Configuration: BENT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.554
Stud Diameter Dimension (bottom in.): 0.626
Stud Thread: M12-1.25
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
View full details
