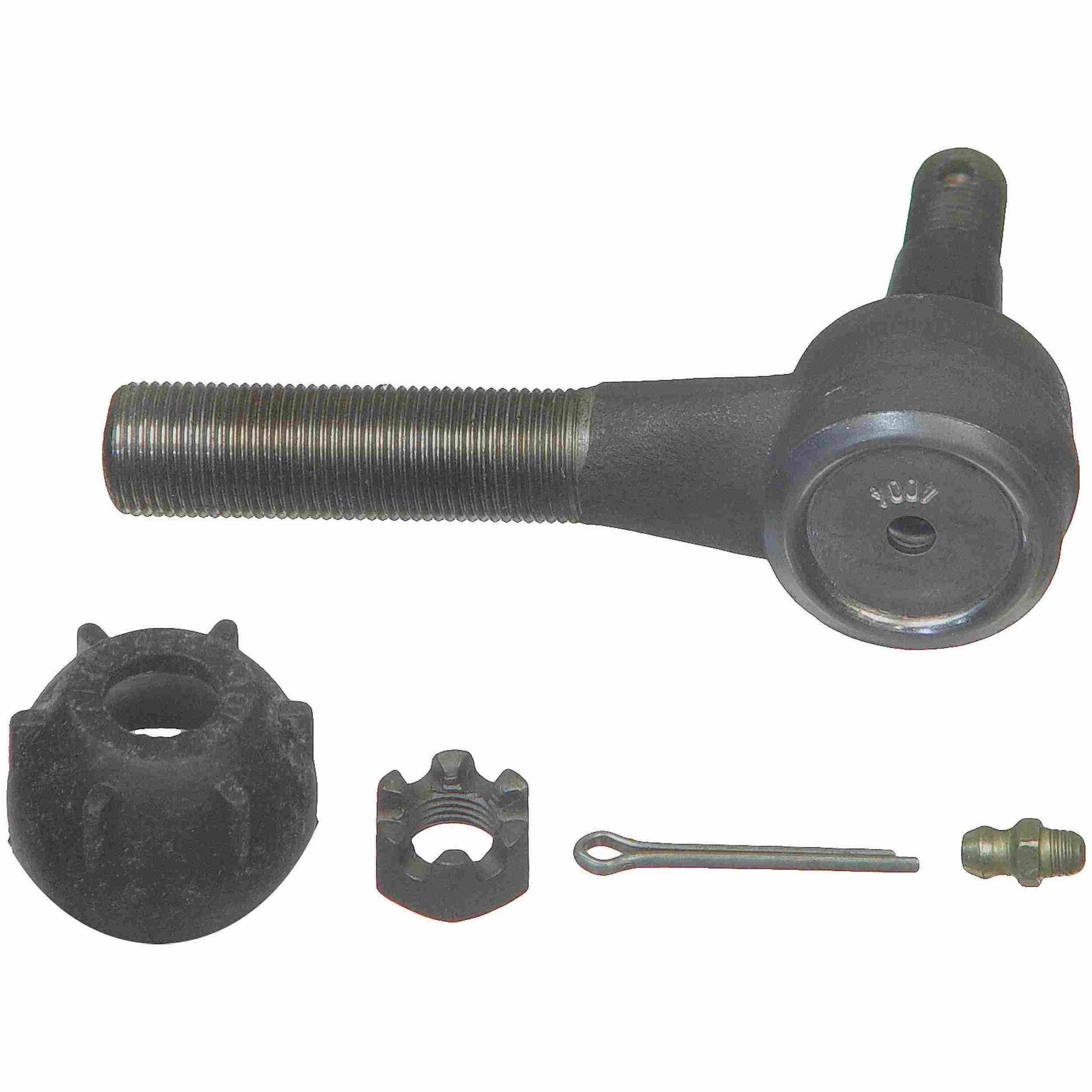

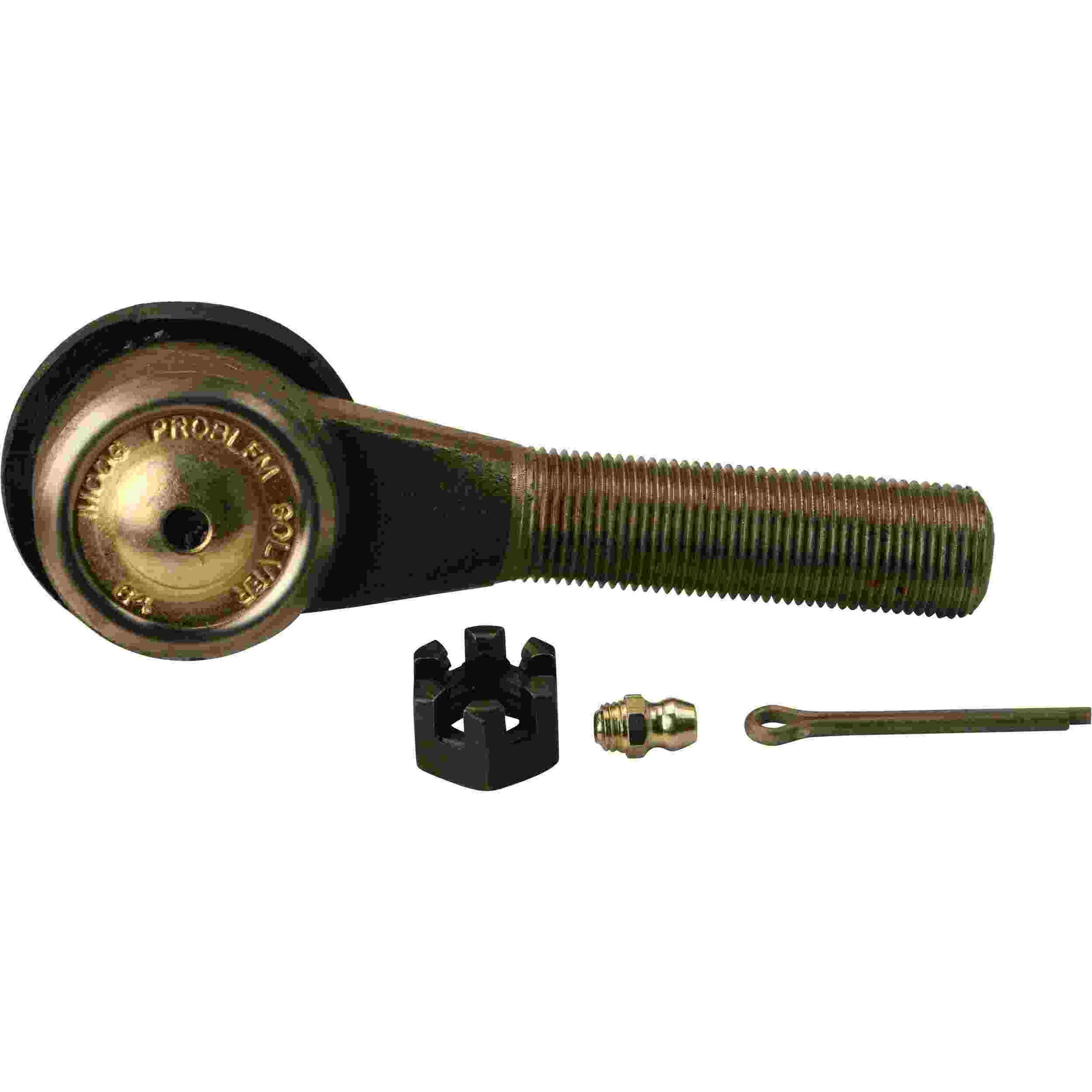

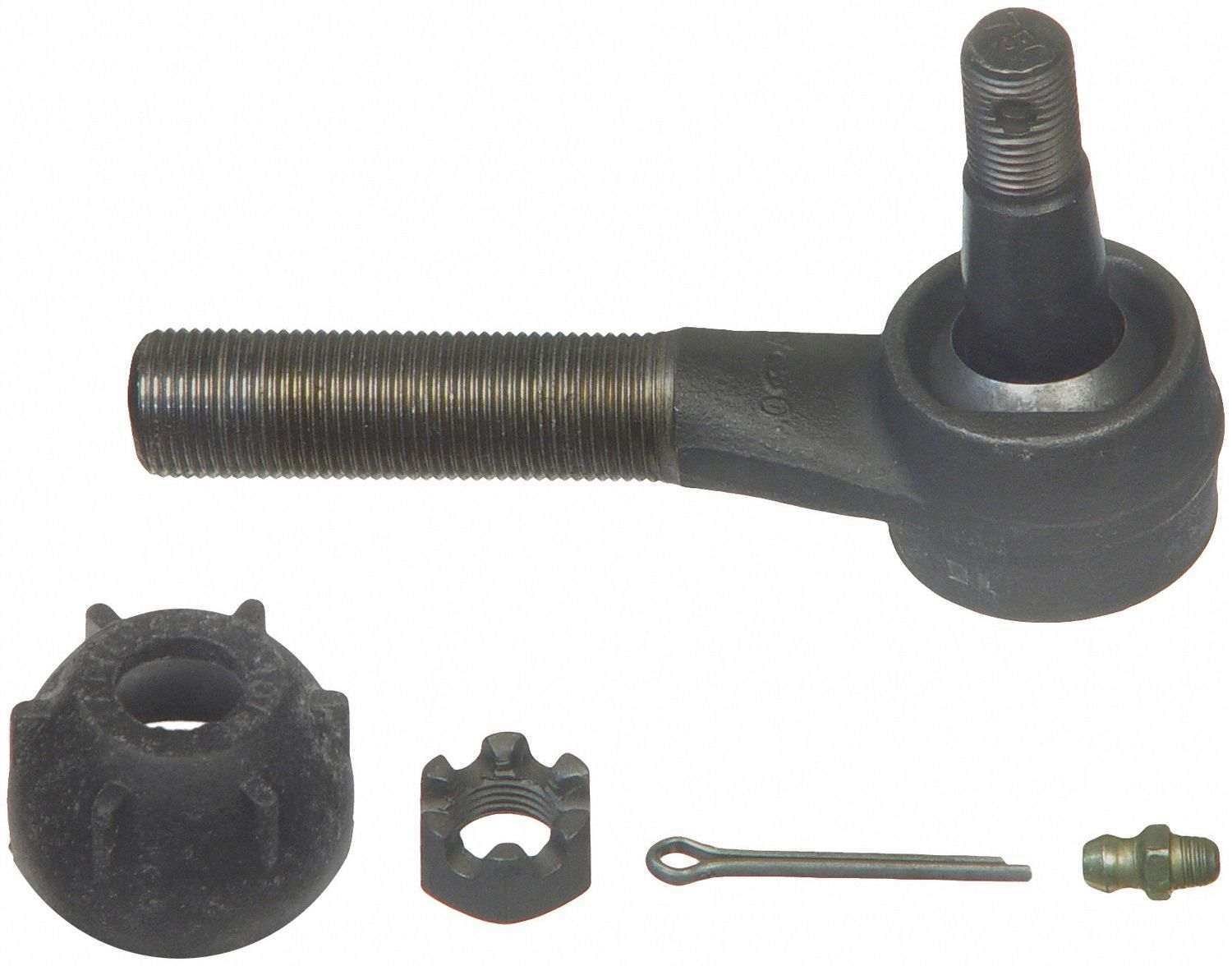

Moog Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications
Tie Rods
| Rod Thread | .687-18R |
| Configurations | STRAIGHT |
| Stud Diameter Dimension (top in.) | 0.556 |
| Stud Thread | M12-1.25 |
| End 1 Thread Diameter (IN) | 0.687 |
| End 1 Thread Direction | R |
| End 1 Threads Per Inch | 18 |
| End 2 Thread Diameter (MM) | 12.0 |
| End 2 Thread Pitch (MM) | 1.3 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1962 | Buick | Electra | 225 |
| 1962 - 1964 | Buick | Electra | Base |
| 1962 - 1964 | Buick | Estate Wagon | Base |
| 1962 - 1963 | Buick | Invicta | Base |
| 1962 - 1964 | Buick | LeSabre | Base |
| 1963 - 1965 | Buick | Riviera | Base |
| 1965 | Buick | Riviera | Gran Sport |
| 1963 | Buick | Special | Base, Deluxe |
| 1962 - 1964 | Buick | Wildcat | Base |
| 1965 - 1969 | Cadillac | Calais | Base |
| 1963 - 1969 | Cadillac | Commercial Chassis | Base |
| 1963 - 1969 | Cadillac | DeVille | Base |
| 1965 - 1966 | Cadillac | Eldorado | Base |
| 1965 - 1969 | Cadillac | Fleetwood | 60 Special, 75 |
| 1966 - 1969 | Cadillac | Fleetwood | Base |
| 1968 - 1969 | Cadillac | Fleetwood | Brougham |
| 1963 - 1964 | Cadillac | Series 60 Fleetwood | Base |
| 1963 - 1964 | Cadillac | Series 62 | Base |
| 1963 - 1964 | Cadillac | Series 75 Fleetwood | Base |
| 1963 - 1970 | Oldsmobile | 98 | Base |
| 1963 - 1964 | Oldsmobile | 98 | Custom |
| 1963 - 1967 | Oldsmobile | 98 | Holiday |
| 1963 | Oldsmobile | Cutlass | Base |
| 1967 - 1968 | Oldsmobile | Delmont 88 | Base |
| 1967 | Oldsmobile | Delmont 88 | Holiday |
| 1965 - 1970 | Oldsmobile | Delta 88 | Base |
| 1967 - 1970 | Oldsmobile | Delta 88 | Custom |
| 1965 - 1967 | Oldsmobile | Delta 88 | Holiday |
| 1969 - 1970 | Oldsmobile | Delta 88 | Royale |
| 1963 - 1966 | Oldsmobile | Dynamic 88 | Base, Holiday |
| 1963 | Oldsmobile | F85 | Deluxe, Base |
| 1963 - 1964 | Oldsmobile | Fiesta | Base |
| 1964 - 1966 | Oldsmobile | Jetstar 88 | Holiday, Base |
| 1963 - 1966 | Oldsmobile | Starfire | Base |
| 1961 - 1962 | Pontiac | Bonneville | Custom |
| 1961 - 1963 | Pontiac | Bonneville | Safari, Base |
| 1961 - 1963 | Pontiac | Catalina | Base, Safari |
| 1962 - 1963 | Pontiac | Catalina | Ventura |
| 1962 - 1963 | Pontiac | Grand Prix | Base |
| 1961 - 1963 | Pontiac | Parisienne | Base |
| 1961 - 1963 | Pontiac | Star Chief | Base |
| 1961 | Pontiac | Ventura | Base |
Moog Tie Rod End
Sale price$50.76 USD
