MOOG Chassis Products

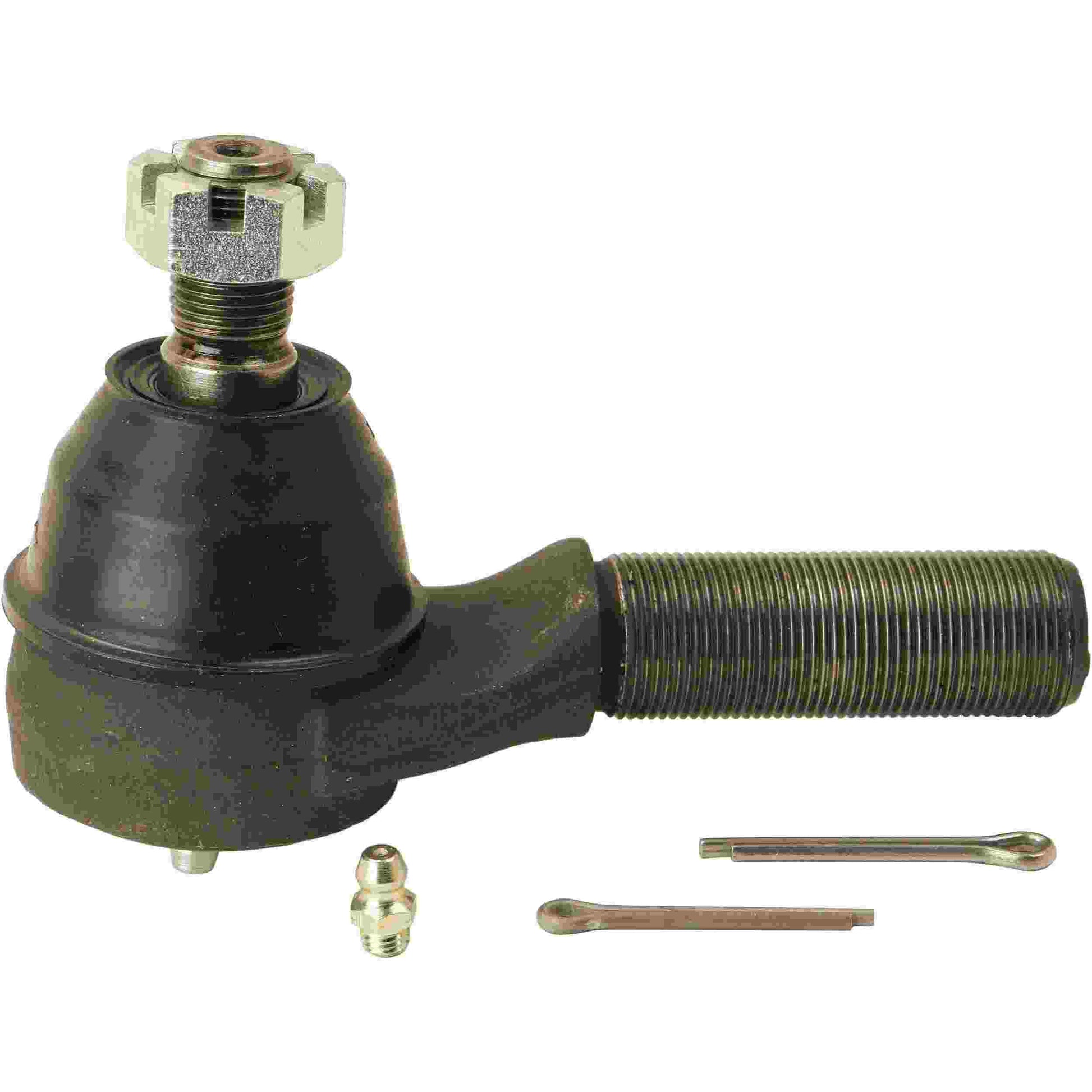

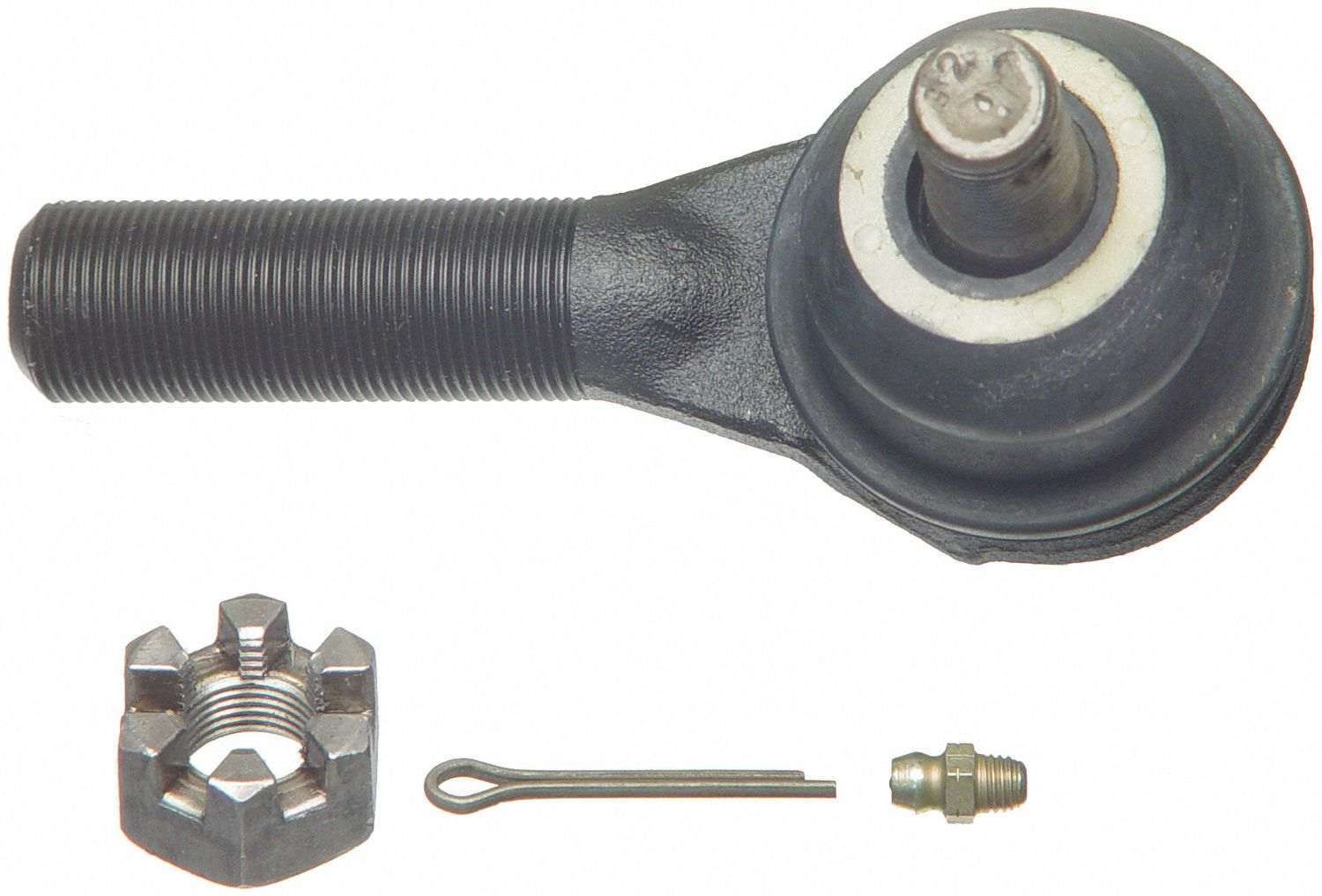

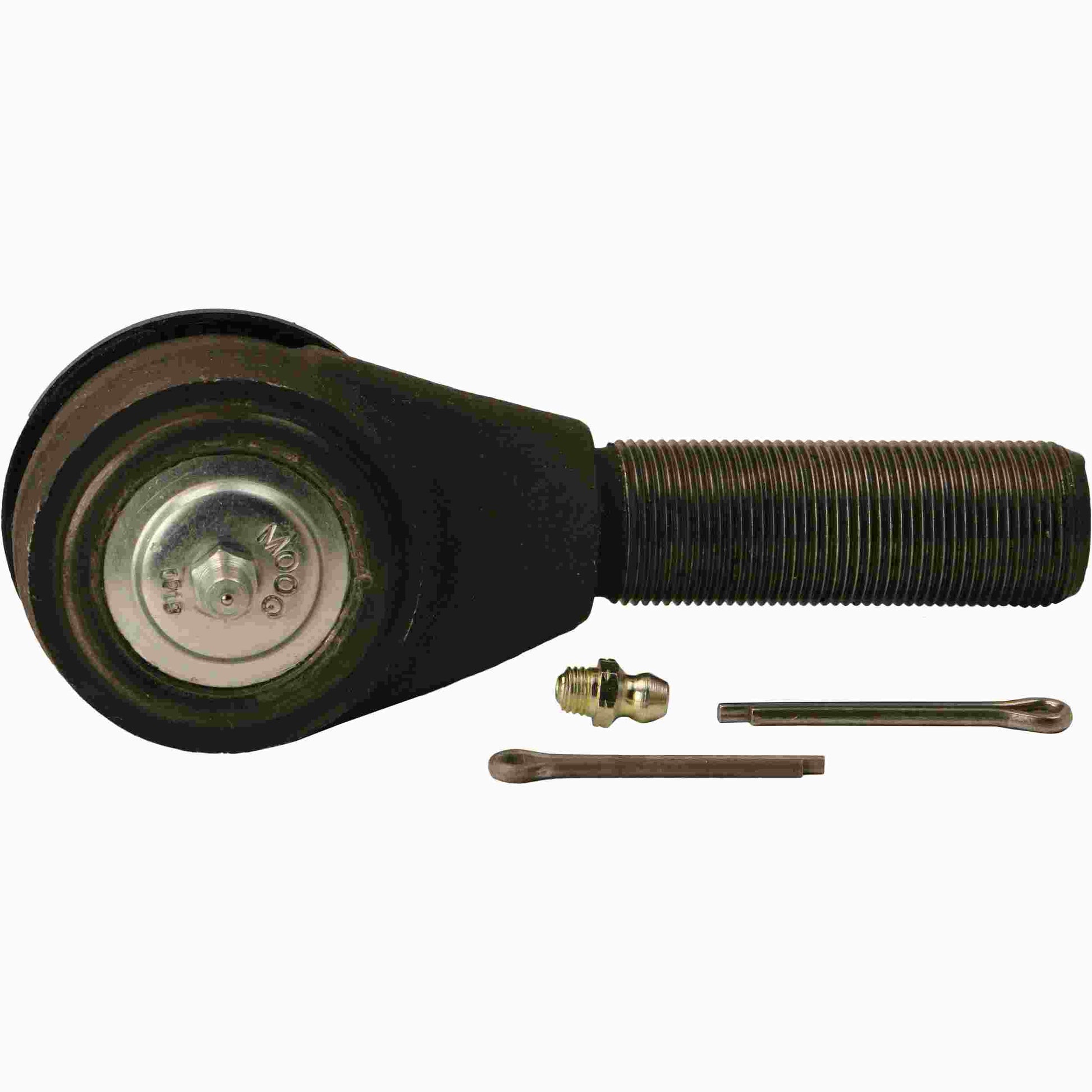

Moog Tie Rod End:Greasable,Outer,Dodge,D250/D350 Pickup,Diesel

Moog Tie Rod End:Greasable,Outer,Dodge,D250/D350 Pickup,Diesel

sku: 14NHM | mpn: ES3122R
$76.64
$76.64 $76.64
Sale Sold out
Shipping calculated at checkout.

39 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 4.440
Rod Thread: 7/8-18RH
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.771
Stud Diameter Dimension (bottom in.): 5/8-18
Dust Boot Included: No
End 1 Thread Diameter (in): 7/8
End 1 Threads Per Inch: 18
End 1 Thread Direction: R
End 2 Thread Diameter (IN): 5/8
End 2 Threads Per Inch: 18


Vehicle Fitments:

Year Make Model Submodel
1989 - 1993 Dodge D250 Adventurer, Custom, Base, Club Cab
1990 - 1993 Dodge D250 Prospector
1989 - 1993 Dodge D350 Base, RD
