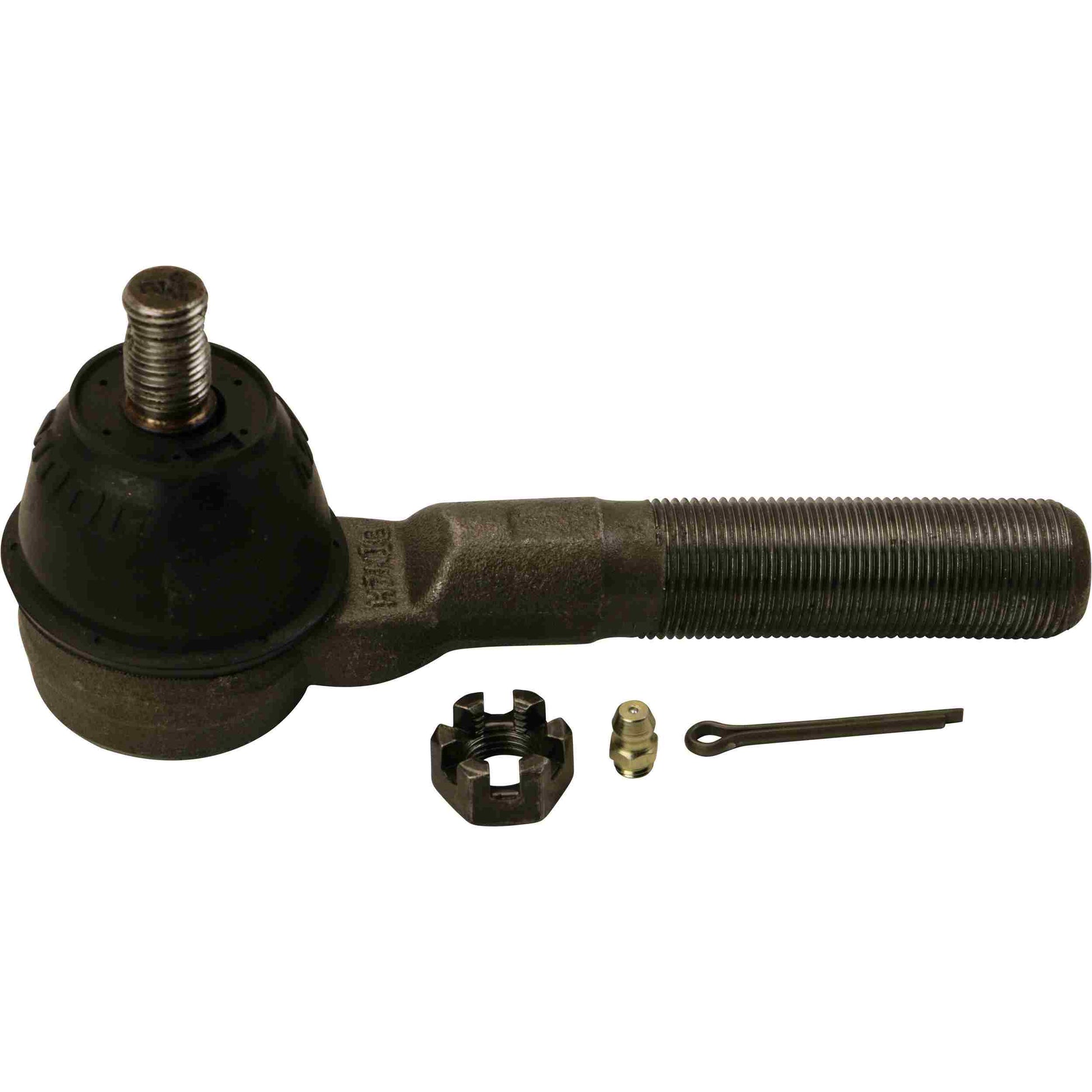

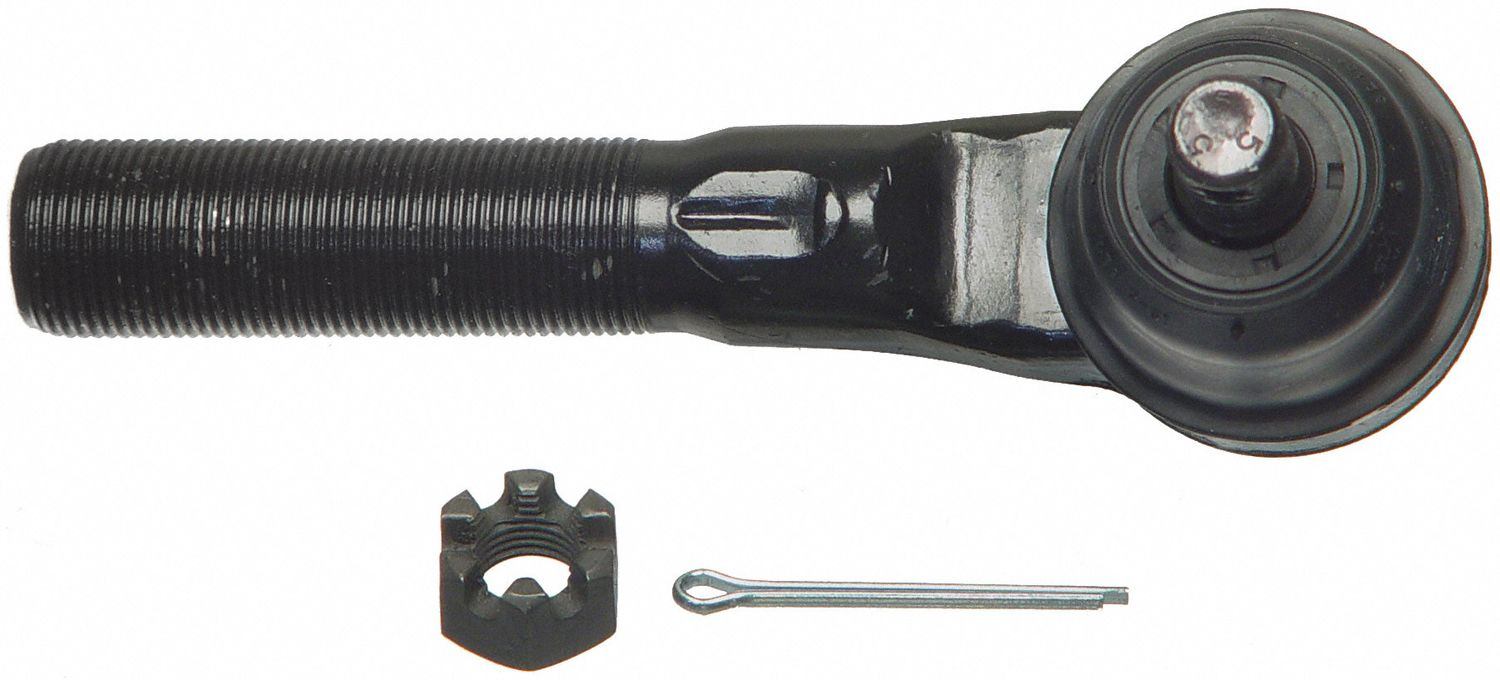

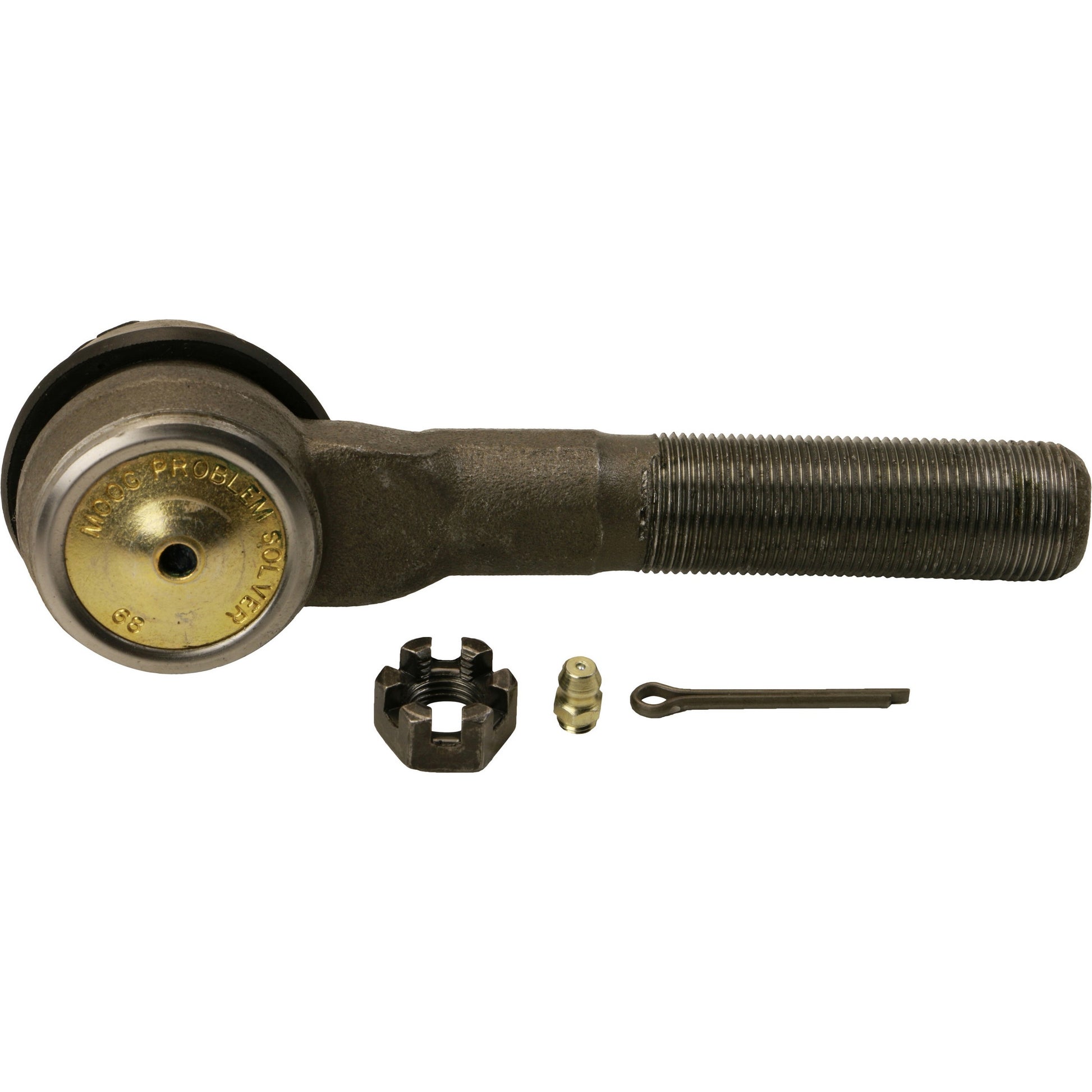

Moog Tie Rod End:Outer, Jeep
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 5.42
Rod Thread: M22 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.551
Stud Diameter Dimension (bottom in.): 0.626
Stud Thread: 1/2"-20"
Rack End Thread: 1/2"-20"
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 22.000
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: L
End 2 Thread Diameter (MM): 1/2
End 2 Thread Pitch (MM): 20
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991 - 1994 | Jeep | Cherokee | Base |
| 1996 - 2001 | Jeep | Cherokee | Classic |
| 1993 - 1997 | Jeep | Cherokee | Country |
| 1991 - 1992 | Jeep | Cherokee | Laredo, Briarwood |
| 1994 - 2001 | Jeep | Cherokee | SE |
| 1991 - 2001 | Jeep | Cherokee | Sport, Limited |
| 1991 - 1992 | Jeep | Comanche | Pioneer, Eliminator, Base |
| 1998 | Jeep | Grand Cherokee | 5.9 Limited |
| 1993 | Jeep | Grand Cherokee | Base |
| 1993 - 1998 | Jeep | Grand Cherokee | Limited, Laredo |
| 1995 - 1997 | Jeep | Grand Cherokee | Orvis |
| 1993 - 1995 | Jeep | Grand Cherokee | SE |
| 1997 - 1998 | Jeep | Grand Cherokee | TSi |
| 1993 | Jeep | Grand Wagoneer | Base |
| 2003 - 2006 | Jeep | TJ | Rubicon |
| 1997 - 2004 | Jeep | TJ | Sahara |
| 1997 - 2006 | Jeep | TJ | SE, Sport |
| 2001 | Jeep | Wrangler | 60 Aniversario |
| 1991 - 1997 | Jeep | Wrangler | Base |
| 1991 - 1992 | Jeep | Wrangler | Islander |
| 1991 - 1994 | Jeep | Wrangler | Renegade, S |
| 1995 | Jeep | Wrangler | Rio Grande |
| 2003 - 2006 | Jeep | Wrangler | Rubicon |
| 1991 - 2004 | Jeep | Wrangler | Sahara |
| 1994 - 2006 | Jeep | Wrangler | SE |
| 1997 - 2006 | Jeep | Wrangler | Sport |
| 2004 - 2006 | Jeep | Wrangler | Unlimited |
| 2005 - 2006 | Jeep | Wrangler | Unlimited Rubicon |
| 2002 - 2006 | Jeep | Wrangler | X |
| 2006 | Jeep | Wrangler | X 65 Aniversario, 65th Anniversary Edition |
| 2003 | Jeep | Wrangler | X AT |
Moog Tie Rod End:Outer, Jeep
Sale price$42.14 USD
