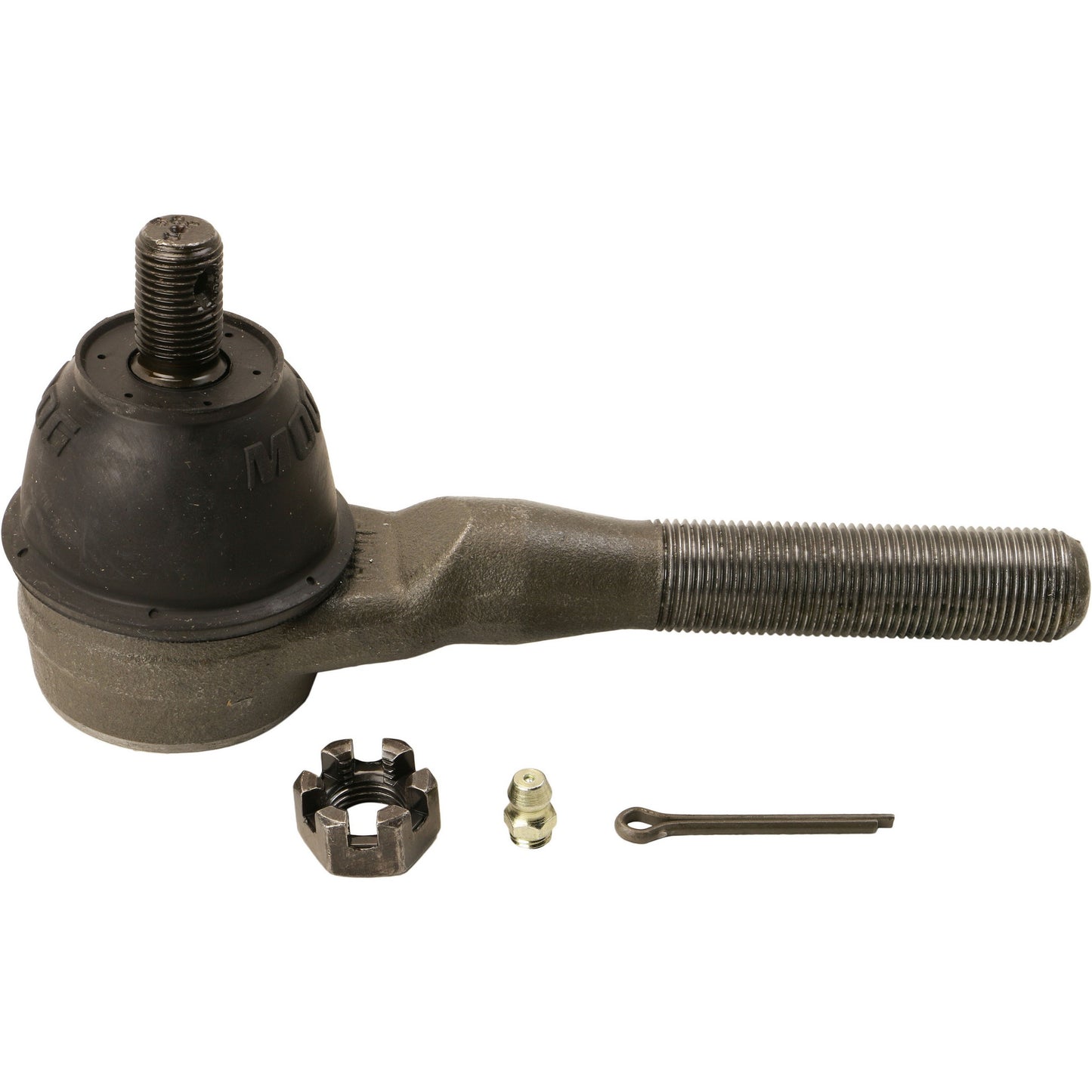

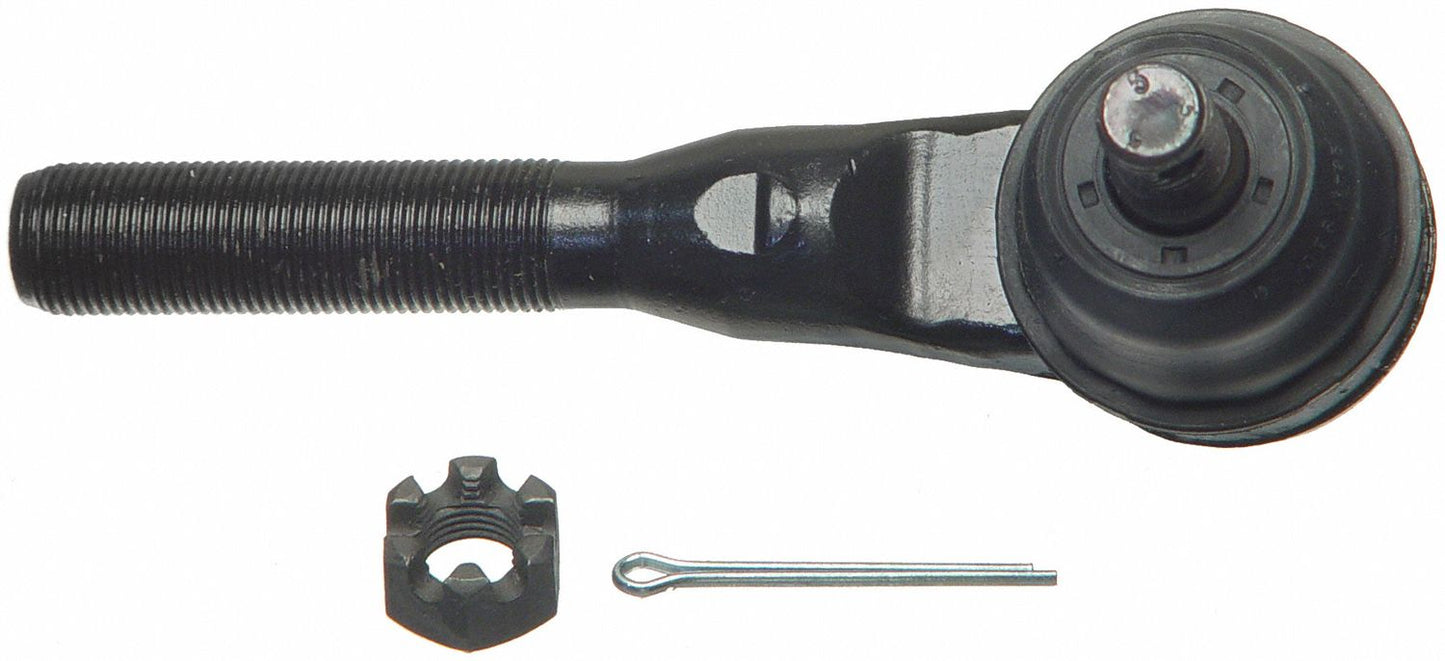

Moog Tie Rod End, Greaseable, Outer, Jeep

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Stud Center to End (in)                       5.370

Rod Thread                                        .0687-18

Rod Type                                           Male

Stud Diameter Dimension (top in)        0.558

Stud Diameter Dimension (bottom in)  0.626

Stud Thread                                      1/2" - 20

Specification Image Refrence          OuterTieRod.tif

End 1 Thread Diameter (IN)                0.687

End 1 Threads  Per inch                      18

Vehicle Fitments:
