MOOG Chassis Products

Moog Tie Rod End:Greasable,Outer,Chevy,Geo,Suzuki

Moog Tie Rod End:Greasable,Outer,Chevy,Geo,Suzuki

sku: 14NWZ | mpn: ES3045RL
$21.40
$21.40 $21.40
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

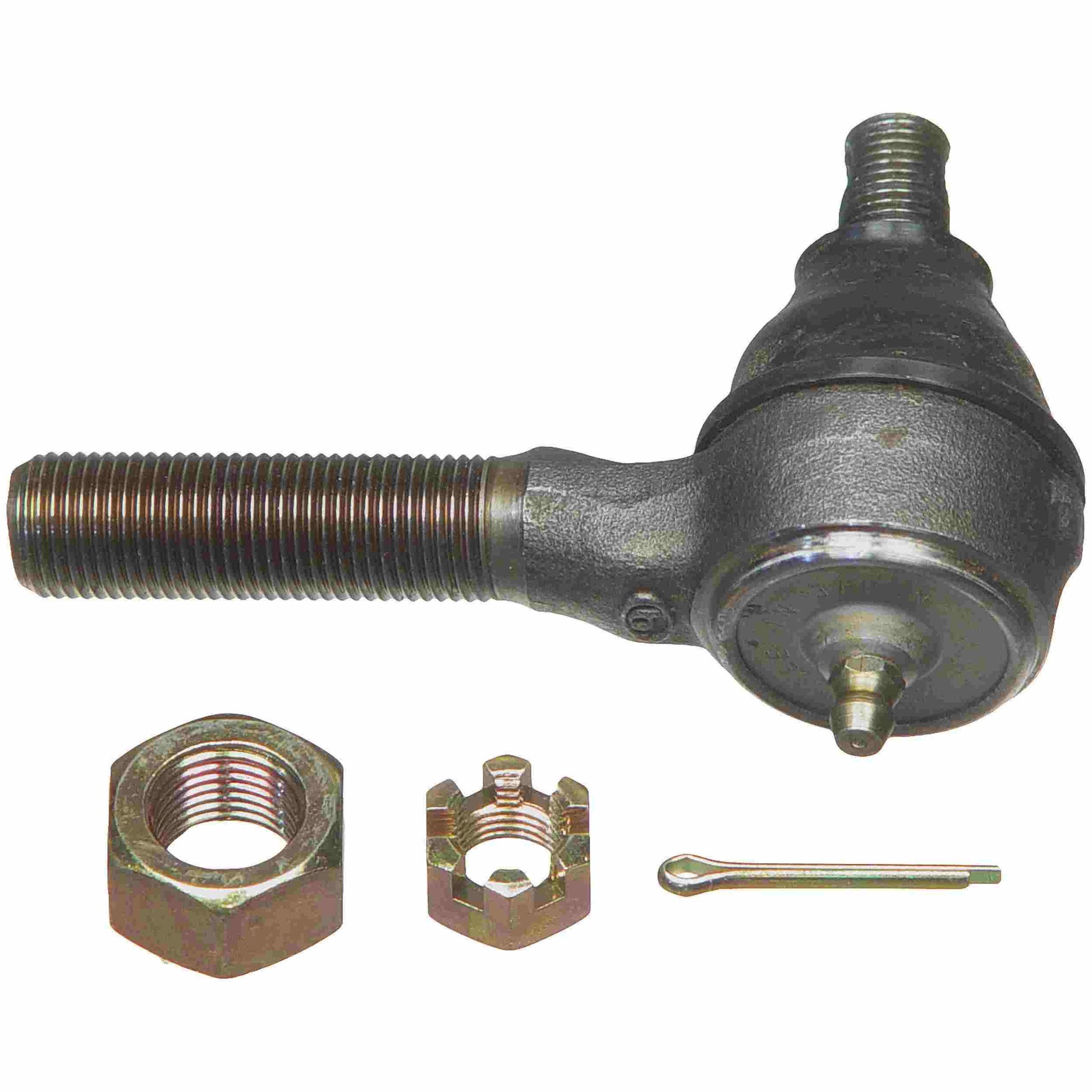

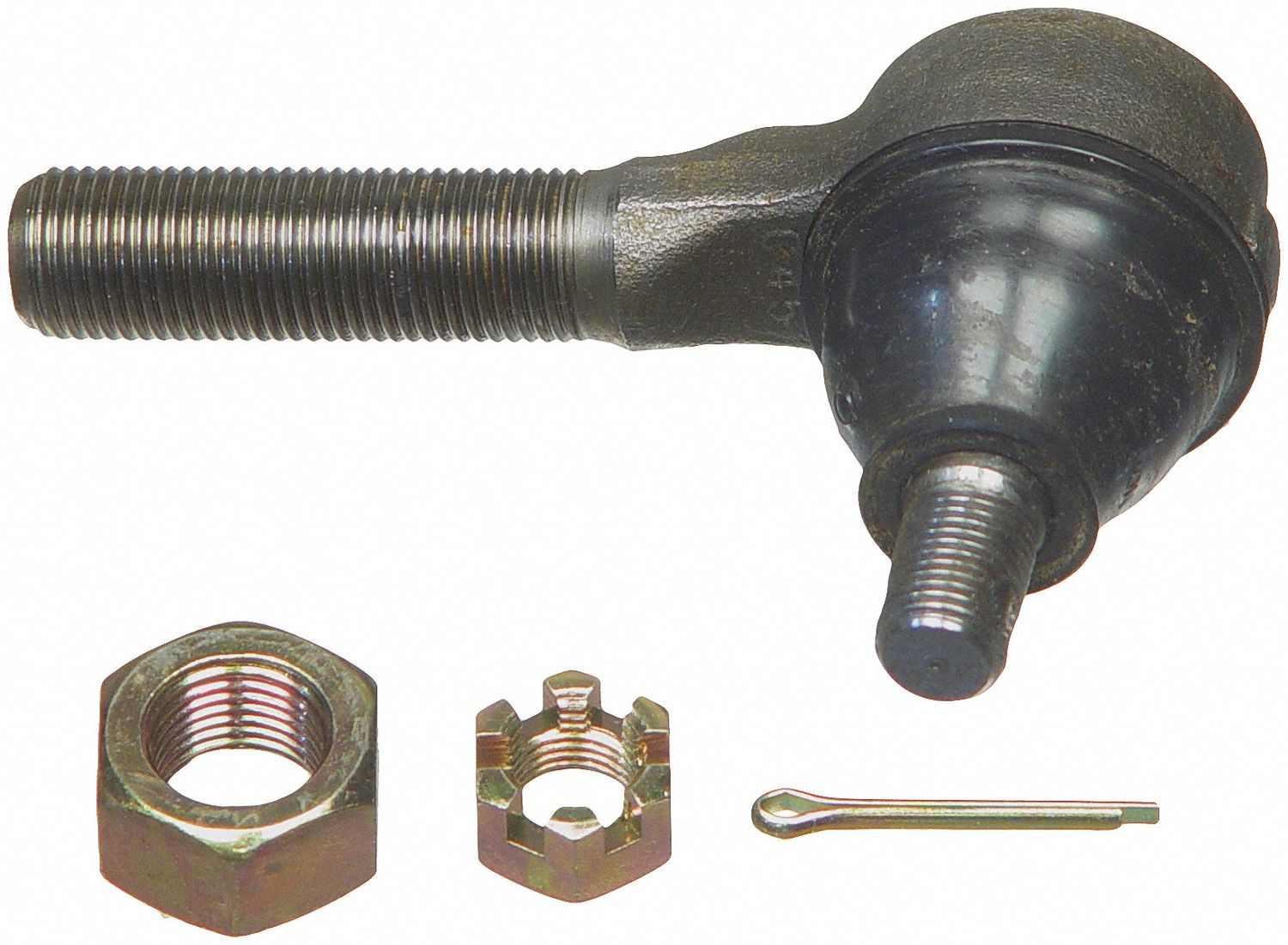

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Stud Center to End (in): 3.580
Rod Thread: M16-1.5
Configuration: STRAIGHT
Rack End Type (Male/Female): MALE
Stud Diameter Dimension (top in.): 0.494
Stud Diameter Dimension (bottom in.): 0.552
Stud Thread: M12-1.25
End 1 Thread Diameter (MM): 16.0
End 1 Thread Pitch (MM):1.5
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.3
