Moog Tie Rod End:Greasable,Inner,Toyota

Moog Tie Rod End:Greasable,Inner,Toyota

sku: 14NBJ | mpn: ES3003RL
$52.43
$53.36 $52.43
Sale Sold out
Shipping calculated at checkout.

18 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

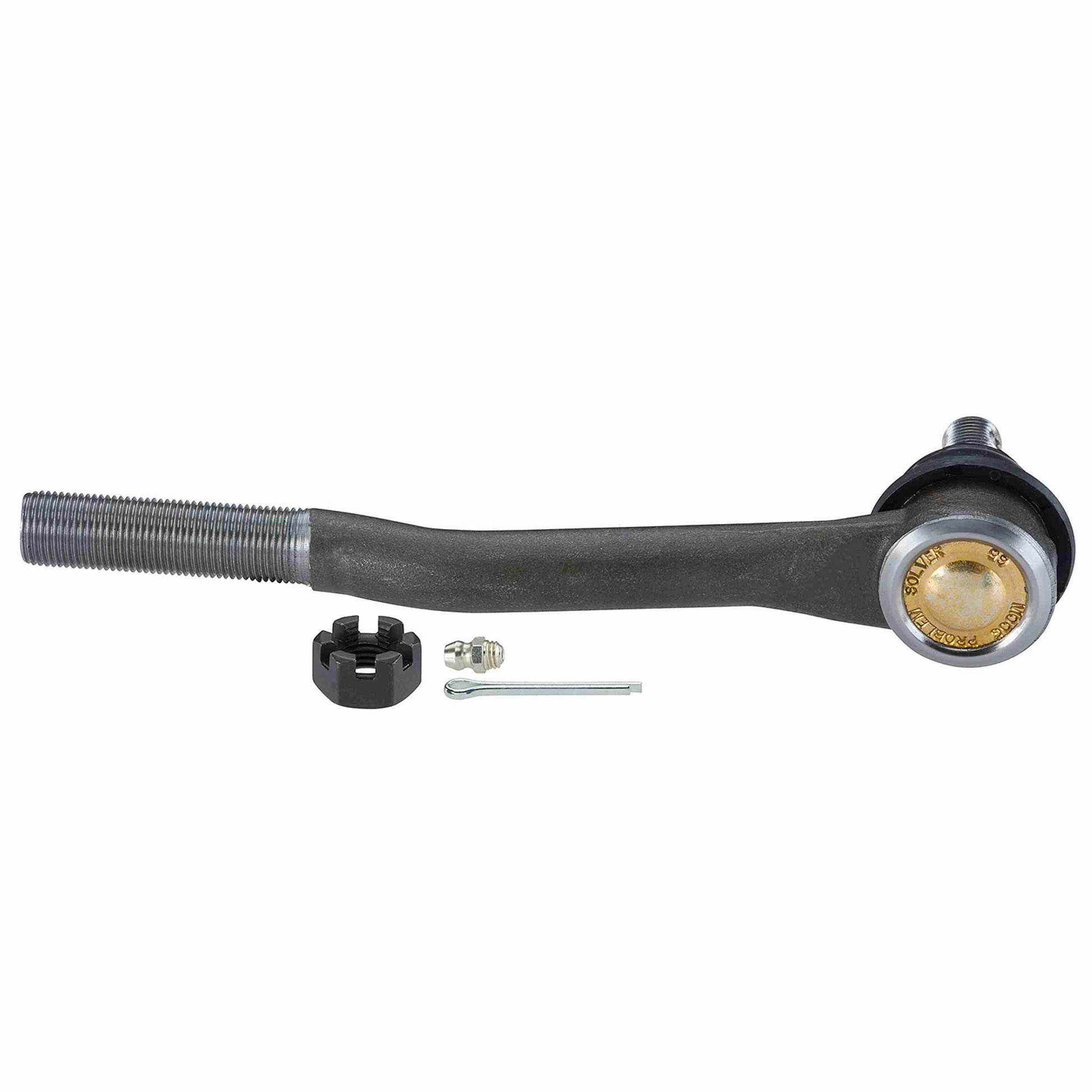

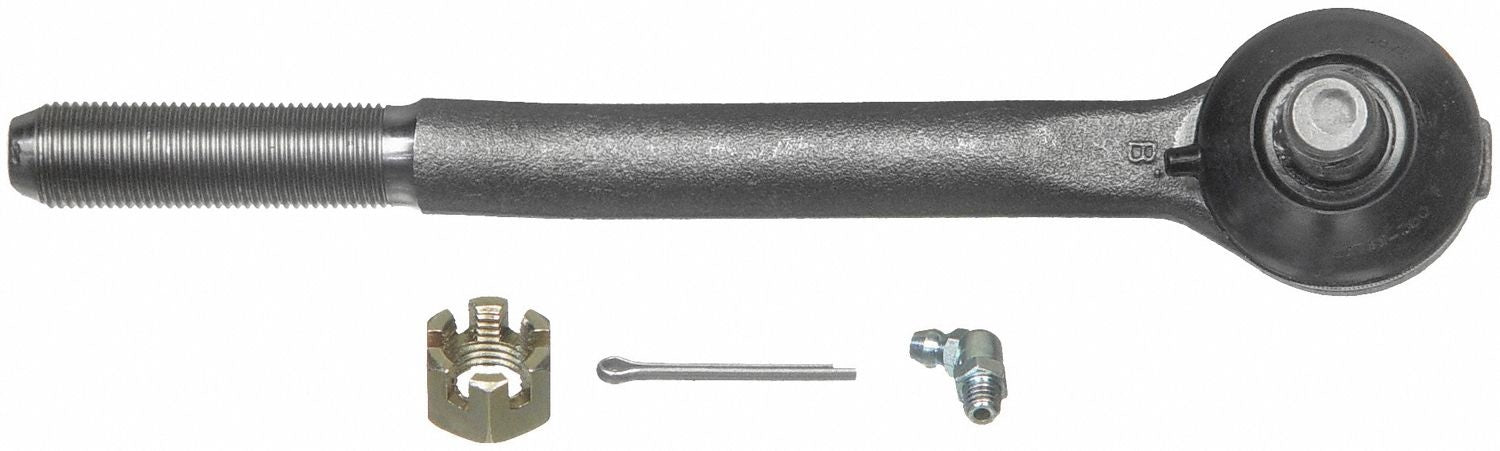

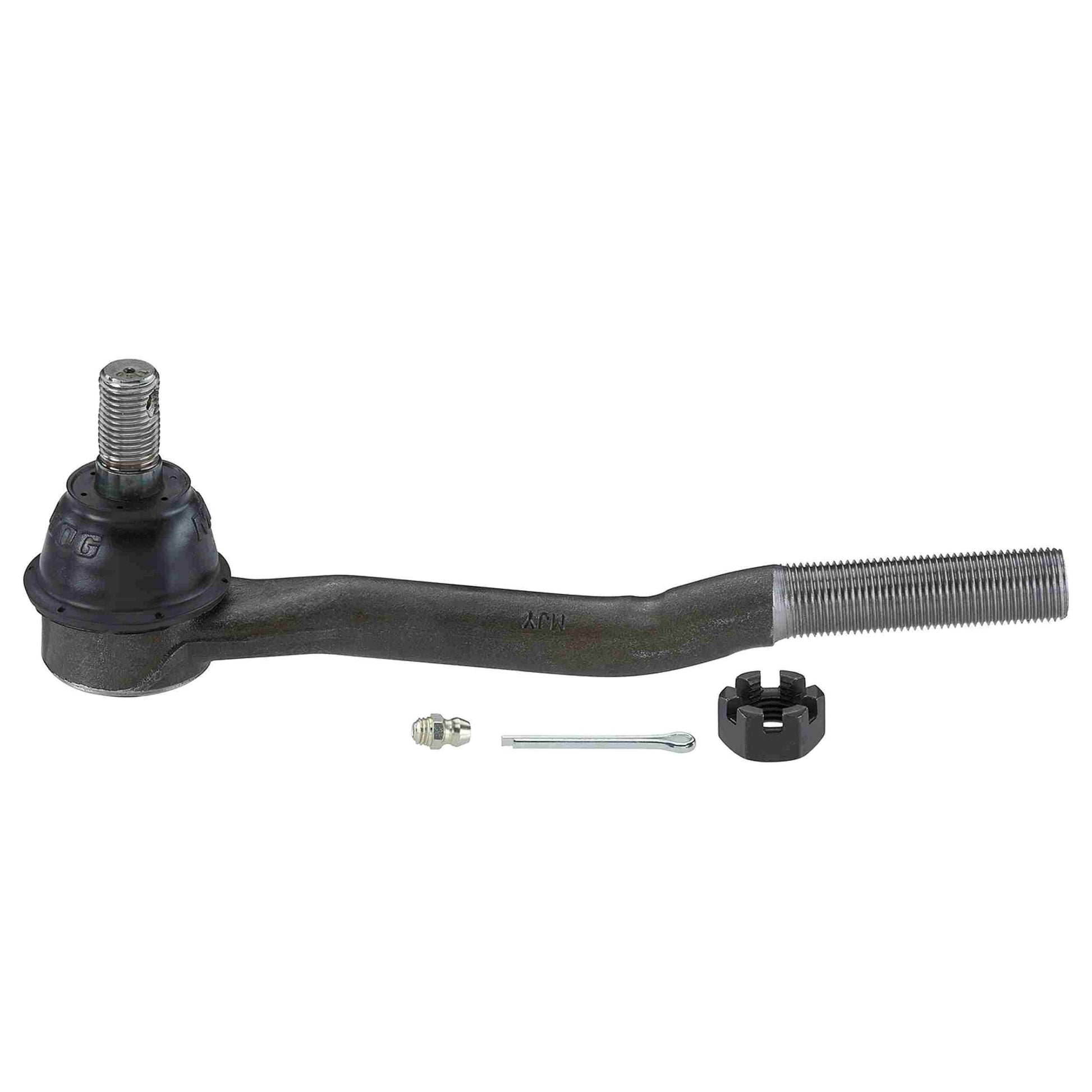

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Stud Center to End (in): 8.100
Rod Thread: M17X1.5
Configuration: BENT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.577
Stud Diameter Dimension (bottom in.): 0.641
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Dust Boot Included: Yes
End 1 Thread Diameter (in): 17.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM):1.5


Vehicle Fitments:

Year Make Model Submodel
1986 - 1989 Toyota 4Runner DLX
1986 - 1991 Toyota 4Runner SR5
1986 - 1991 Toyota Pickup Base, SR5, DLX
1987 Toyota Pickup LN67
1986 Toyota Pickup LN76
1986 - 1987 Toyota Pickup RN63, LN55 DLX, Base Turbo
1986 - 1988 Toyota Pickup SR5 Turbo
