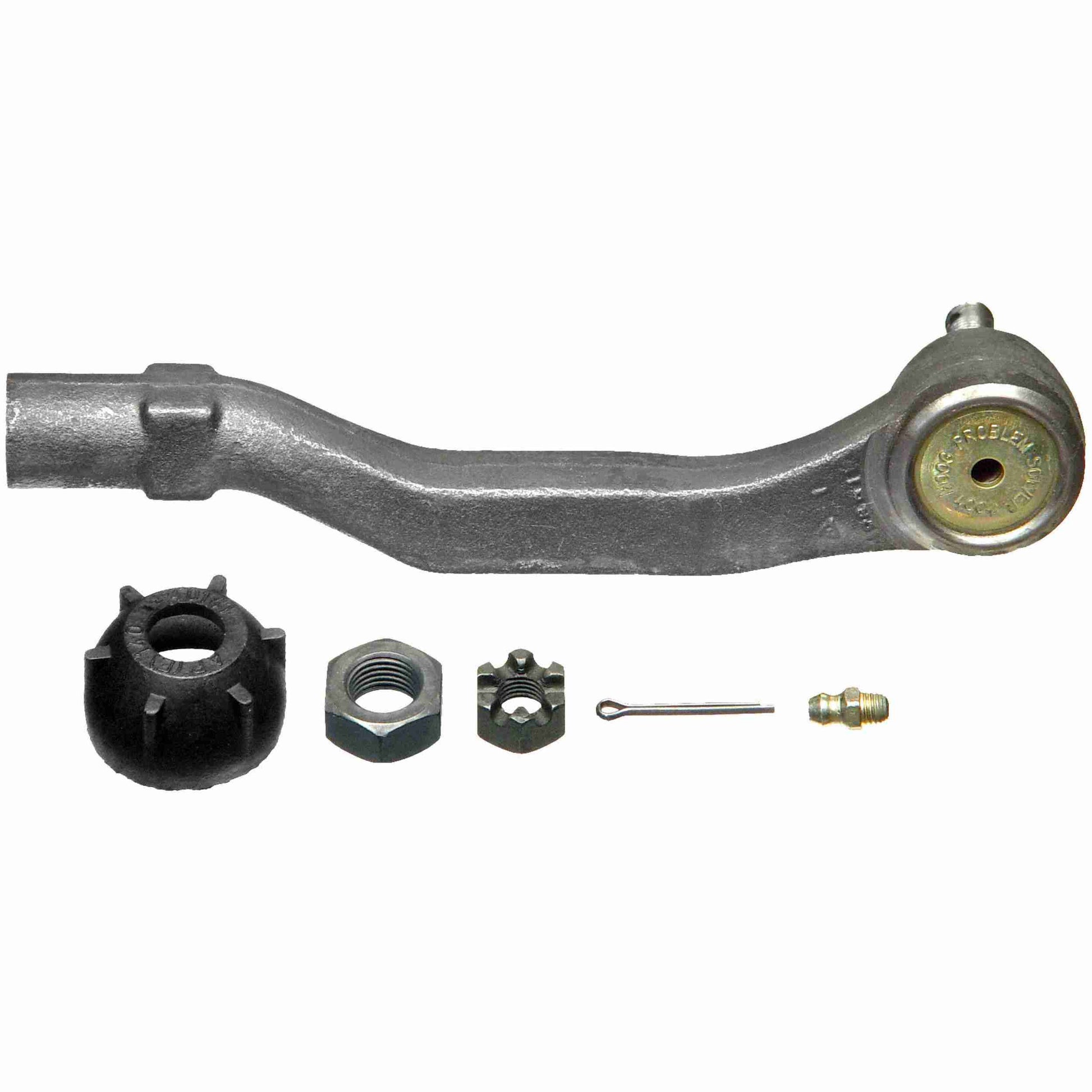

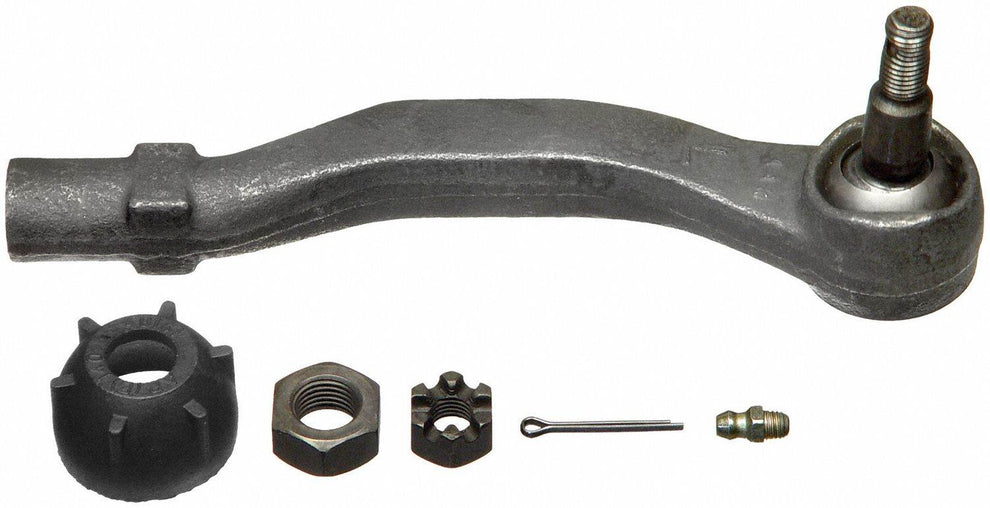

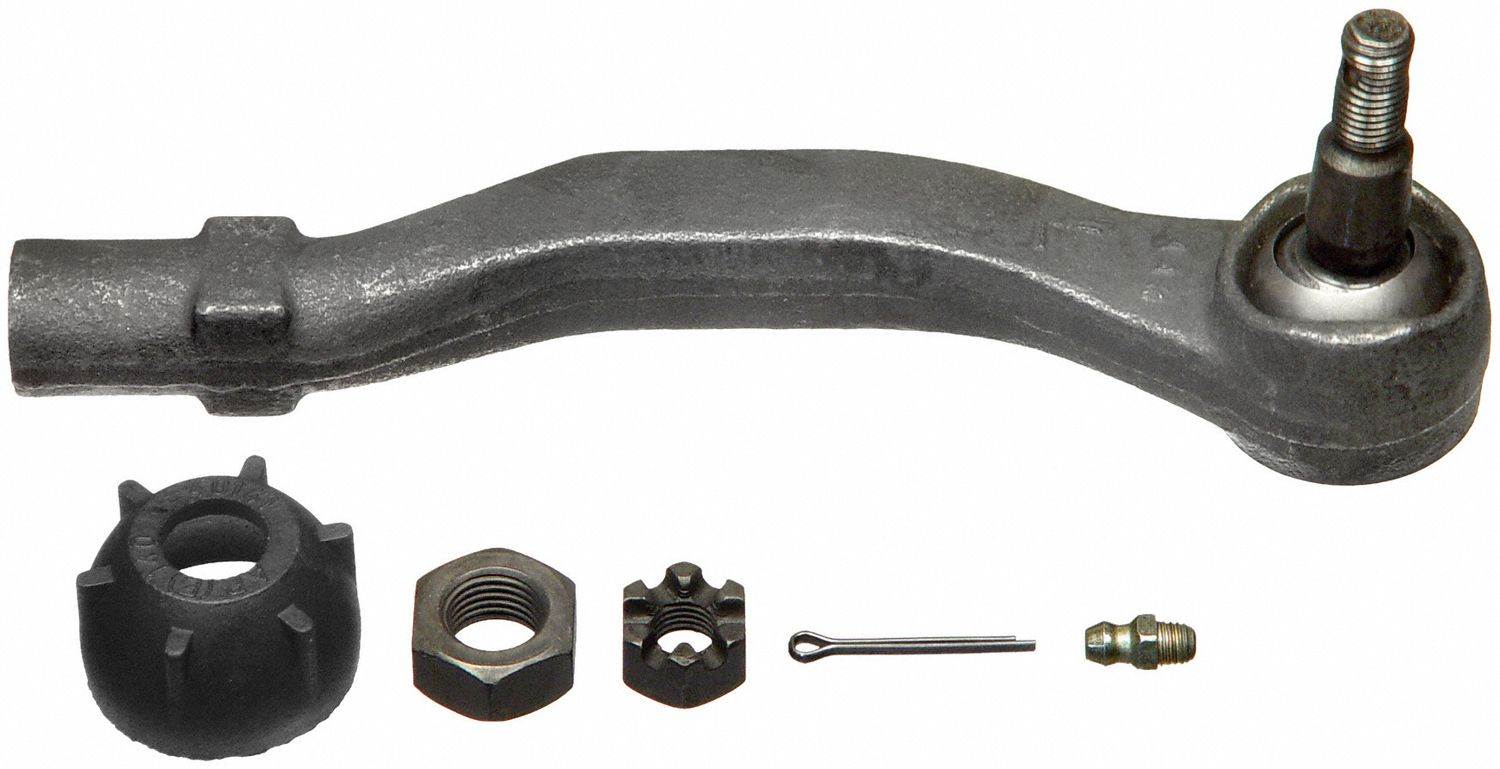

Moog Tie Rod End, Greasable, Outer, for use on Acura /Honda ,
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications:
Stud Center to End (in): 7.120
Rod Thread: M14-1.5R
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.509
Stud Diameter Dimension (bottom in.): 0.555
Stud Thread: M10-1.25
Specification Image Reference: OUTERTIEROD.tif
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 1993 | Acura | Integra | GS-R |
| 1990 - 1993 | Acura | Integra | LS, RS, GS |
| 1990 - 1991 | Honda | Civic | EX |
| 1988 - 1991 | Honda | Civic | LX, Base, DX, RT 4WD |
| 1988 | Honda | Civic | SE |
| 1989 - 1991 | Honda | Civic | Si, CX |
| 1988 - 1989 | Honda | Civic | Wagovan |
| 1989 - 1991 | Honda | CRX | Base |
| 1988 | Honda | CRX | DX |
| 1988 - 1991 | Honda | CRX | HF, Si |
Moog Tie Rod End, Greasable, Outer, for use on Acura /Honda ,
Sale price$36.26 USD
