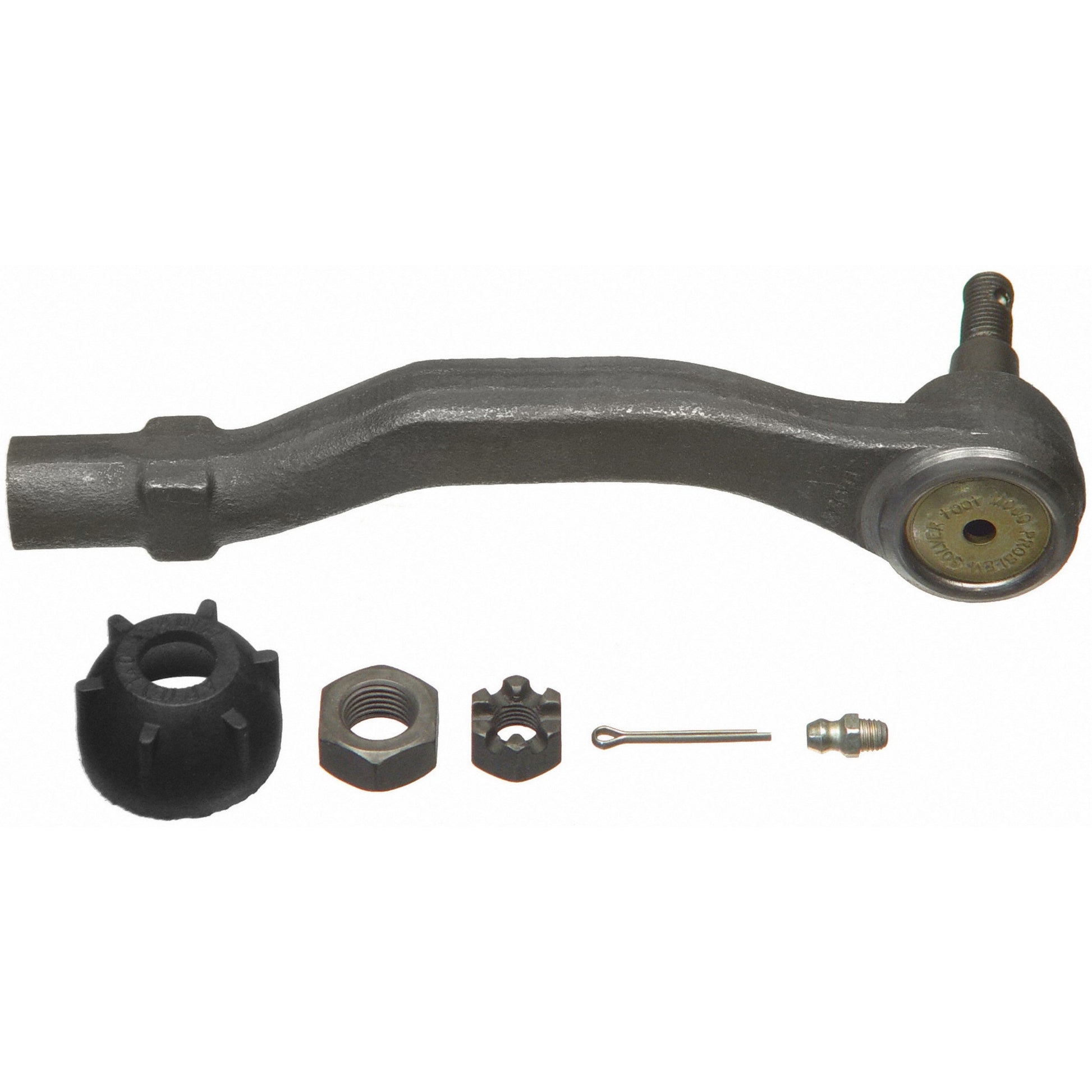

Moog Tie Rod End:Greasable,Outer,for use on Acura /Honda
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Stud Center to End (in): 7.120
Rod Thread: M14-1.5R
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.509
Stud Diameter Dimension (bottom in.): 0.555
Stud Thread: M10-1.25
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 1993 | Acura | Integra | GS, RS, LS |
| 1992 - 1993 | Acura | Integra | GS-R |
| 1989 - 1991 | Honda | Civic | CX, Si |
| 1988 - 1991 | Honda | Civic | DX, Base, LX, RT 4WD |
| 1990 - 1991 | Honda | Civic | EX |
| 1988 | Honda | Civic | SE |
| 1988 - 1989 | Honda | Civic | Wagovan |
| 1989 - 1991 | Honda | CRX | Base |
| 1988 | Honda | CRX | DX |
| 1988 - 1991 | Honda | CRX | Si, HF |
Moog Tie Rod End:Greasable,Outer,for use on Acura /Honda
Sale price$36.68 USD
