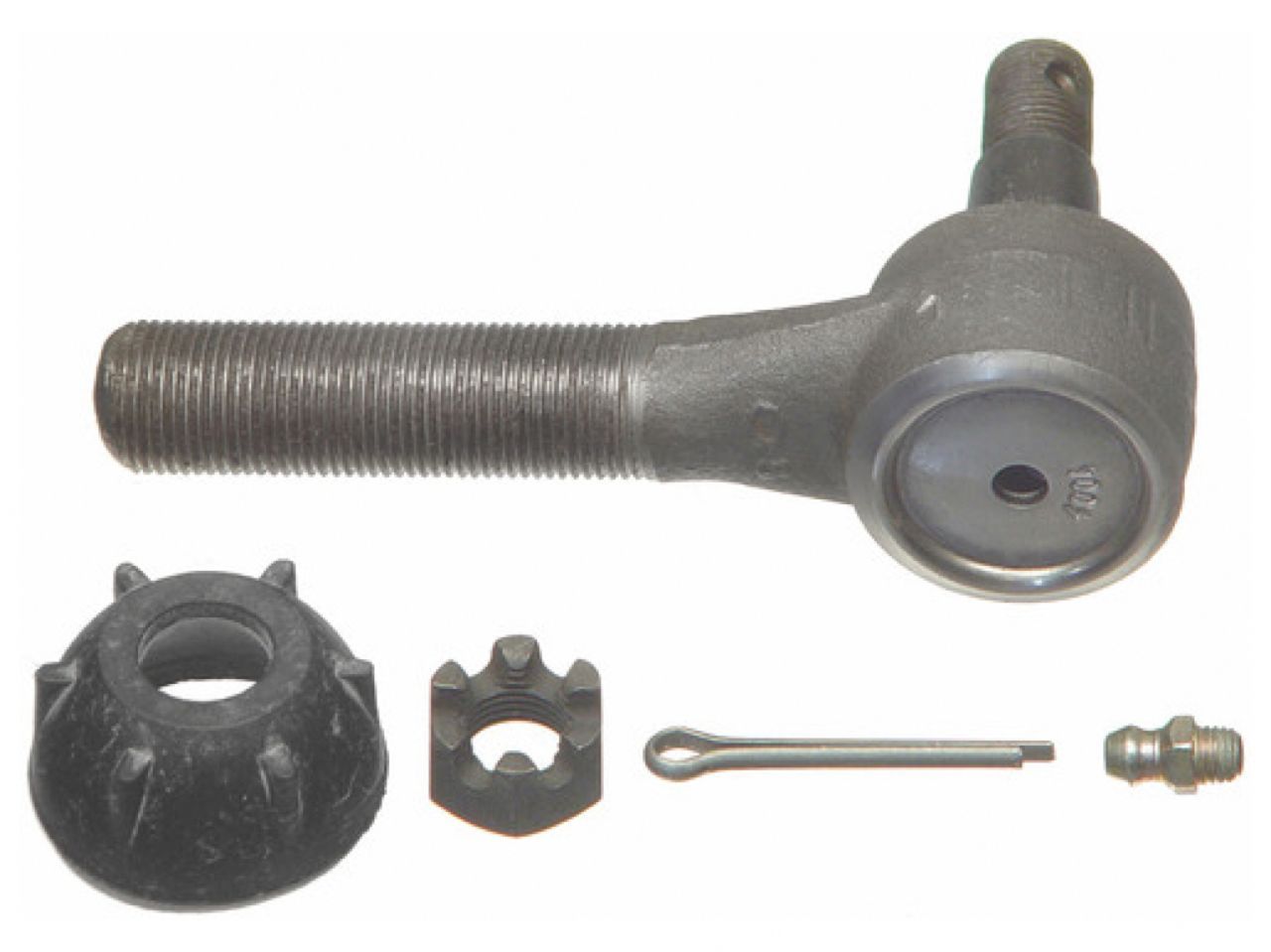

• Moog Tie Rod Ends ES285RL Item Image
1 1
MOOG Chassis Products

Moog Tie Rod End:Greasable,Outer,Ford,Mercury,Full Size

Moog Tie Rod End:Greasable,Outer,Ford,Mercury,Full Size

sku: 14NT9 | mpn: ES285RL
$33.67
$33.67 $33.67
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 4.000
Rod Thread: 11/16-18 UNS-2A
Rod Type (Male / Female): MALE
Configuration: BENT
Stud Diameter Dimension (top in.): 0.575
Stud Diameter Dimension (bottom in.): 0.626
Stud Thread: 1/2-20 UNF-2A
Rack End Thread: 1/2-20 UNF-2A
Dust Boot Included: Yes
End 1 Thread Diameter (IN): 11/16
End 1 Thread Direction: L
End 1 Threads Per Inch: 18
End 2 Thread Diameter (IN): 1/2
End 2 Threads Per Inch: 20
