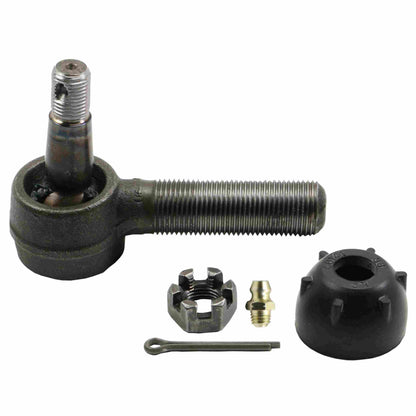

Moog Tie Rod End:Greasable,Outer,1/2-20 Threads,Dodge,LT,Each
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.385
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.543
Stud Diameter Dimension (bottom in.): 0.630
Stud Thread: 1/2" - 20"
Rack End Thread: 1/2" - 20"
Dust Boot Included: Yes
End 1 Thread Diameter (in): 3/4
End 1 Threads Per Inch: 16
End 1 Thread Direction: L
End 2 Thread Diameter (in): 1/2
End 2 Thread Direction: R
End 2 Threads Per Inch: 20
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1986 - 1993 | Dodge | Ramcharger | Base, Royal SE |
| 1991 - 1993 | Dodge | Ramcharger | Canyon Sport |
| 1986 - 1989 | Dodge | W100 | Custom |
| 1986 - 1993 | Dodge | W150 | Base |
| 1990 - 1991 | Dodge | W150 | S |
| 1986 - 1993 | Dodge | W250 | Base |
Moog Tie Rod End:Greasable,Outer,1/2-20 Threads,Dodge,LT,Each
Sale price$31.78 USD
