MOOG Chassis Products

Moog Tie Rod End:Greasable,Outer, for Nissan,Each

Moog Tie Rod End:Greasable,Outer, for Nissan,Each

sku: 3QHGS | mpn: ES2814RL
$40.08
$40.08 $40.08
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

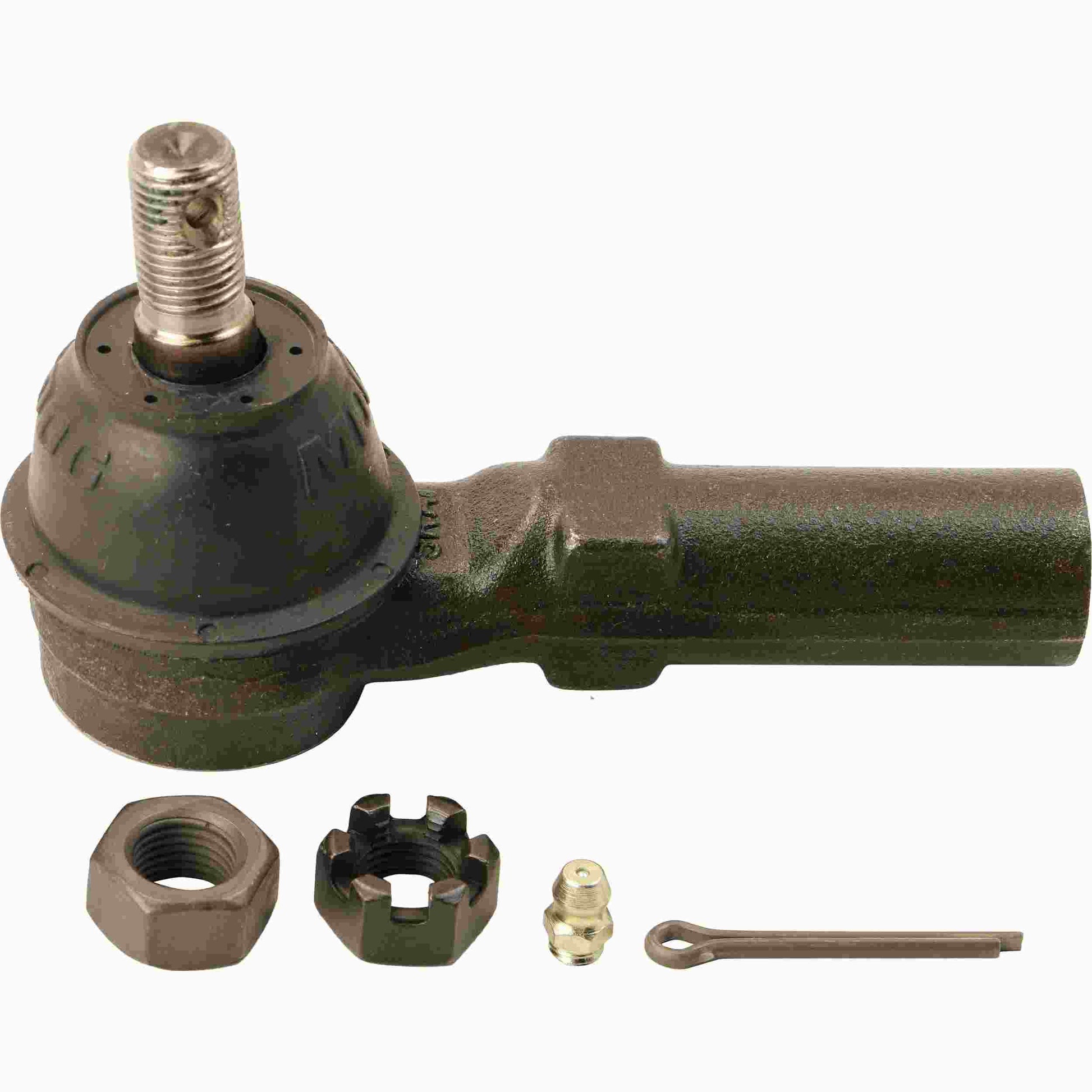

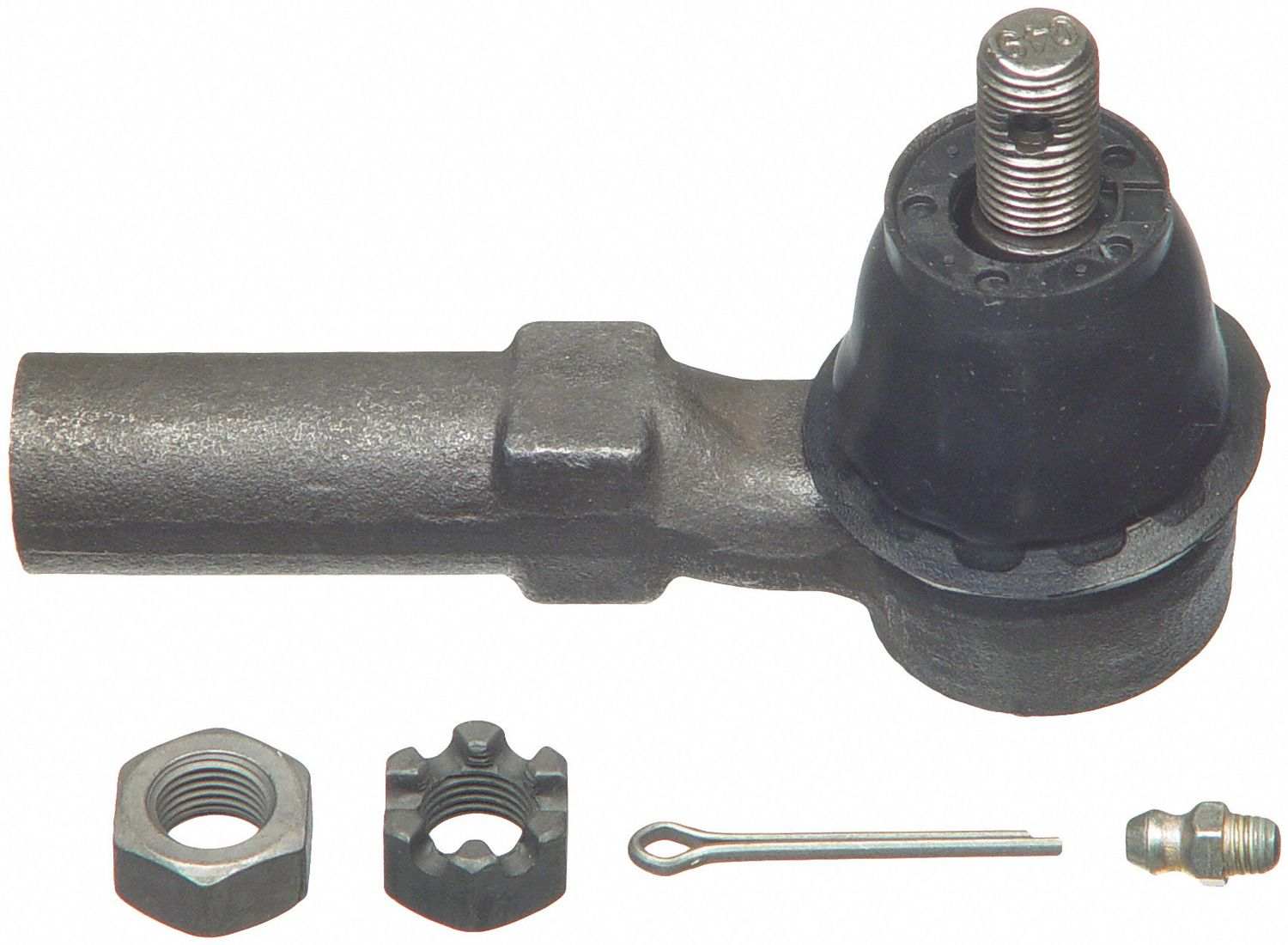

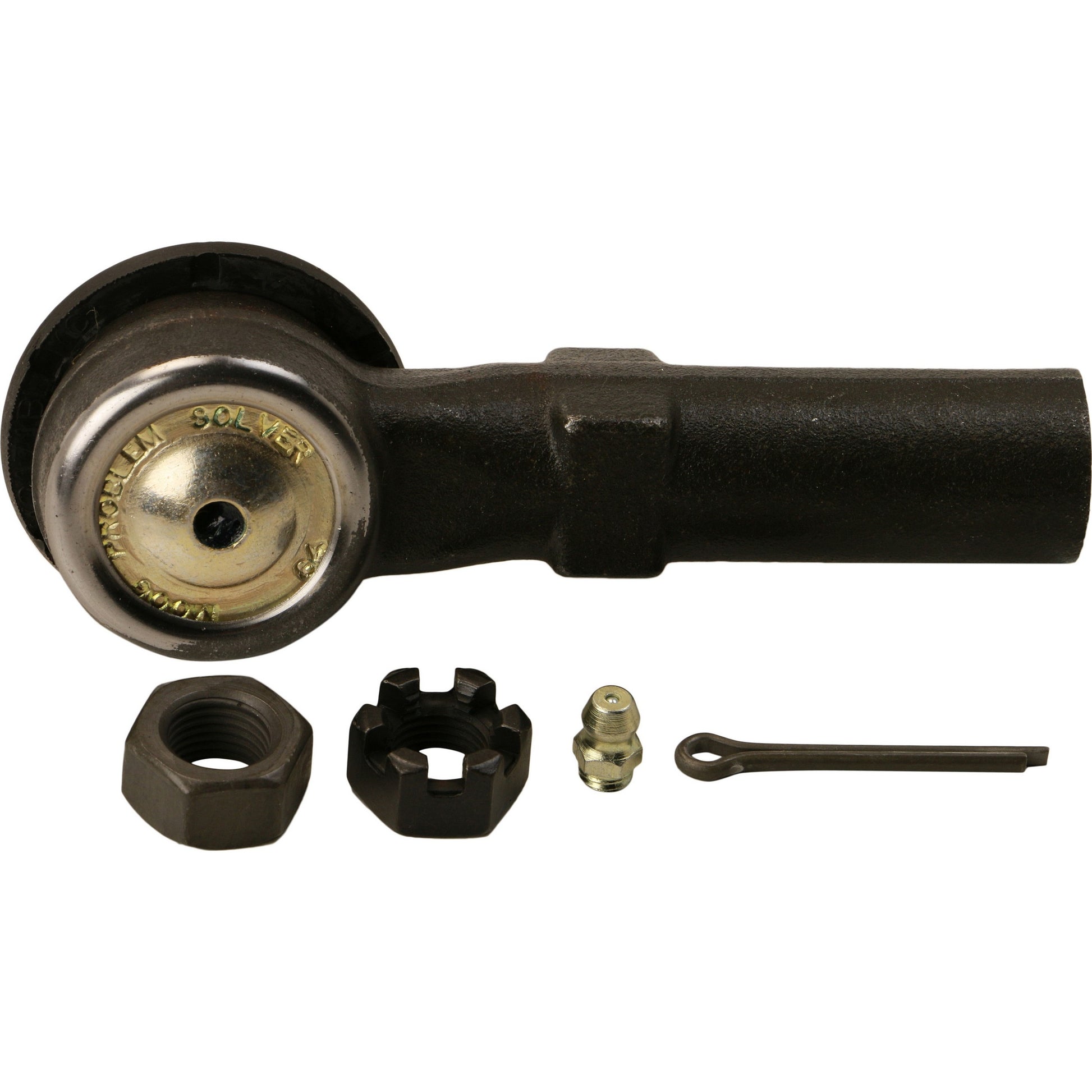

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.940
Rod Thread: M12 X 1.25
Configuration: STRAIGHT
Rack End Type (Male/Female): FEMALE
Stud Diameter Dimension (top in.): 0.511
Stud Diameter Dimension (bottom in.): 0.593
Stud Thread: M12 X 1.25
Rack End Thread: M12 X 1.25
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 12.0
End 1 Thread Pitch (MM): 1.25
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.25
End 2 Thread Direction: R


Vehicle Fitments:

Year Make Model Submodel
1995 - 1998 Nissan 200SX SE, SE-R, Base
1989 - 1993 Nissan 240SX Base
1991 - 1992 Nissan 240SX LE
1989 - 1994 Nissan 240SX SE
1989 - 1990 Nissan 240SX XE
1996 Nissan Altima GLE-E
1996 - 2001 Nissan Altima SE, GLE, XE, GXE
1986 - 1988 Nissan Multi Base
1990 Nissan Pulsar NX Base
1987 - 1989 Nissan Pulsar NX SE
1987 - 1990 Nissan Pulsar NX XE
1990 Nissan Sentra 4x4
1986 - 2006 Nissan Sentra Base, XE
2001 - 2002 Nissan Sentra CA
1991 - 1993 Nissan Sentra Classic
1986 Nissan Sentra DX
1987 - 1994 Nissan Sentra E
1995 - 1998 Nissan Sentra GLE
1996 - 2000 Nissan Sentra GST, GSX, GSS
1987 - 2006 Nissan Sentra GXE
2002 - 2006 Nissan Sentra GXE Sport, SE-R Spec V
2003 - 2004 Nissan Sentra LE
1994 - 2003 Nissan Sentra Limited Edition
2004 - 2006 Nissan Sentra S
1986 - 2001 Nissan Sentra SE
1991 - 2006 Nissan Sentra SE-R
2006 Nissan Sentra XE SE Edicion Especial, XE SE
