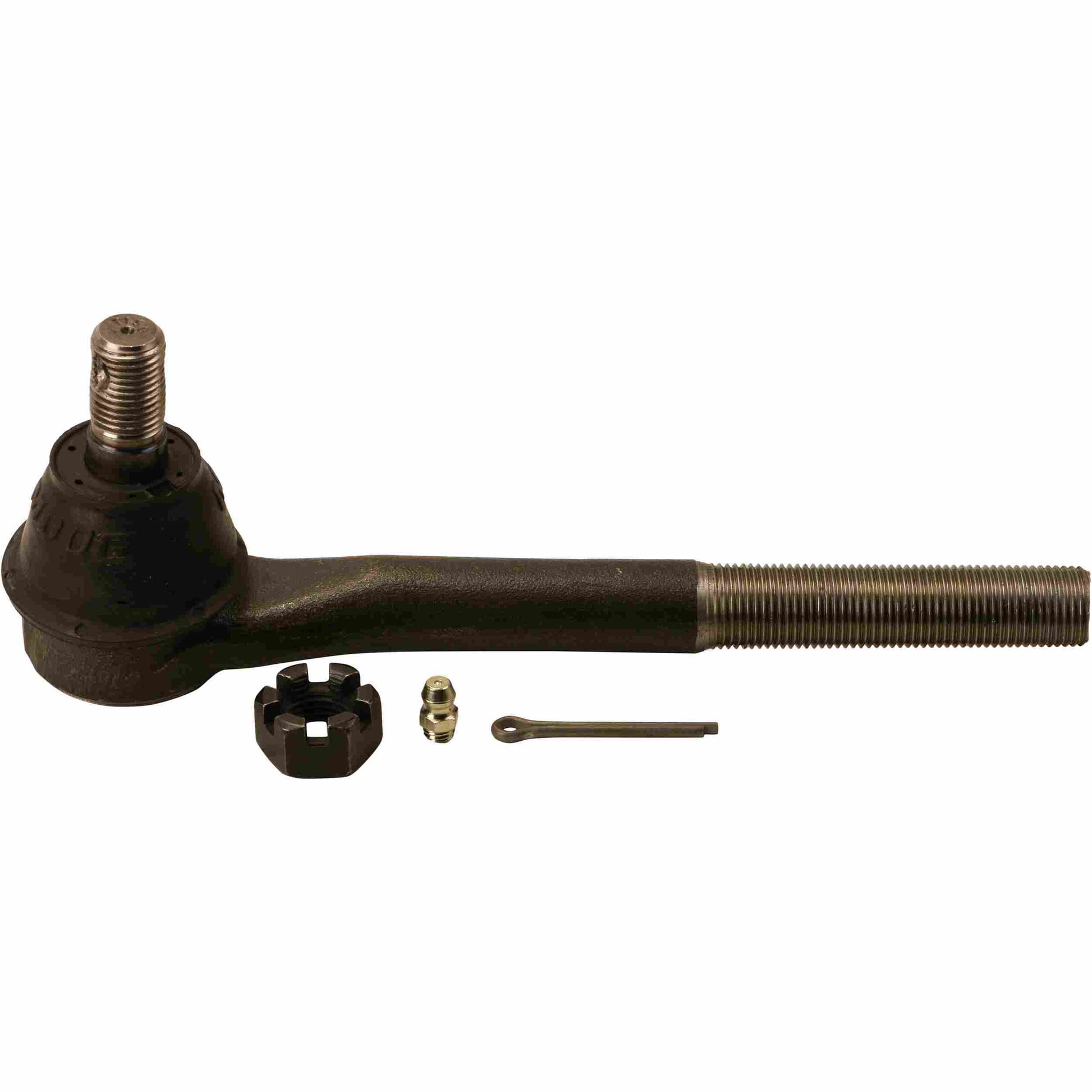

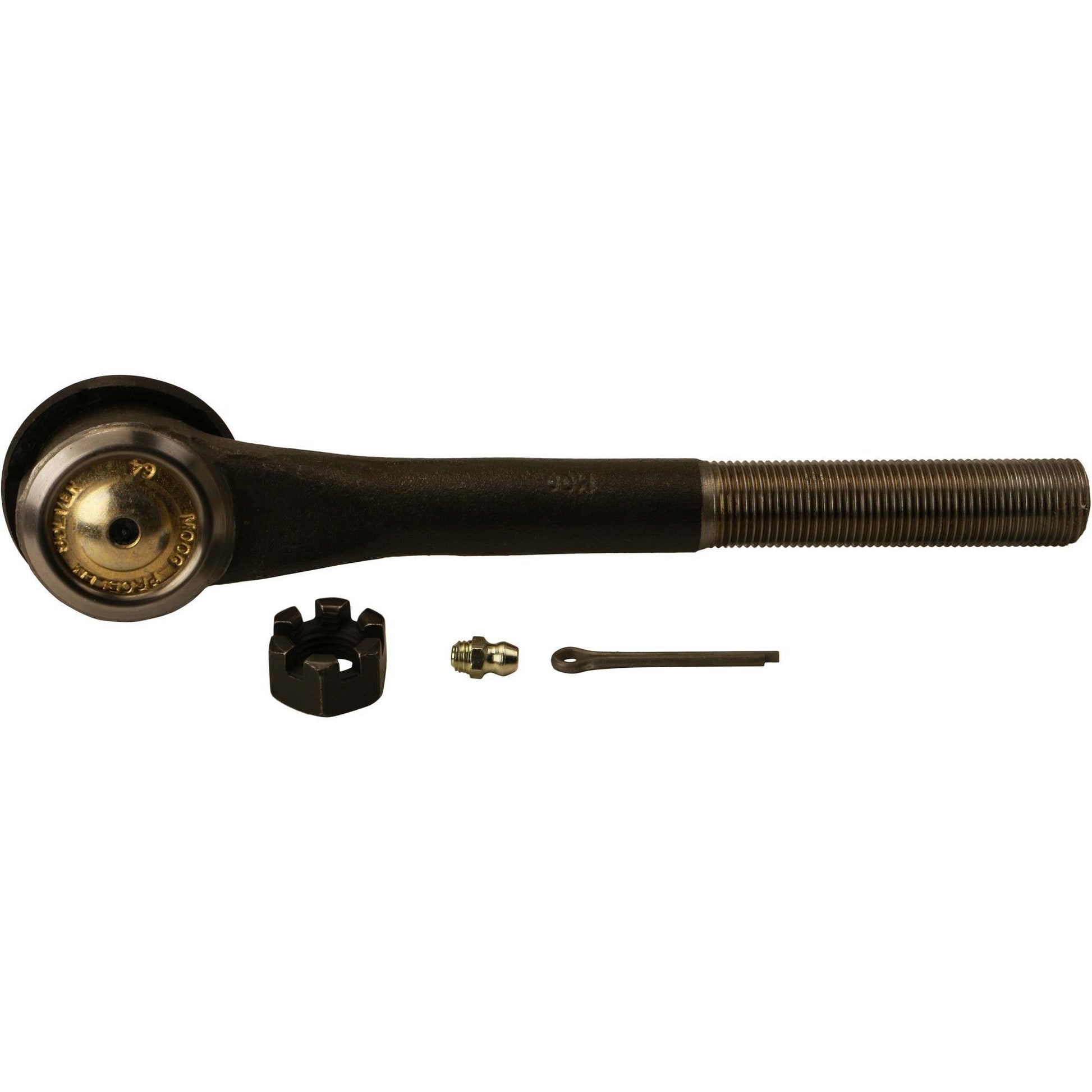

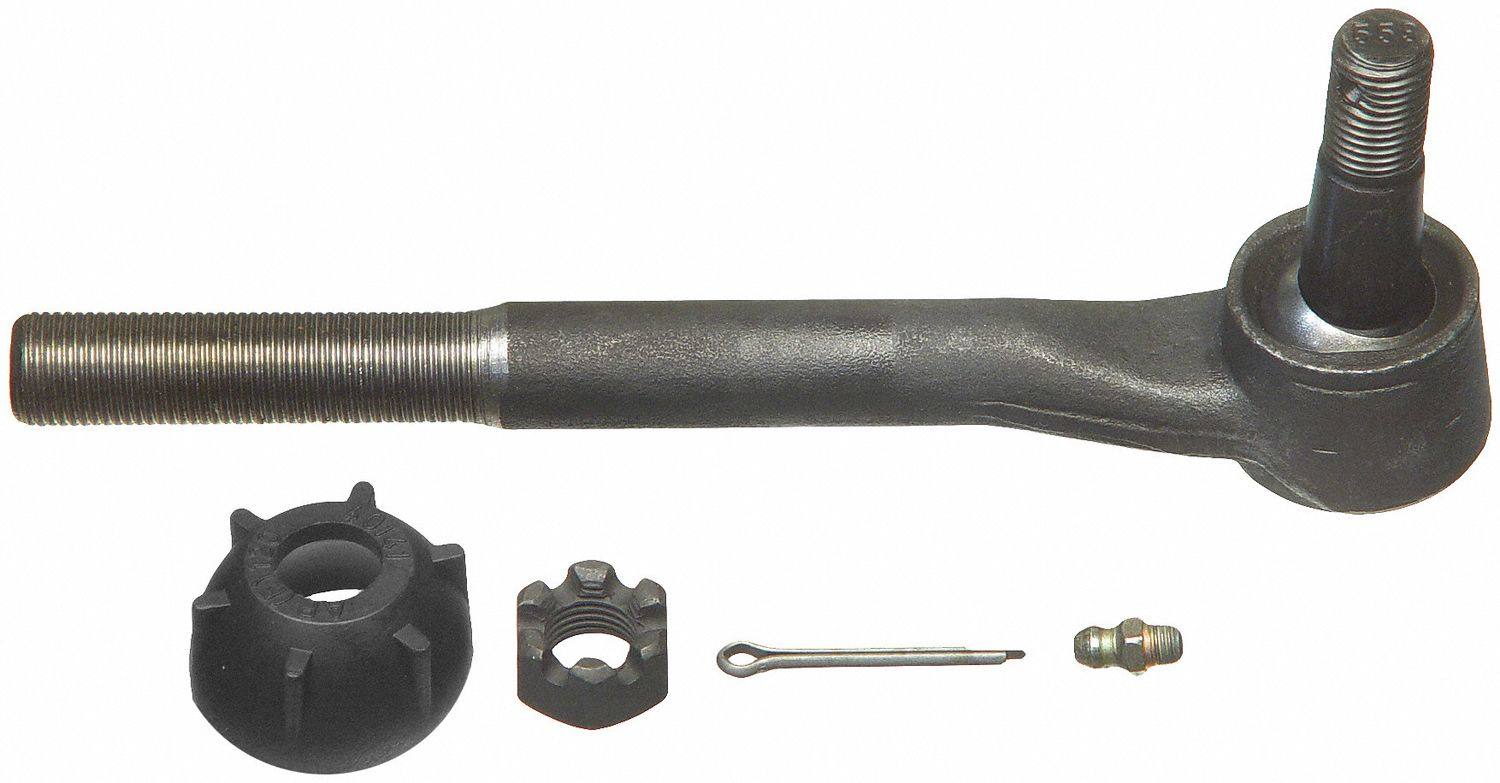

Moog Tie Rod End:Greasable,Inner,Toyota,Pickup,RWD
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 7.280
Rod Thread: M17 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.577
Stud Diameter Dimension (bottom in.): 0.641
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 17.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1985 | Toyota | Pickup | DLX Turbo, RN60 |
| 1979 - 1995 | Toyota | Pickup | DLX, Base, SR5 |
| 1986 - 1987 | Toyota | Pickup | LN55 DLX, RN63, Base Turbo |
| 1984 | Toyota | Pickup | LN56 |
| 1987 | Toyota | Pickup | LN67 |
| 1986 | Toyota | Pickup | LN76 |
| 1993 | Toyota | Pickup | RN02 |
| 1985 - 1988 | Toyota | Pickup | SR5 Turbo |
Moog Tie Rod End:Greasable,Inner,Toyota,Pickup,RWD
Sale price$39.19 USD
