MOOG Chassis Products

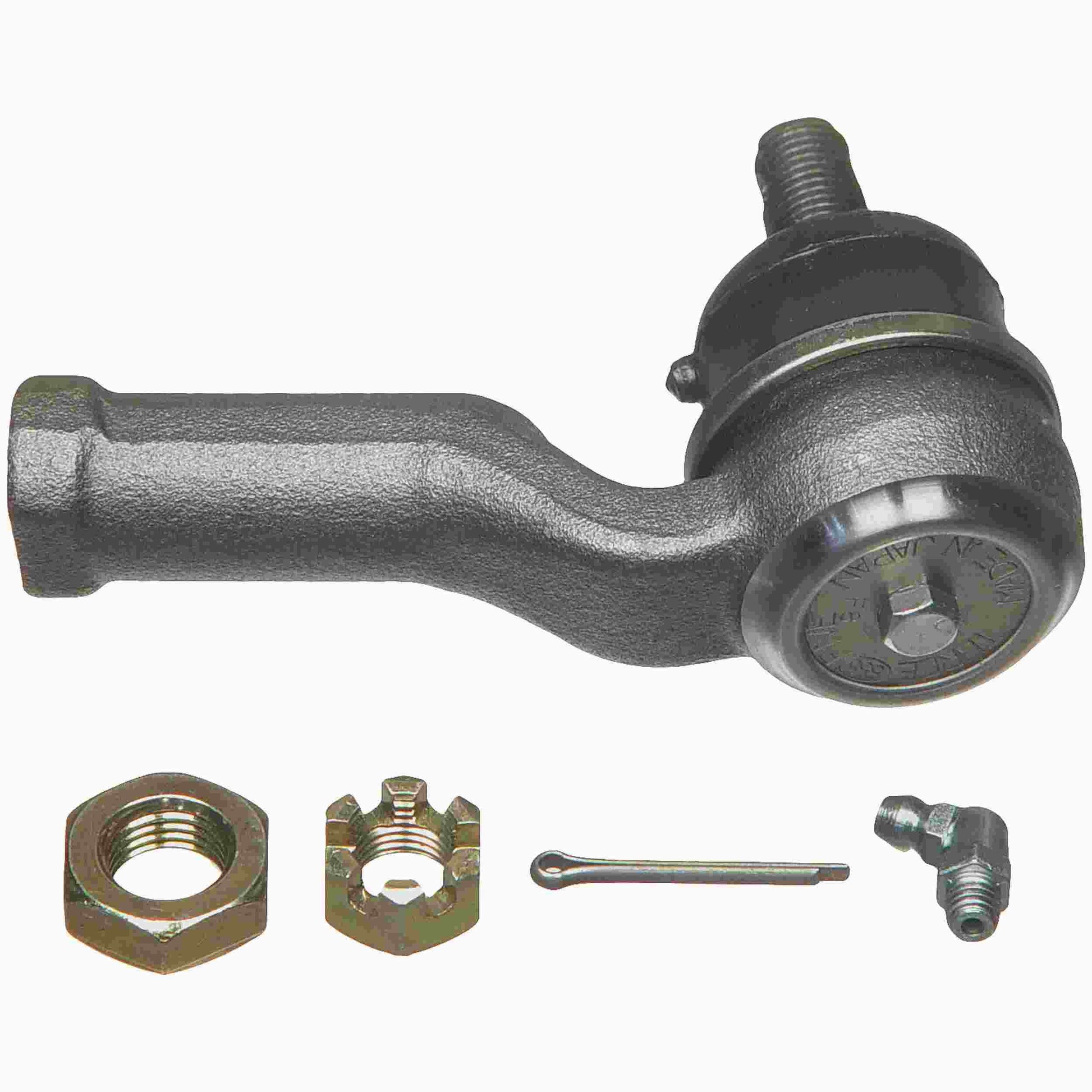

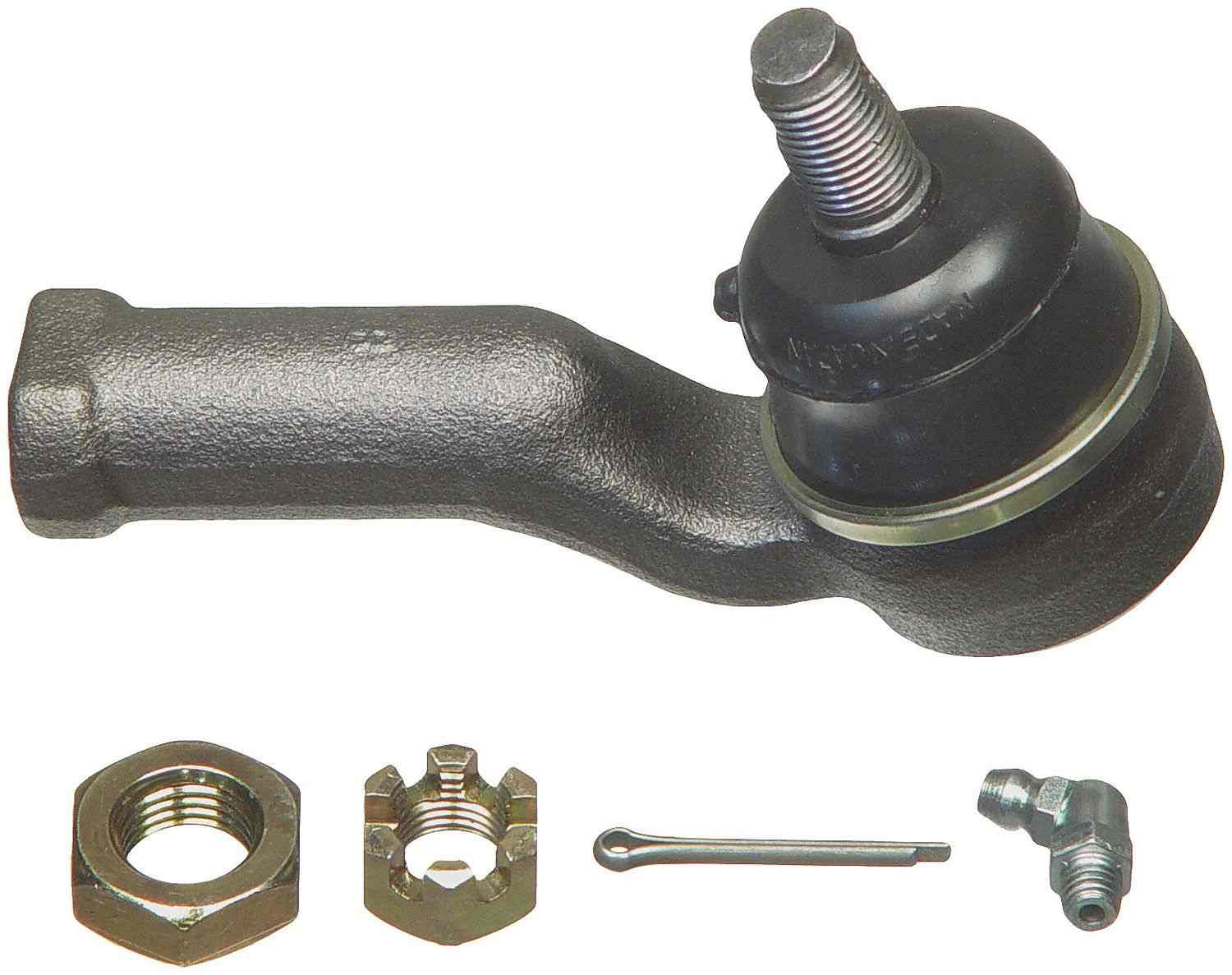

Moog Tie Rod End:Greasable,Outer,Mazda,RX-7

Moog Tie Rod End:Greasable,Outer,Mazda,RX-7

sku: 14NQH | mpn: ES2355
$23.86
$23.86 $23.86
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 7.280
Rod Thread: M14-1.5LI
Configuration: BENT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.498
Stud Diameter Dimension (bottom in.): 0.553
Stud Thread: M12-1.25
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: L
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.3
