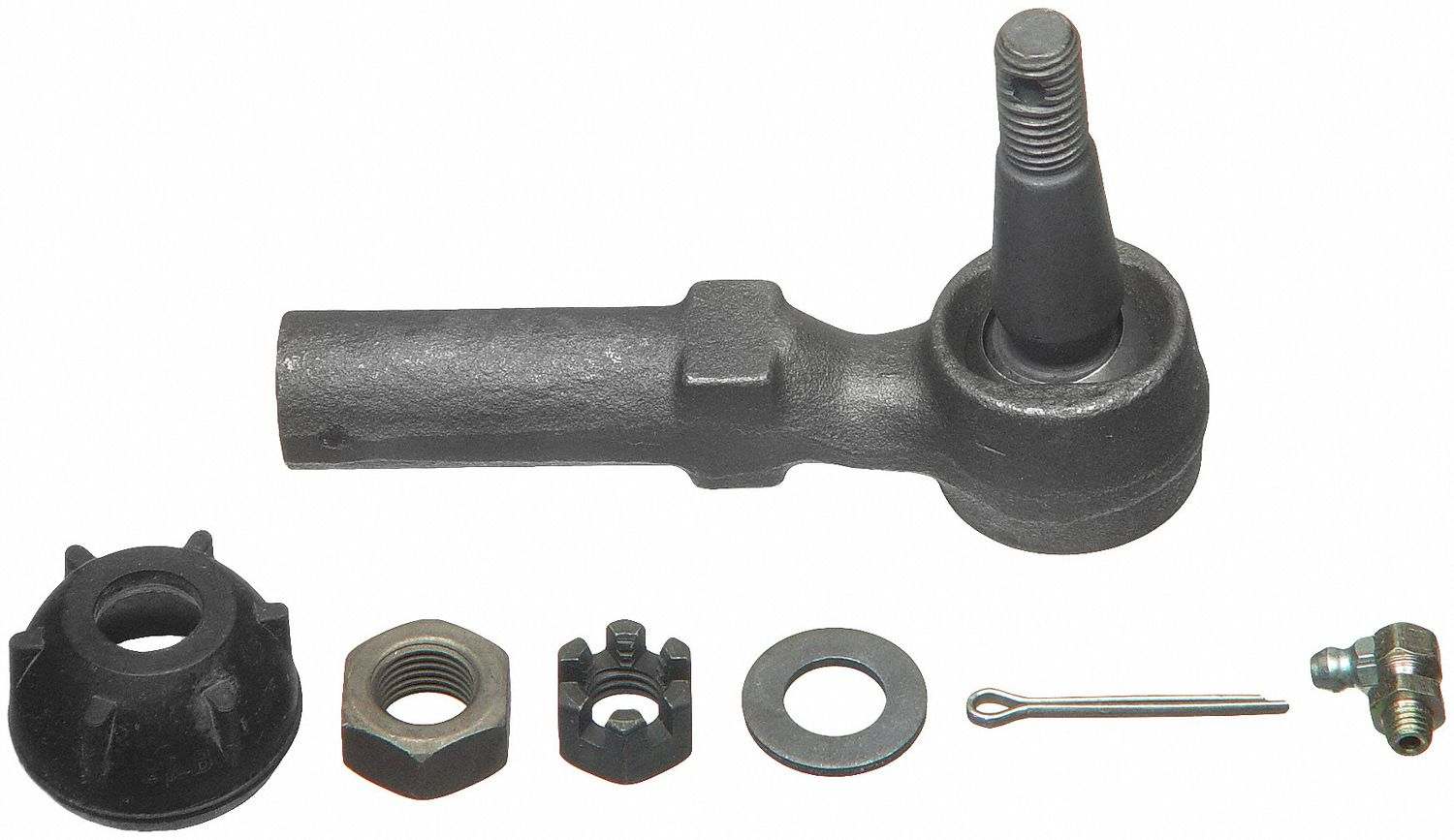

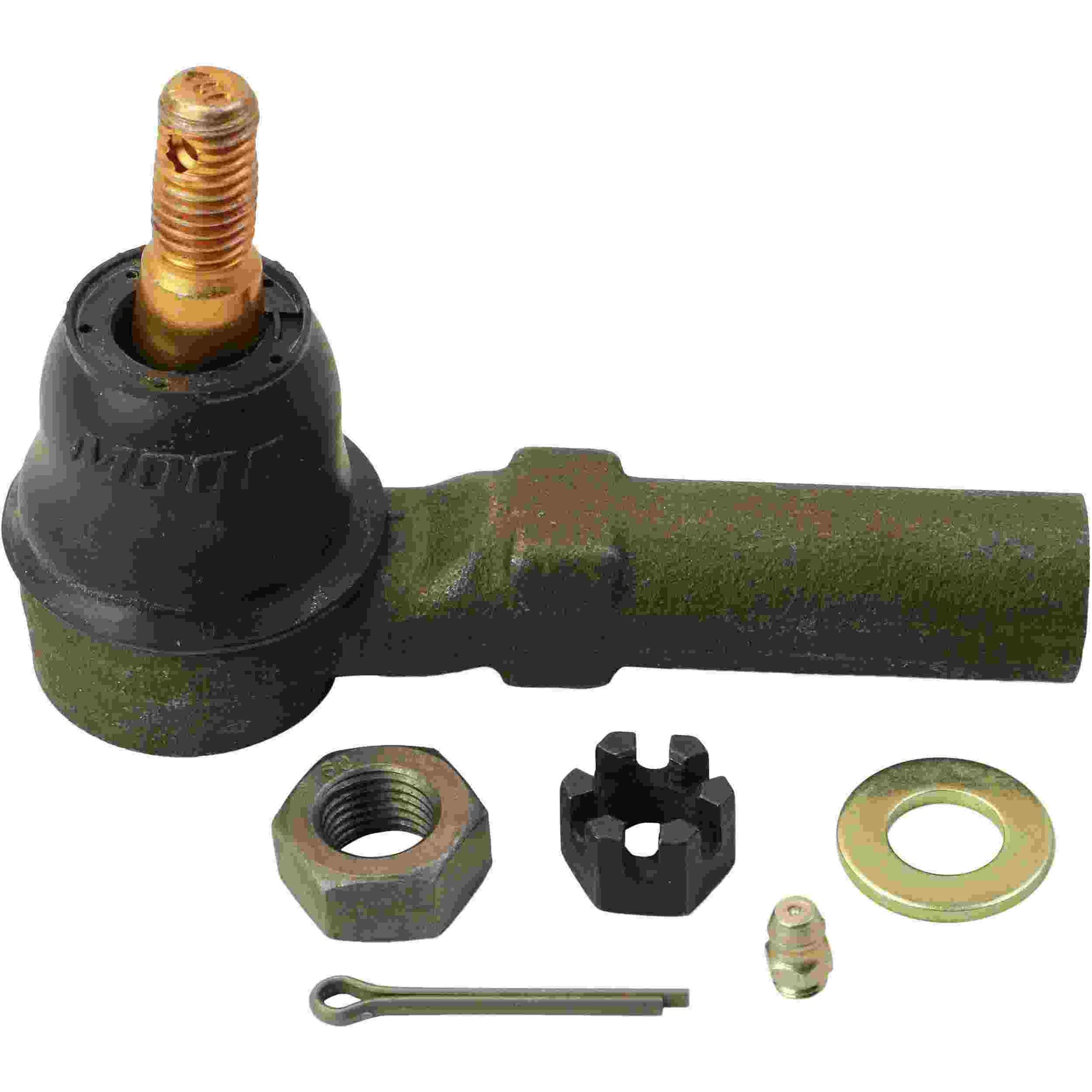

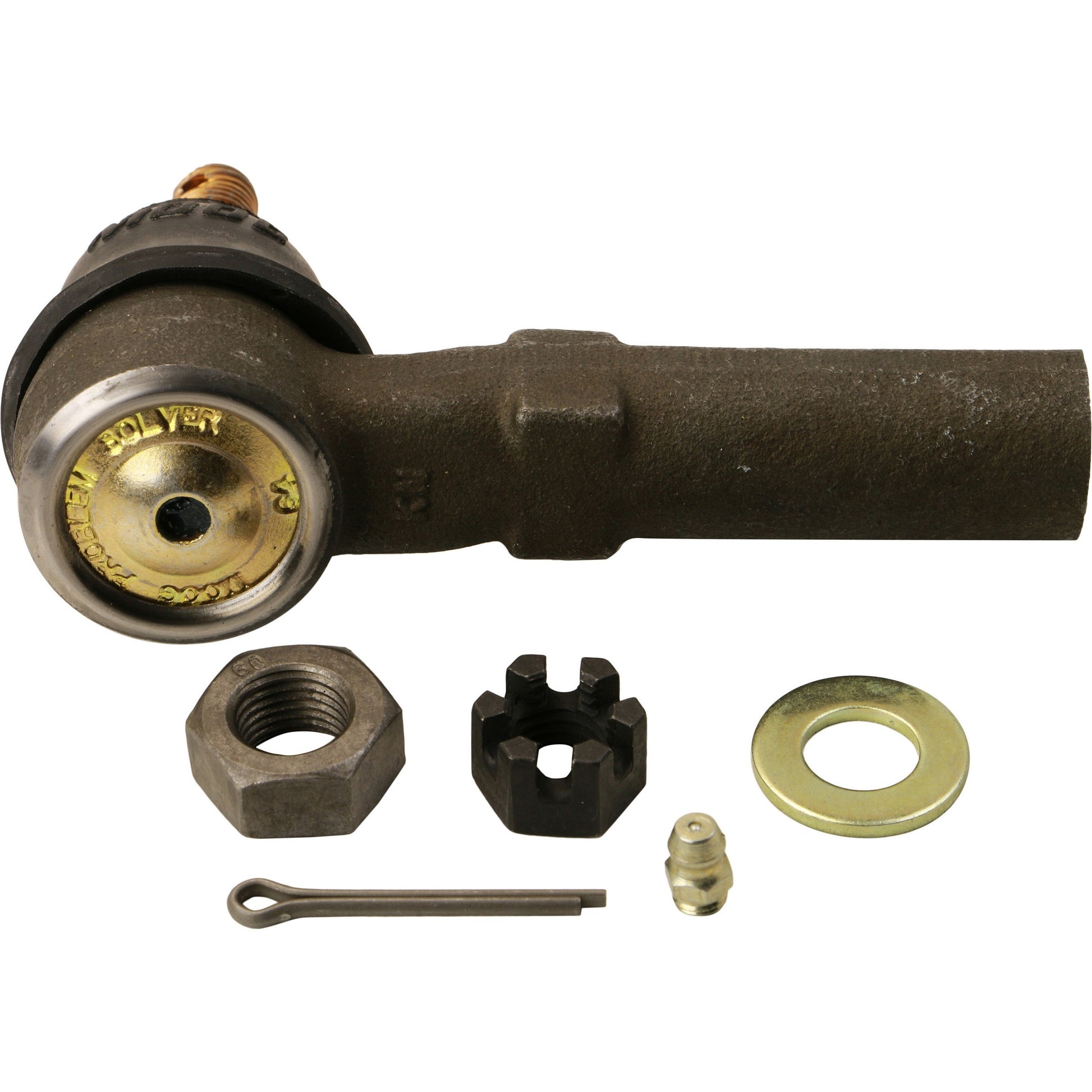

Moog Tie Rod End

Moog Tie Rod End

Regular price $104.62
Regular price Sale price $104.62
Sale Sold out

Shipping calculated at checkout.

126 in stock

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Tie Rods

Greaseable Yes
Stud Center to End (in) 4.170
Rod Thread M14X1.5
Configuration STRAIGHT
Rod Type (Male / Female) FEMALE
Stud Diameter Dimension (top in.) 0.535
Stud Diameter Dimension (bottom in.) 0.705
Stud Thread M12x1.75
Rack End Thread M12x1.75
Specification Image Reference OUTERTIEROD.tif
Dust Bood Included Yes
End 1 Thread Diameter (MM) 14.000
End 1 Thread Pitch (MM) 1.500
End 1 Thread Direction R
End 2 Thread Diameter (MM) 12.0
End 2 Thread Pitch (MM) 1.75


Vehicle Fitments:

Year Make Model Submodel
2004 - 2008 Cadillac XLR Base
2008 - 2009 Cadillac XLR Platinum
2006 - 2009 Cadillac XLR V
2008 Chevrolet Corvette 427 Limited Edition Z06
2003 Chevrolet Corvette 50th Anniversary Edition Pace Car, 50th Anniversary Edition
1997 - 2013 Chevrolet Corvette Base
2010 - 2013 Chevrolet Corvette Grand Sport
1998 Chevrolet Corvette Indianapolis 500 Pace Car
2013 Chevrolet Corvette LT, 427
2001 - 2013 Chevrolet Corvette Z06
2011 Chevrolet Corvette Z06 Carbon
2009 - 2013 Chevrolet Corvette ZR1
