MOOG Chassis Products

Moog Tie Rod End:Ford,Mercury,Outer,Each

Moog Tie Rod End:Ford,Mercury,Outer,Each

sku: 14NLY | mpn: ES2128RL
$77.35
$77.35 $77.35
Sale Sold out
Shipping calculated at checkout.

Low stock: 10 left

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

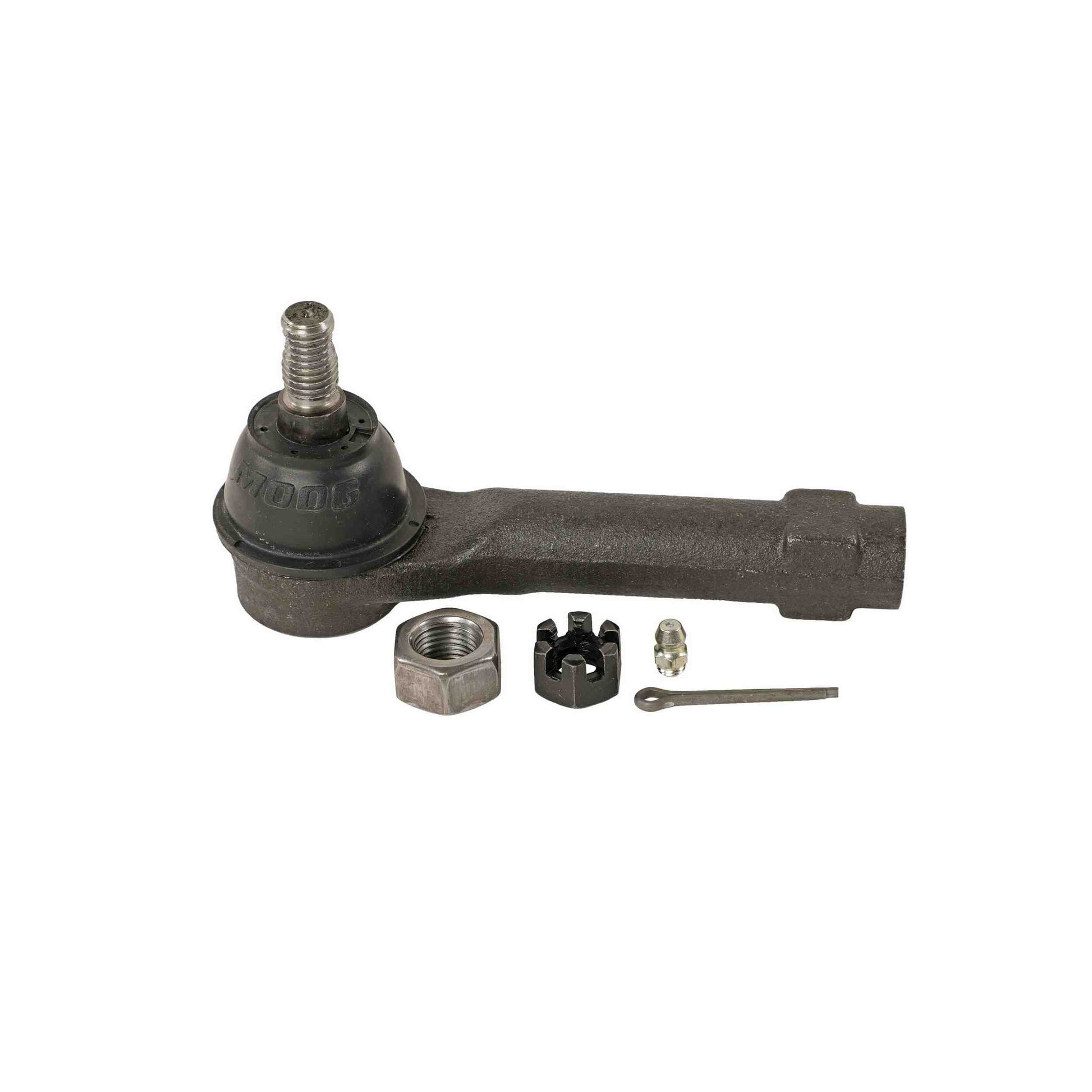

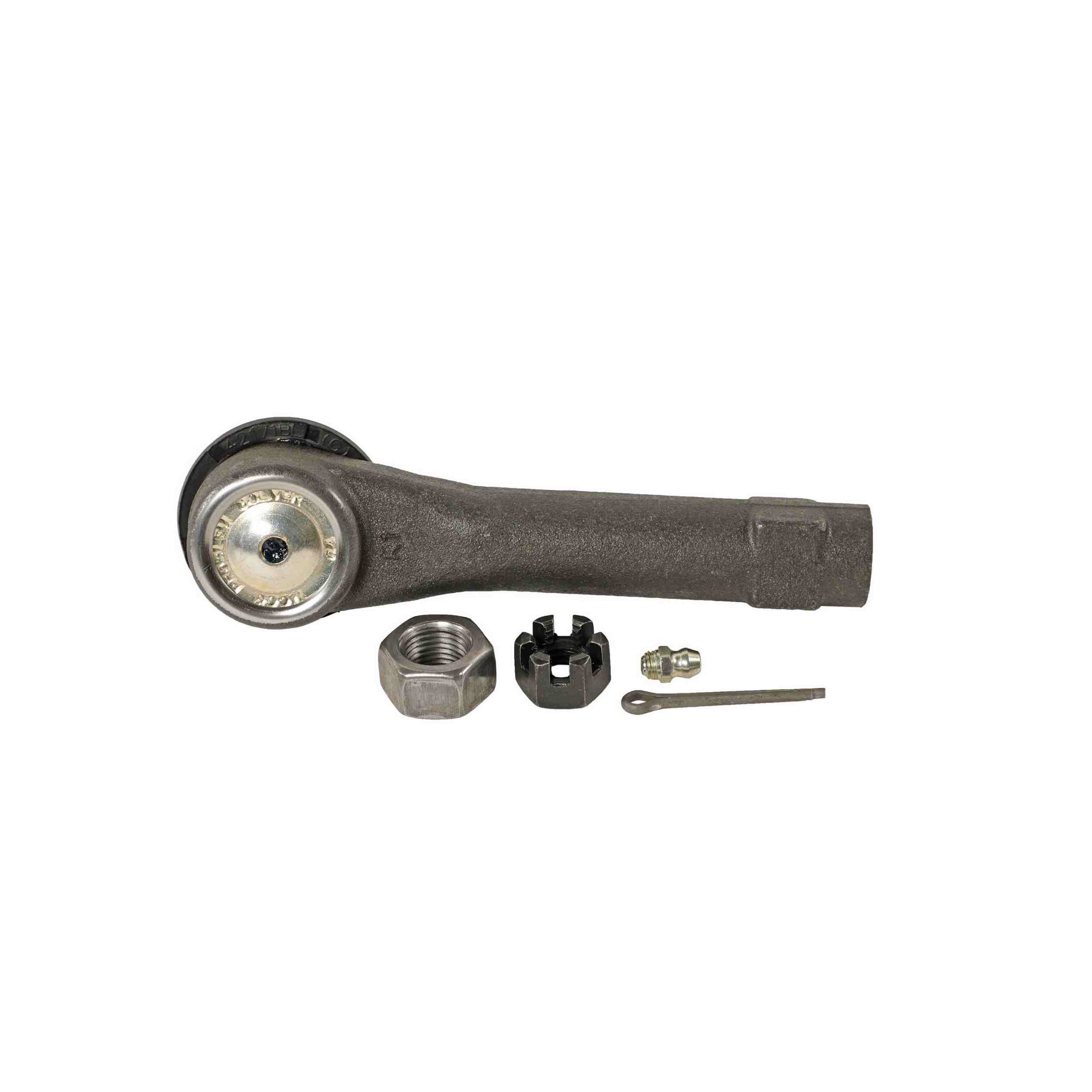

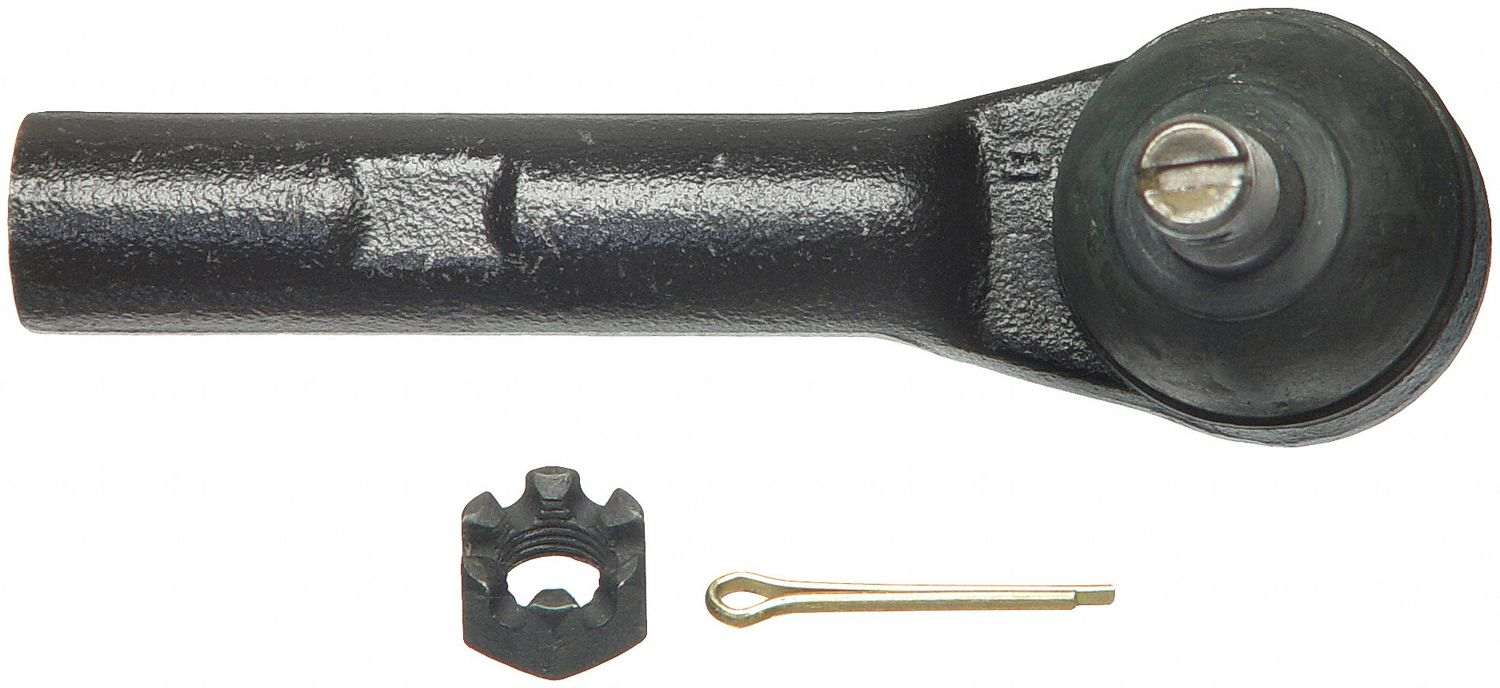

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 5.000
Rod Thread: .9/16-18
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.559
Stud Diameter Dimension (bottom in.): 0.625
Stud Thread: .1/2-20


Vehicle Fitments:

Year Make Model Submodel
1978 - 1981 Ford Fairmont Base, Futura
1979 - 1981 Ford Fairmont Elite, Wagon
1981 Ford Fairmont S
1981 Ford Granada GLX, GL, L
1981 Ford Mustang Cobra
1979 - 1981 Ford Mustang Ghia, Base
1981 Ford Thunderbird Heritage
1980 Ford Thunderbird Silver Anniversary
1980 - 1981 Ford Thunderbird Town Landau, Base
1979 - 1981 Mercury Capri Base
1979 - 1980 Mercury Capri Ghia
1981 Mercury Capri GS
1981 Mercury Cougar Base
1980 - 1981 Mercury Cougar XR-7
1978 - 1981 Mercury Zephyr Base, Z7
