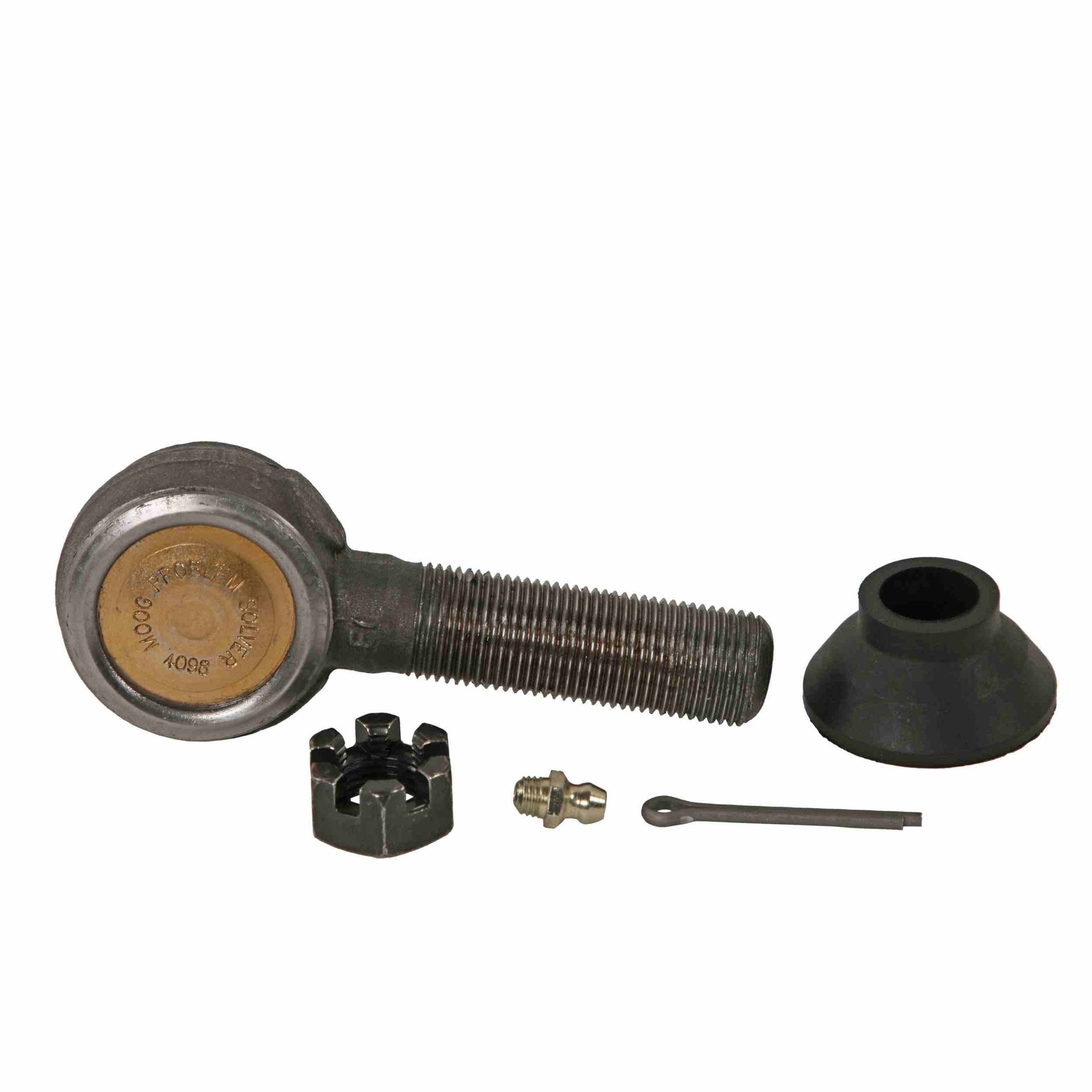

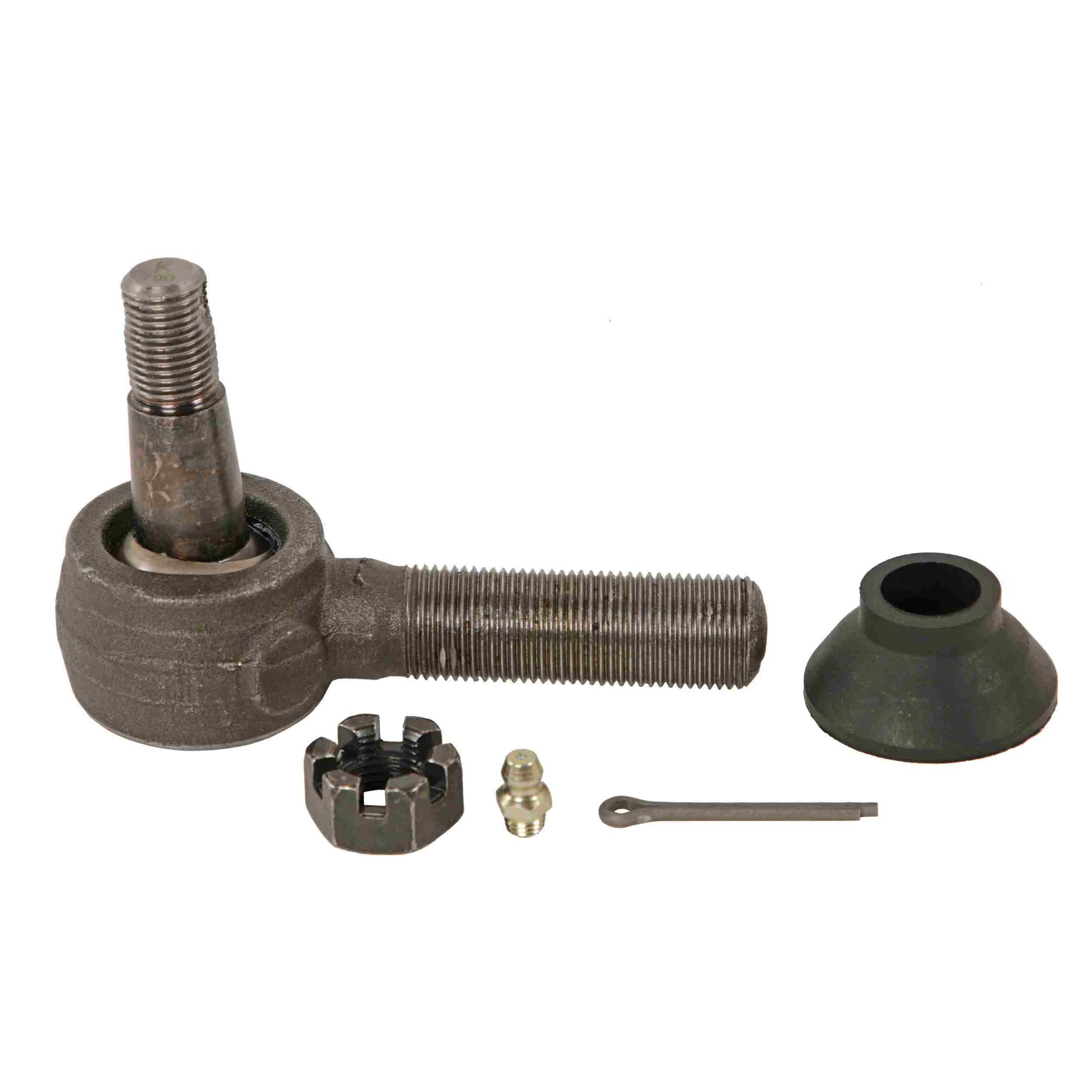

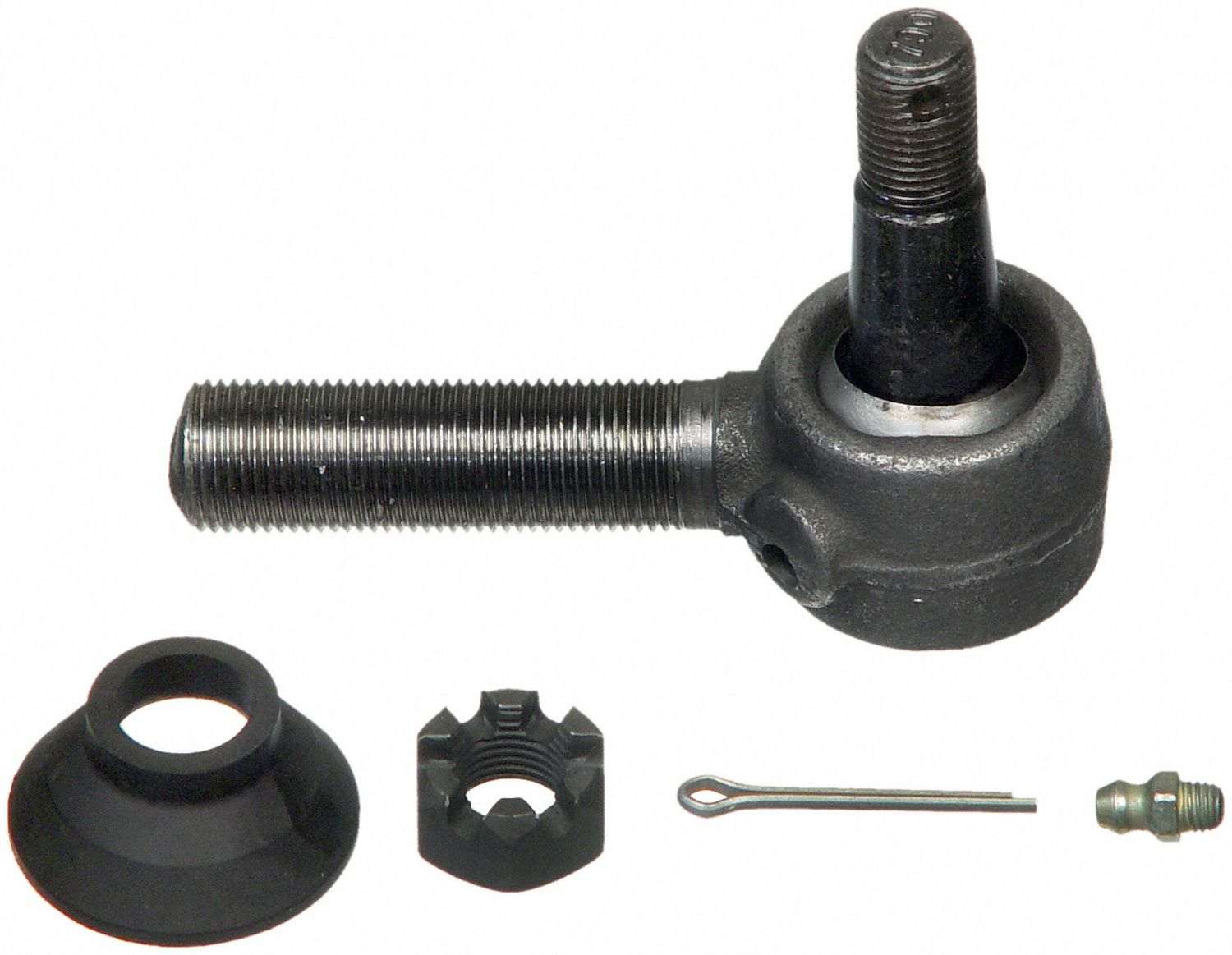

Moog Tie Rod End, Outer, Chevy/Ford, GMC
Moog Tie Rod End, Outer, Chevy/Ford, GMC
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
63 in stock
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Loose or worn chassis parts can lead to premature tire wear
Exclusive cover plate protects against contaminants leaking into the bearing surface
Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear
Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght
Specifications
Tie Rods
Greasable Yes
Stud Center to End (in) 3.5
Rod Thread ¾" - 16"
Configuration Straight
Rod Type Male
Stud Diameter Dimension(top in) 0.612
Stud Diameter Dimension(bottom in) 0.705
Stud Thread 9/16" - 18"
Rack End Thread 9/16" - 18"
Specification Image Reference OUTERTIEROD.tif
Dust Boot Included Yes
End 1 Thread Diameter (IN) 3/4
End 1 Thread Direction R
End 1 Threads Per Inch 16
End 2 Thread Diameter (IN) 9/16
End 2 Threads Per Inch 18
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1964 - 1966 | Chevrolet | K10 Pickup | Base |
| 1961 - 1966 | Chevrolet | K20 Pickup | Base |
| 1964 - 1966 | Chevrolet | Suburban | Base |
| 1961 - 1965 | Ford | F-100 | Base |
| 1961 - 1966 | Ford | F-250 | Base |
| 1953 - 1966 | Ford | F-350 | Base |
| 1948 - 1952 | Ford | F4 | Base |
| 1953 - 1976 | Ford | P-350 | Base |
| 1975 - 1976 | Ford | P-350 | Custom |
| 1975 - 1976 | Ford | P-400 | Base, Custom |
| 1975 - 1977 | Ford | P-500 | Custom, Base |
| 1966 | GMC | 1000 | Base |
| 1963 - 1965 | GMC | 1000 Series | Base |
| 1966 | GMC | 1500 | Base |
| 1963 - 1965 | GMC | 1500 Series | Base |
| 1966 | GMC | 2500 | Base |
| 1963 - 1965 | GMC | 2500 Series | Base |
| 1965 - 1966 | GMC | I1500 | Base |
| 1966 | GMC | K1000 | Base |
| 1966 | GMC | K1000 Pickup | Base |
| 1966 | GMC | K15/K1500 Pickup | Base |
| 1963 - 1966 | GMC | Suburban | Base |
| 1966 | International | 1200A | Base, Travelall Custom |
| 1967 | International | 1200B | Base, Travelall Custom |
| 1968 | International | 1200C | Base |
| 1957 - 1958 | International | A120 | Base |
| 1957 - 1958 | International | A122 | Base |
| 1961 - 1962 | International | C120 | Base |
| 1963 - 1964 | International | C1200 | Base |
| 1961 - 1962 | International | C122 | Base |
| 1956 - 1957 | International | S120 | Base |
| 1956 - 1957 | International | S122 | Base |
