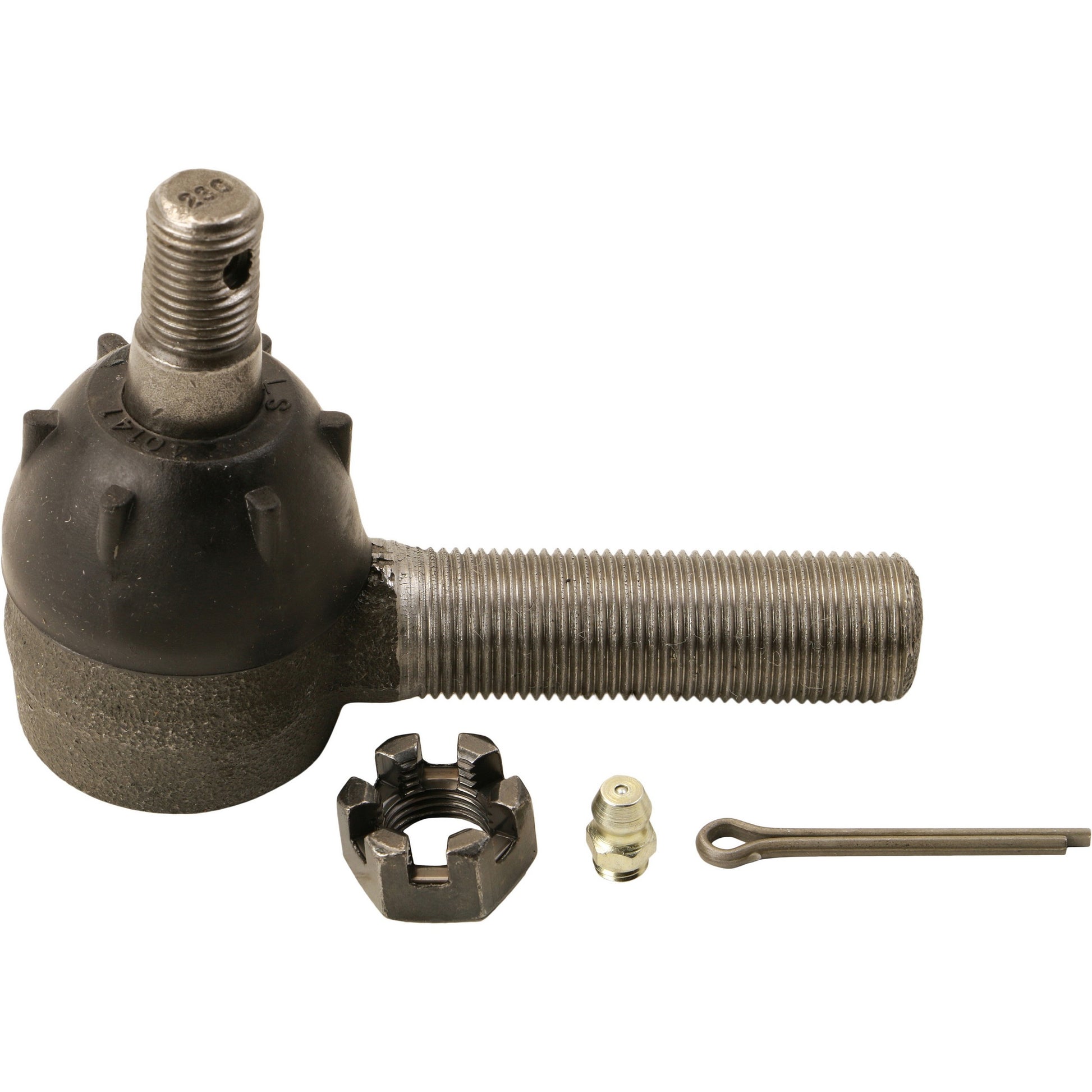

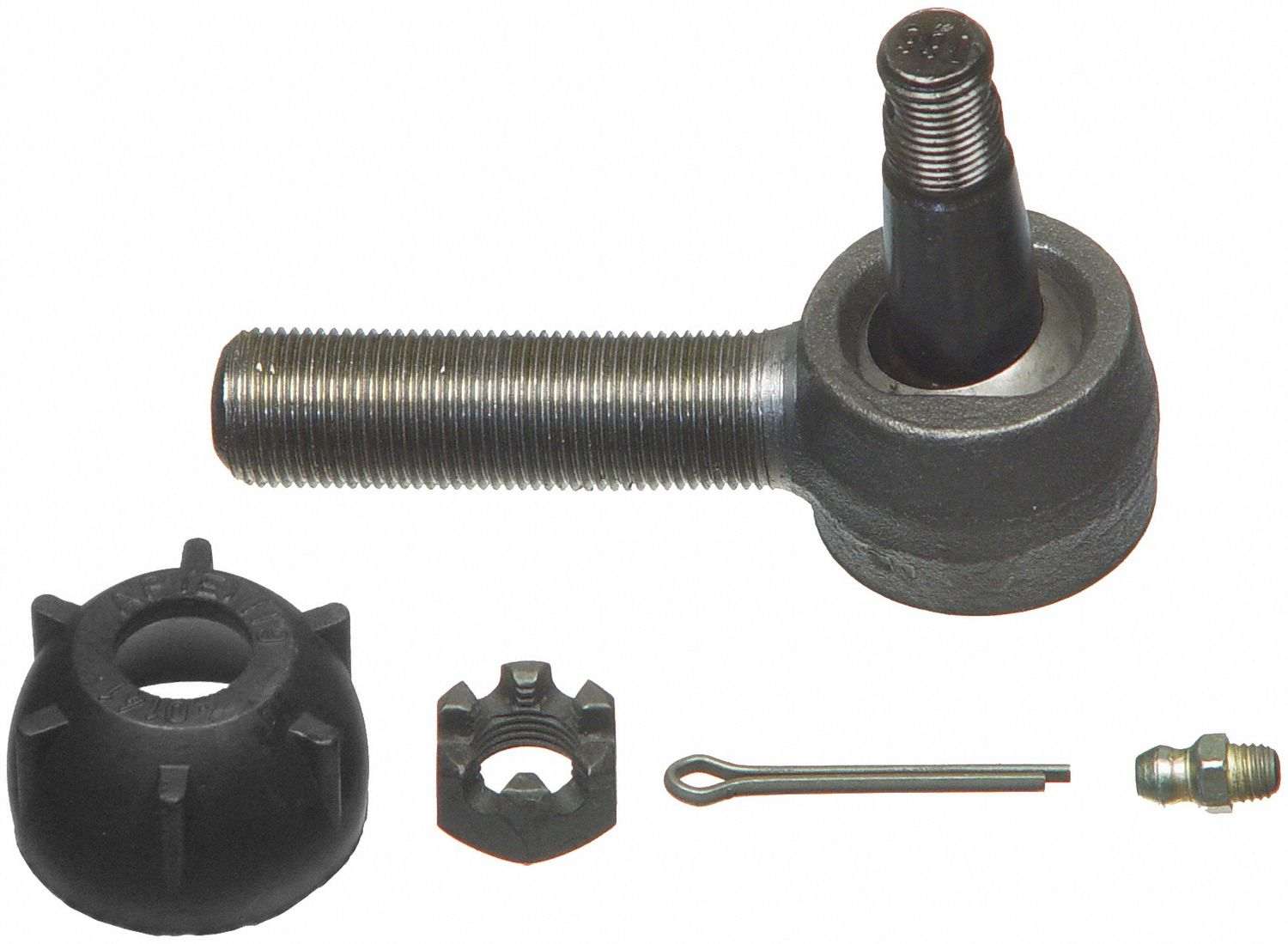

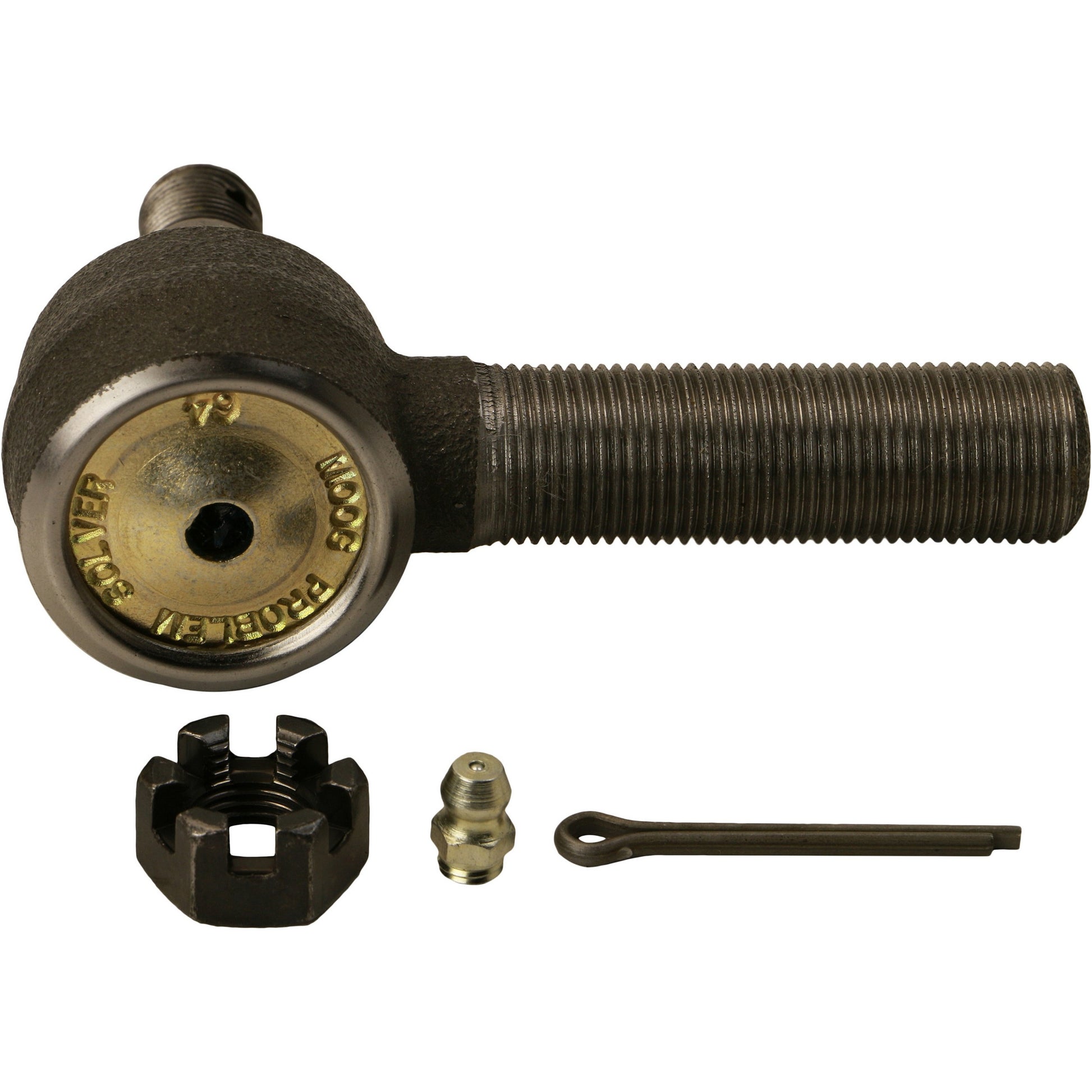

Moog Tie Rod End "Right" 47-86AM Jeep Truck/57-62Buick/39-62Olds/39-58
| Rod Thread | .687-18R |
| Configuration | straight |
| Rod Type (Male / Female) | male |
| Stud Diameter Dimension (top in.) | 0.543 |
| Stud Diameter Dimension (bottom in.) | 0.626 |
| Stud Thread | 1/2-20 |
| End 1 Thread Diameter (IN) | 0.687 |
| End 1 Thread Direction | R |
| End 1 Threads Per Inch | 18 |
| End 2 Thread Diameter (IN) | 1/2 |
| End 2 Threads Per Inch | 20 |
Descriptions:
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1957 - 1958 | Buick | Century | Base |
| 1958 | Buick | Limited | Base |
| 1957 | Buick | Roadmaster | 75 |
| 1957 - 1958 | Buick | Roadmaster | Base |
| 1957 - 1962 | Buick | Special | Base |
| 1961 - 1962 | Buick | Special | Deluxe |
| 1957 - 1958 | Buick | Super | Base |
| 1964 - 1970 | Dodge | A100 | Base |
| 1970 | Dodge | A100 | Sportsman |
| 1964 - 1970 | Dodge | A100 Truck | Base |
| 1968 - 1970 | Dodge | A100 Truck | Sportsman |
| 1967 - 1970 | Dodge | A108 Van | Base |
| 1968 | Dodge | D100 Pickup | Base |
| 1961 - 1967 | Dodge | D100 Series | Base |
| 1968 | Dodge | D200 Pickup | Base |
| 1961 - 1967 | Dodge | D200 Series | Base |
| 1968 - 1971 | Dodge | P200 | Base |
| 1968 | Dodge | P200 | Post Office |
| 1964 - 1970 | Fargo | A100 Van | Base |
| 1970 | Fargo | A108 Van | Base |
| 1966 - 1967 | Fargo | D100 Panel Delivery | Base |
| 1966 - 1968 | Fargo | D100 Pickup | Base |
| 1966 | Fargo | D110 Pickup | Base |
| 1966 - 1967 | Fargo | D200 Panel Delivery | Base |
| 1966 - 1968 | Fargo | D200 Pickup | Base |
| 1968 - 1971 | Fargo | P200 Parcel Delivery | Base |
| 1959 - 1966 | Jeep | CJ3 | Base |
| 1959 - 1983 | Jeep | CJ5 | Base |
| 1977 - 1980 | Jeep | CJ5 | Golden Eagle |
| 1980 - 1983 | Jeep | CJ5 | Laredo |
| 1982 - 1983 | Jeep | CJ5 | Limited |
| 1975 - 1983 | Jeep | CJ5 | Renegade |
| 1966 - 1968 | Jeep | CJ5A | Base |
| 1959 - 1975 | Jeep | CJ6 | Base |
| 1966 - 1968 | Jeep | CJ6A | Base |
| 1977 - 1979 | Jeep | CJ7 | Golden Eagle |
| 1980 | Jeep | CJ7 | Golden Hawk |
| 1980 - 1986 | Jeep | CJ7 | Laredo |
| 1982 - 1984 | Jeep | CJ7 | Limited |
| 1976 - 1986 | Jeep | CJ7 | Renegade, Base |
| 1983 - 1984 | Jeep | CJ7 | Renegado |
| 1966 - 1973 | Jeep | Commando | Base |
| 1966 - 1971 | Jeep | Jeepster | Base, Commando |
| 1981 - 1985 | Jeep | Scrambler | Base |
| 1985 | Jeep | Scrambler | Renegade, Laredo |
| 1982 - 1983 | Jeep | Scrambler | SL |
| 1982 - 1984 | Jeep | Scrambler | SR |
| 1961 - 1966 | Jeep | Universal | Base |
| 1963 - 1969 | Jeep | Universal Truck | Base |
| 1957 | Oldsmobile | 88 | Holiday, Base |
| 1958 - 1959 | Oldsmobile | 98 | Holiday, Base |
| 1961 - 1962 | Oldsmobile | Cutlass | Base |
| 1961 - 1962 | Oldsmobile | F85 | Base |
| 1962 | Oldsmobile | F85 | Deluxe |
| 1962 | Oldsmobile | Jetfire | Base |
| 1957 - 1959 | Oldsmobile | Super 88 | Holiday, Base |
| 1958 | Pontiac | Bonneville | Base |
| 1949 - 1958 | Pontiac | Chieftain | Base |
| 1957 | Pontiac | Chieftain | Custom Safari Transcontinental, Custom Safari |
| 1951 - 1954 | Pontiac | Chieftain | Deluxe |
| 1955 - 1958 | Pontiac | Chieftain | Safari |
| 1953 - 1954 | Pontiac | Chieftain | Special, Custom |
| 1951 - 1952 | Pontiac | Chieftain | Super Deluxe |
| 1954 - 1958 | Pontiac | Star Chief | Base |
| 1955 - 1957 | Pontiac | Star Chief | Custom |
| 1958 | Pontiac | Star Chief | Super Deluxe, Custom Safari |
| 1946 - 1951 | Pontiac | Streamliner | Base |
| 1949 | Pontiac | Streamliner | Deluxe |
| 1957 - 1958 | Pontiac | Super Chief | Base |
| 1946 - 1948 | Pontiac | Torpedo | Base |
Moog Tie Rod End "Right" 47-86AM Jeep Truck/57-62Buick/39-62Olds/39-58
Sale price$38.90 USD
