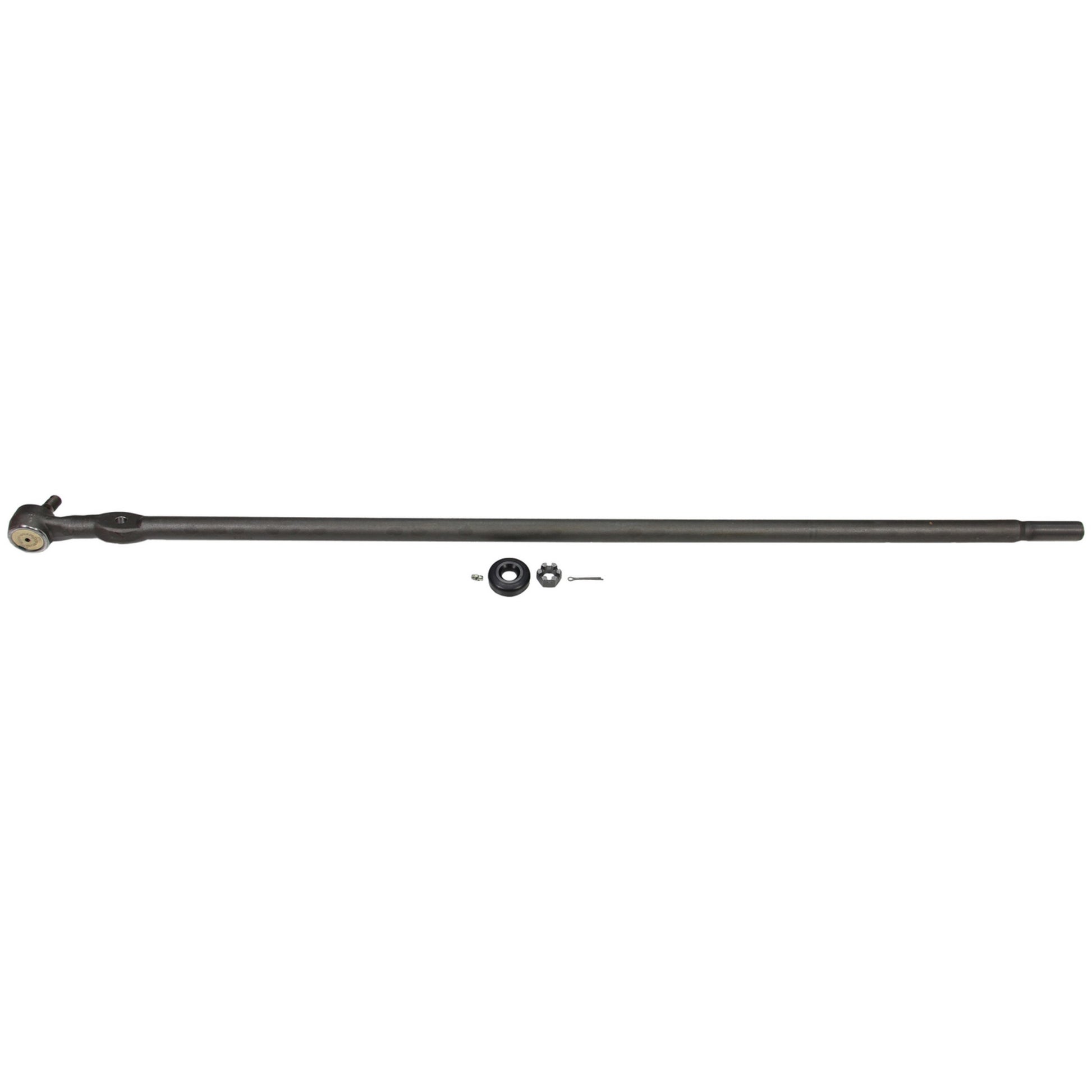

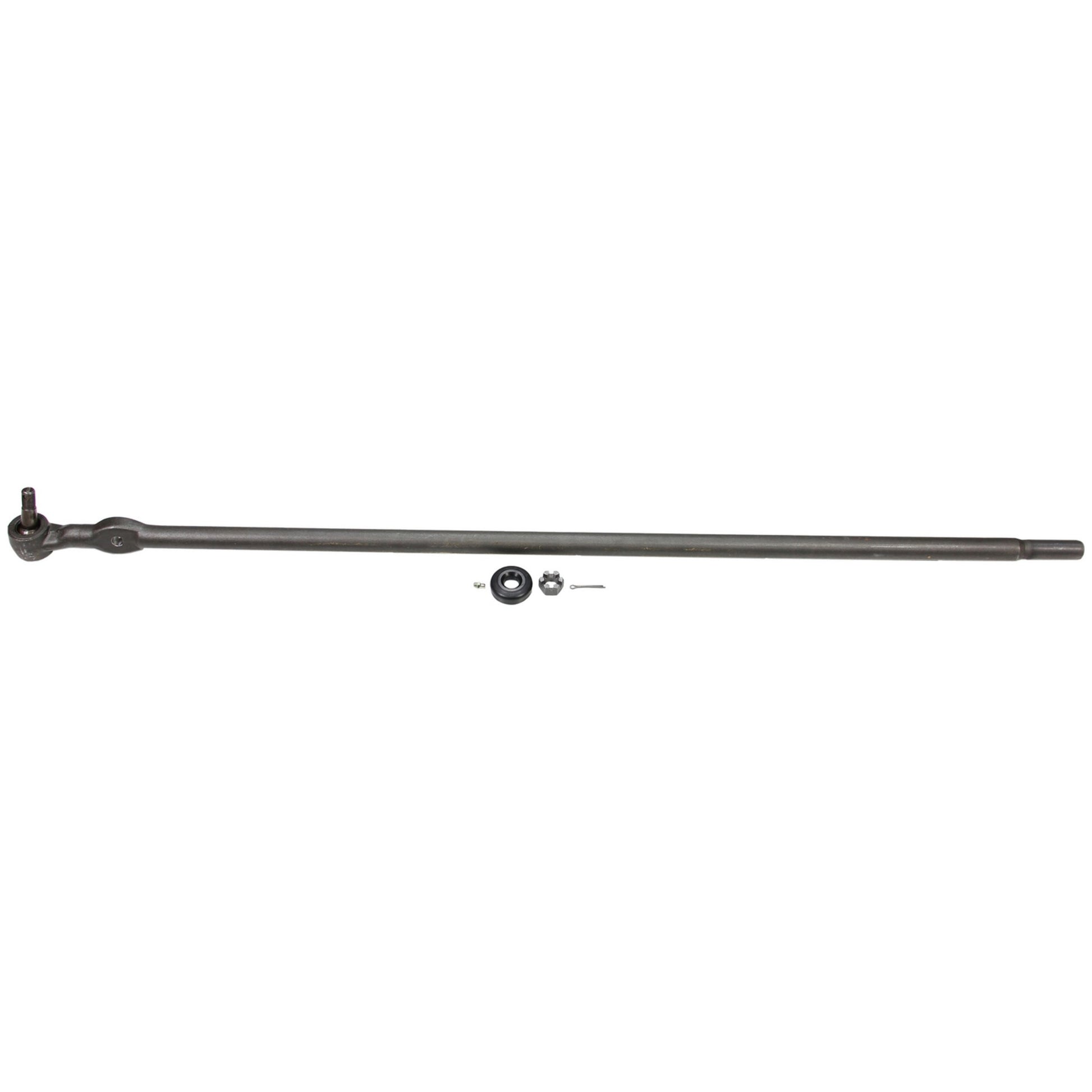

Moog Tie Rod End:Greasable, Outer, Chevy, GMC, K/V-Series Pickup, 4WD
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Rod Thread: 1-18LH
Stud Diameter Dimension (top in.): 0.675
Stud Diameter Dimension (bottom in.): 0.776
Length (in): 50.750
End 1 Thread Diameter (IN): 1.000
End 1 Thread Direction: L
End 1 Thread Per Inch: 18
Tapered Hole Quantity: 1
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1977 - 1981 | Chevrolet | K30 | Cheyenne |
| 1981 - 1986 | Chevrolet | K30 | Custom |
| 1977 - 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1977 - 1986 | Chevrolet | K30 | Scottsdale, Silverado |
| 1988 | Chevrolet | V30 | Cheyenne |
| 1987 - 1988 | Chevrolet | V30 | Scottsdale, Silverado, Custom Deluxe |
| 1989 - 1990 | Chevrolet | V3500 | Scottsdale |
| 1989 - 1991 | Chevrolet | V3500 | Silverado, Cheyenne |
| 1977 - 1978 | GMC | K35 | High Sierra, Sierra Classic, Base, Sierra Grande |
| 1979 - 1986 | GMC | K3500 | Base, Sierra Classic, High Sierra |
| 1979 - 1982 | GMC | K3500 | Sierra Grande |
| 1987 - 1991 | GMC | V3500 | Base |
| 1987 - 1989 | GMC | V3500 | Sierra Classic, High Sierra |
| 1990 - 1991 | GMC | V3500 | SLE |
Moog Tie Rod End:Greasable, Outer, Chevy, GMC, K/V-Series Pickup, 4WD
Sale price$149.31 USD
