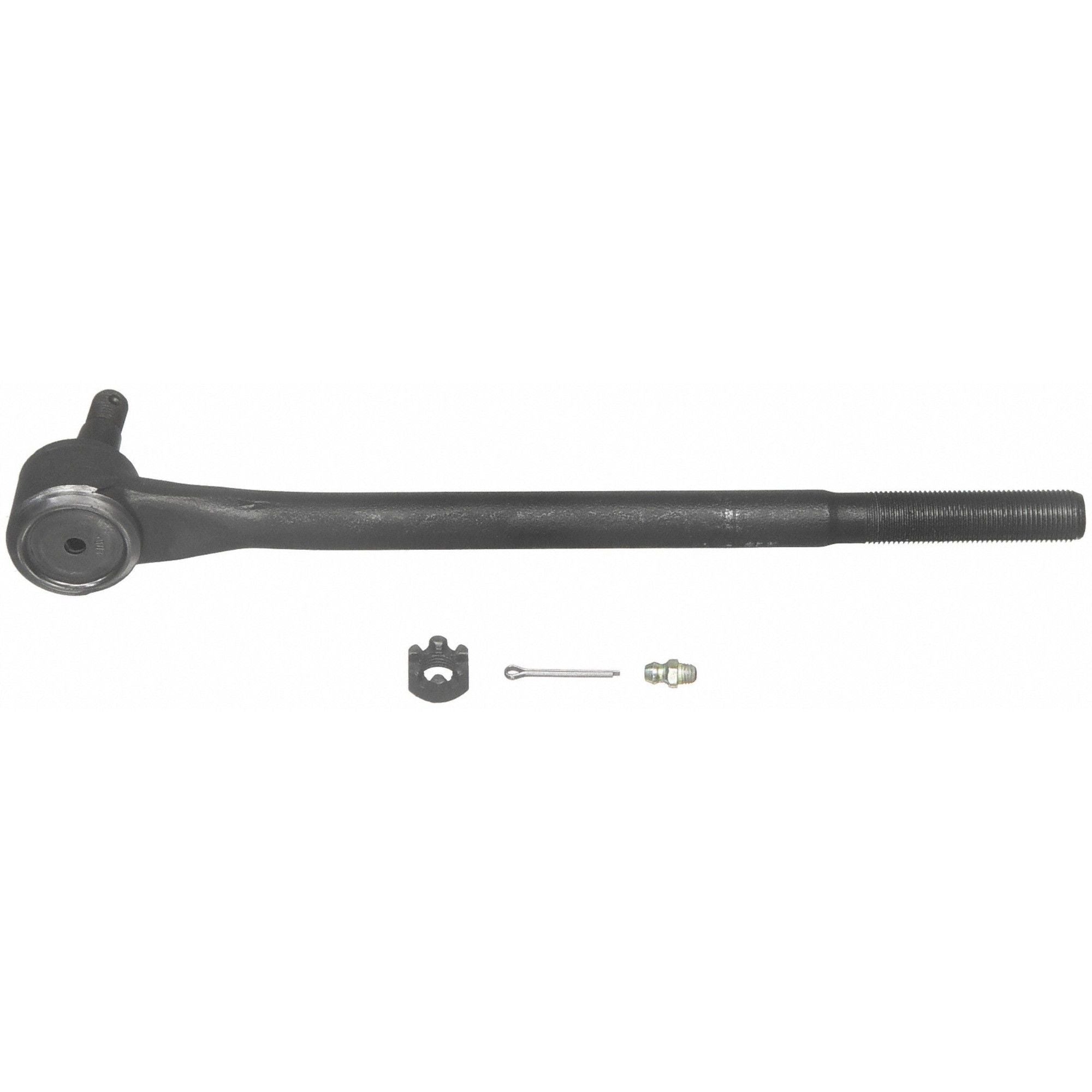

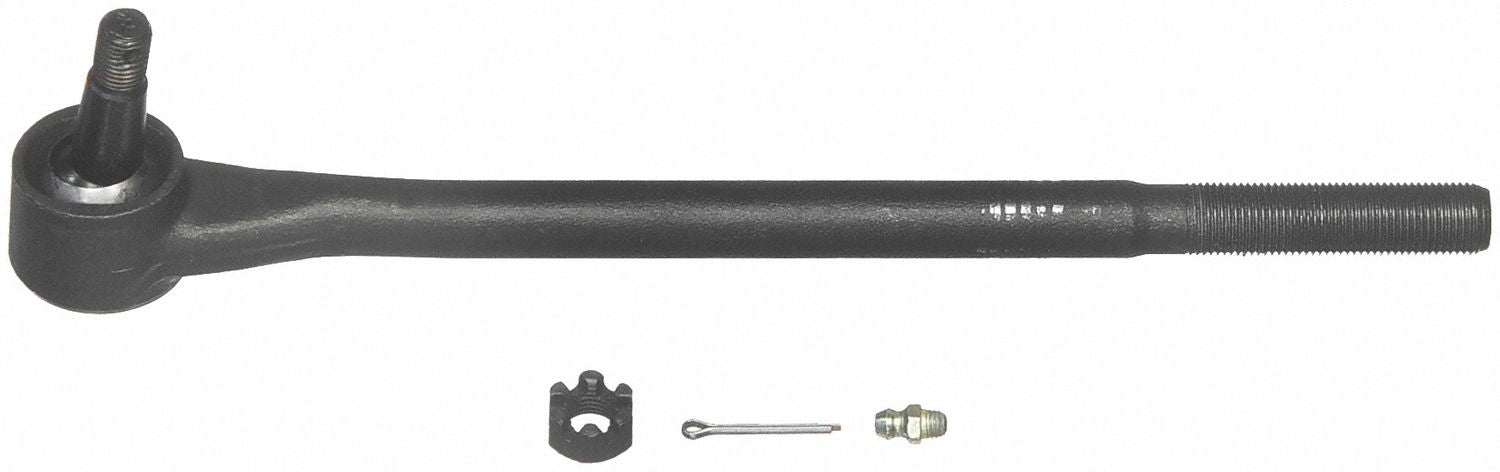

Moog Tie Rod End in AMC 64-83
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Rod Thread: 5/8-18RH
Stud Diameter Dimension (top in.): 0.489
Stud Diameter Dimension (bottom in.): 0.565
Length (in): 11.270
End 1 Thread Diameter (in): 5/8
End 1 Threads Per Inch: 18
End 1 Thread Direction: R
Tapered Hole Quantity: 0
Moog Tie Rod End in AMC 64-83
Sale price$39.71 USD
