MOOG Chassis Products

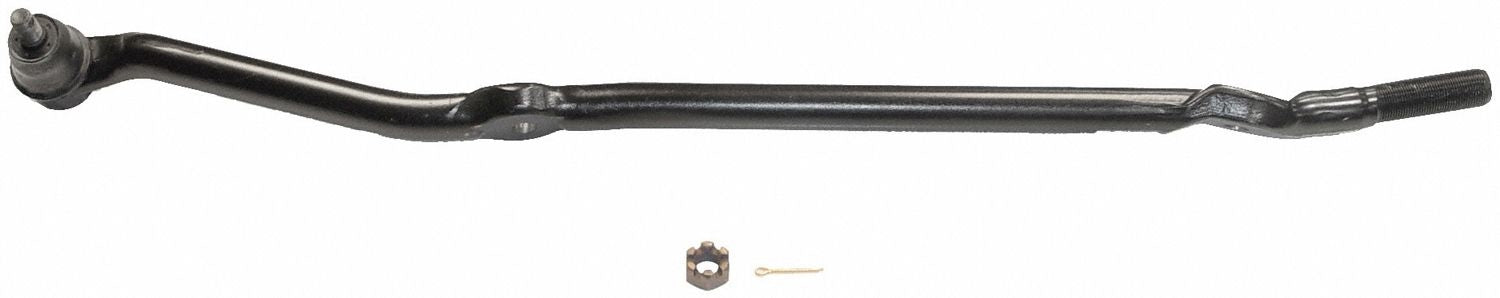

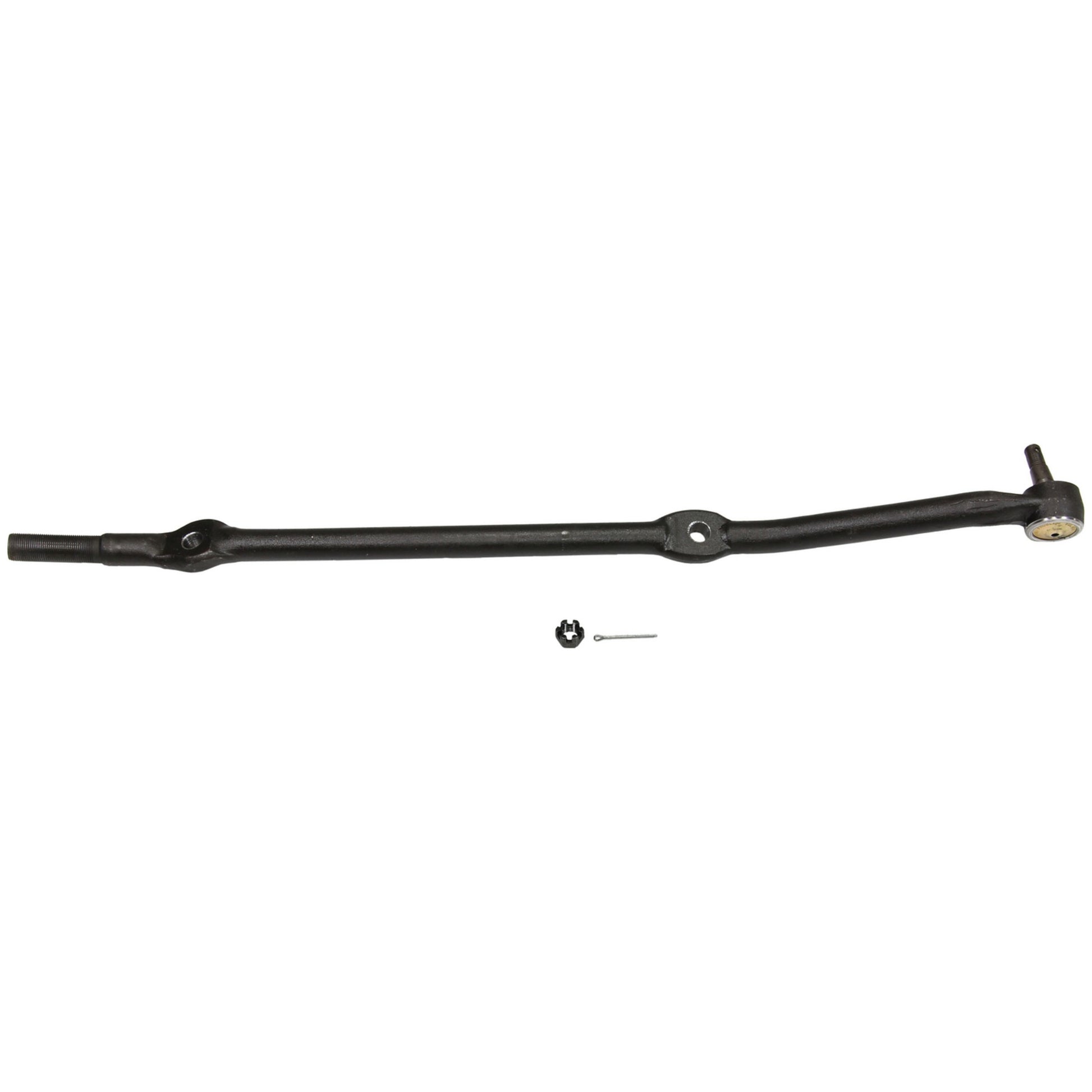

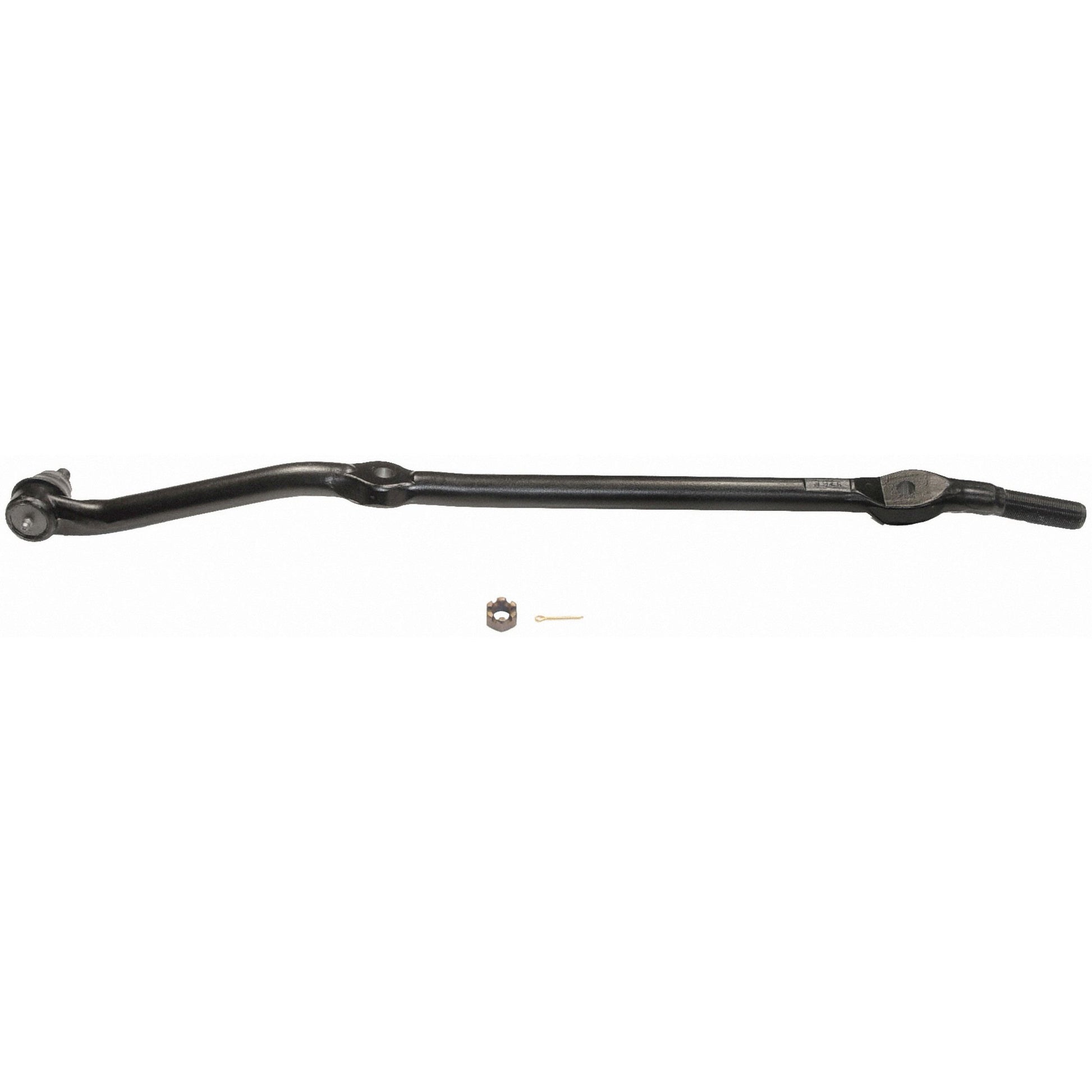

Moog Tie Rod End:Greasable,Outer,Jeep,Each

Moog Tie Rod End:Greasable,Outer,Jeep,Each

sku: 14N5N | mpn: DS1310
$93.34
$93.34 $93.34
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Rod Thread: M20-1.5RH
Stud Diameter Dimension (top in.): 0.554
Stud Diameter Dimension (bottom in.): 0.622
Length (in): 31.050
End 1 Thread Diameter (MM): 20.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
Tapered Hole Quantity: 2
