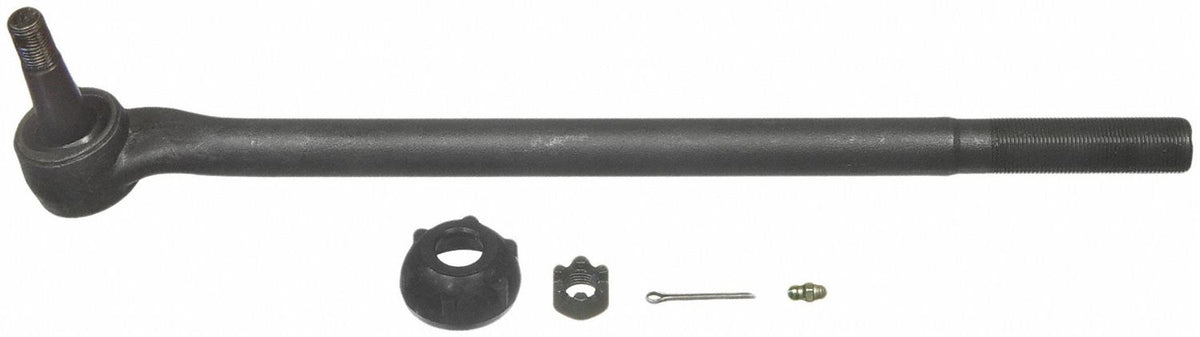

Moog Tie Rod End, Greasable, Inner, Ford, 4WD,
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specification:
Rod Thread: M22-1.5RH
Stud Diameter Dimension (top in.): 0.594
Stud Diameter Dimension (bottom in.): 0.723
Length (in): 16.200
End 1 Thread Diameter (MM): 22.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
Tapered Hole Quantity: 0
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1985 - 1986 | Ford | F-250 | Base |
| 1987 - 1994 | Ford | F-250 | Custom |
| 1992 - 1994 | Ford | F-250 | Ranger |
| 1985 - 1994 | Ford | F-250 | XL |
| 1993 - 1994 | Ford | F-250 | XLT |
| 1985 - 1992 | Ford | F-250 | XLT Lariat |
