MOOG Chassis Products

Moog Coil Spring Set:Rear Coil,Cargo Control,Ford,Mercury

Moog Coil Spring Set:Rear Coil,Cargo Control,Ford,Mercury

sku: 14NXJ | mpn: CC861
$127.45
$127.45 $127.45
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

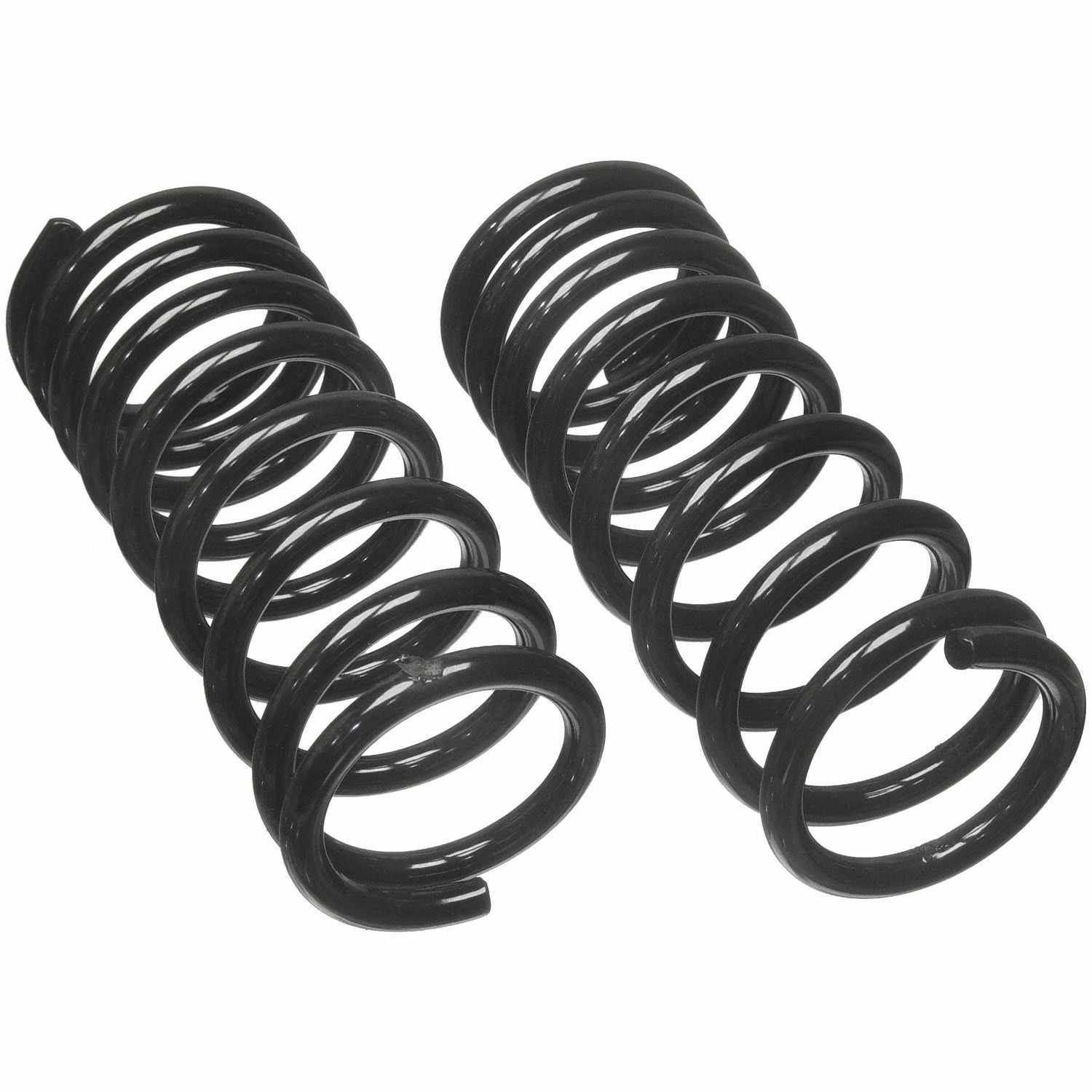

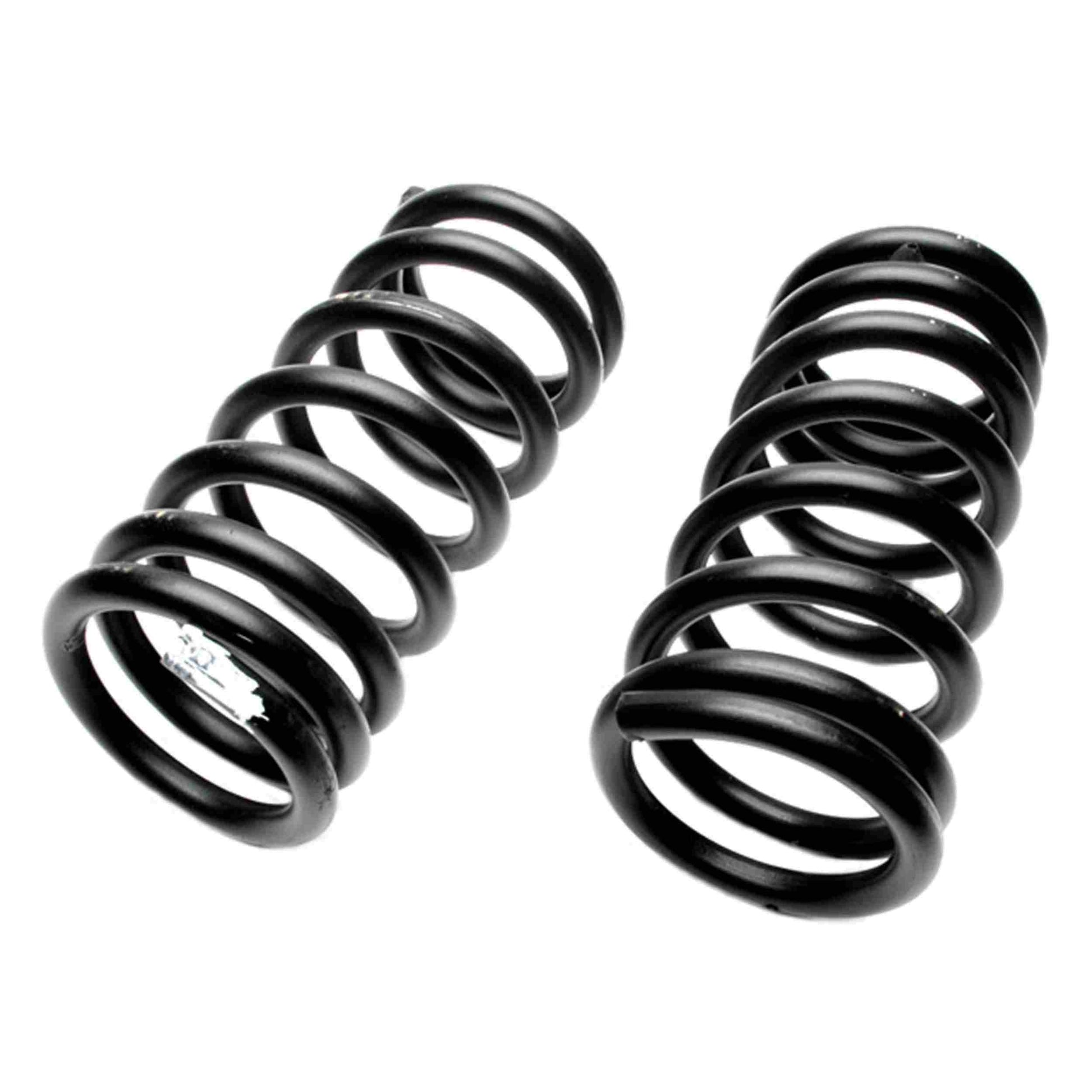

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 4.26
ID - MM: 108.20
Bar Diameter - Inches: 0.70
Bar Diameter - MM: 17.90
Spring Rate - lbs per inch: 418.00
Load - lbs: 1150.00
Installation Height - Inches: 10.00
Installation Height - MM: 254.00
Free Height - Inches: 12.75
Free Height - MM: 323.90
End Type 1: Squared
End Type 2: Tangential
Spring Type: Variable Rate
