MOOG Chassis Products

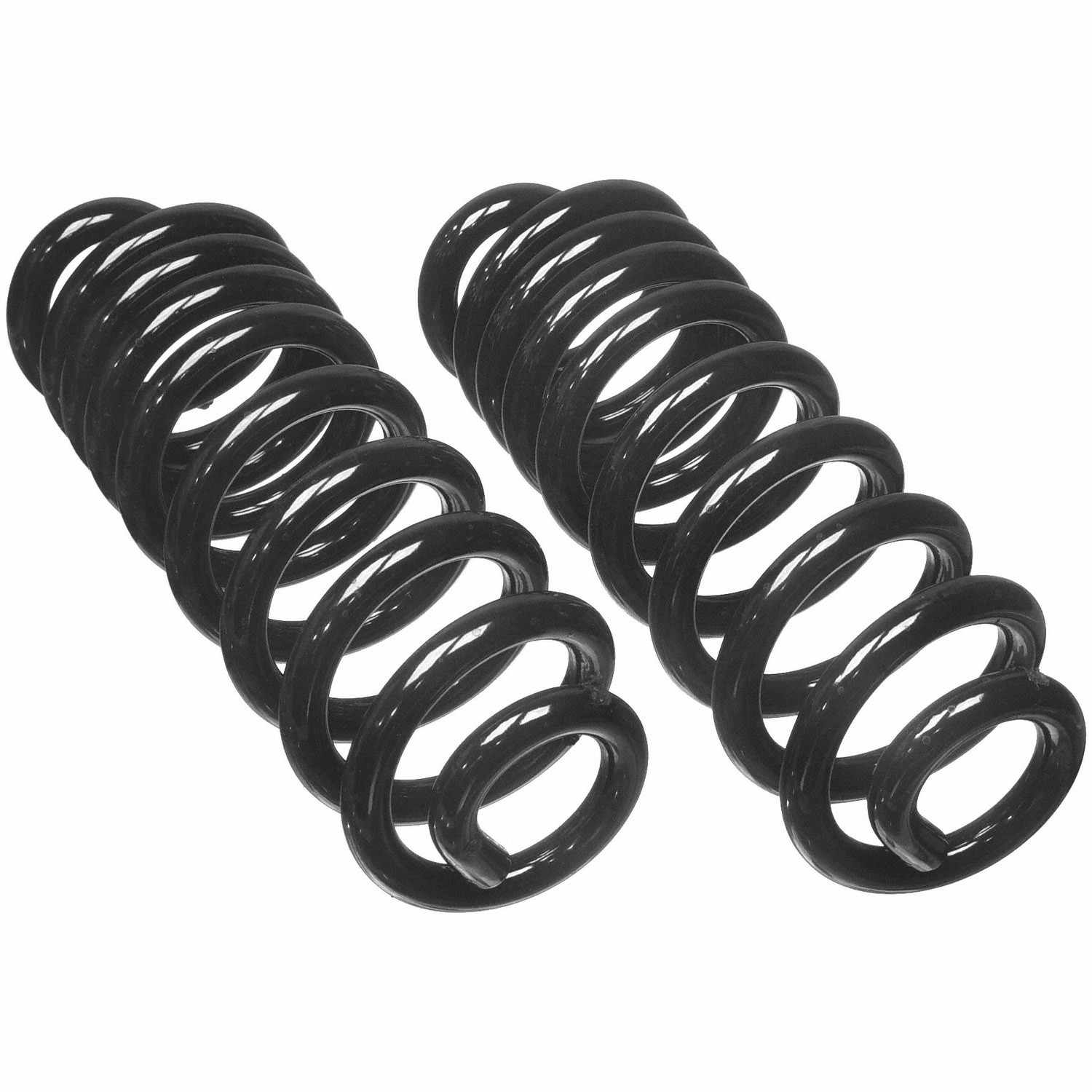

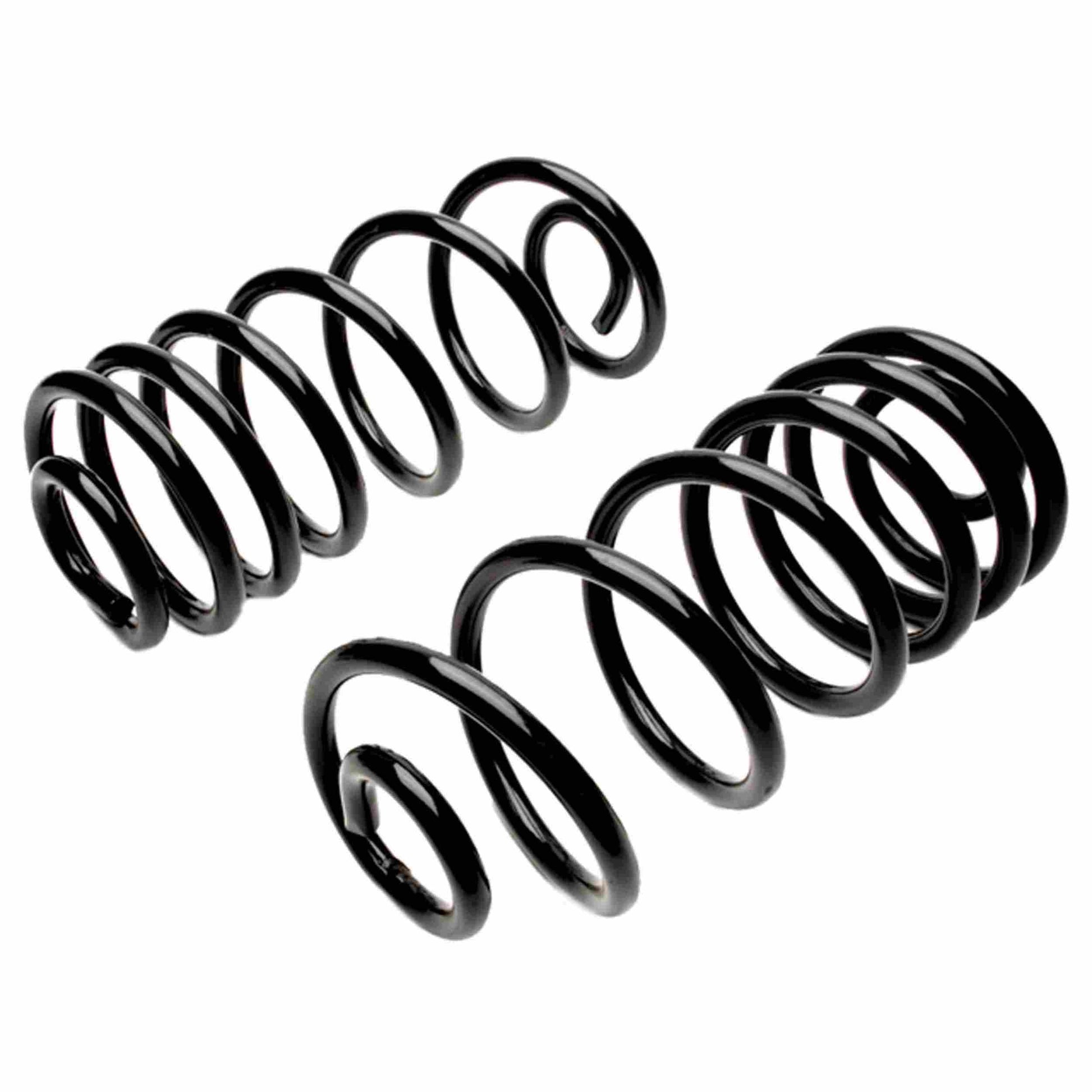

Moog Coil Spring Set:Cargo Control,Buick,Cadillac,Chevy

Moog Coil Spring Set:Cargo Control,Buick,Cadillac,Chevy

sku: 14NG4 | mpn: CC611
$108.19
$108.19 $108.19
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 5.53
ID - MM: 140.50
Bar Diameter - Inches: 0.65
Bar Diameter - MM: 16.70
Spring Rate - lbs per inch: 186.00
Load - lbs: 900.00
Installation Height - Inches: 11.50
Installation Height - MM: 292.10
Free Height - Inches: 16.38
Free Height - MM: 416.10
End Type 1: Pigtail
End Type 2: Pigtail
Spring Type: Variable Rate
