MOOG Chassis Products

Moog Coil Spring Set:Rear Coil, Cargo Control, Chevy

Moog Coil Spring Set:Rear Coil, Cargo Control, Chevy

sku: 14N1L | mpn: CC601
$114.38
$114.38 $114.38
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

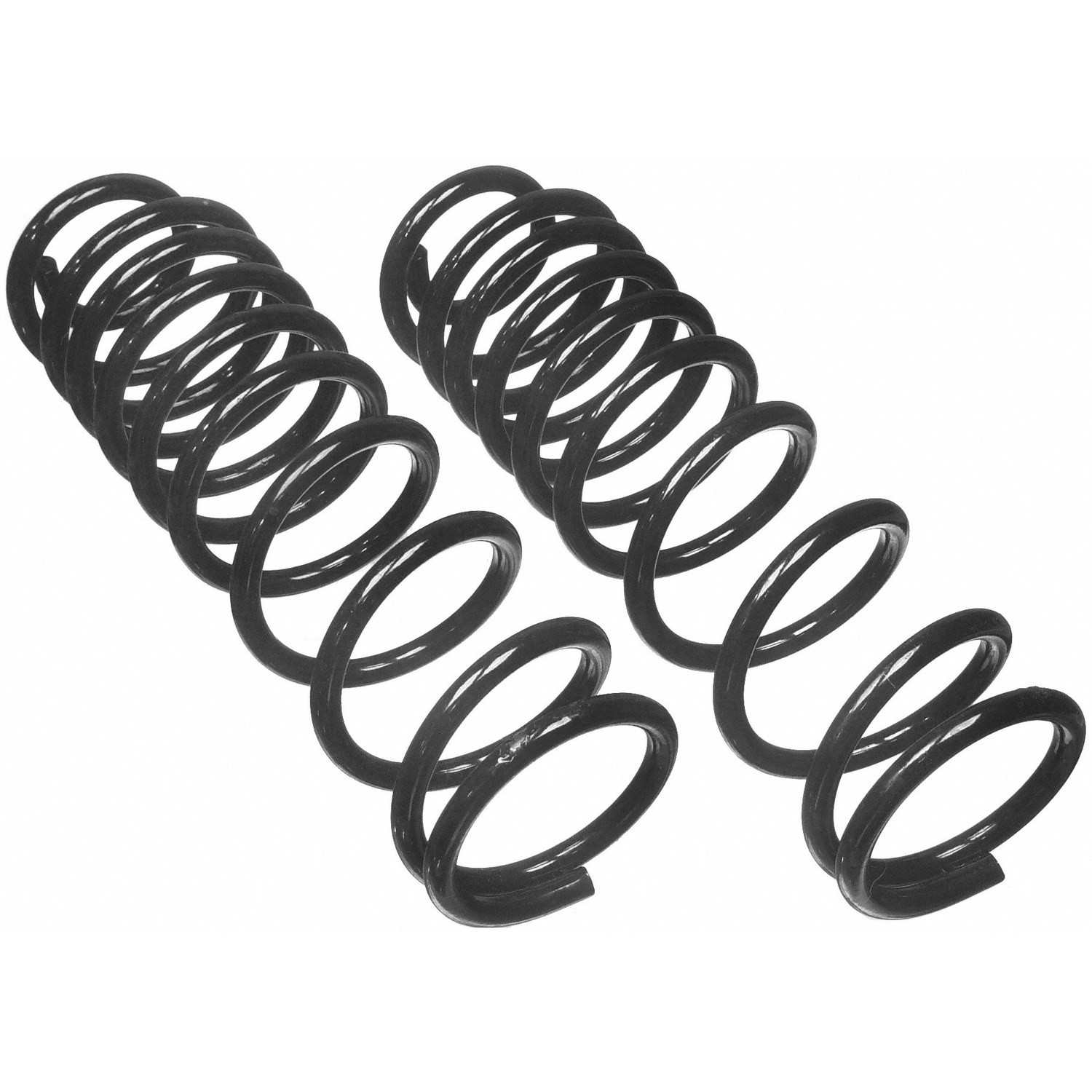

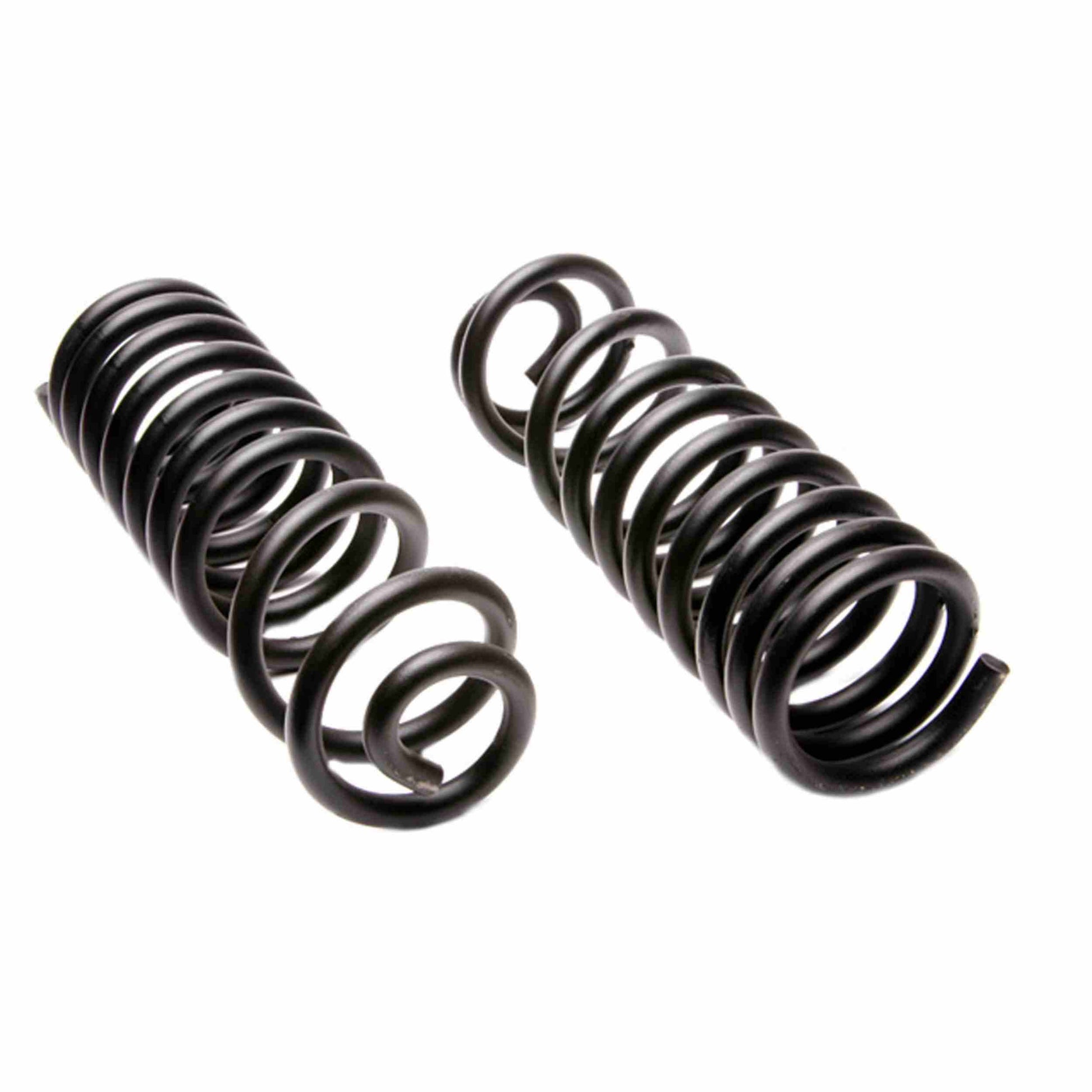

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 4.05
ID - MM: 102.90
Bar Diameter - Inches: 0.68
Bar Diameter - MM: 17.40
Spring Rate - lbs per inch: 325.00
Load - lbs: 1500.00
Installation Height - Inches: 12.50
Installation Height - MM: 317.50
Free Height - Inches: 17.10
Free Height - MM: 434.30
End Type 1: Tangential
End Type 2: Pigtail
Spring Type: Variable Rate
