MOOG Chassis Products

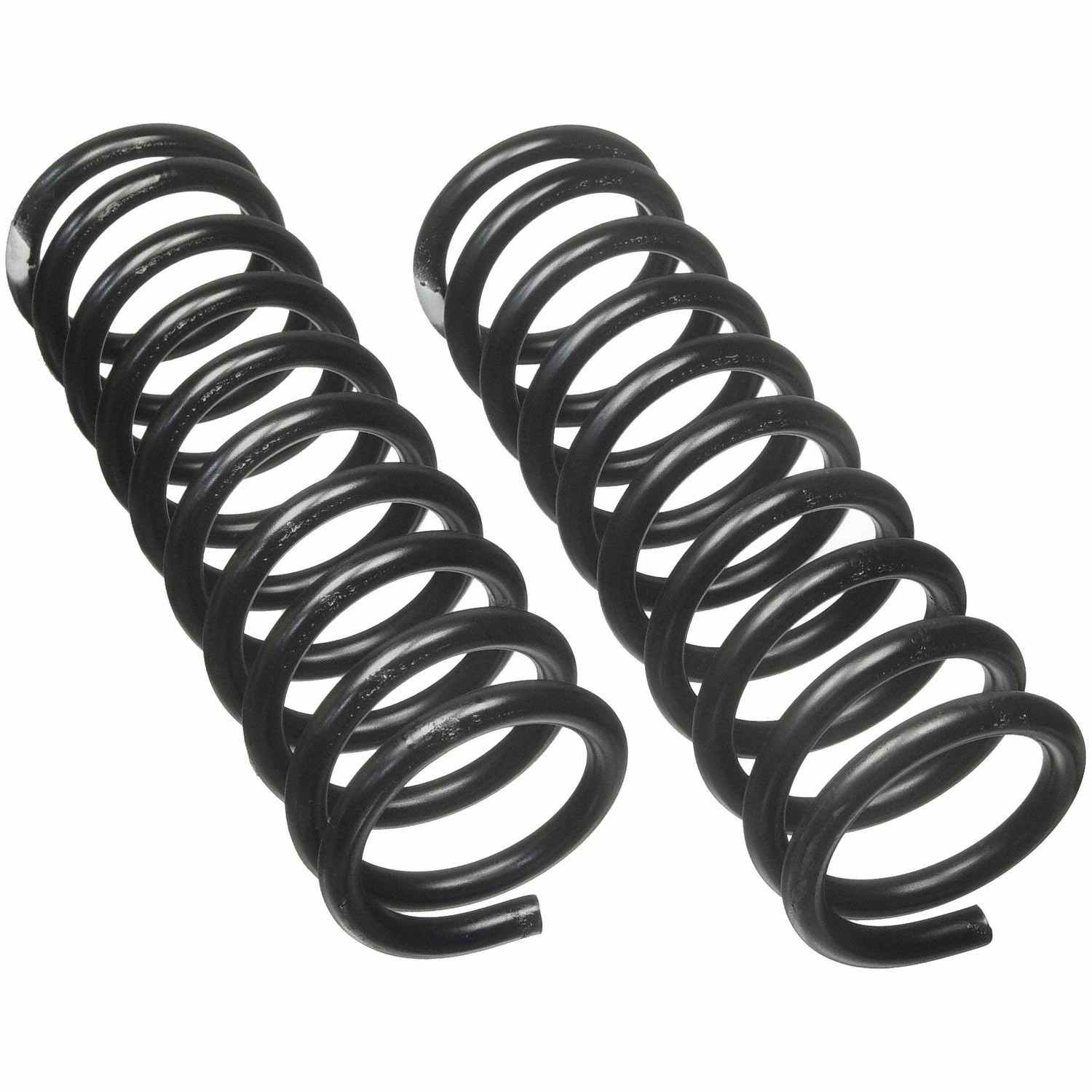

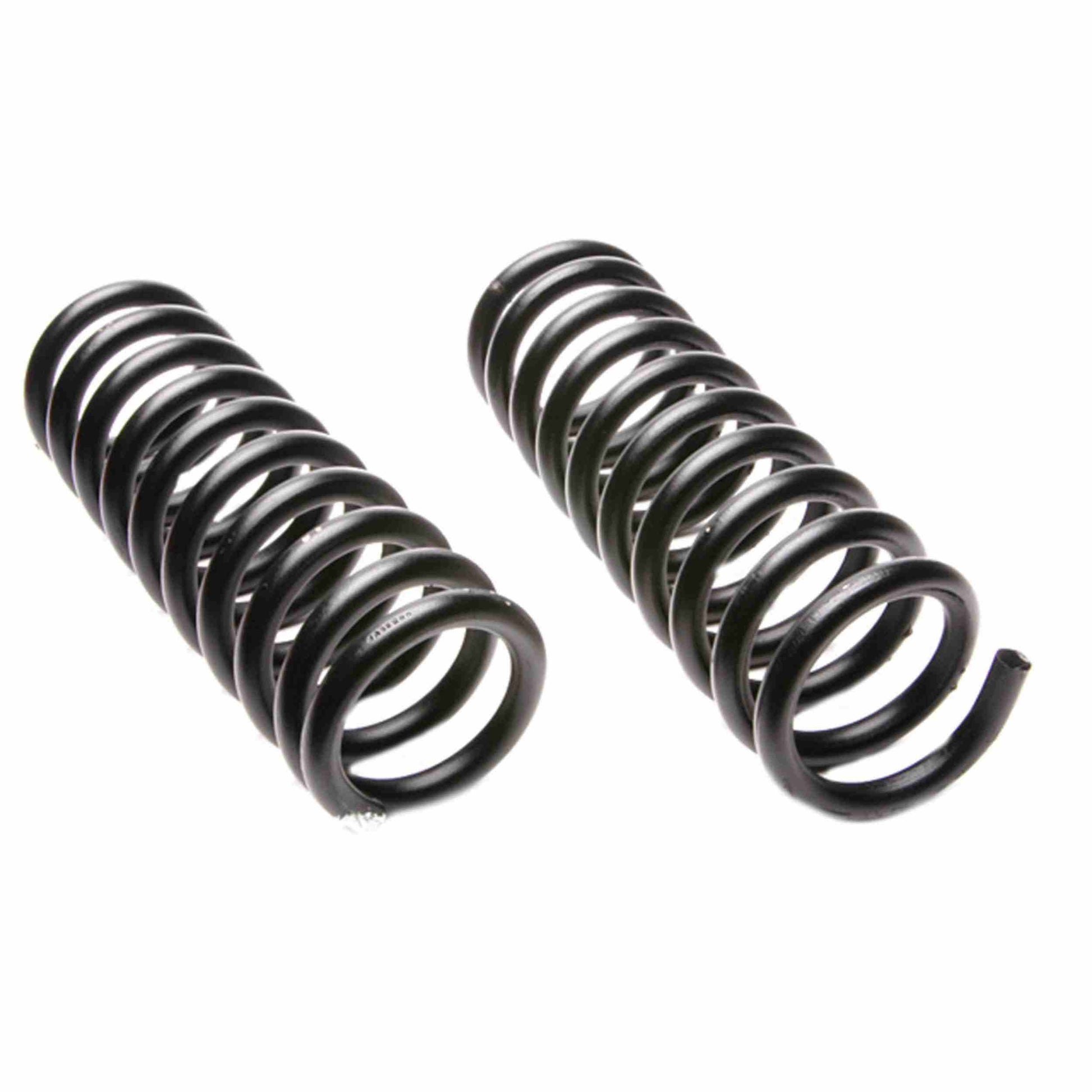

Moog Coil Spring Set:Front Coil,OEM Replacement,Ford,Mercury,RWD,Pair

Moog Coil Spring Set:Front Coil,OEM Replacement,Ford,Mercury,RWD,Pair

sku: 14N3Q | mpn: 8336
$162.00
$162.00 $162.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 3.99
ID - MM: 101.30
Bar Diameter - Inches: 0.75
Bar Diameter - MM: 19.10
Spring Rate - lbs per inch: 473.00
Load - lbs: 2450.00
Installation Height - Inches: 12.00
Installation Height - MM: 304.80
Free Height - Inches: 17.05
Free Height - MM: 433.10
End Type 1: Squared
End Type 2: Tangential
Spring Type: Constant Rate
