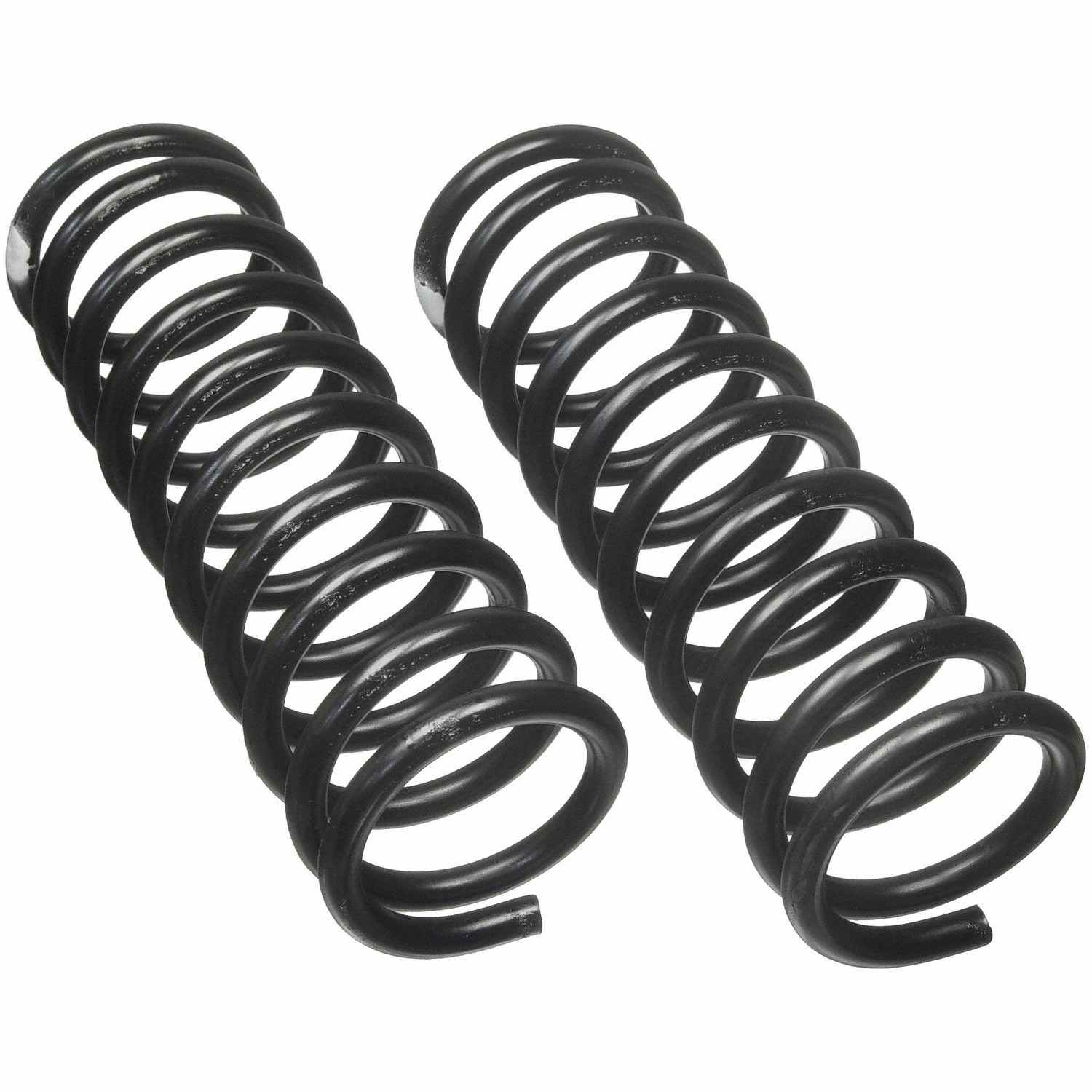

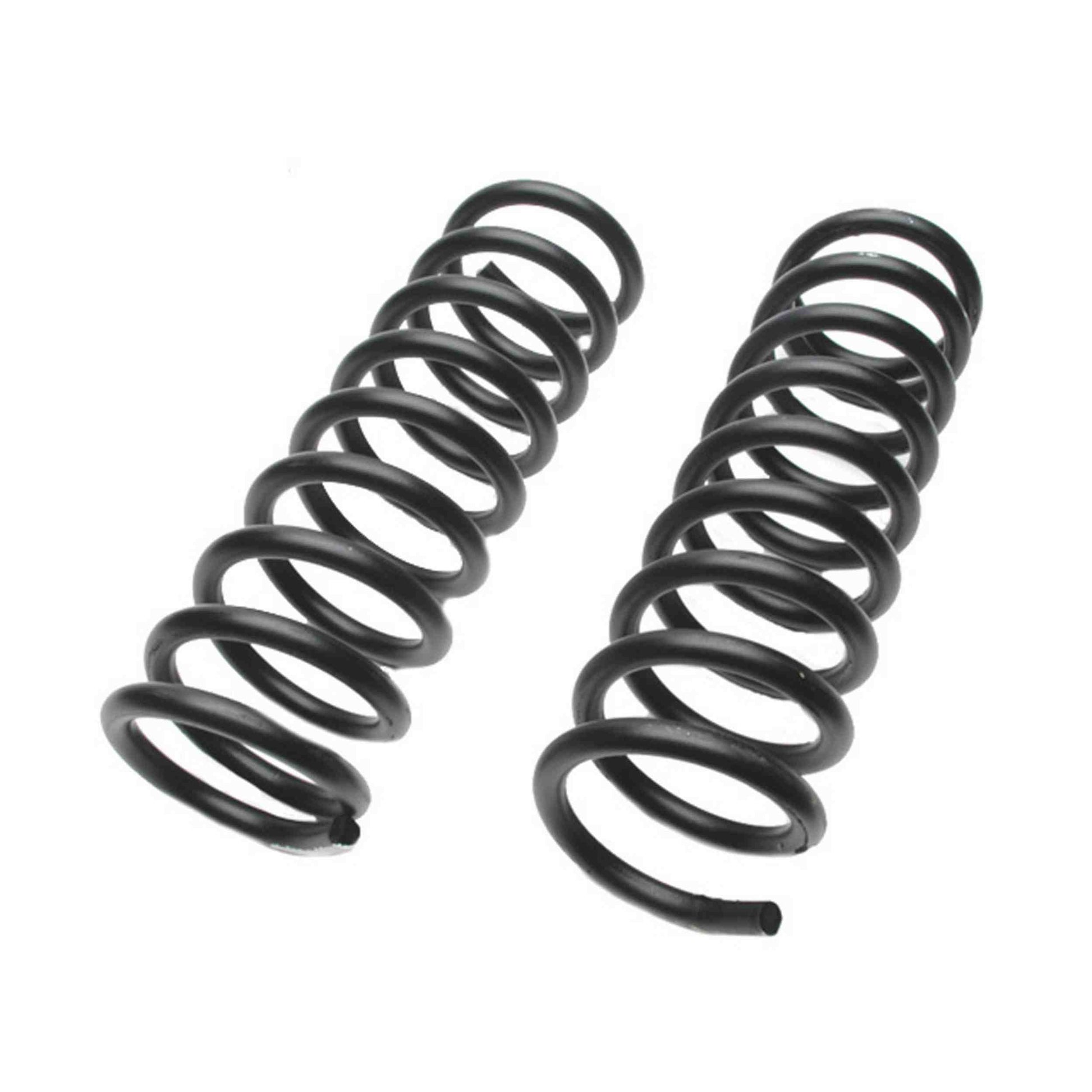

Moog Coil Spring Set:Front Coil,OEM Replacement,Ford,Mercury

Moog Coil Spring Set:Front Coil,OEM Replacement,Ford,Mercury

sku: 14NFN | mpn: 8234
$104.99
$104.99 $104.99
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 3.88
ID - MM: 98.60
Bar Diameter - Inches: 0.62
Bar Diameter - MM: 15.90
Spring Rate - lbs per inch: 283.00
Load - lbs: 1668.00
Installation Height - Inches: 10.50
Installation Height - MM: 266.70
Free Height - Inches: 16.31
Free Height - MM: 414.30
End Type 1: Squared
End Type 2: Tangential
Spring Type: Constant Rate
