MOOG Chassis Products

Moog Coil Spring Set:Rear Coil,OEM Replacement,Chevy

Moog Coil Spring Set:Rear Coil,OEM Replacement,Chevy

sku: 14MZ0 | mpn: 661
$90.40
$90.40 $90.40
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

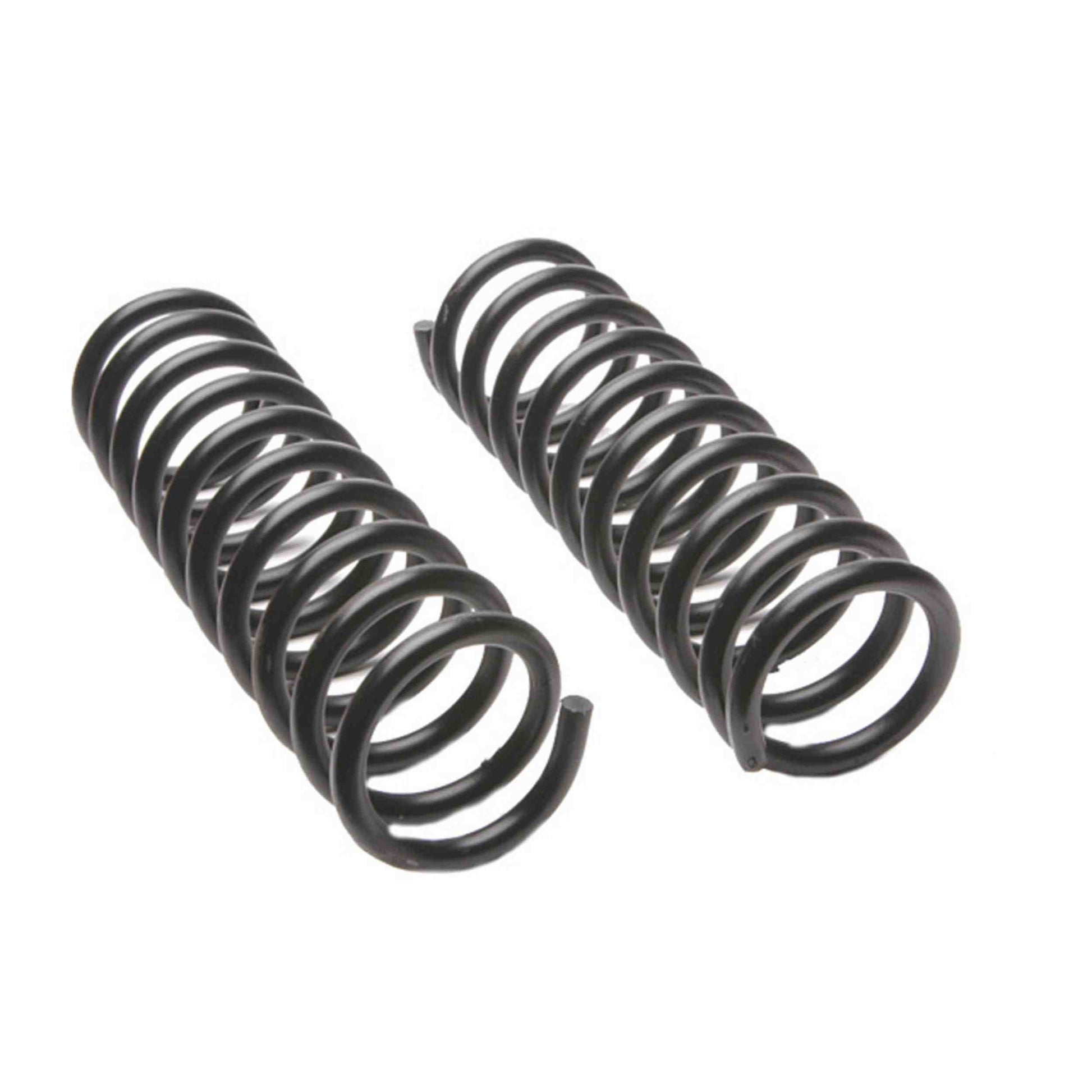

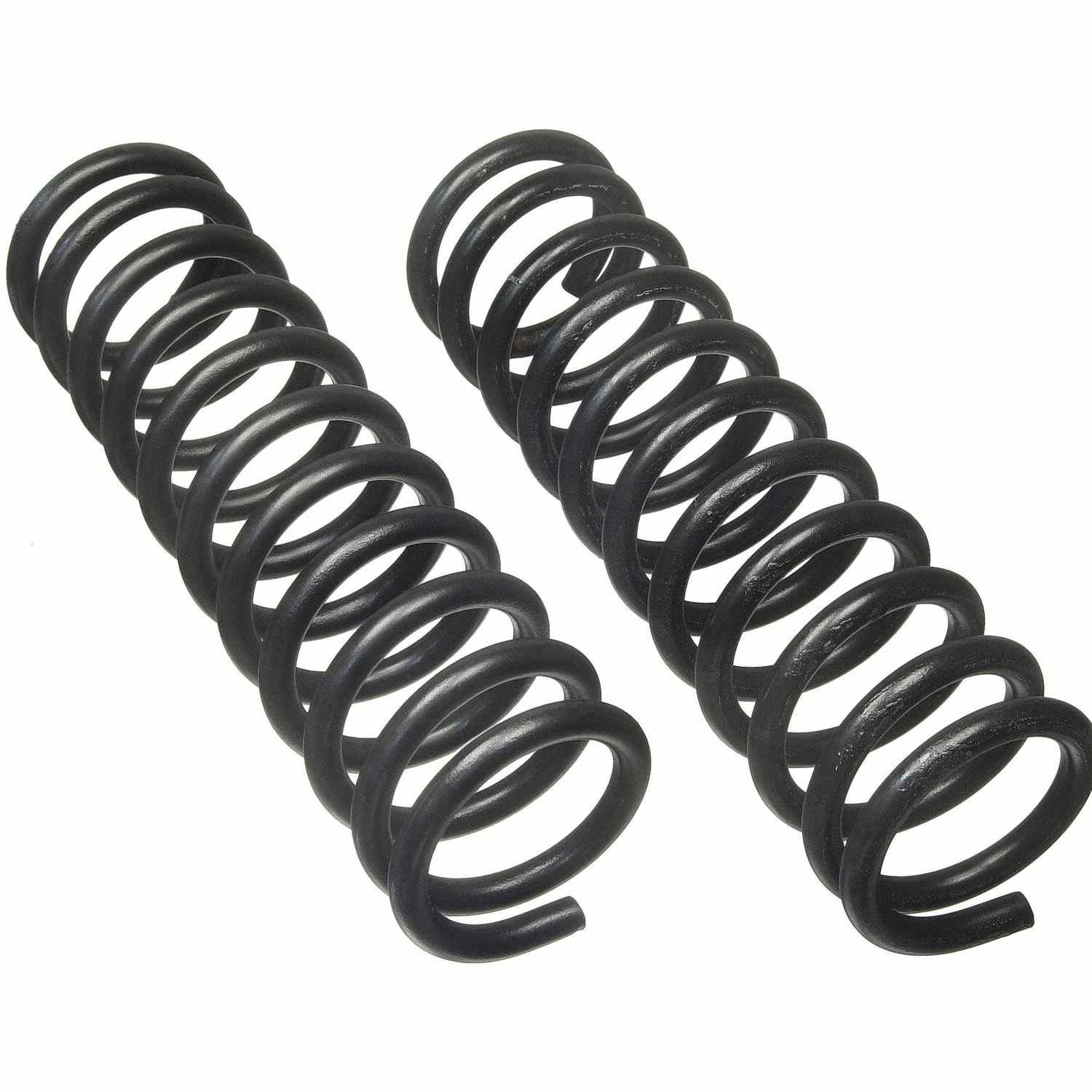

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 3.68
ID - MM: 93.50
Bar Diameter - Inches: 0.60
Bar Diameter - MM: 15.50
Spring Rate - lbs per inch: 276.00
Load - lbs: 1610.00
Installation Height - Inches: 11.00
Installation Height - MM: 279.40
Free Height - Inches: 16.84
Free Height - MM: 427.70
End Type 1: Tangential
End Type 2: Tangential
Spring Type: Constant Rate
