MOOG Chassis Products

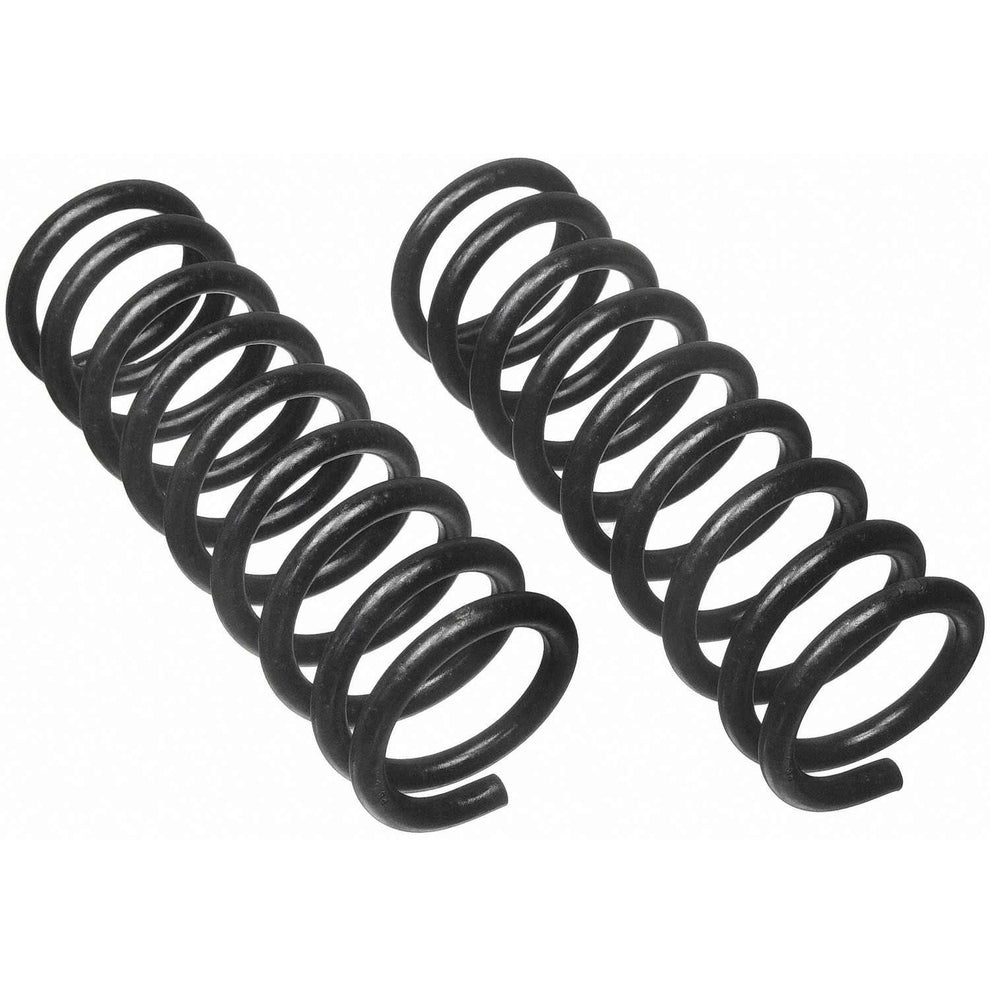

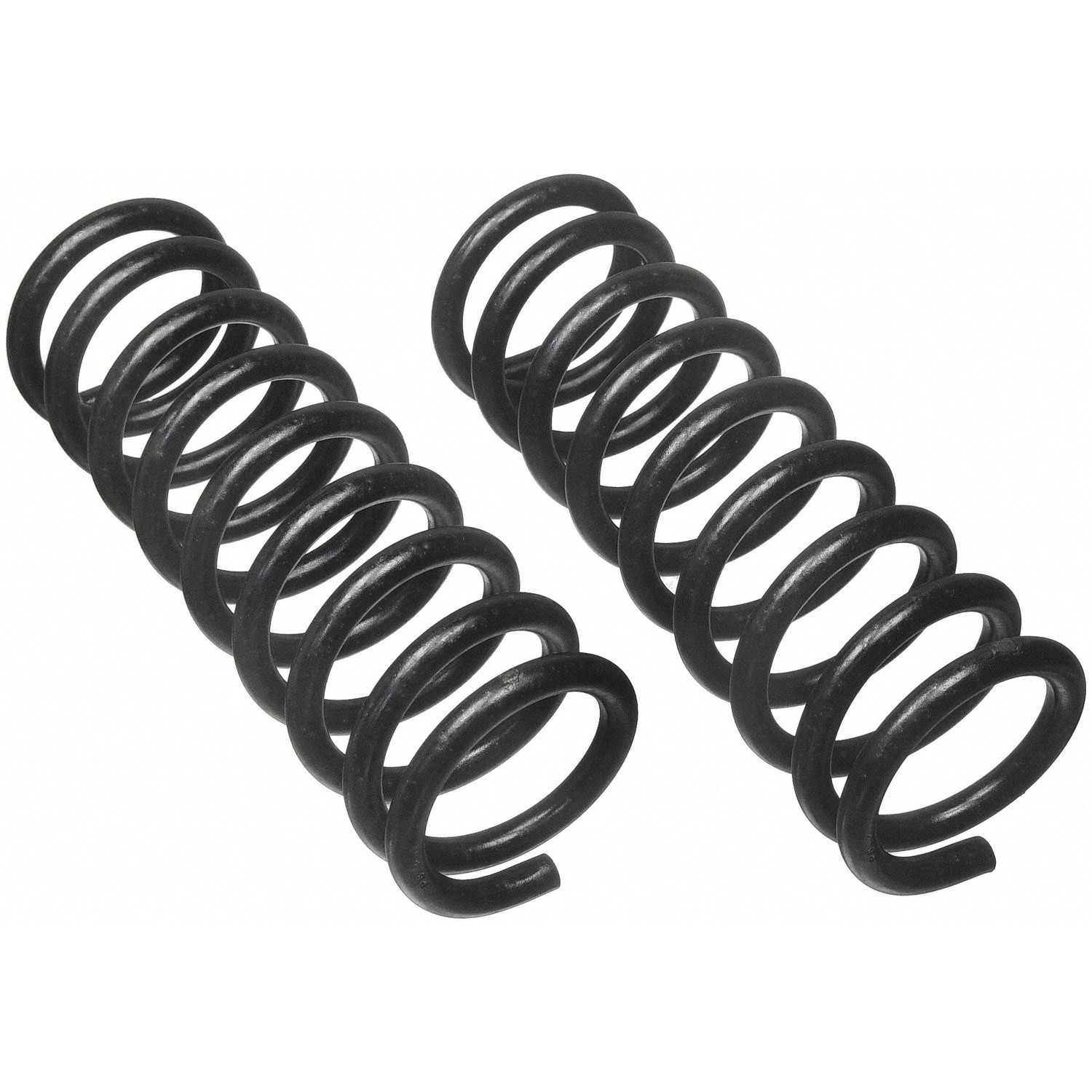

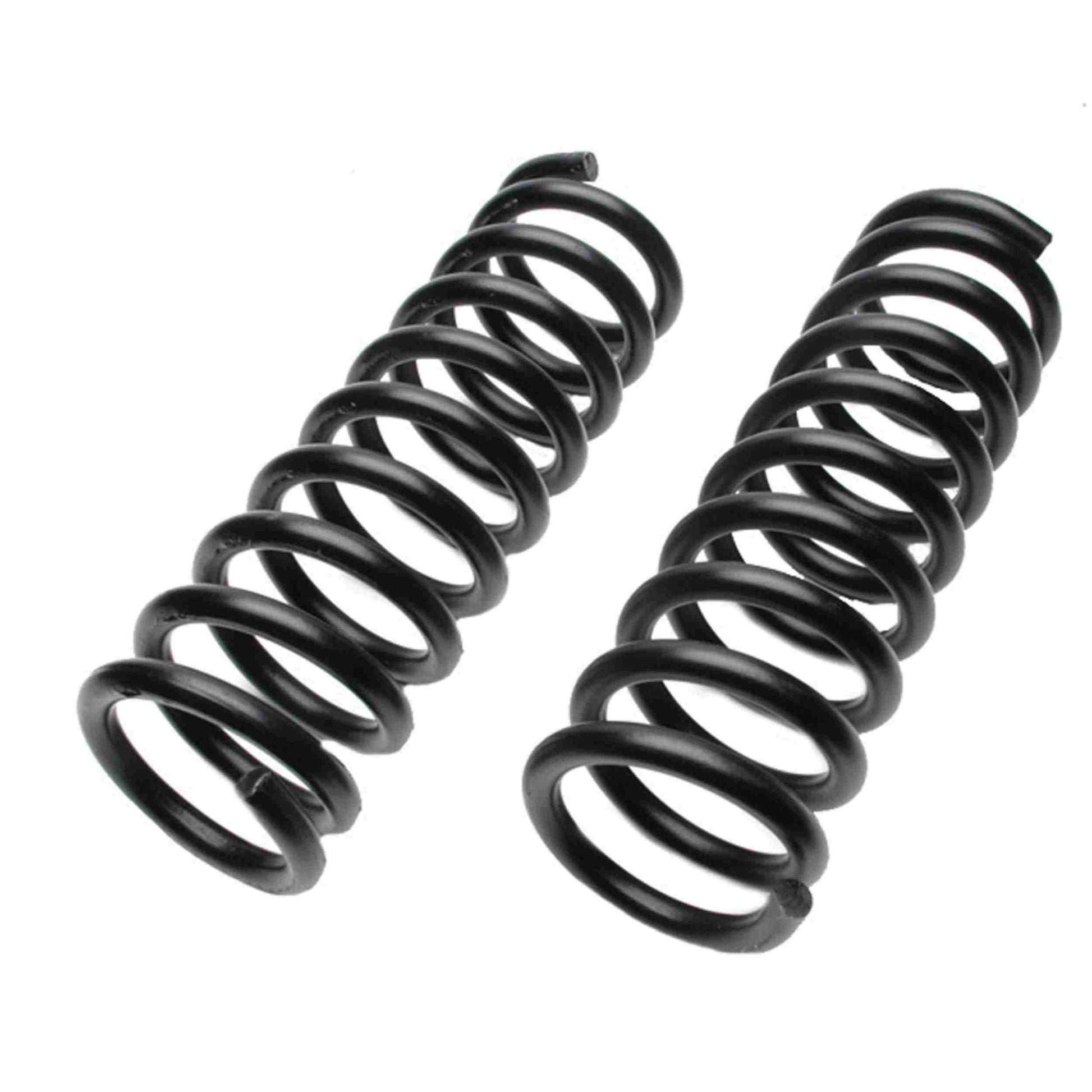

Moog Coil Spring Set:Front Coil,OEM Replacement,Chevy,Pair

Moog Coil Spring Set:Front Coil,OEM Replacement,Chevy,Pair

sku: 14NGV | mpn: 6322
$131.11
$131.11 $131.11
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 3.85
ID - MM: 97.80
Bar Diameter - Inches: 0.69
Bar Diameter - MM: 17.50
Spring Rate - lbs per inch: 404.00
Load - lbs: 1870.00
Installation Height - Inches: 11.50
Installation Height - MM: 292.10
Free Height - Inches: 16.19
Free Height - MM: 411.20
End Type 1: Tangential
End Type 2: Tangential
Spring Type: Constant Rate
