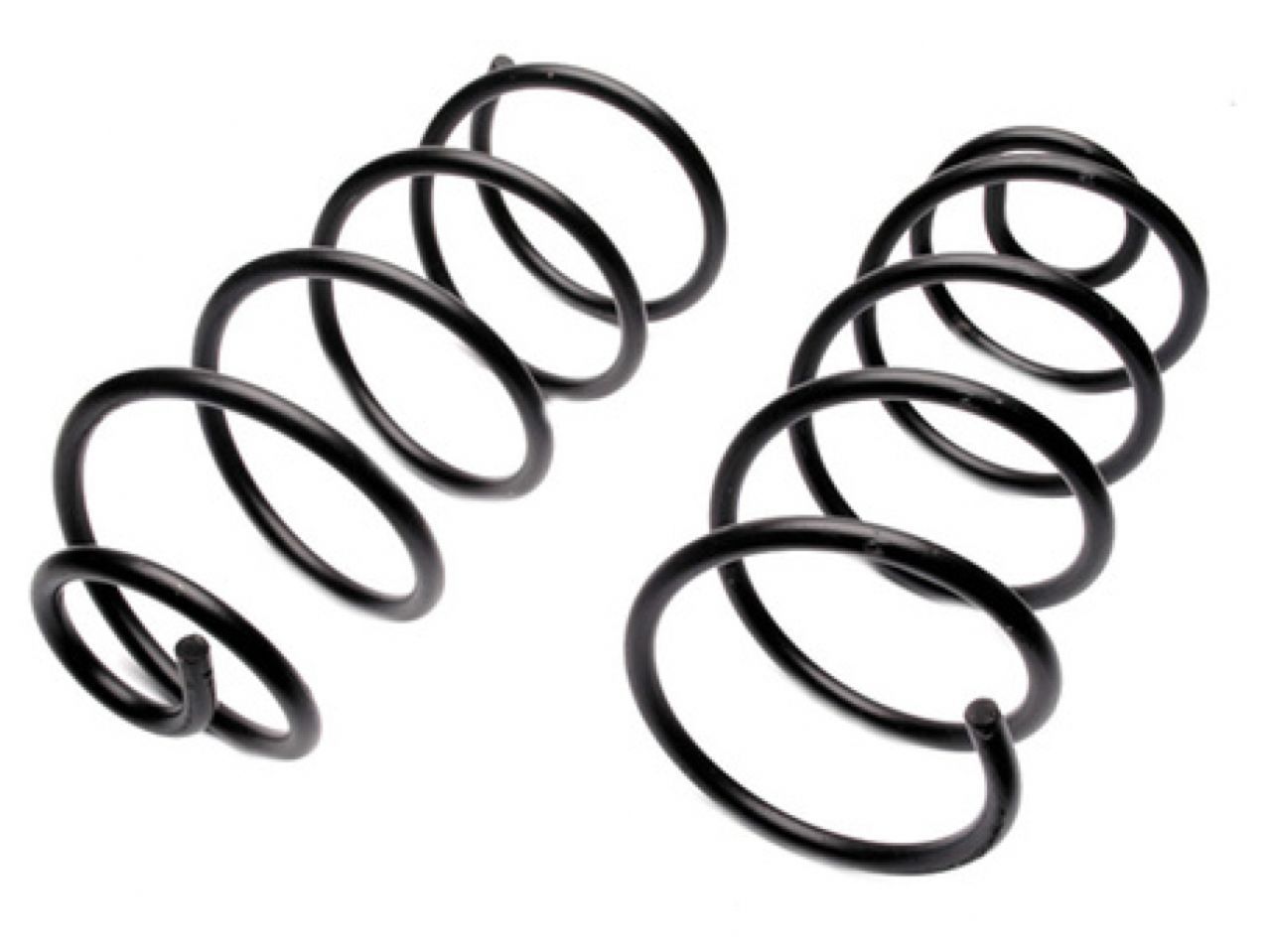

Moog Coil Spring Set:Rear Coil,OEM Replacement,Chevy

Moog Coil Spring Set:Rear Coil,OEM Replacement,Chevy

sku: 14MUX | mpn: 6201
$62.62
$62.62 $62.62
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 5.54
ID - MM: 140.70
Bar Diameter - Inches: 0.53
Bar Diameter - MM: 13.50
Spring Rate - lbs per inch: 112.00
Load - lbs: 628.00
Installation Height - Inches: 9.78
Installation Height - MM: 248.40
Free Height - Inches: 15.44
Free Height - MM: 392.20
End Type 1: Tangential
End Type 2: Pigtail
Spring Type: Constant Rate
