MOOG Chassis Products

Moog Coil Spring Set:Front Coil,OEM Replacement,Buick,Cadillac,Chevy

Moog Coil Spring Set:Front Coil,OEM Replacement,Buick,Cadillac,Chevy

sku: 14N47 | mpn: 5396
$126.45
$126.45 $126.45
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

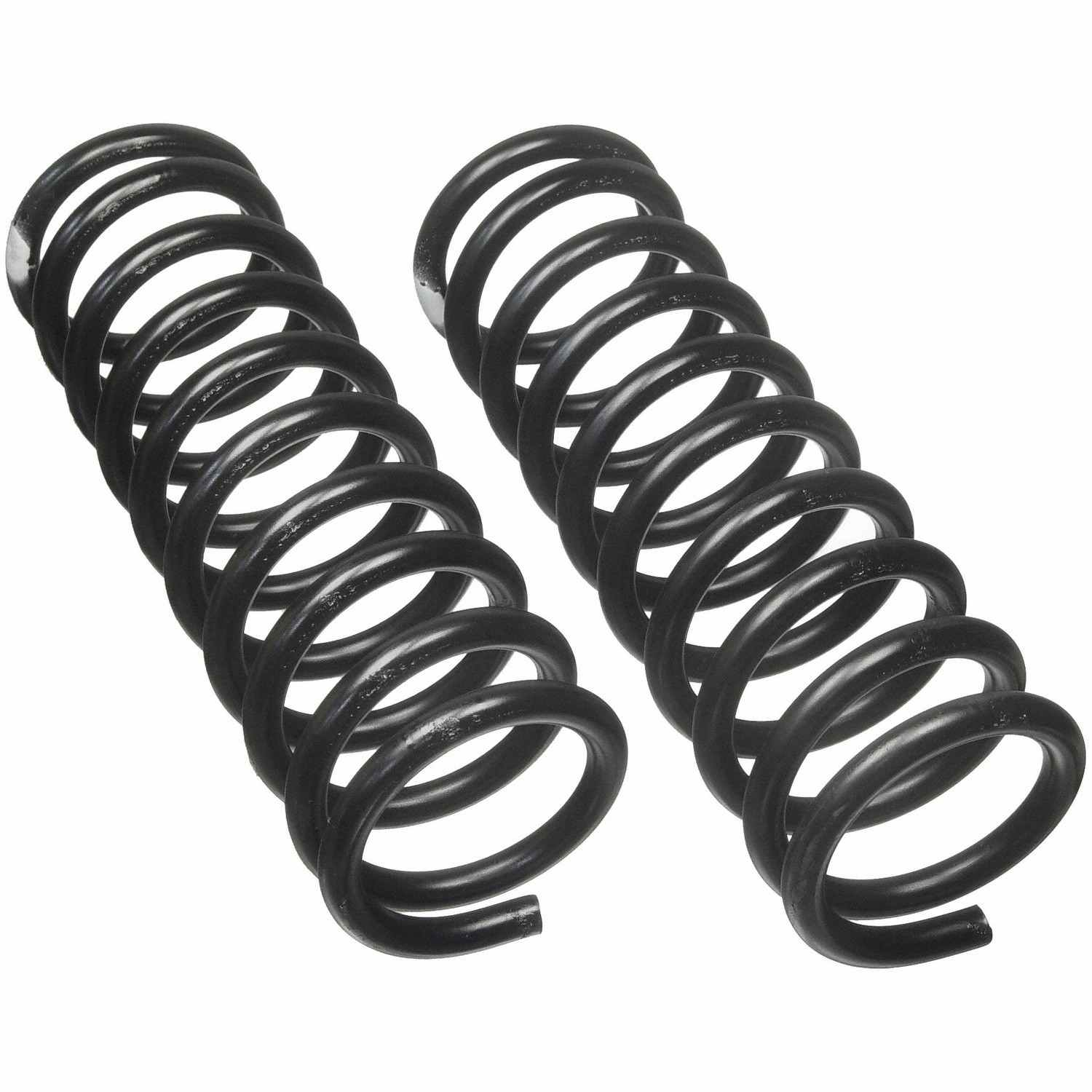

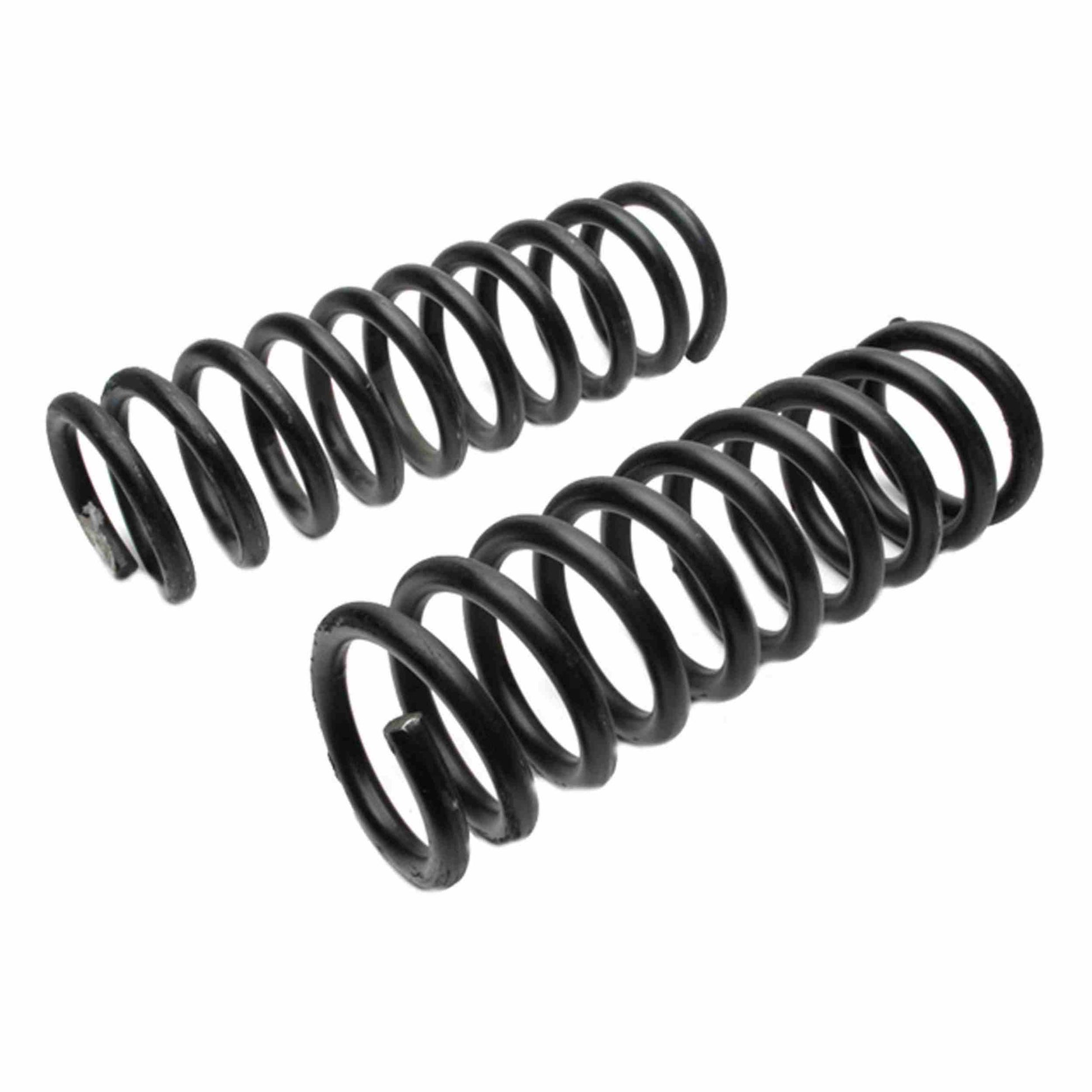

Coil Spring Set

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life.

  • 100% Load tested.
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life.
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment.

Specifications
Coil Spring Attributes
ID - Inches: 4.08
ID - MM: 103.60
Bar Diameter - Inches: 0.71
Bar Diameter - MM: 18.20
Spring Rate - lbs per inch: 389.00
Load - lbs: 2050.00
Installation Height - Inches: 12.00
Installation Height - MM: 304.80
Free Height - Inches: 17.31
Free Height - MM: 439.70
End Type 1: Squared
End Type 2: Tangential
Spring Type: Constant Rate
