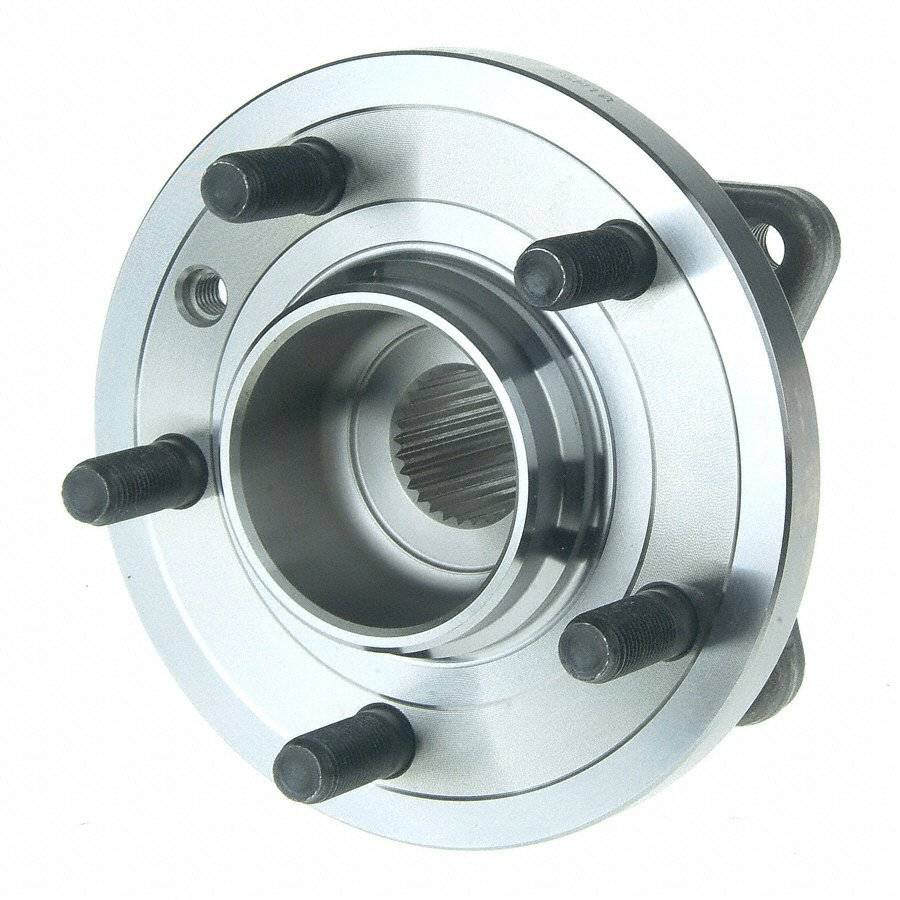

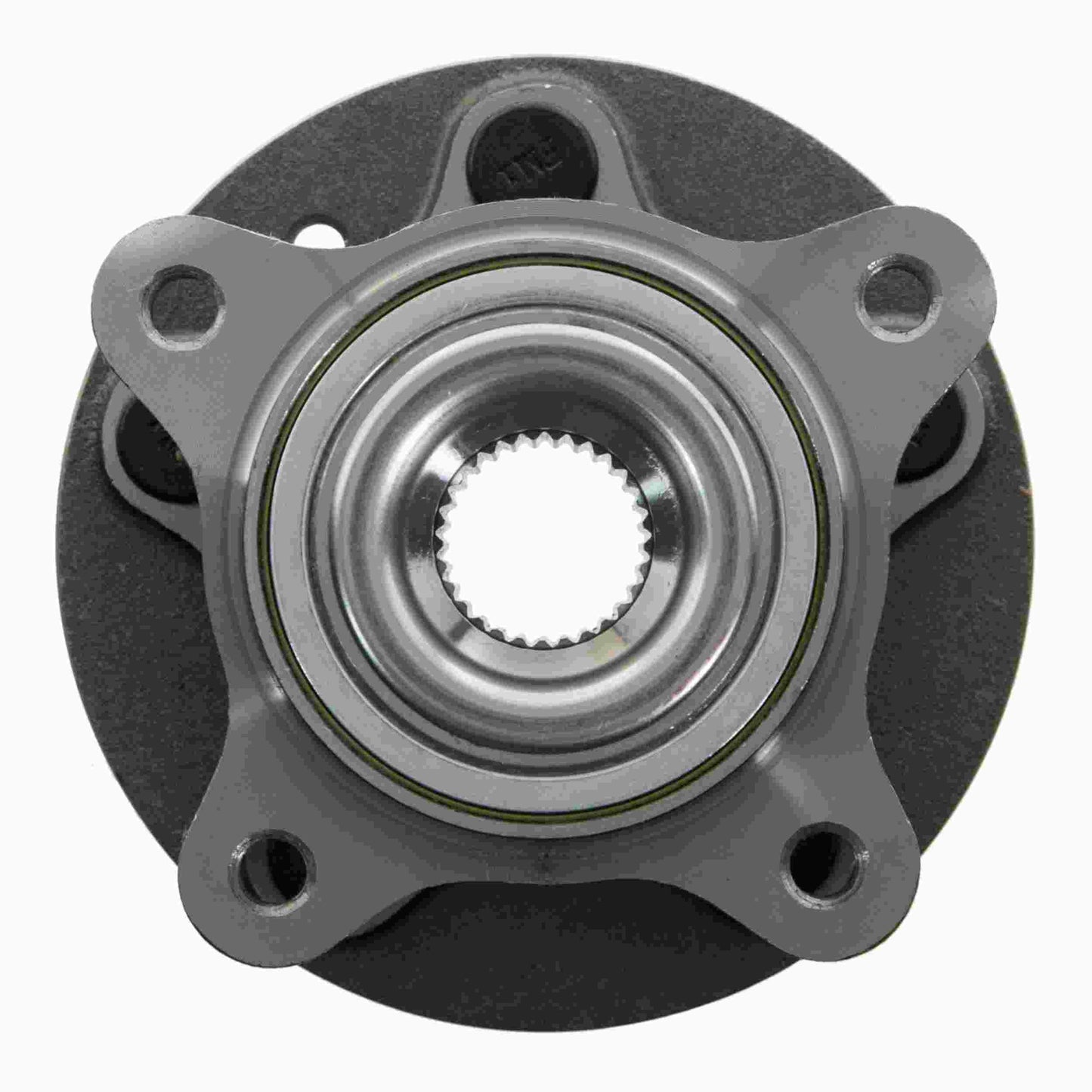

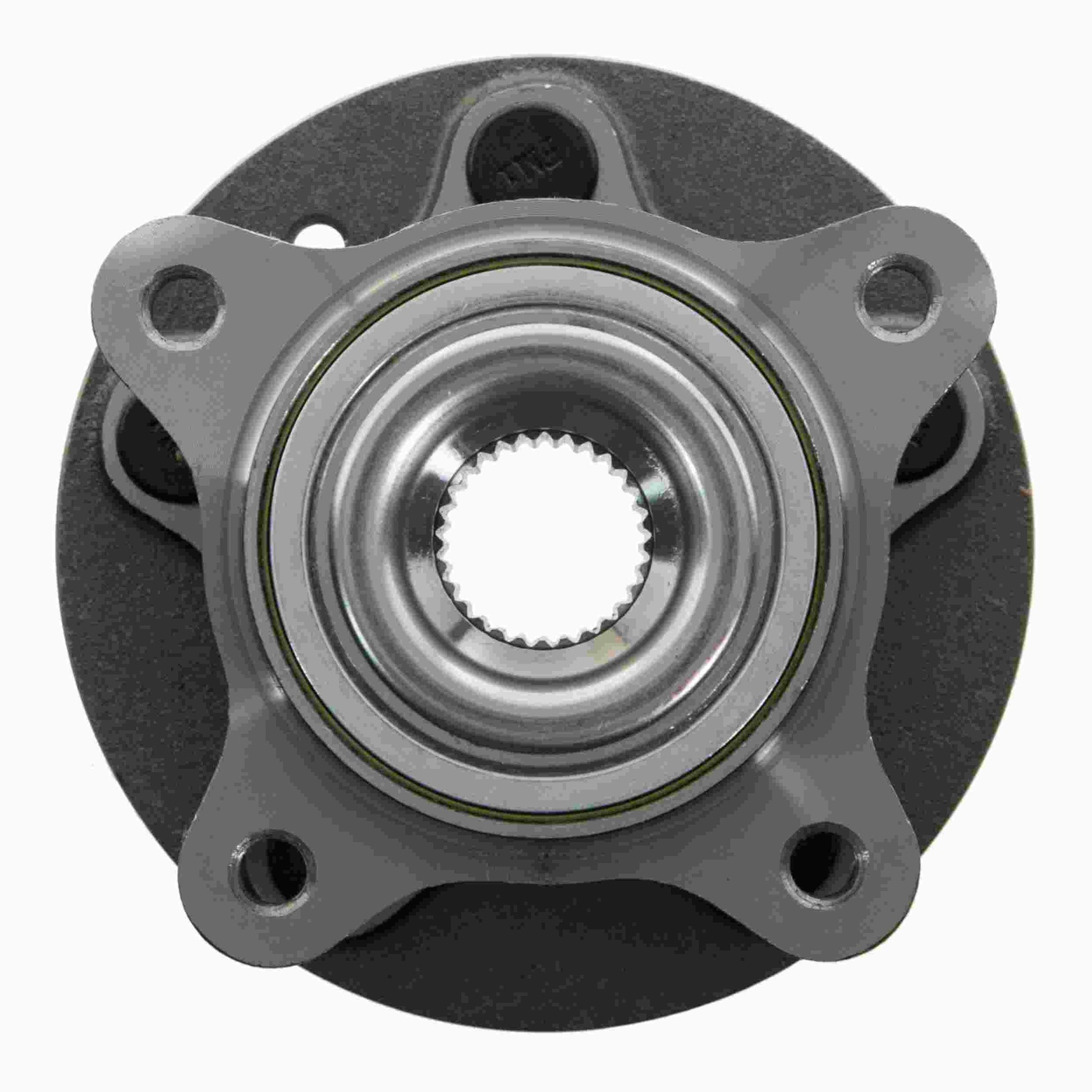

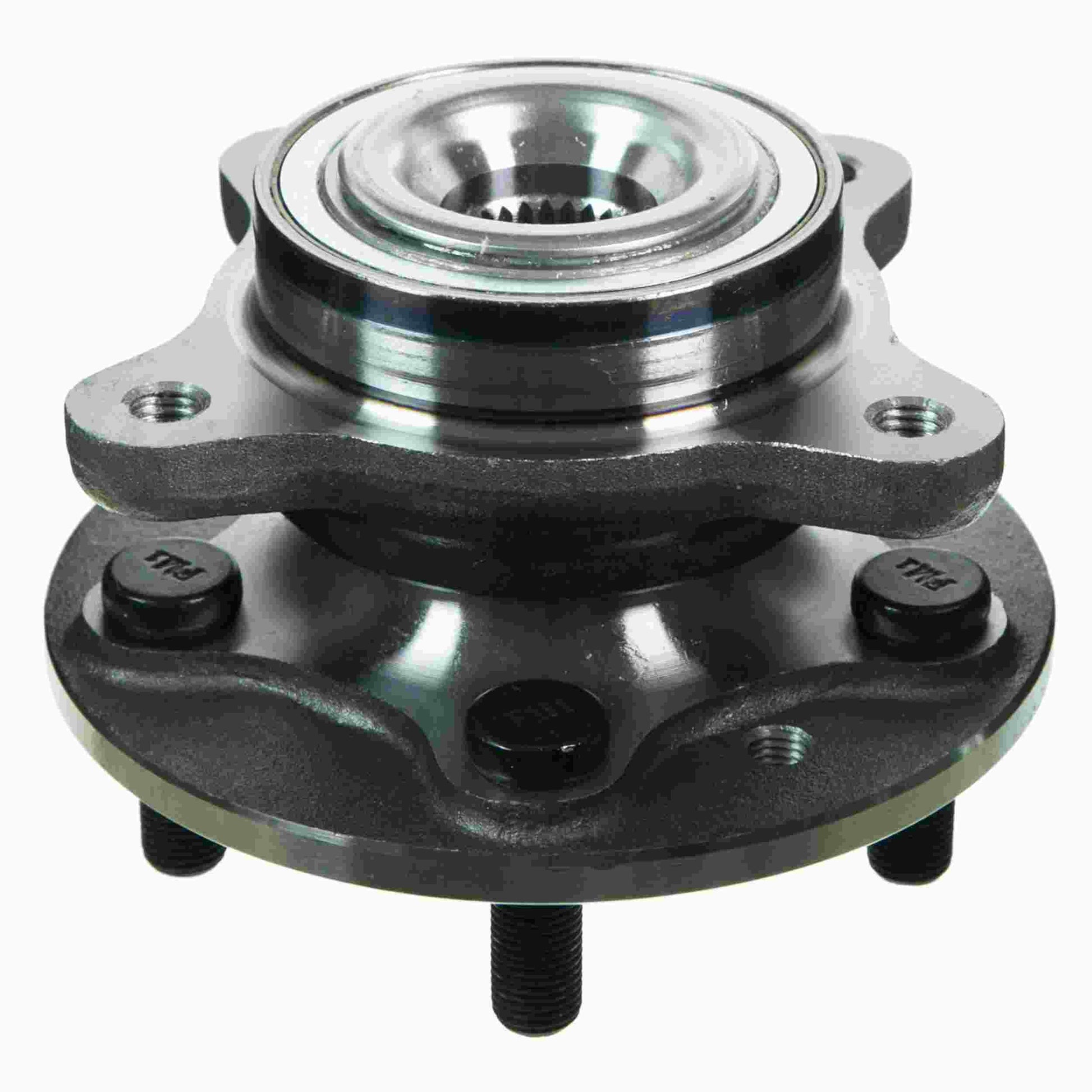

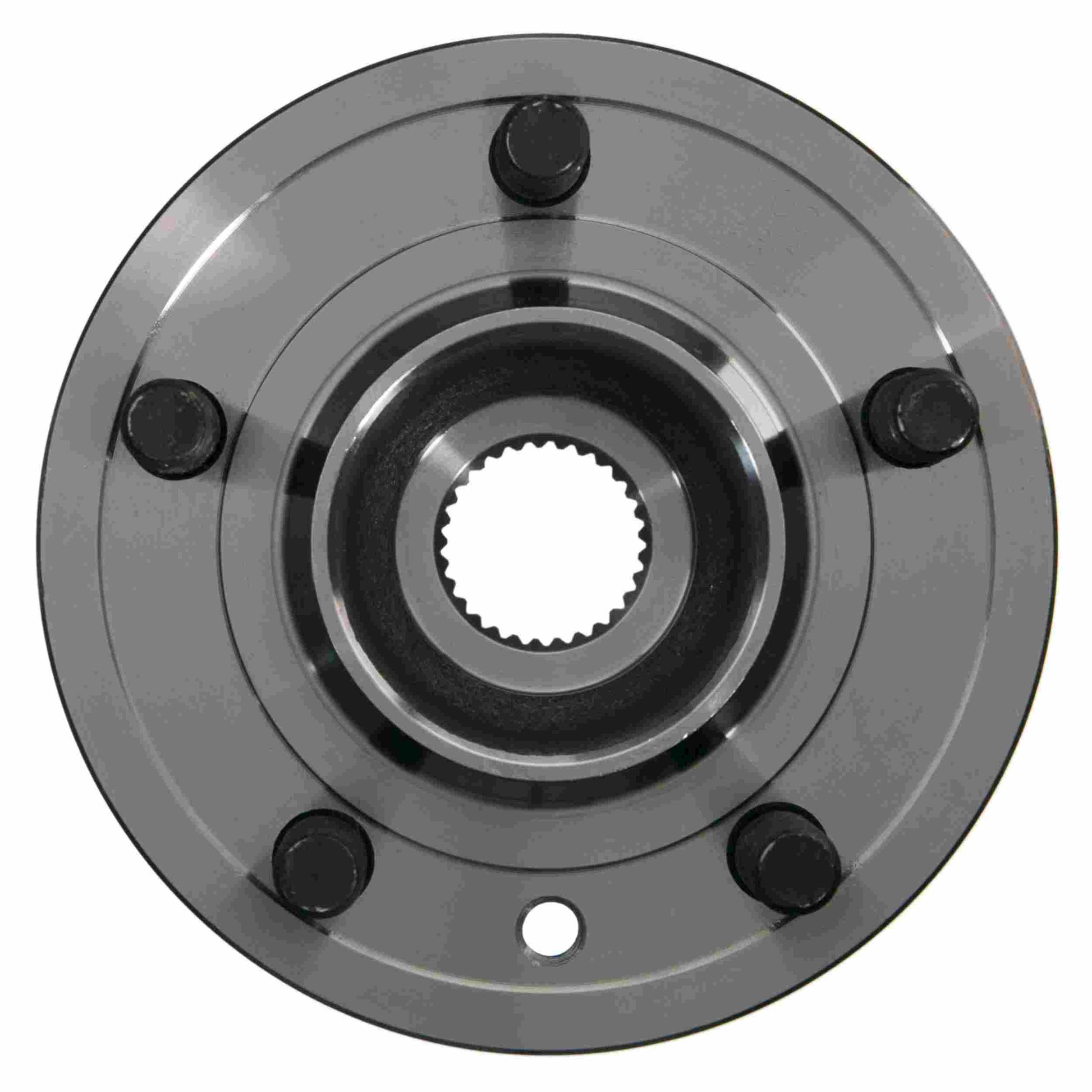

Moog Wheel Hub and Bearing Assembly, Front, Land Rover

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications
Hub Assemblies
- Flange Bolt Hole Quantity: 3
- Flange Diameter (A): 171.5
- Bolt Circle Diameter (B): 6.750
- Bolt Circle Diameter Metric (B):120.7
- Bolt Size (C): M14X1.5
- Wheel Pilot Diameter (D): 77.7
- Brake Pilot Diameter (E): 82.0
- Flange Offset (F): 45.8
- Hub Pilot Diameter (G): 89.0
- Wheel Stud Quantity: 8
- Number of Splines: 29
- Flange Shape (K): TRIANGLE
- ABS Sensor: No
- Location: Front Wheel
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2006 | Land Rover | LR3 | Base |
2009 | Land Rover | LR3 | HSE Lux |
2005 - 2009 | Land Rover | LR3 | SE, HSE |
2011 - 2014 | Land Rover | LR4 | Base |
2010 - 2014 | Land Rover | LR4 | HSE |
2012 - 2014 | Land Rover | LR4 | HSE Lux |
2010 - 2013 | Land Rover | LR4 | SE |
2010 | Land Rover | LR4 | V8 |
2011 - 2013 | Land Rover | Range Rover Sport | Autobiography, GT Limited Edition |
2010 - 2013 | Land Rover | Range Rover Sport | Base |
2012 | Land Rover | Range Rover Sport | GT Limited Edition 3 |
2012 - 2013 | Land Rover | Range Rover Sport | HSE Lux |
2006 - 2013 | Land Rover | Range Rover Sport | HSE, Supercharged |
2008 | Land Rover | Range Rover Sport | LE |

Moog Wheel Hub and Bearing Assembly, Front, Land Rover
Sale price$234.54 USD
Regular price$294.59 USD
