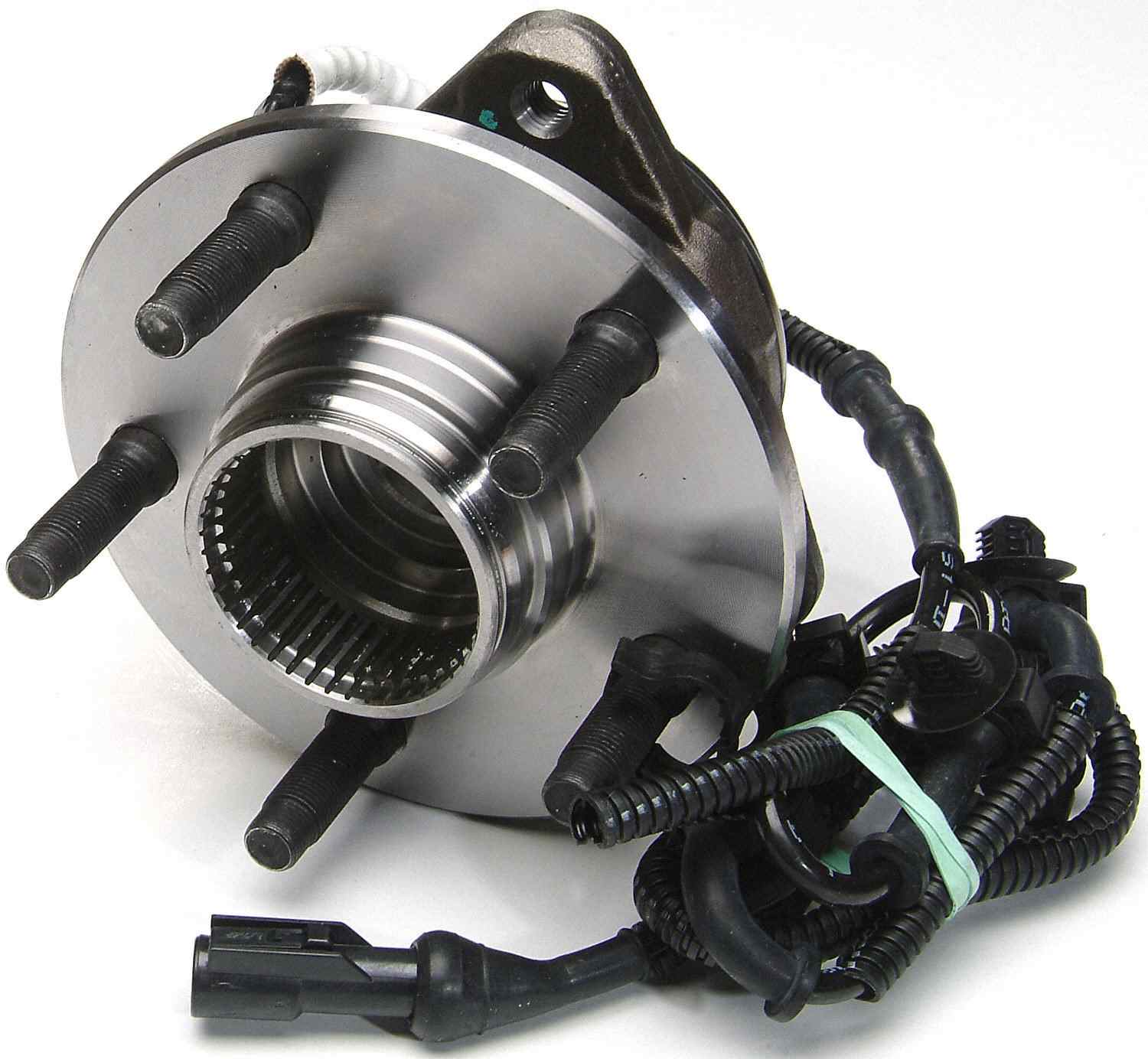

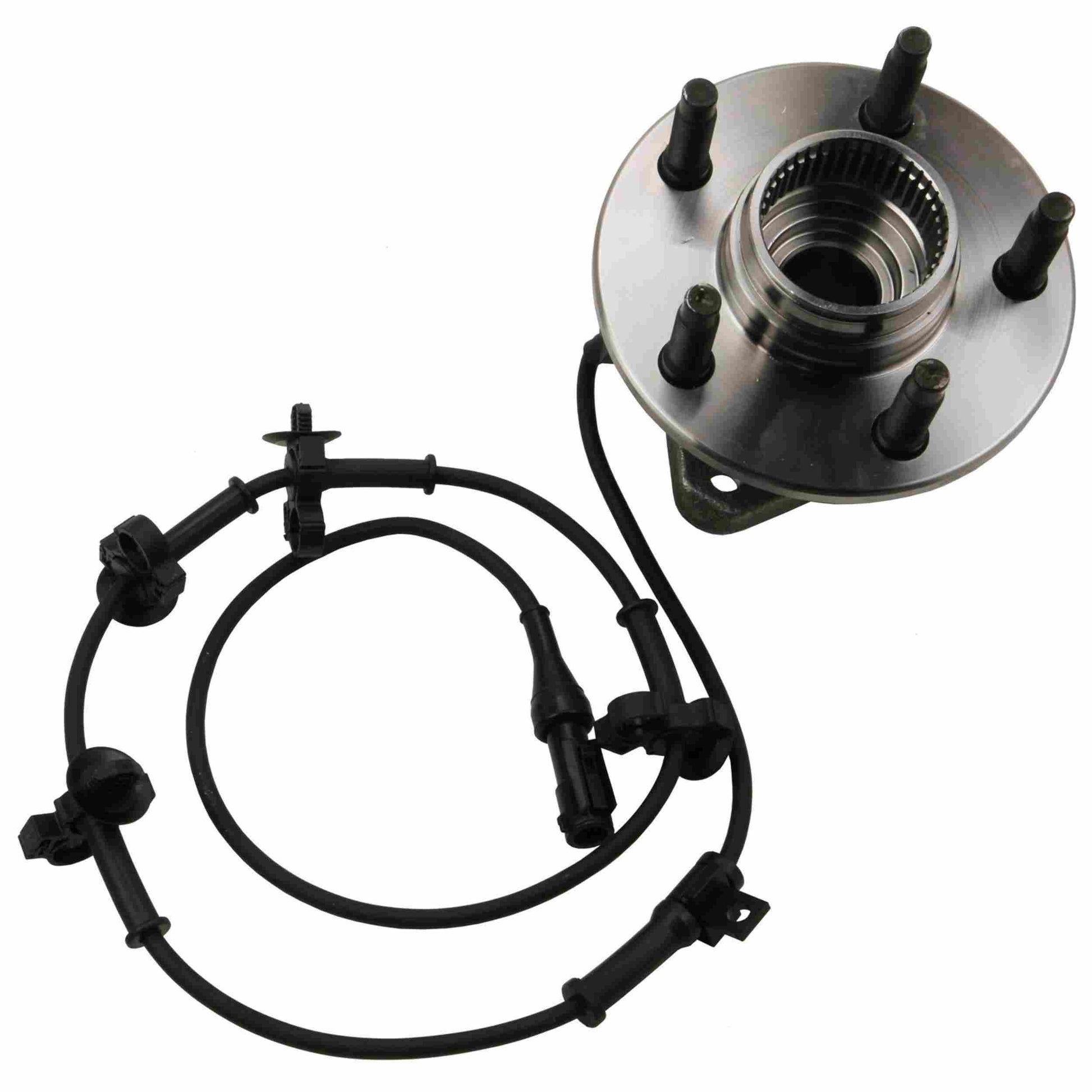

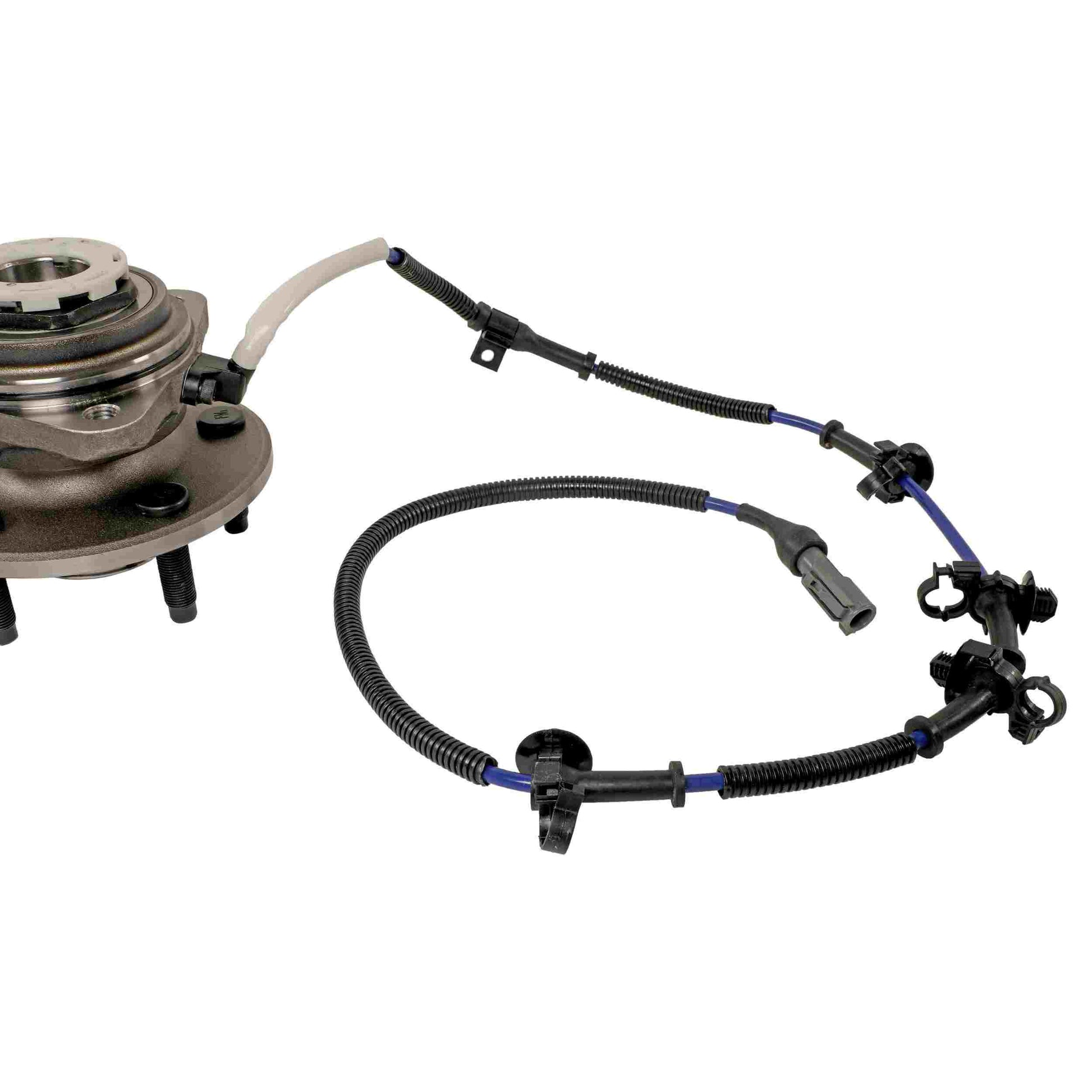

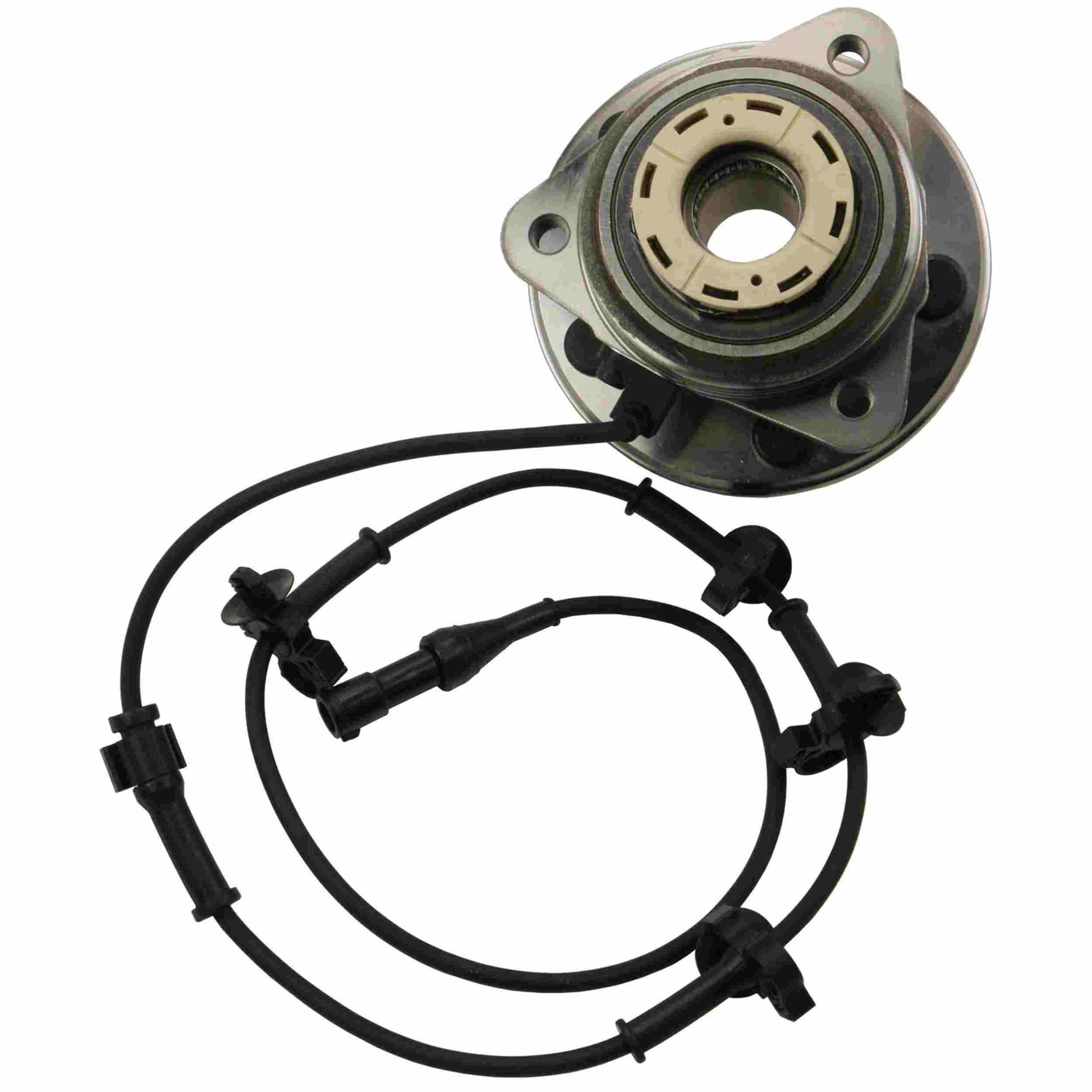

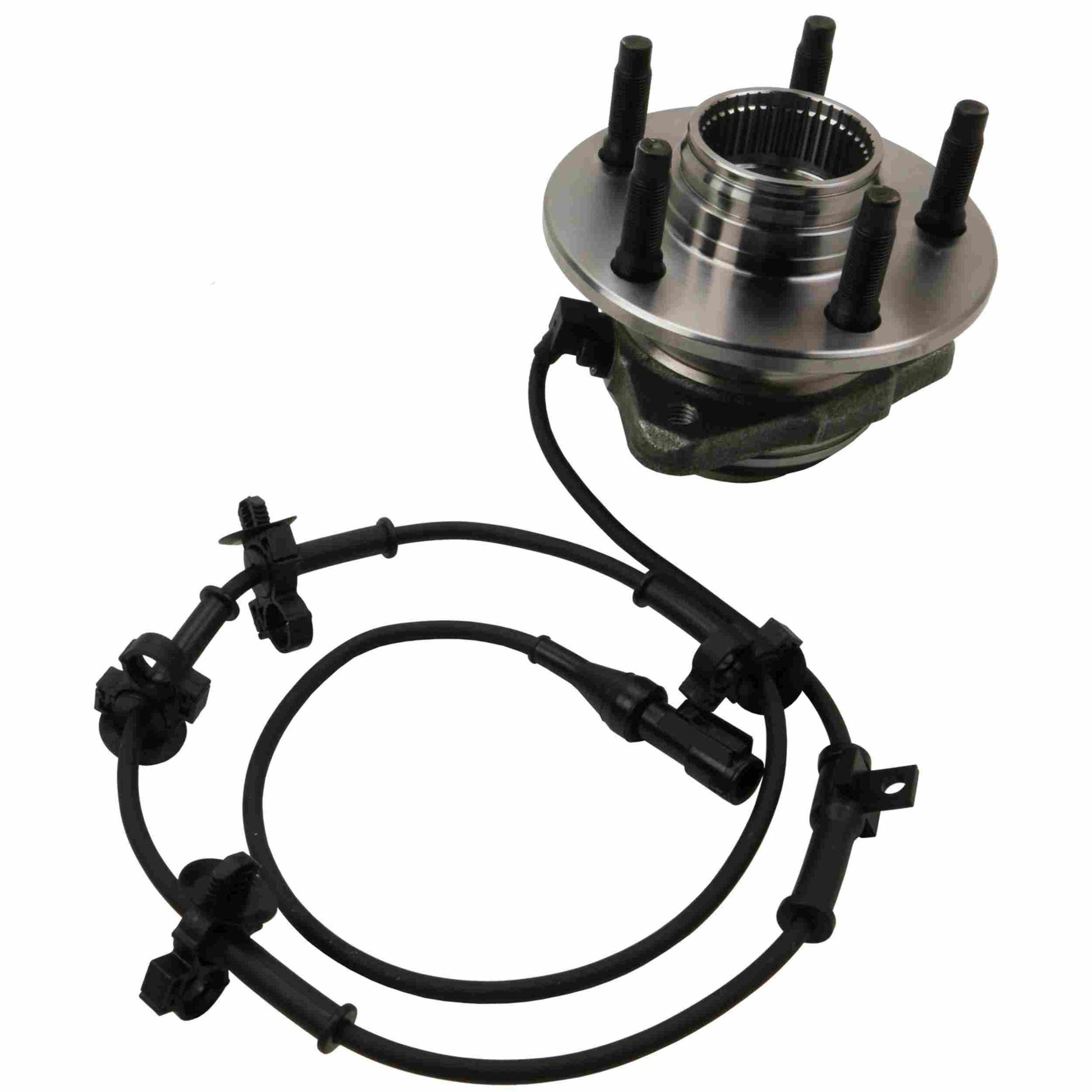

Moog Wheel Hub and Bearing Assembly,Front,Ford,Mazda,Each

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

• Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.

• MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.

• Engineered to overcome problems and deliver smooth, reliable performance.

• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Specifications

Flange Bolt Hole Quantity: 3

Flange Diameter (A): 5.880

Bolt Circle Diameter (B): 4.500

Bolt Circle Diameter Metric (B): 114.3

Bolt Size (C): 1/2-20

Wheel Pilot Diameter (D): 2.780

Brake Pilot Diameter (E): 2.780

Flange Offset (F): 2.220

Hub Pilot Diameter (G): 3.940

Wheel Stud Quantity: 5

Number of Splines: 42

Flange Shape (K): Triangular

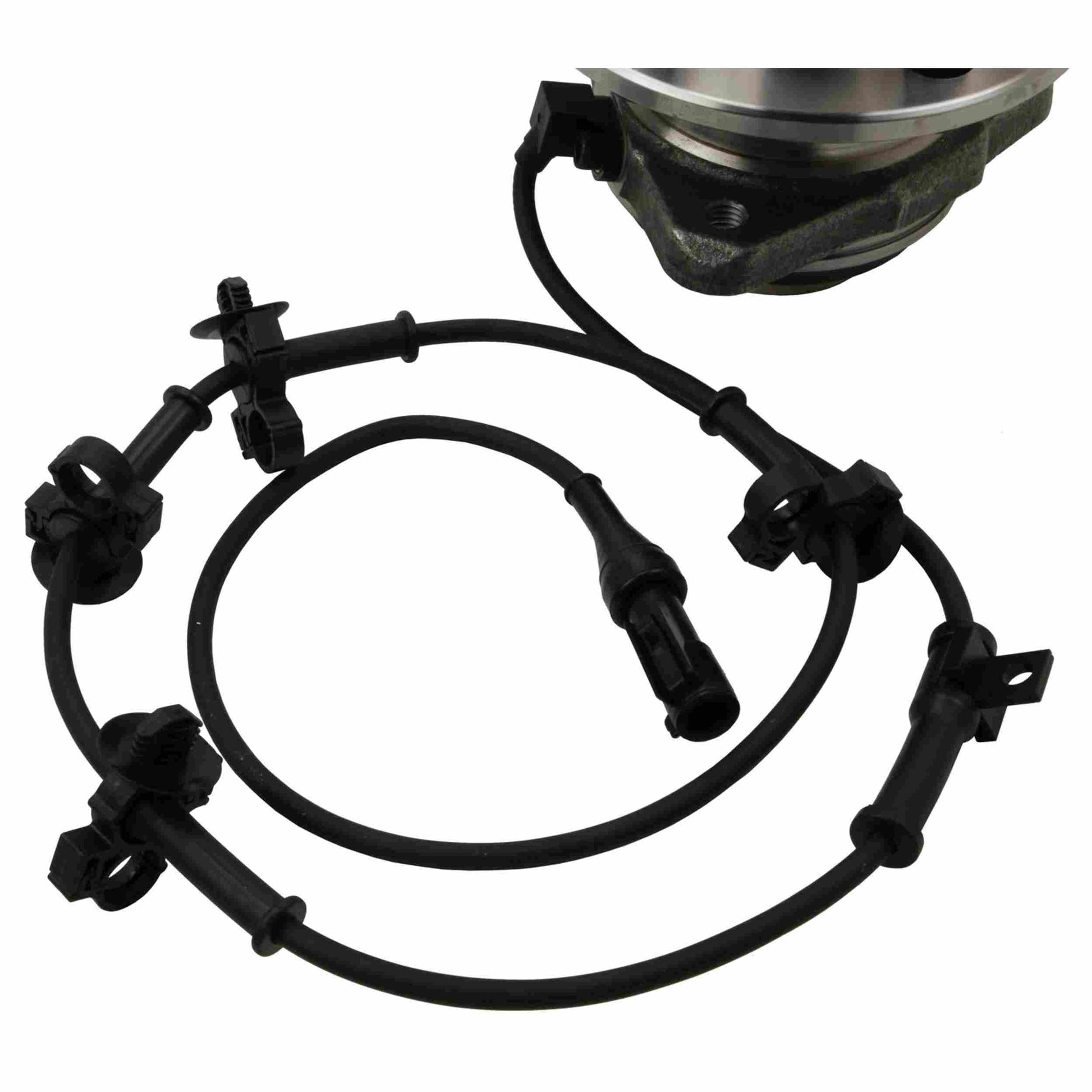

ABS Sensor: Cable

Location: Front Wheel
