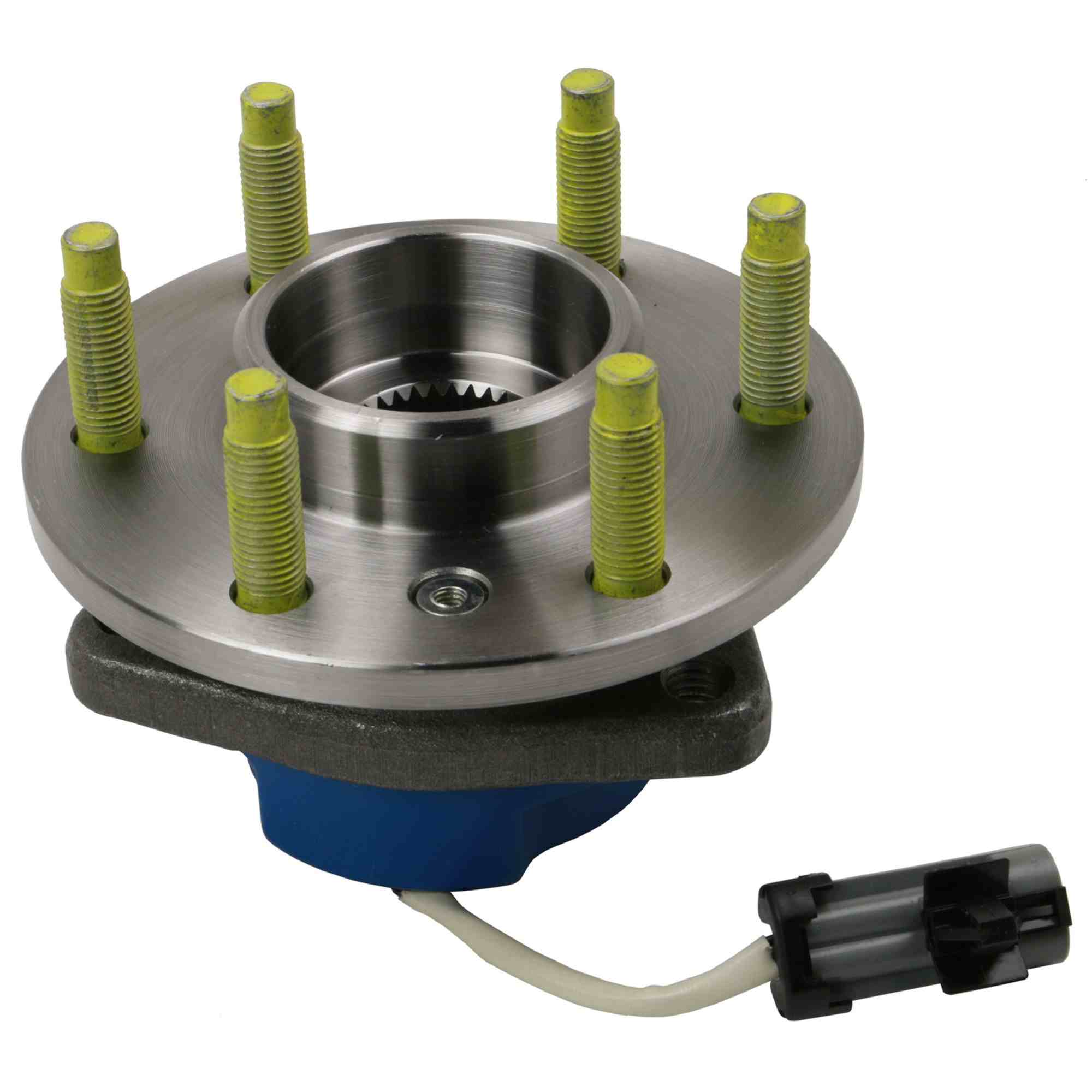

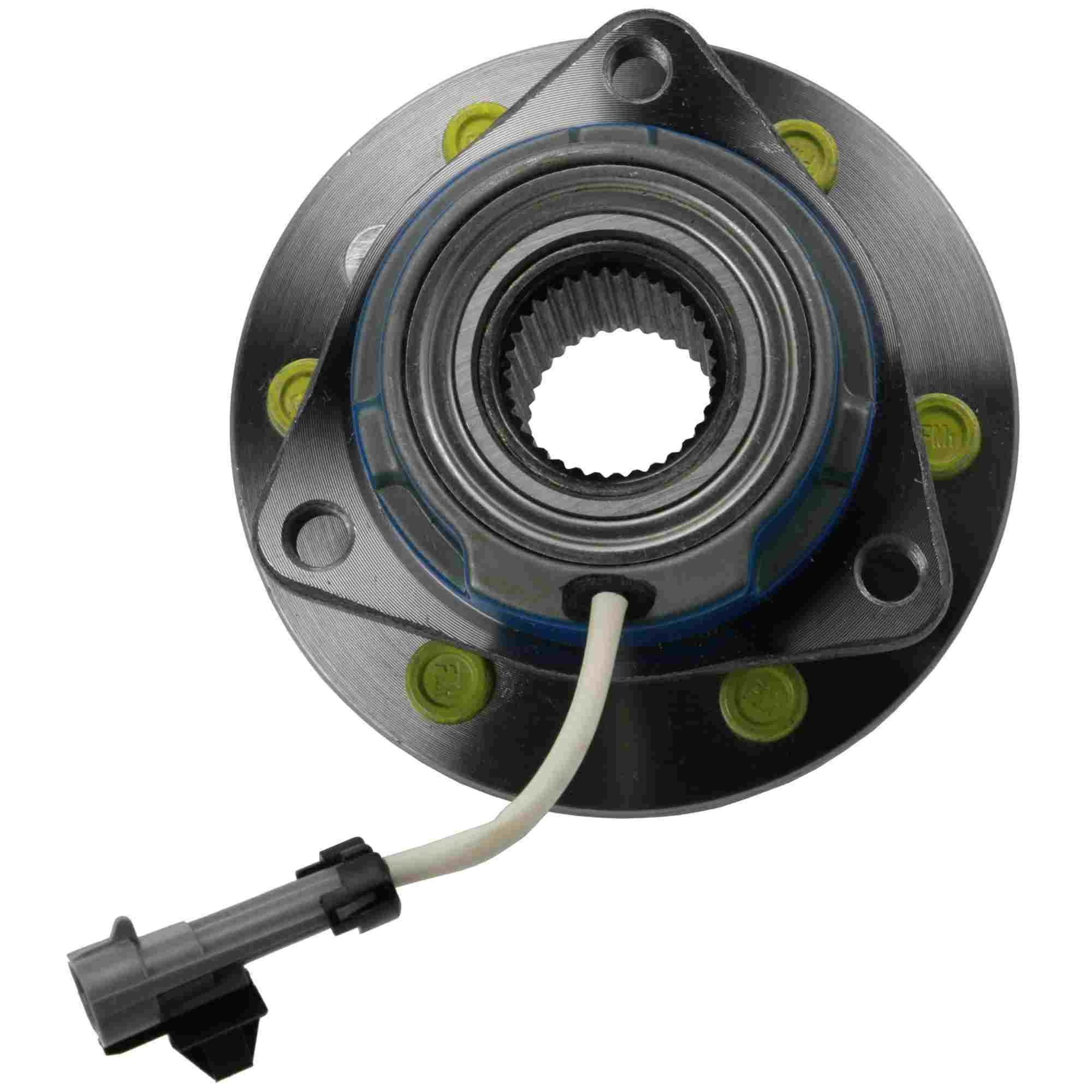

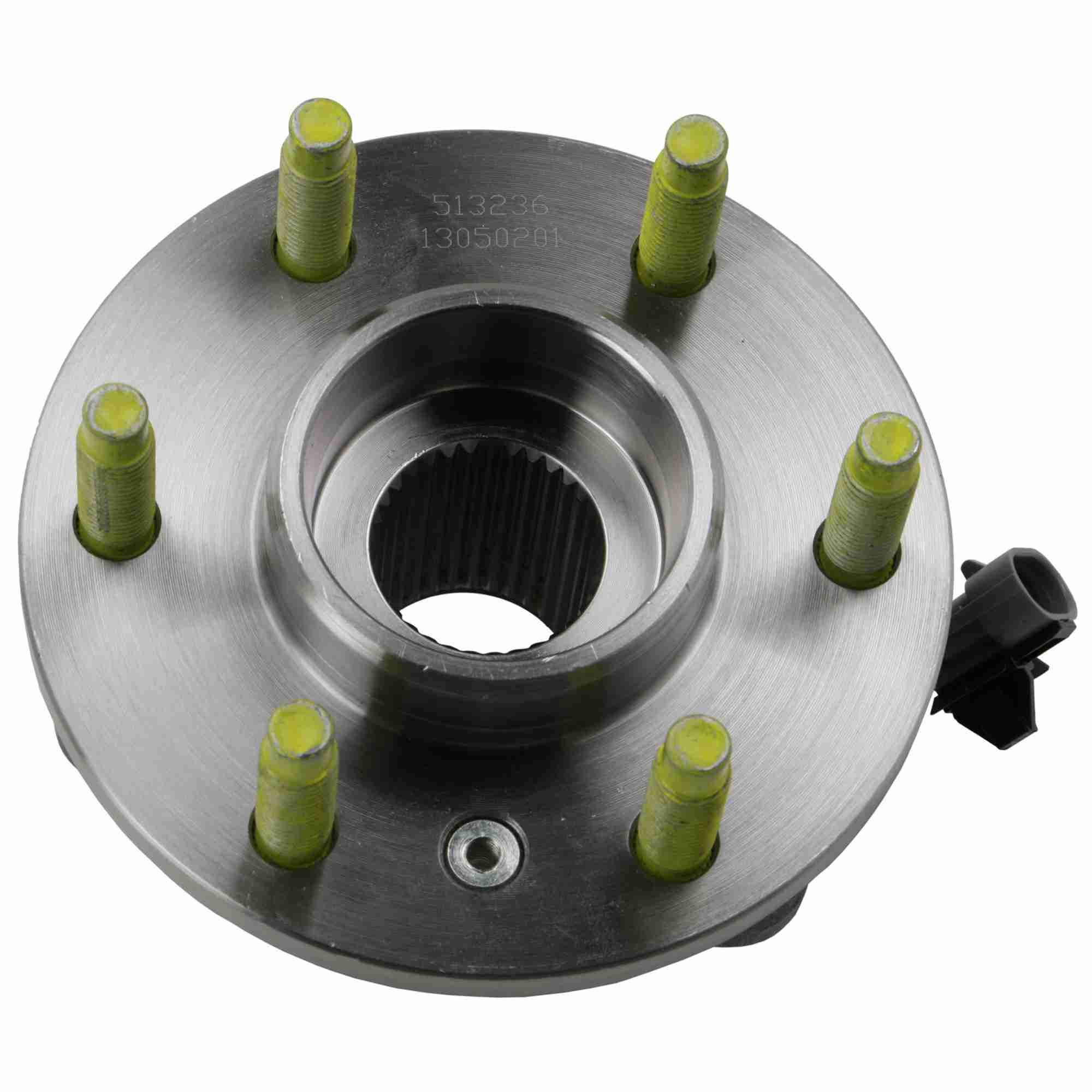

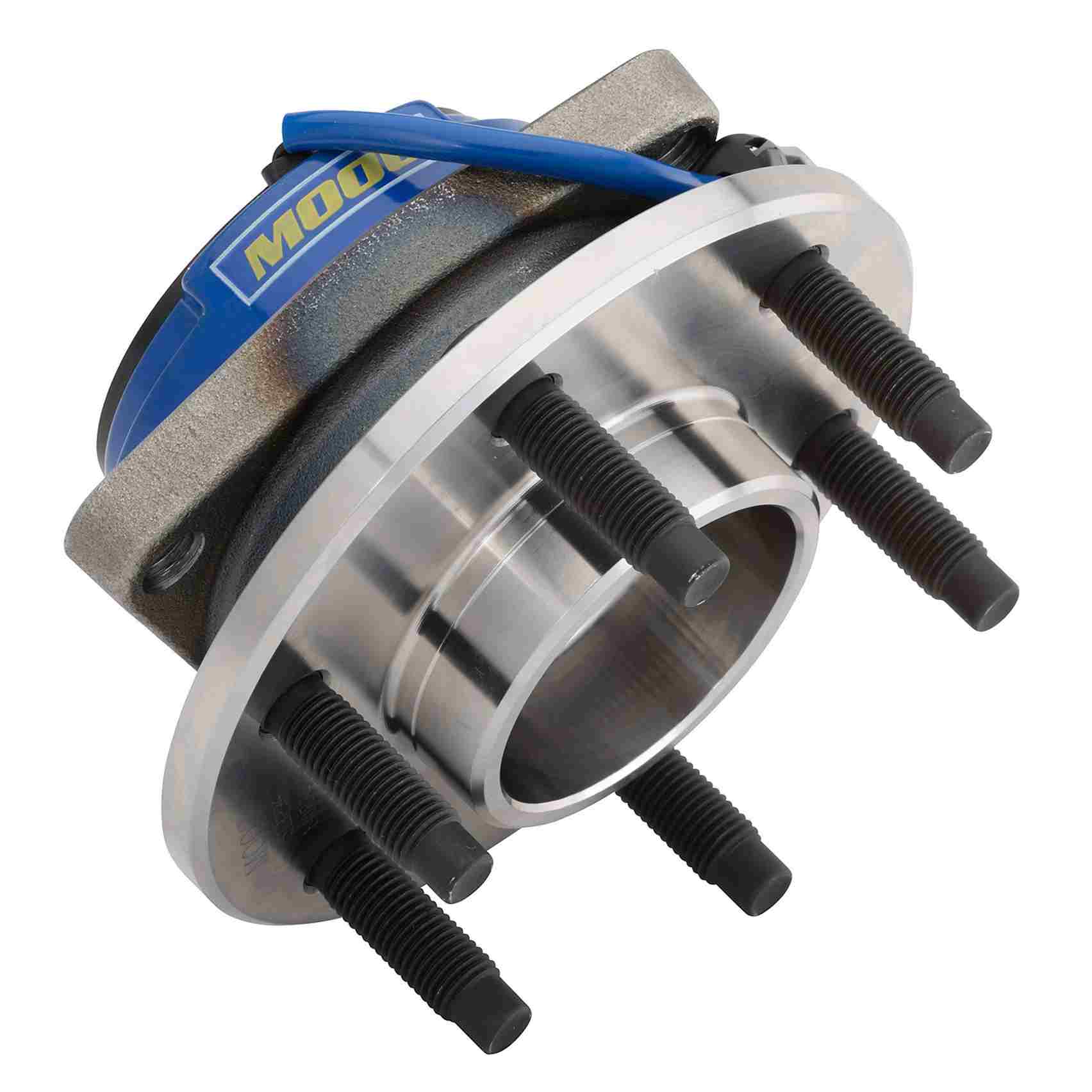

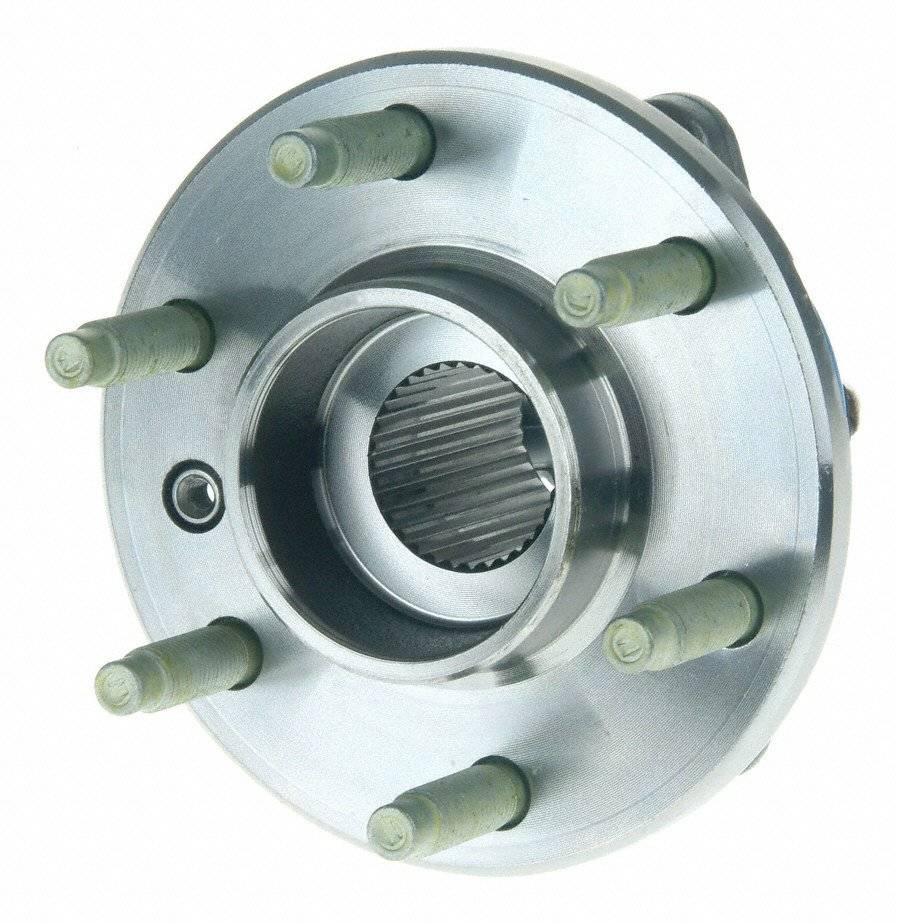

Moog Hub Assembly:AutoExtra Wheel Bearing and Hub Assemblies
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 145.5
Bolt Circle Diameter (B): 4.527
Bolt Circle Diameter Metric (B): 115.0
Bolt Size (C): M12x1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 42.0
Hub Pilot Diameter (G): 91.4
Bolt Hole MET (I): M12x1.75
Bolt Hole Quantity: 6
Number of Splines: 33
Flange Shape (K): TRIANGLE

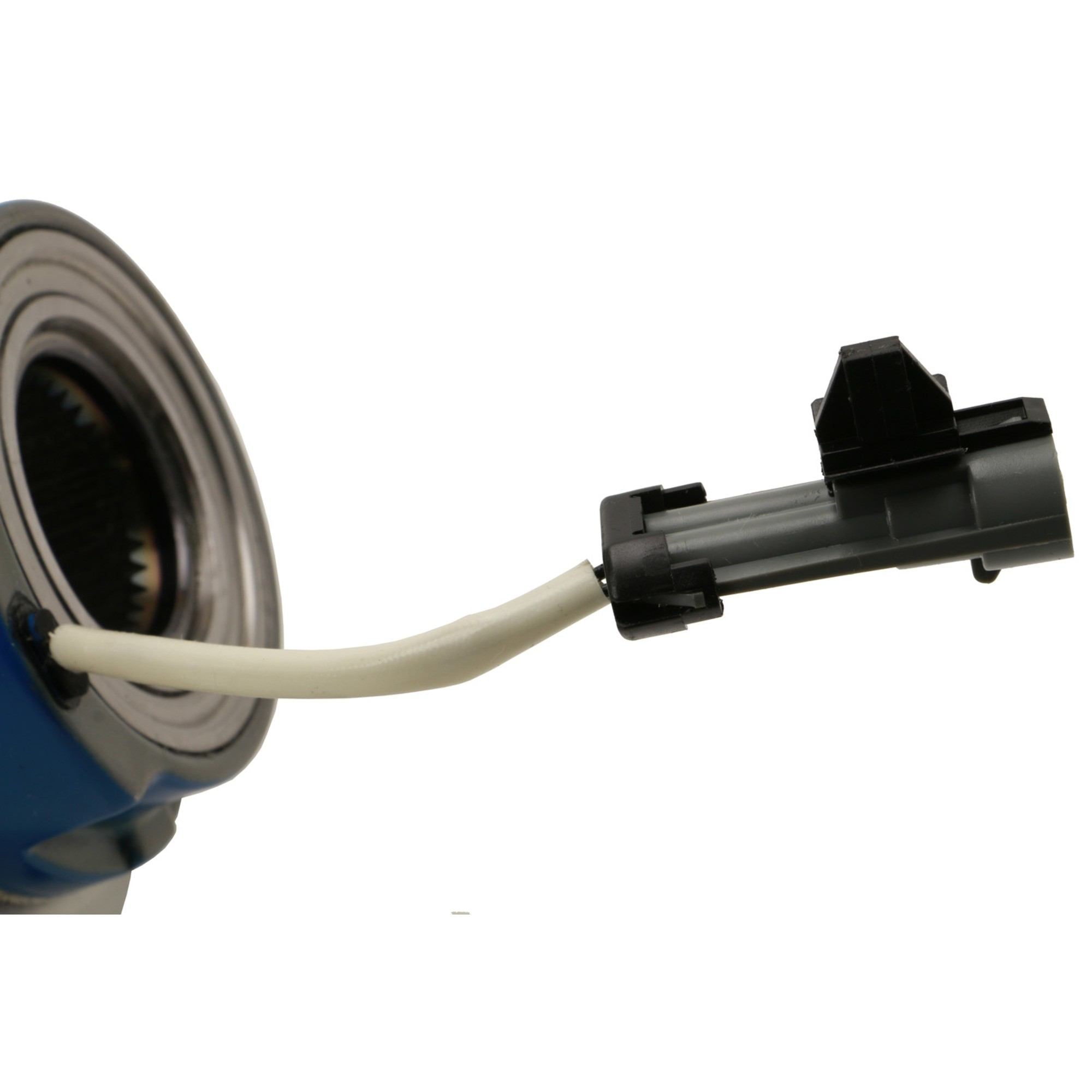

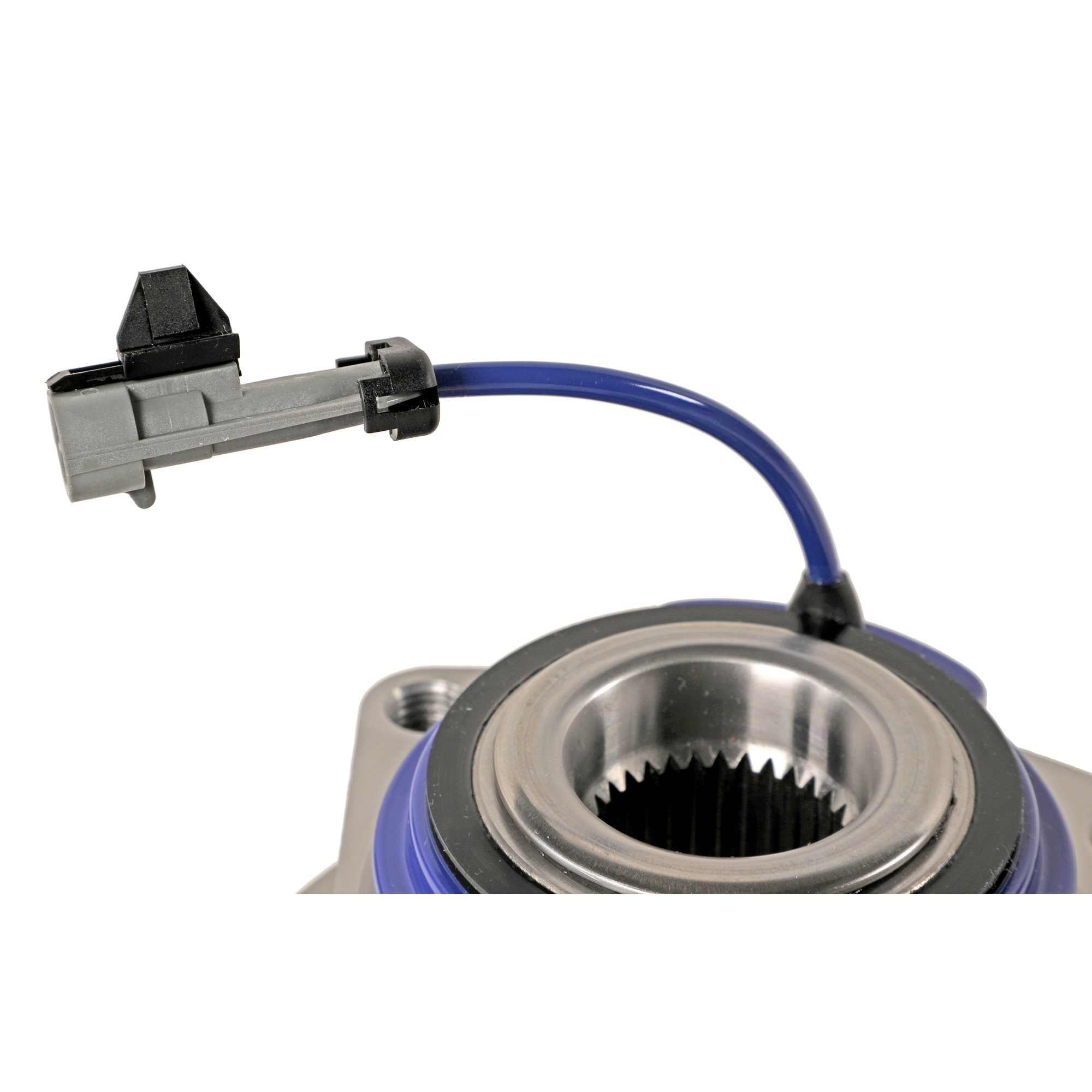

ABS Sensor: Cable
Location: Front/Rear Wheel
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 - 2007 | Buick | Terraza | CX, CXL |
| 2006 - 2009 | Chevrolet | Uplander | Base, LS, LT |
| 2006 - 2009 | Pontiac | Montana | SV6 |
| 2007 | Saturn | Relay | 1 |
| 2006 - 2007 | Saturn | Relay | 3, 2 |
