Moog Hub Assembly:Wheel Hub and Bearing Assembly,Front,Chevy,Saturn
Moog Hub Assembly:Wheel Hub and Bearing Assembly,Front,Chevy,Saturn
sku: 14NH1 | mpn: 513206
Regular price
$160.04
Regular price
$186.04
Sale price
$160.04
Shipping calculated at checkout.
Low stock: 3 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

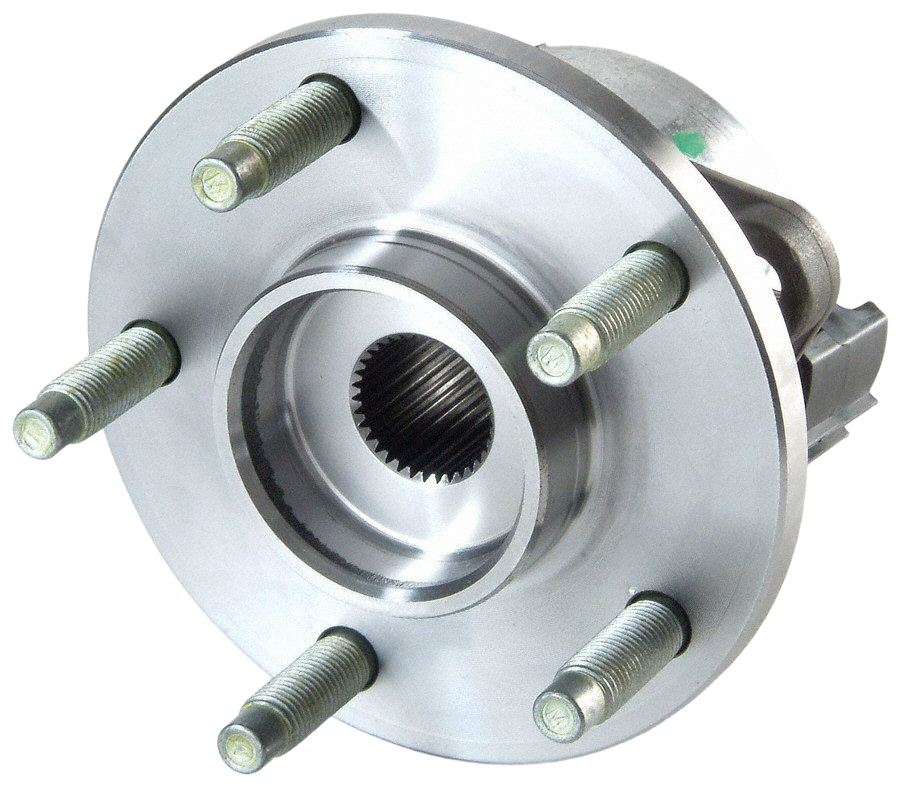

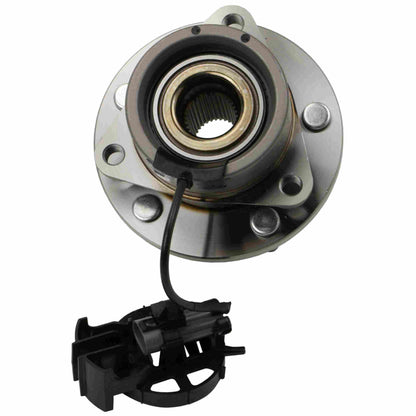

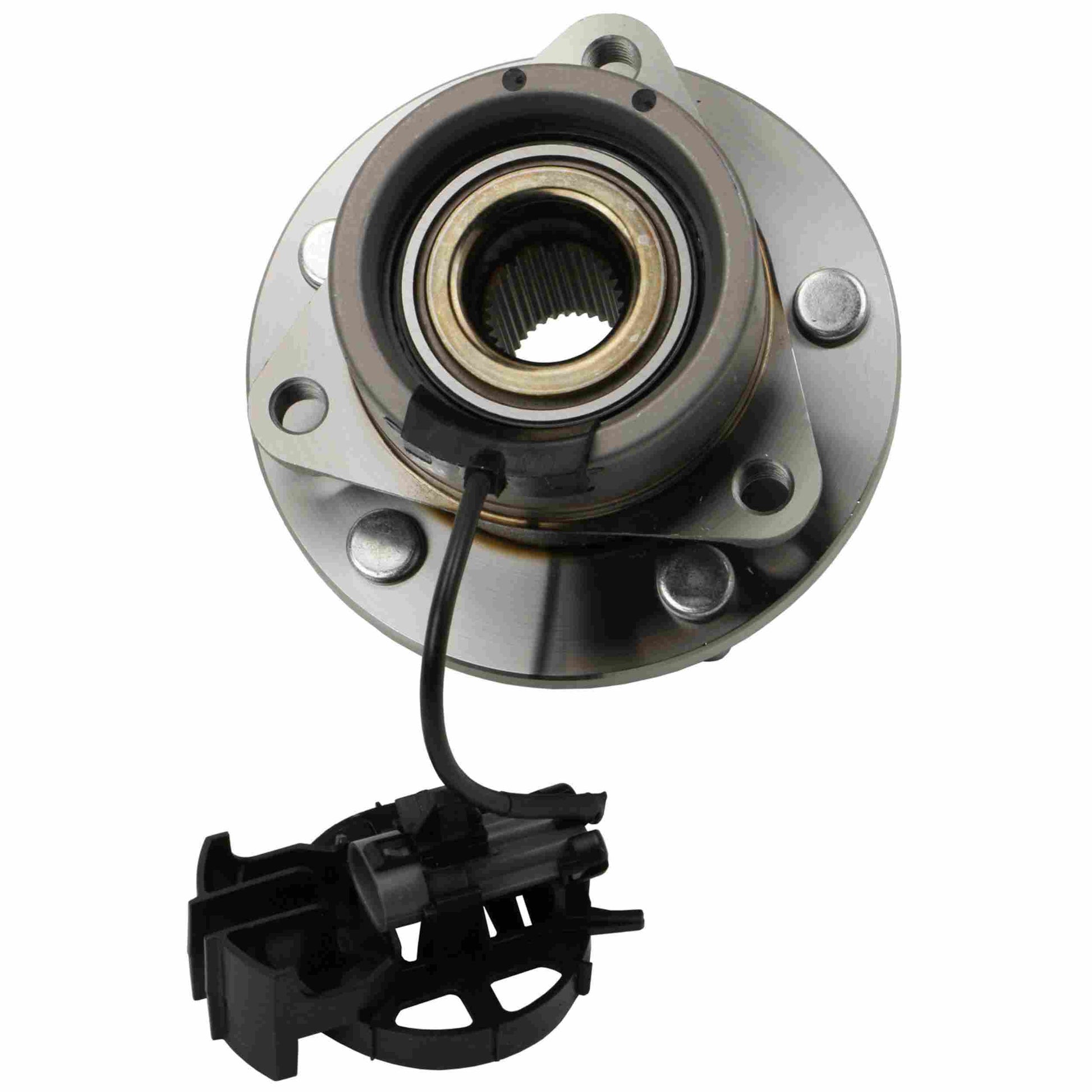

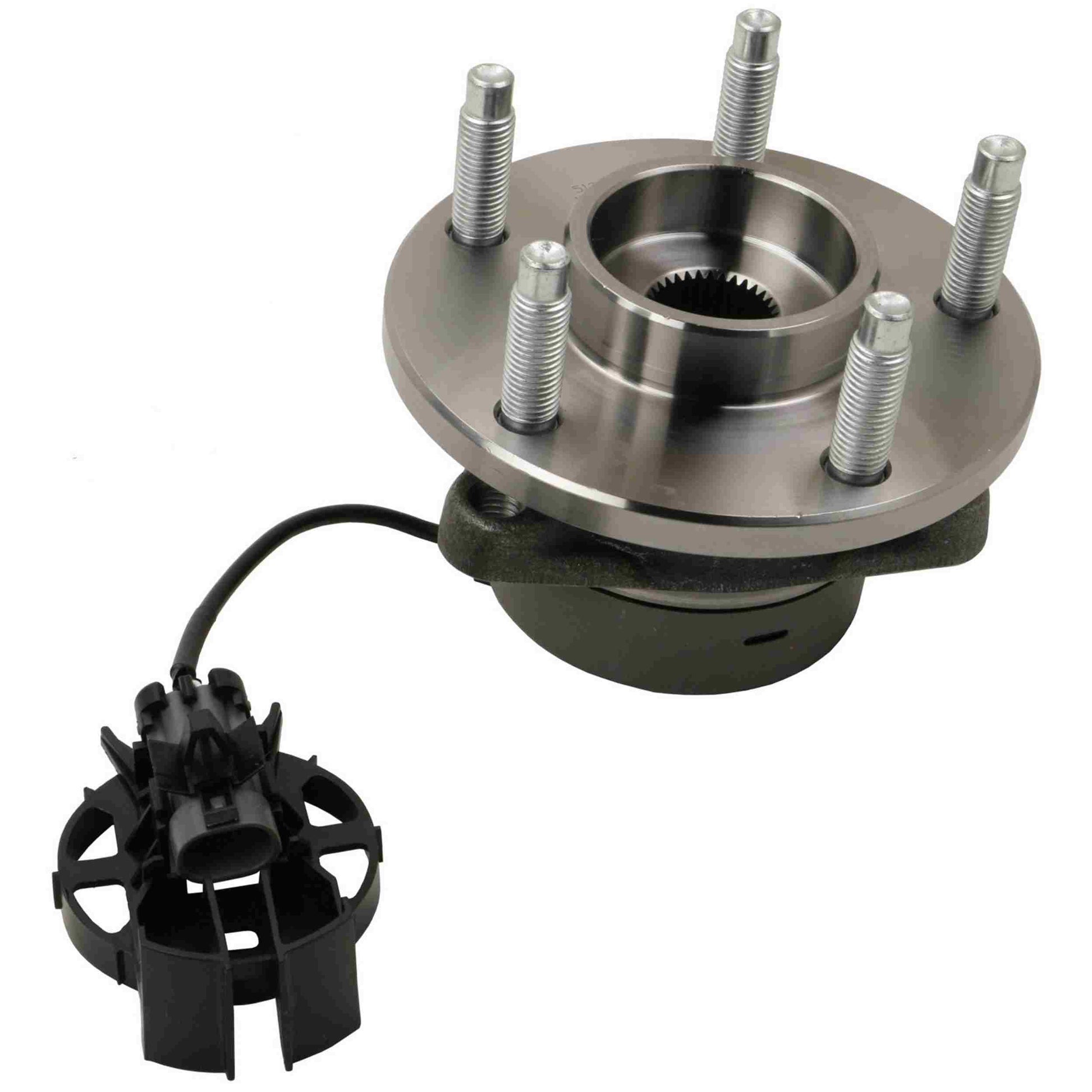

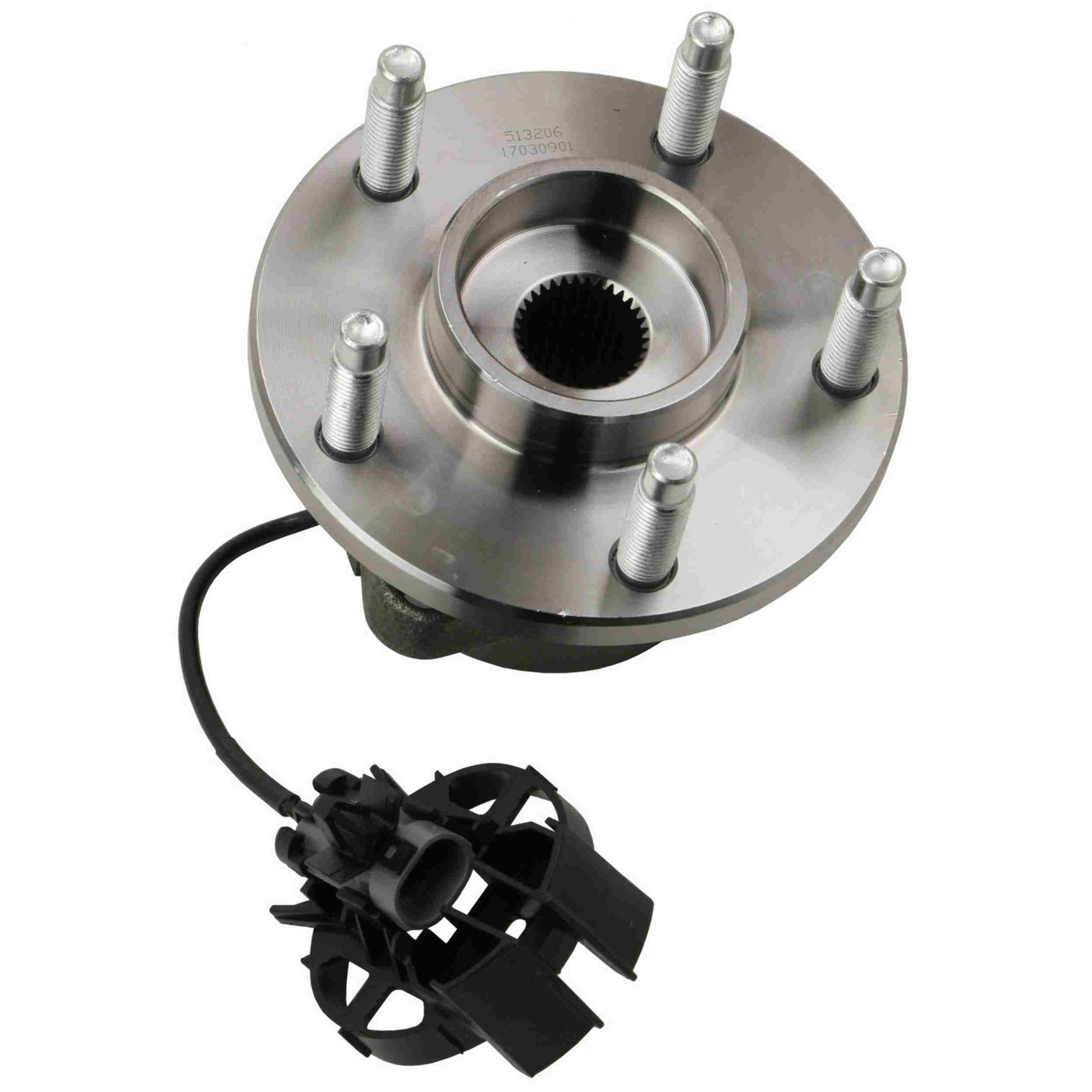

Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.

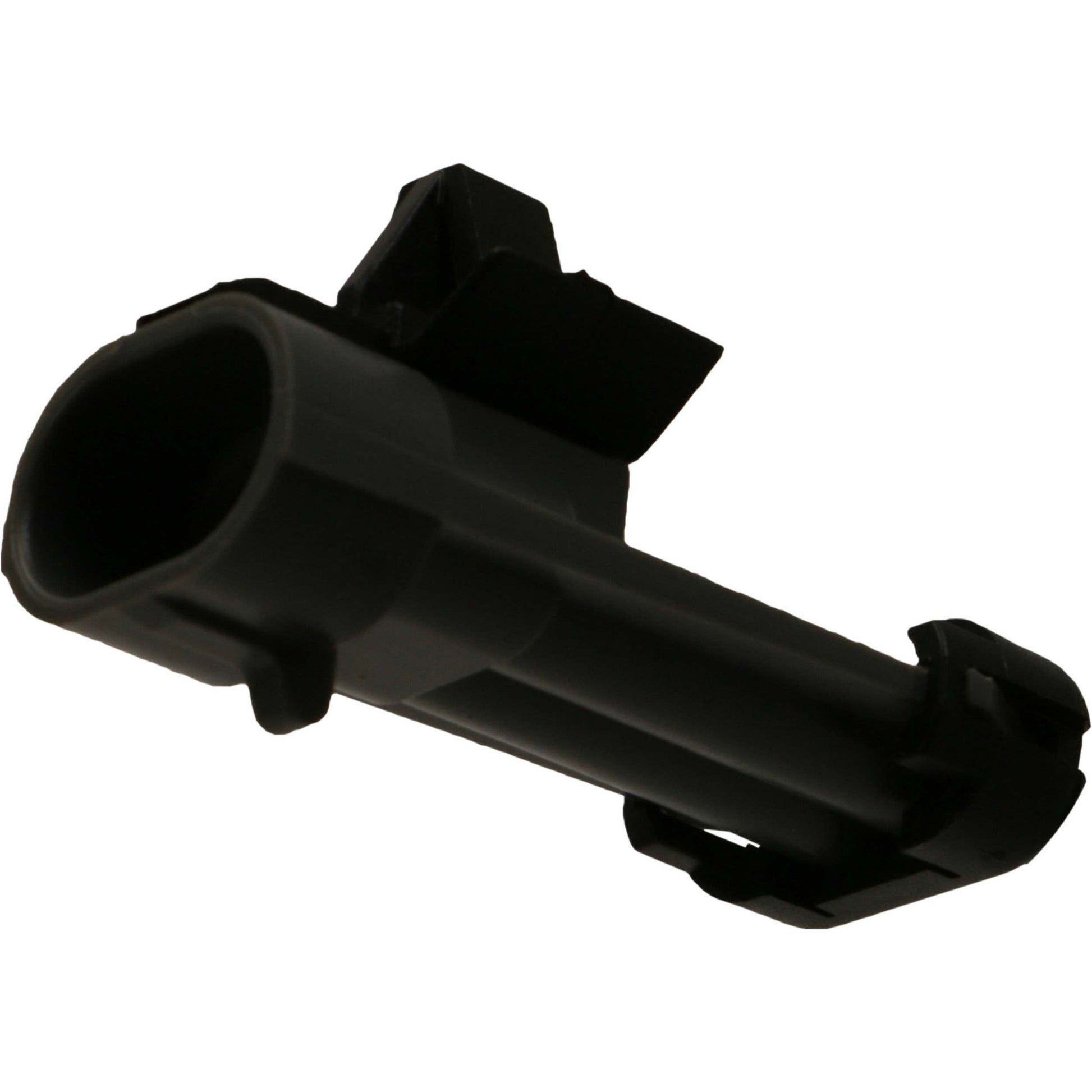

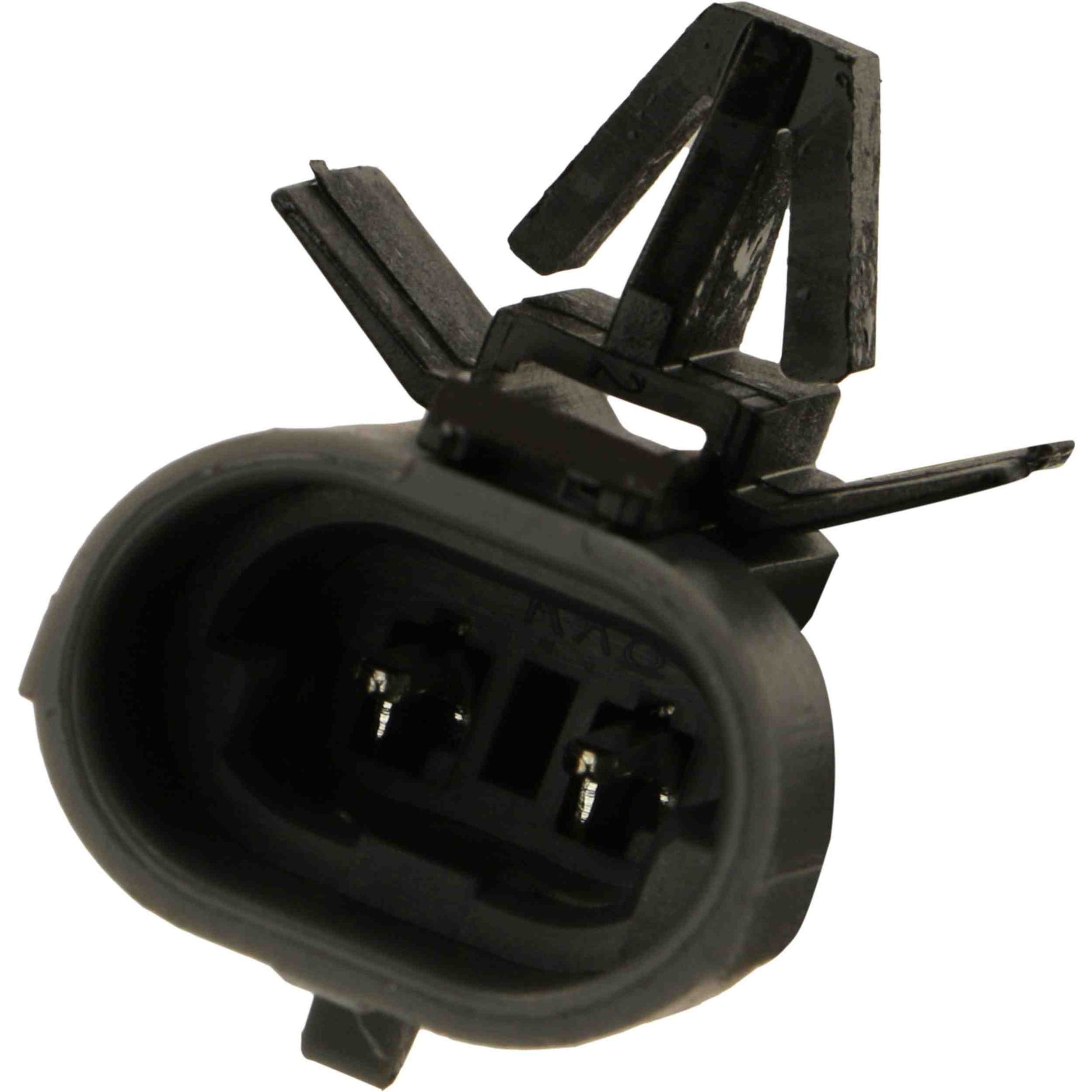

- ABS Molded Shield and Socket Connections: The molded ABS shield and socket connections are used to provide the optimal defense against contamination, providing longer life.
- Engineered to overcome problems and deliver smooth, reliable performance.
Specifications
Hub Assemblies
BoltQuantity: 3
Flange Diameter (A): 136.9
Bolt Circle Diameter (B): 4.330
Bolt Circle Diameter Metric (B): 110.0
Bolt Size (C): M12x1.5
Wheel Pilot Diameter (D): 65.0
Brake Pilot Diameter (E): 65.4
Flange Offset (F): 39.0
Hub Pilot Diameter (G): 85.0
Bolt Hole MET (I): M12x1.75
Bolt Hole Quantity: 5
Number of Splines: 33
Flange Shape (K): MODIFIED
ABS Sensor: Cable
Location: Front Wheel
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010 | Chevrolet | Cobalt | LT Team Canada |
| 2006 - 2007 | Chevrolet | Cobalt | LTZ |
| 2008 | Chevrolet | Cobalt | Sport |
| 2005 - 2010 | Chevrolet | Cobalt | SS, LS, Base, LT |
| 2006 - 2008 | Chevrolet | HHR | Comfort LT, Elegance LT |
| 2007 | Chevrolet | HHR | Edicion Especial |
| 2007 - 2011 | Chevrolet | HHR | LS Panel |
| 2007 - 2010 | Chevrolet | HHR | LT Panel |
| 2006 - 2011 | Chevrolet | HHR | LT, LS |
| 2008 - 2010 | Chevrolet | HHR | SS |
| 2009 | Chevrolet | HHR | SS Panel |
| 2007 - 2009 | Pontiac | G5 | Basico, LS |
| 2007 - 2010 | Pontiac | G5 | SE, GT, Base |
| 2005 - 2006 | Pontiac | Pursuit | Base |
| 2006 | Pontiac | Pursuit | SE, GT |
| 2003 - 2005 | Saturn | Ion | 1 |
| 2003 - 2007 | Saturn | Ion | 3, 2 |
| 2004 - 2007 | Saturn | Ion | Red Line |
