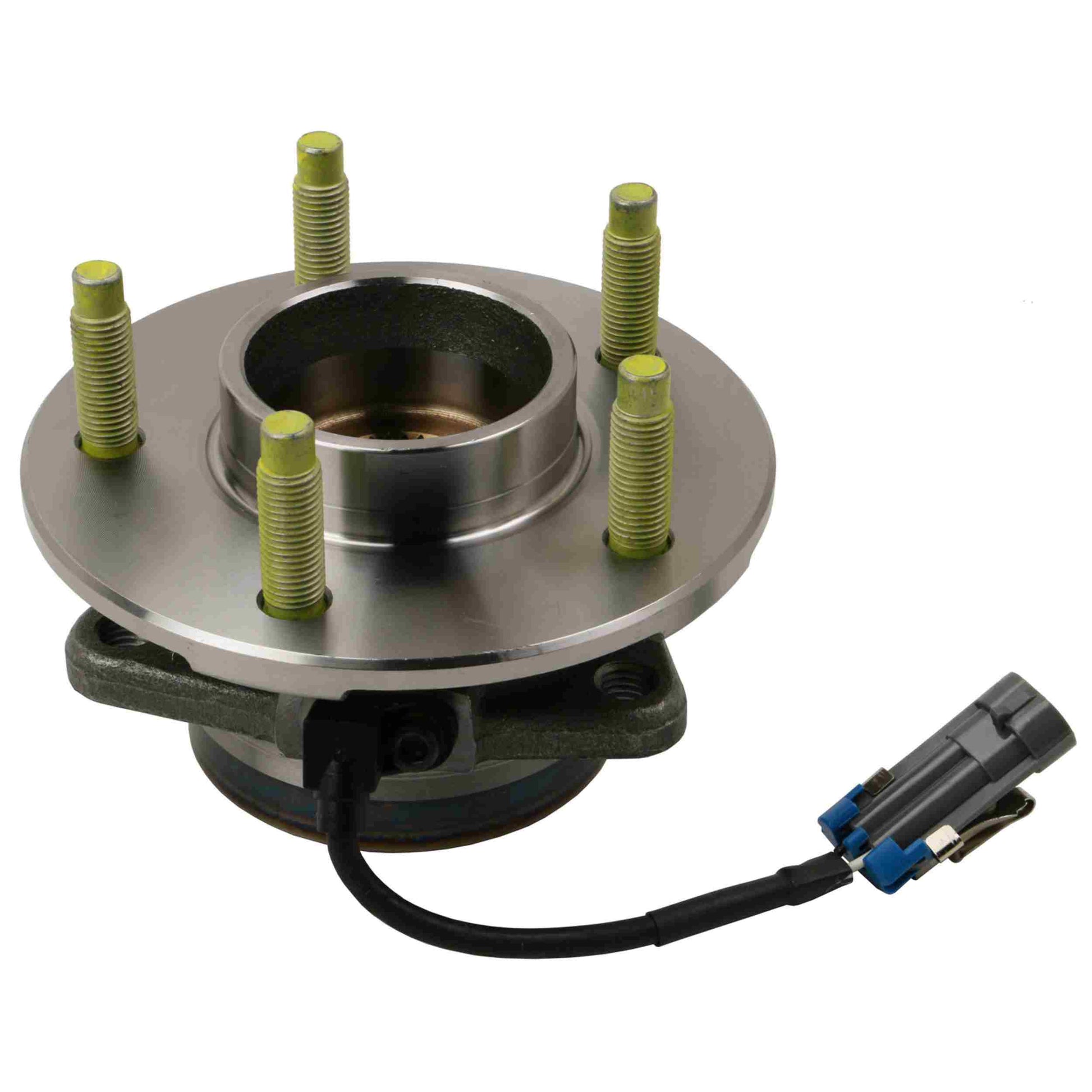

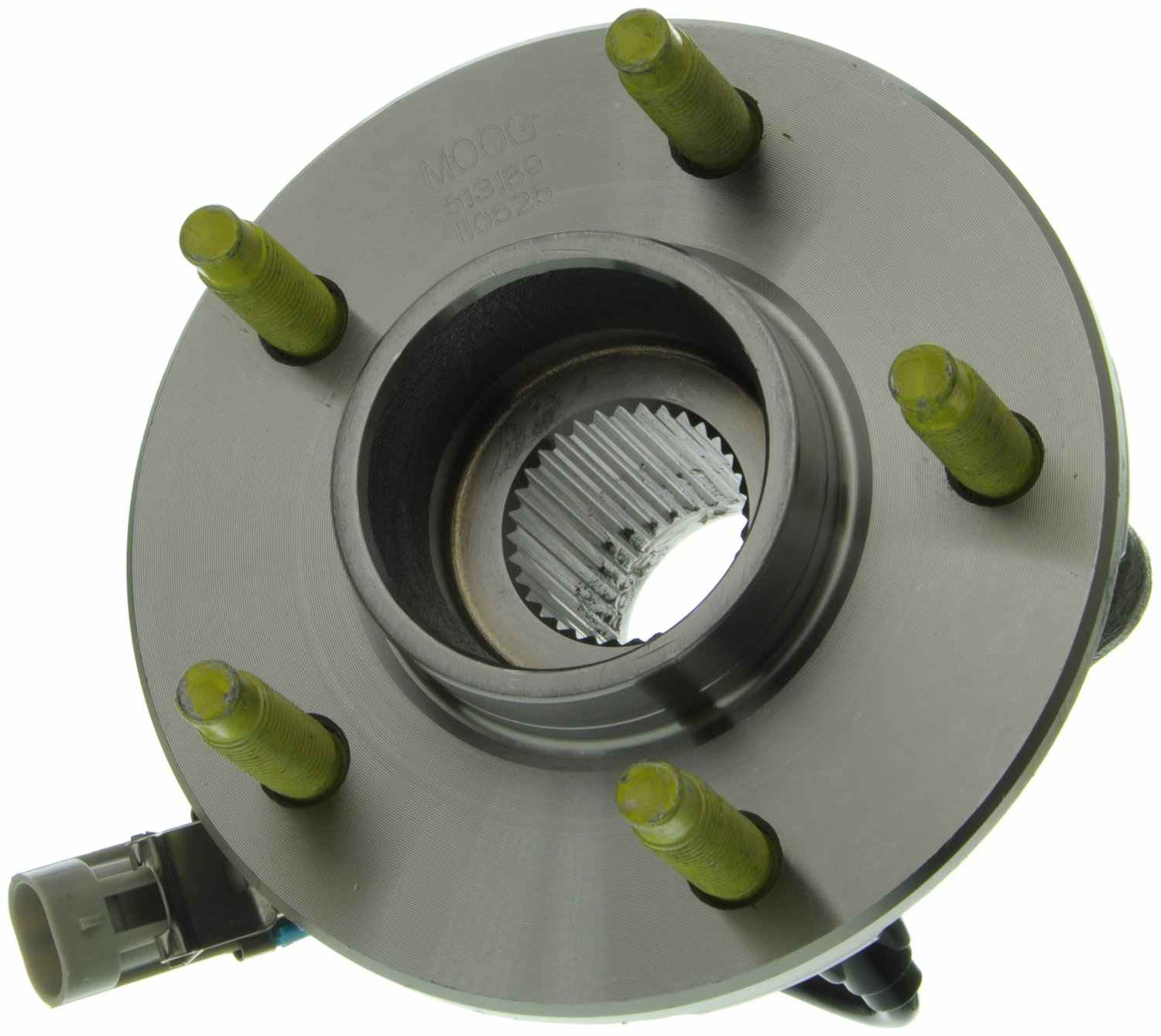

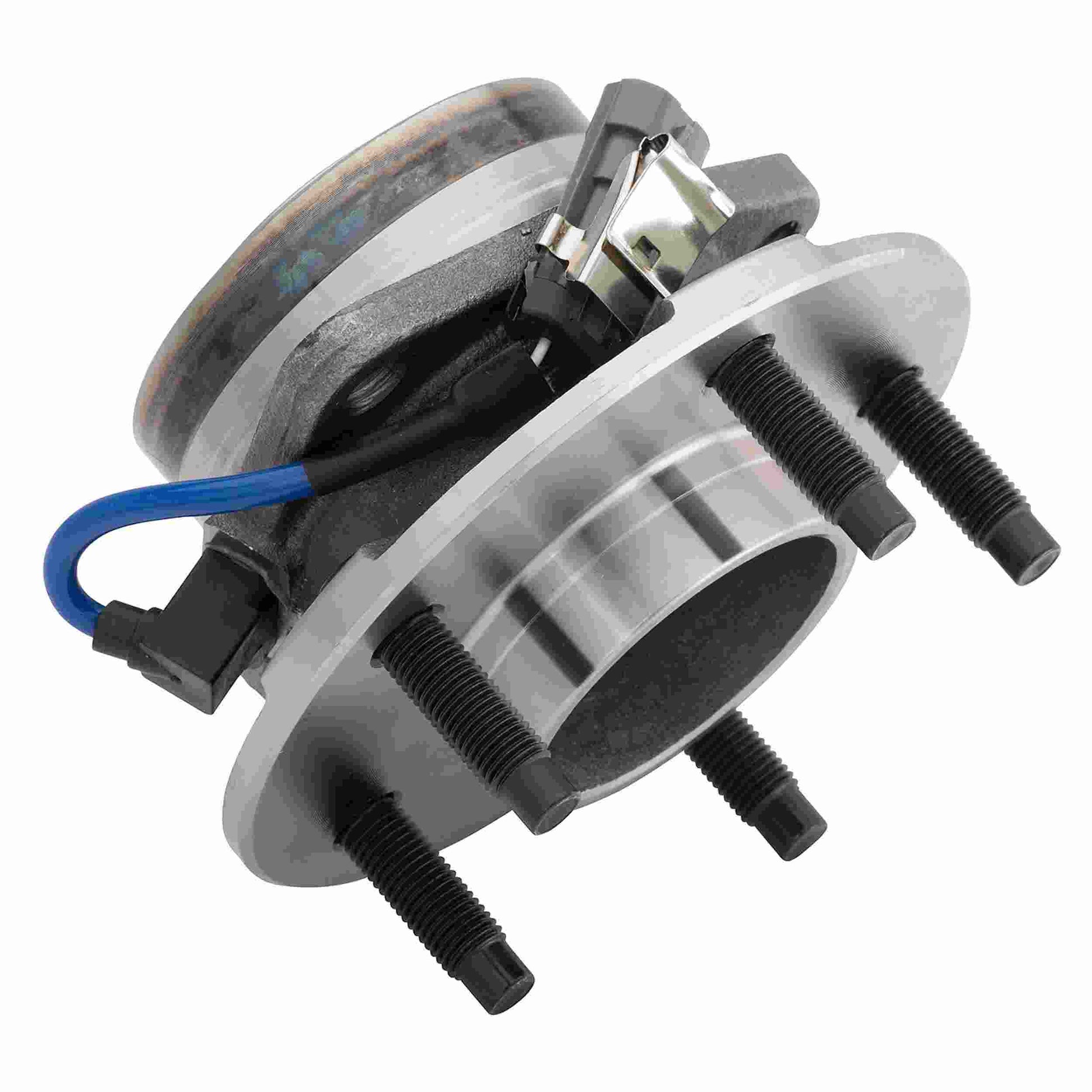

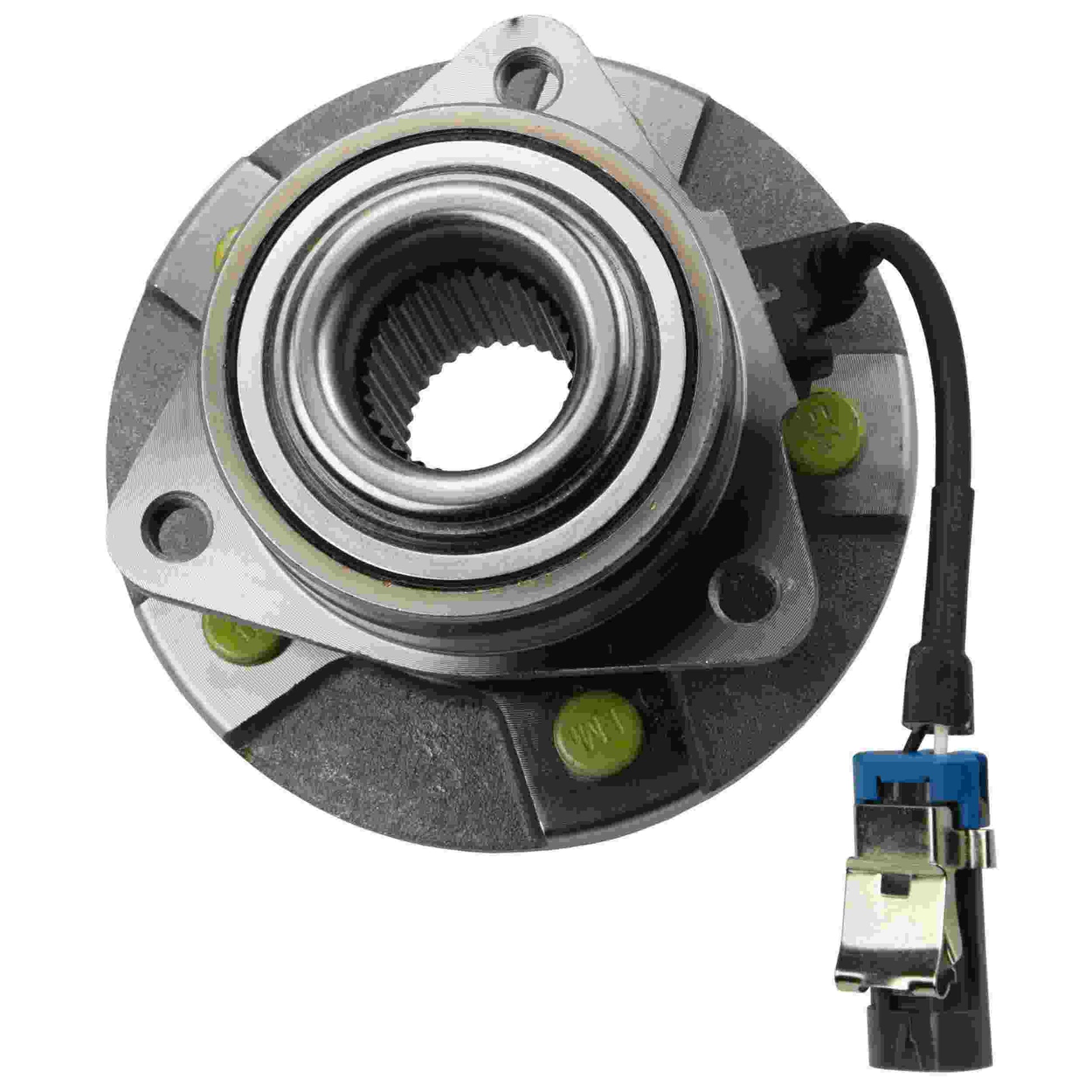

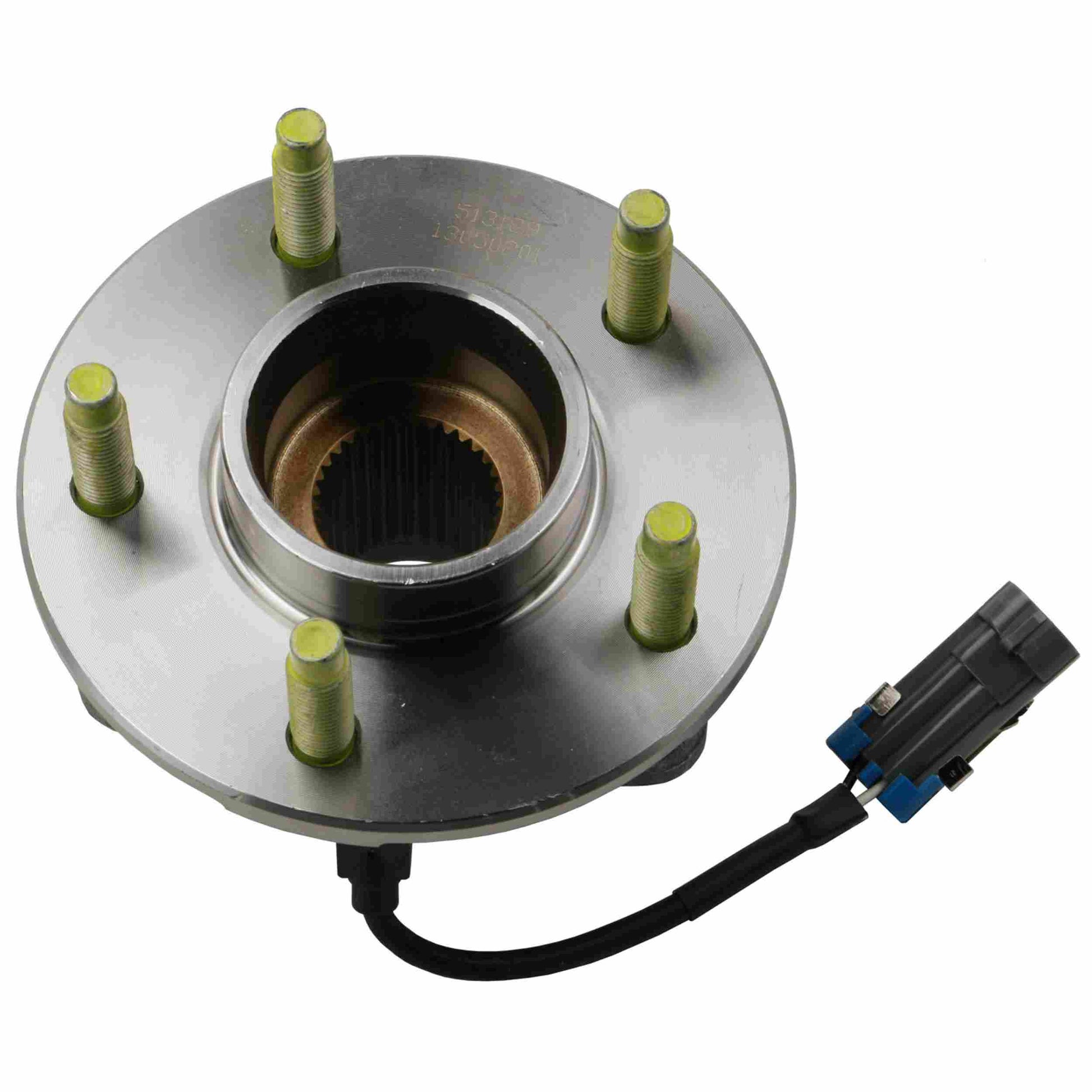

Moog Hub Assembly:Wheel Hub and Bearing Assembly,Chevy,Pontiac,Saturn
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Innovative roll form design ensures consistent and optimal preload.
- Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
- MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
- ABS Molded Shield and Socket Connections: The molded ABS shield and socket connections are used to provide the optimal defense against contamination, providing longer life.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
Specifications
Hub Assemblies
Bolt Quantity: 3
Flange Diameter (A): 150.0
Bolt Circle Diameter (B): 4.530
Bolt Circle Diameter Metric (B): 115.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 70.1
Brake Pilot Diameter (E): 70.6
Flange Offset (F): 42.0
Hub Pilot Diameter (G): 90.2
Bolt Hole MET (I): M12X1.75
Bolt Hole Quantity: 5
Number of Splines: 33
Flange Shape (K): TRIANGULAR
ABS Sensor: Cable
Location: Front Wheel
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2006 | Chevrolet | Equinox | LS, LT |
| 2006 | Pontiac | Torrent | LT, Base, LS |
| 2002 - 2007 | Saturn | Vue | Base |
| 2007 | Saturn | Vue | Green Line |
| 2004 - 2007 | Saturn | Vue | Red Line |
Moog Hub Assembly:Wheel Hub and Bearing Assembly,Chevy,Pontiac,Saturn
Sale price$175.99 USD
